Torque of alternator rotor nut

jms

VIP MEMBER

Joined

Jul 26, 2005

Messages

274

• May 16, 2024

• #1

So just having installed an RGM Atlas belt drive, the question comes up as to how to apply 70 lbs of torque to this nut. I’m thinking that amount applied to a 20mm belt may not be good for it. Thoughts?​



S

SteveBorland

VIP MEMBER

Joined

Nov 15, 2010

Messages

858

• May 16, 2024

• #2

I think the belt has to transmit rather more than 70 ftlbs when running?



kernel65

Joined

Nov 11, 2012

Messages

412

• May 16, 2024

• #3

it’s no problem



Schwany

Joined

Apr 22, 2020

Messages

3,157

• May 17, 2024

• #4

I'll +3 that.

I've done it 3 times with a 20mm RGM belt and 2 times with a 25mm belt. I did not have any problem with the belts.



M

mdt-son

VIP MEMBER

Joined

Jan 19, 2012

Messages

2,163

• May 17, 2024

• #5

jms said:

So just having installed an RGM Atlas belt drive, the question comes up as to how to apply 70 lbs of torque to this nut. I’m thinking that amount applied to a 20mm belt may not be good for it. Thoughts?​

Click to expand...

Gents, torque is measured in lbf-ft. A toothed belt transmits a static tensile force, not a torque. Using common belt parameters for a Norton, 70 lbf-ft equates to about 500 lbf of tensile pull at the belt.

- Knut



concours

VIP MEMBER

Joined

Dec 29, 2011

Messages

9,444

• May 17, 2024

• #6

Simply use a wooden block between a tooth and a stationary point.



Schwany

Joined

Apr 22, 2020

Messages

3,157

• May 19, 2024

• #7

concours said:

Simply use a wooden block between a tooth and a stationary point.

Click to expand...

I wonder if that would work with a belt pulley. The teeth are kind of shallow in depth. I am not knowing.

Much easier to use a clutch locking tool with the belt on both the engine and clutch basket.



Last edited: May 19, 2024

kernel65

Joined

Nov 11, 2012

Messages

412

• May 20, 2024

• #8

I have used both the clutch tool and putting in gear/apply rear brake method.



Hortons Norton

VIP MEMBER

Joined

Oct 12, 2007

Messages

2,068

• May 21, 2024

• #9

Just finished putting mine back together after changing the main seal, I to kinda cringe thinking it going to slip a tooth. It's never had a problem doing it that way.



jms

VIP MEMBER

Joined

Jul 26, 2005

Messages

274

• May 23, 2024

• #10

Just back from vacation. Thanks all



concours

VIP MEMBER

Joined

Dec 29, 2011

Messages

9,444

• May 24, 2024

• #11

Schwany said:

I wonder if that would work with a belt pulley. The teeth are kind of shallow in depth. I am not knowing.

Much easier to use a clutch locking tool with the belt on both the engine and clutch basket.

Click to expand...

Well, wonder if you must.

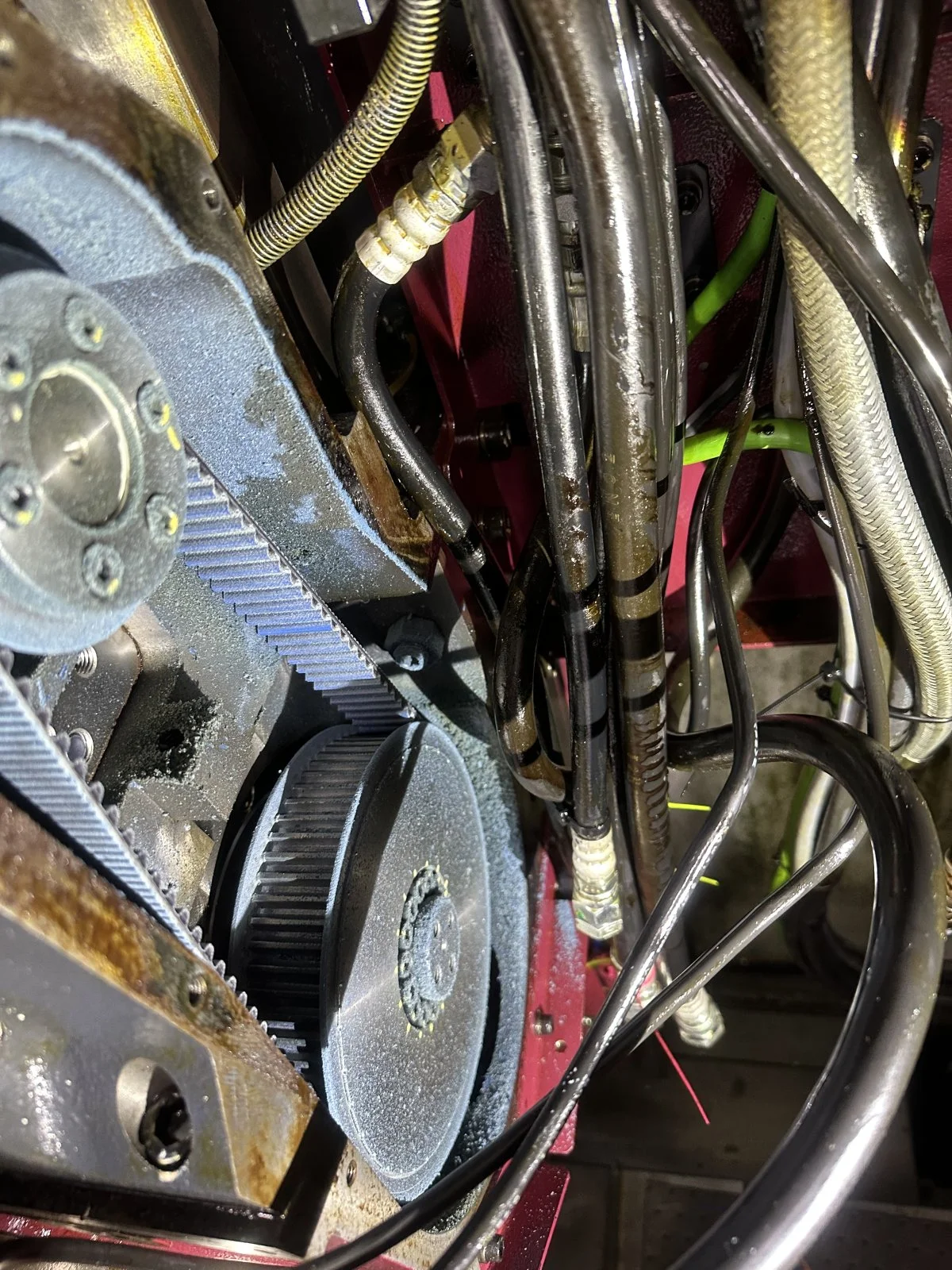

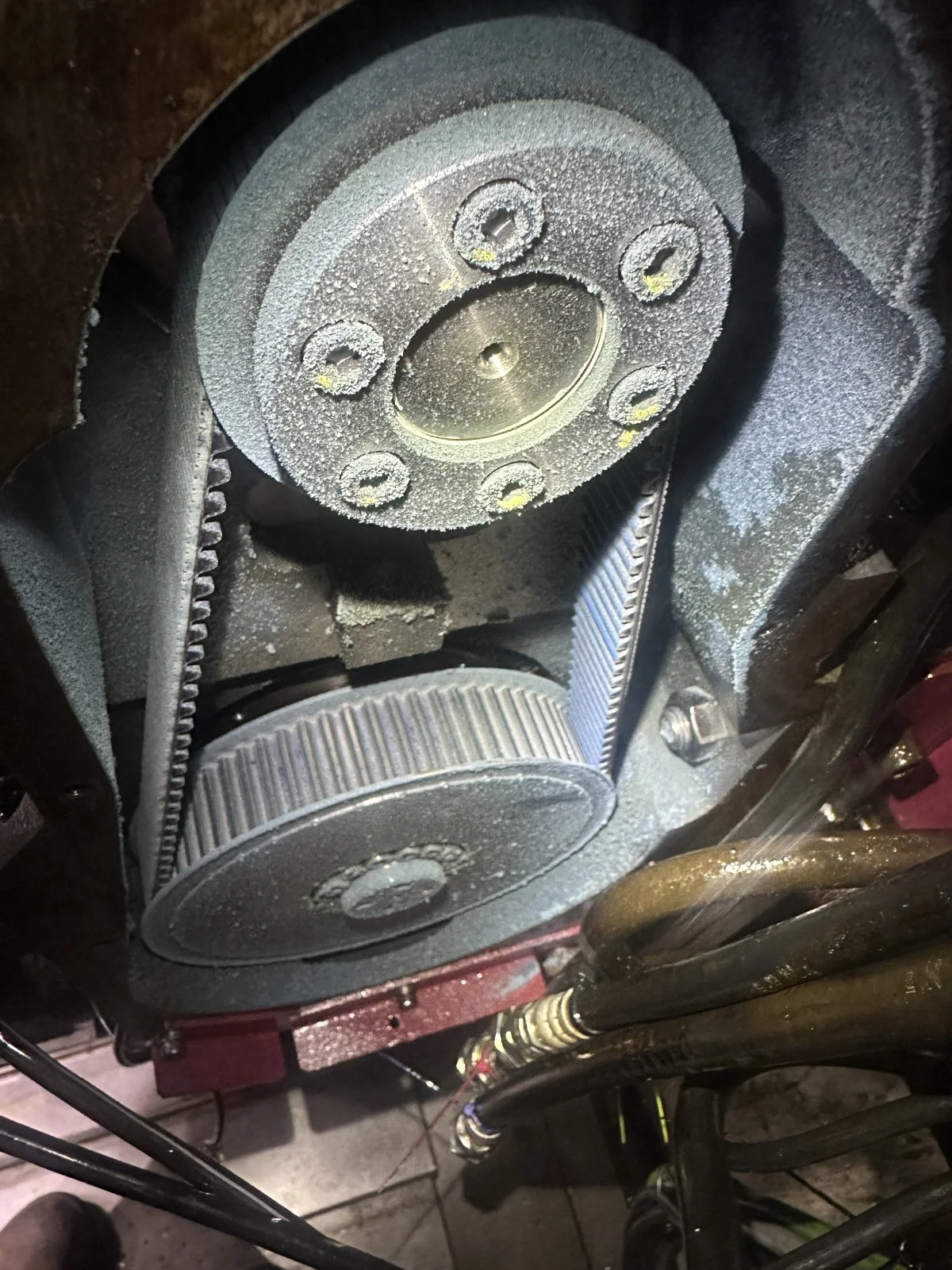

Meanwhile, I work on this type of belt drive regularly.
