RECENT ADDITIONS

Norton Service Tool Catalogue
https://www.norton-club-fr.org/wp-content/uploads/2019/11/Norton-service-tools-catalogue.pdf
Atlantic Green (dynodave) NortonTech. Files:


'Superblend' summary table provided by Andy Heathwood (DevonNorton):

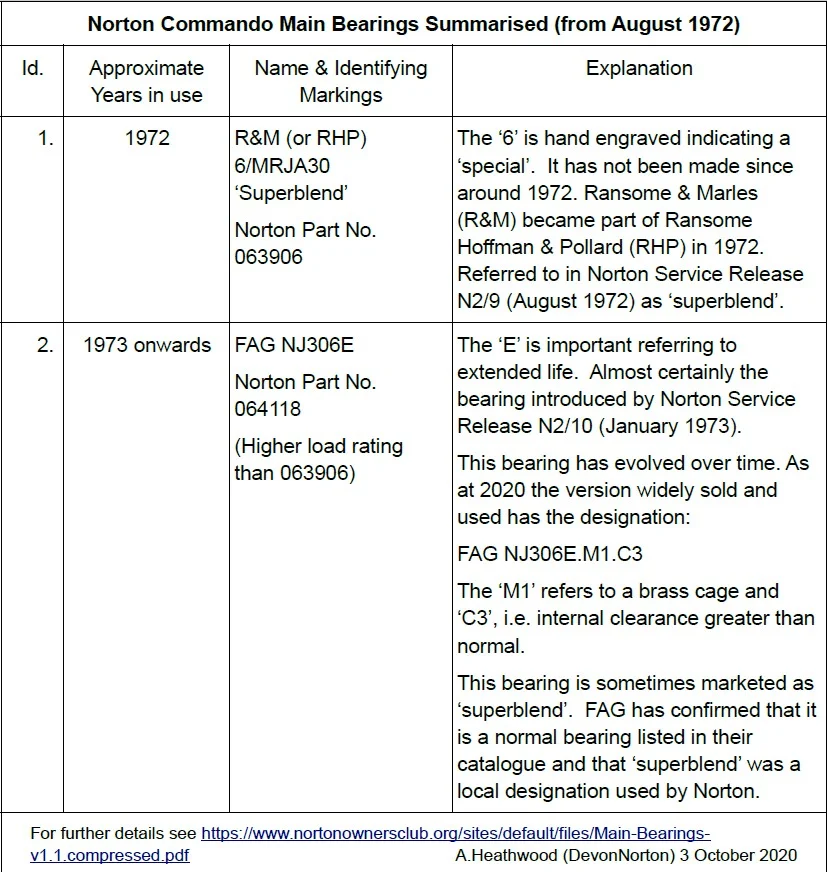

A summary of data and information on Norton Commando main bearings by Andy Heathwood




Spanner/Wrench Size Charts & List
https://www.crawford-space.co.uk/old_psc/spanner_jaw.html (New web page)

https://www.baconsdozen.co.uk/tools/conversion charts.htm


Wiring Diagrams
https://granttiller.com/

Phoenix S.U. Carb Conversion Instructions
Donated by cliffa
See Attachments section at bottom of the page

Lucas Alternator Charging/Output Check
https://www.aoservices.co.uk/info/ALTERNATOR_COLOURS.pdf

British Motorcycle Fastener Database & Model Identfication
https://www.gregmarsh.com/MC/FastenersList.aspx

Amal Carb Tuning Information by John Healy
https://vintagebikemagazine.com/technical-articles/amal/

Commando Parts Books
https://issuu.com/sealycycleservice/sta ... d562b68f97
1968-70
https://www.eurooldtimers.com/functions/get_file_manualy.php?id=3486


French Language Commando Workshop Manual
https://tramber-clausse.pagesperso-orang ... mmando.pdf


Lucas Service Manual
https://jerrydoe.com/norton_pdf/Lucas-service.pdf


1968-1970 Commando Parts List
https://www.eurooldtimers.com/eng/manual ... 1970-.html

AP Lockheed Brake Service Manual
https://www.classicbike.biz/Triumph/Main ... Norton.pdf

Boyer Bransden Ignition Fault Finding

Atlantic Green
Information pages are currently unavailable (404) but are available on Wayback Machine here:

Downloadable degree wheel
https://www.ocf.berkeley.edu/~tee/ramva/degreewheel.pdf

Commando Workshop Companion


Commando Models
The dates are an approximate indication of when each model was generally available and therefore should not be regarded as actual factory production beginning or end dates.

750cc
Original Commando 4/68-3/69
750 R 3/69-9/69
750S 3/69-6/70
Fastback 3/69-8/70
Fastback II 9/70-12/70
Fastback III 1/71-12/71
Fastback IV 1/72-3/73
Fastback LR (Long Range) 4/71-12/71
Fastback LR MkIV 1/72-2/73
Roadster 3/70-12/70
Roadster II 1/71-12/71
(no MkIII Roadster, apparently!)
Roadster IV 1/72-2/73
Roadster V 3/73-10/73
SS (Street Scrambler) 3/71-10/71
PR (Production Racer) 4/71-10/73
Hi-Rider 5/71-12/71
Hi-Rider IV 1/72-2/73
Hi-Rider V 3/73-10/73
Interstate 1/72-2/73
Interstate V 3/73-10/73
850cc
Roadster 1 3/73-12/73
Roadster 1A 9/73-2/74
Roadster 2/2A 1/74-2/75
Roadster 3 2/75-9/77
Interstate 1 3/73-12/73
Interstate 1A 9/73-2/74
Interstate 2/2A 1/74-2/75
Interstate 3 2/75-9/77
Hi-Rider 1 3/73-12/73
Hi-Rider 2 1/74-2/75
Hi-Rider 3 3/75-?
John Player Replica 11/73-2/75


US = UK terminlogy


Motorcycle = Motorbike
Plug wire = HT (High Tension) lead
Rim lock = Security bolt
Wrench = Spanner
Fender = Mudguard
Triple tree = Yoke
Ground = Earth
Fork tube = Stanchion
Gear shift = Gear change
Muffler = Silencer
Gasoline = Petrol
Petcock = Petrol/Fuel tap
Wrist pin = Gudgeon pin
Zerk fitting = Grease nipple
Lifters = Tappets
Counterclockwise = Anticlockwise
Bushing/s = Bush/es
Snap ring = Circlip
Footpeg = Footrest
Transmission = Gearbox
License plate = Number plate
Kerosene = Paraffin
Axle = Spindle
Denatured alcohol = Methylated spirit (or "meths")
High beam = Main beam
Low beam = Dipped (or Dip) beam
Blinkers/Flashers/Turn signals = (Direction) Indicators
Set screw = Grub screw (as a "set screw" in the UK is a fully threaded bolt with a hexagon head)
Tube wrench = Box spanner
Box-end wrench = Ring spanner
Allen wrench = Allen key
Adjustable wrench = "Adjustable" (spanner) or "Shifter"
Vise grip = Mole grip
Breaking-in = Running-in
Flashlight = Torch
Pinging = Pinking
Hose clamp = Jubilee clip
Bondo = Body filler
Rim band = Rim tape
Headlamp bucket = Headlamp shell
Lever perch = Lever bracket
Fiberglass = GRP (Glass Reinforced Plastic)/Fibreglass
Pry = Prise
Vise = Vice
Kickstand = Side stand
Tire iron/spoon = Tyre lever
DC generator = Dynamo
Lord/AV Mount = 'Cotton reel' mount
