T160 Christmas present to self

Discussion in 'Triumph (Classic)' started by Esmerela, Dec 21, 2019.

  1. Esmerela

    Esmerela VIP MEMBER

    Joined:
    Jan 9, 2017
    Managed to find a gap between the downpours today long enough to roll the 160 project out of the workshop, warmed up the engine and set the timing and took a few photos for registration. Though I bought it a year ago It never arrived back in the UK until the end of May. After six months of busy evenings and spare weekends the end is in sight.

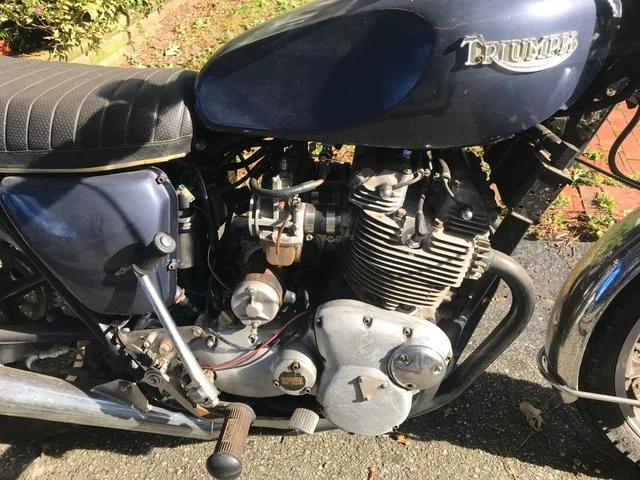

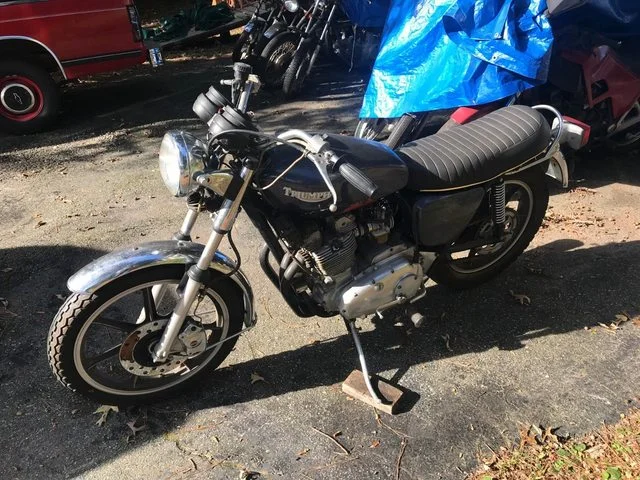

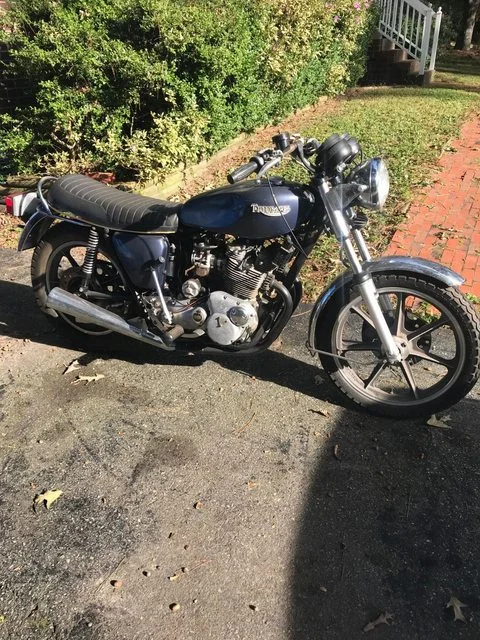

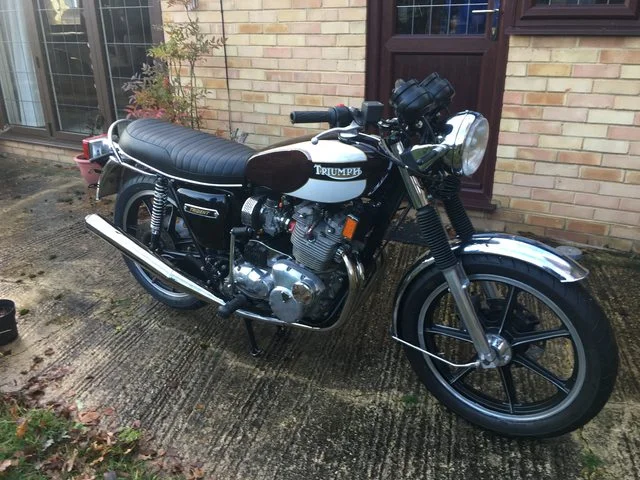

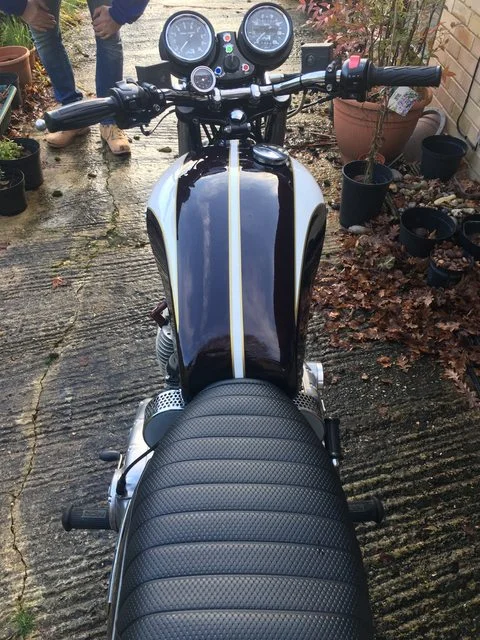

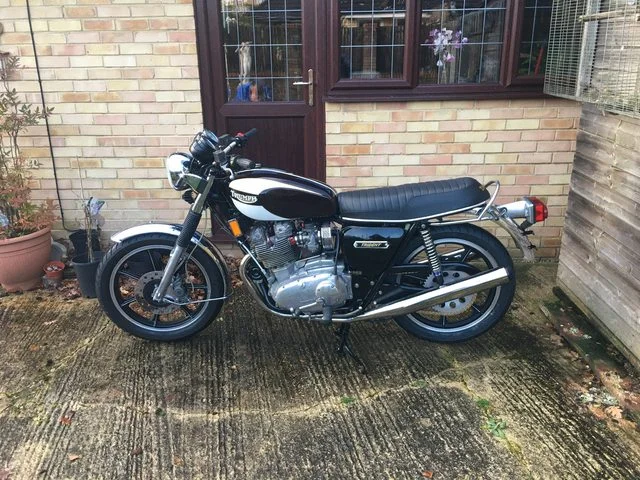

    Some before and after photos below

    [​IMG]

    [​IMG]

    [​IMG]

    T160 progresses after hours of welding and shaping the primary is repaired and back in place have fitted the triplex conversion sprockets with one of the Chain mans duplex chains, clutch

    hub, plate and spring replaced. I also put a lot of time into repairing and riveting the Cush drive centre and spider . I have made a slave cylinder for the clutch now coupled to a Suzuki Burghman 125 rear brake master cylinder all working well with a good feel. Replaced gearbox bearings and 2nd and 3 rd gears on the layshaft. And the kick start quadrant shaft. Headers from Reggie straight through black caps from RGM (chrome is not the best) Mikuni carbs from Hinckley tripple and added an oil pressure gauge.


    Replaced the stator with a high output T140 electric start item from TMS they still have some UK manufactured units topped the charging system off with a Yamaha R1 voltage regulator rectifier, while we are talking electrics I have gone with Boyer micro power ignition a Madigan starter motor and Suzuki switch gear I have wired the system negative earth. LED bulbs throughout.

    Cycle parts : began with a new centre stand the bike came with T140d wheels the front was fine but the back was an atrocious lash up I bought a new Harley 19” Morris mag front and remade the bearing carriers and the through studs etc to adapt it to fit the rear of the 160, I think it looks much better. I bought a set of Ikons for the Commando and fitted the Commandos Hagons on the T160 not ideal but ok for starters.

    I rebuilt the front forks with new stanchions seals and damper pistons I made piston rings from delrin af rather than use the std orings . Brake callipers are replica Lockheed with Harris rear master cylinder and Suzuki Burgman 125 x 1/2” bore on the front, powder coated the rear subframe , swing arm, foot rests plates and battery carrier etc all fasteners are now stainless every rubber replaced.

    I cleaned out the tank using electrolysis with washing soda crystals then I had it shot blasted Apart from the one hole on the lower edge close to the seam the rest was in good shape I repaired the hole with a silver slodered patch.

    [​IMG]

    [​IMG]

    [​IMG]


    Seasons greetings

    Esme

    Last edited: Dec 22, 2019
    baz, Reggie, nortriubuell and 6 others like this.
  2. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Very nice indeed. I love the look with the Morris mag wheels.

  3. Esmerela

    Esmerela VIP MEMBER

    Joined:
    Jan 9, 2017
    Thanks Nigel

    All we need now is a break in the weather ;)

  4. Reggie

    Reggie

    Joined:
    Jul 24, 2006
    Hi Kate, your bike looks very nice. That's a lot of work you've done there.
    The weather forecast looks good for Sunday and Monday. If you get it out for a spin, let us know how it goes.

  5. Esmerela

    Esmerela VIP MEMBER

    Joined:
    Jan 9, 2017

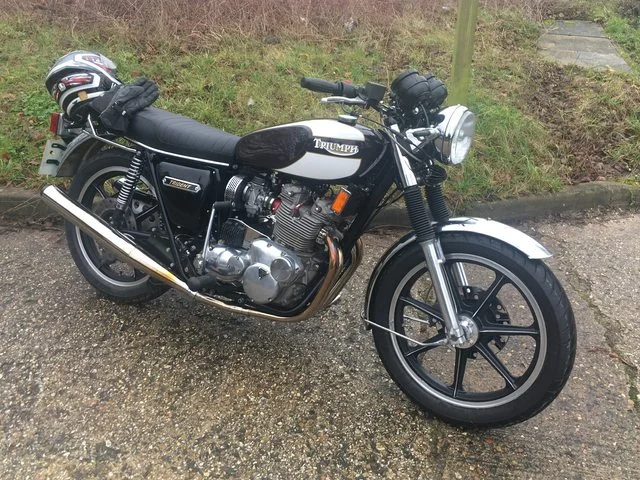

    First ride today :D

    There is still work to do but really impressed with the way the bike responds and it pulls like a train. Ground to an unresponsive halt at one point only to discover that two out of three vacuum caps (blanks for the balance gauges connectors) had gone awol once i realised what was wrong I plugged the holes with hedgerow fittings o_O(two twigs from a bramble bush) stabbed the button and it started:) headed for home and the end of the first ride hopefully get another go tomorrow.

    Best regards

    Esme

    [​IMG]

    komet, Reggie and jbruney like this.
  6. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    Sweet looking.

  7. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009
    Very nicely done. I had a T160 project for a while, but sold it to a friend instead of finishing it. They are great bikes.

    Ken

  8. Esmerela

    Esmerela VIP MEMBER

    Joined:
    Jan 9, 2017
    Thanks J

  9. Esmerela

    Esmerela VIP MEMBER

    Joined:
    Jan 9, 2017
    Thanks Ken

    I guess that you are kept busy enough with out the 160.

  10. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    Beautiful bike. I love the howl of the pipes as the cams get happy...

  11. Onder

    Onder

    Joined:
    May 11, 2010
    Wot bars do you have on it?

  12. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009
    True that. But I still love a triple, so I now have a modern Triumph Street Triple 675 that I'm treating as a rider, not a project bike (at least so far:D).

    Ken

  13. Esmerela

    Esmerela VIP MEMBER

    Joined:
    Jan 9, 2017
    Thank you
    Megacycle inside :)

  14. Esmerela

    Esmerela VIP MEMBER

    Joined:
