Smiths Odometer reset knob ?

speirmoor · Sep 10, 2023

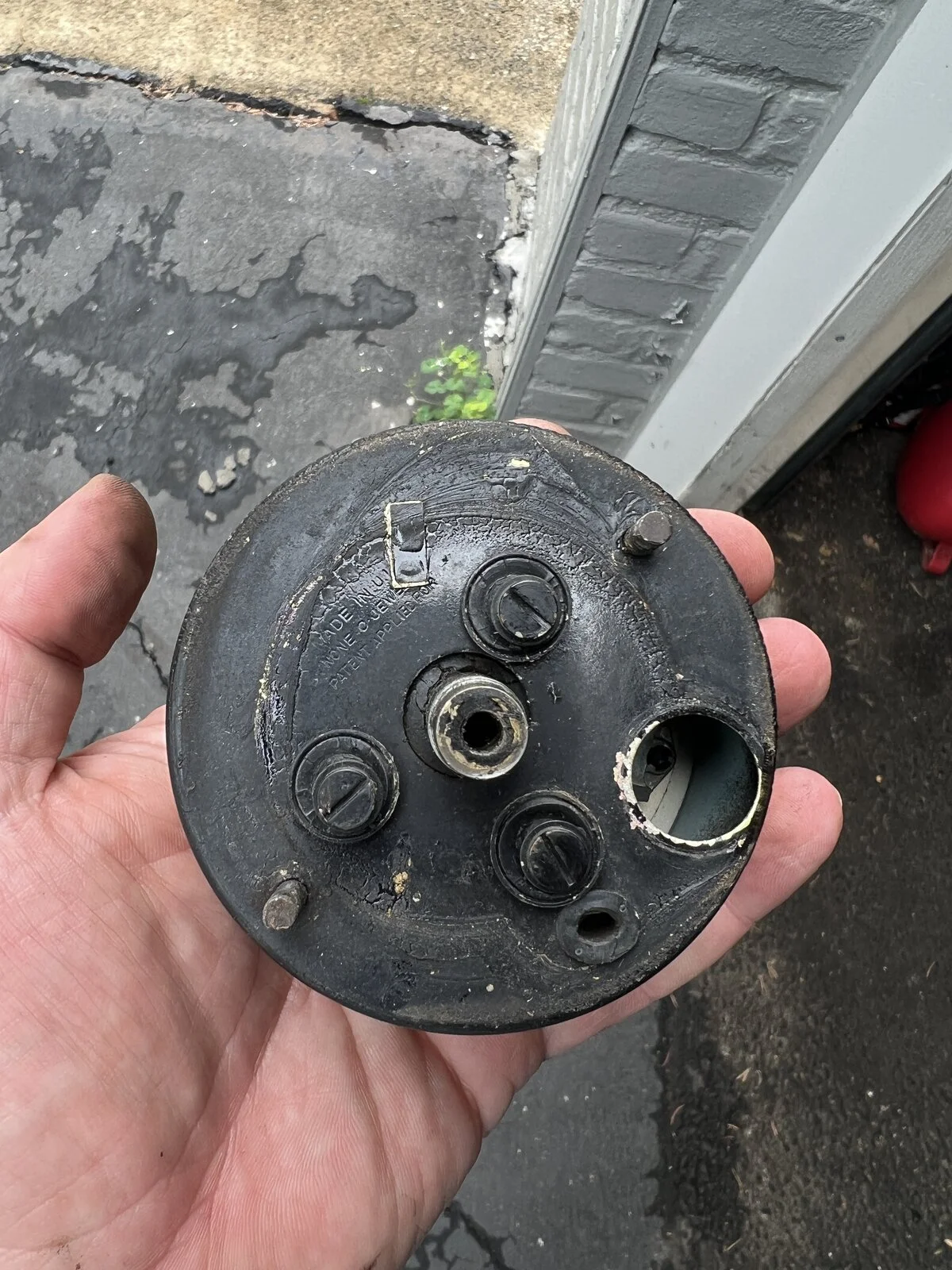

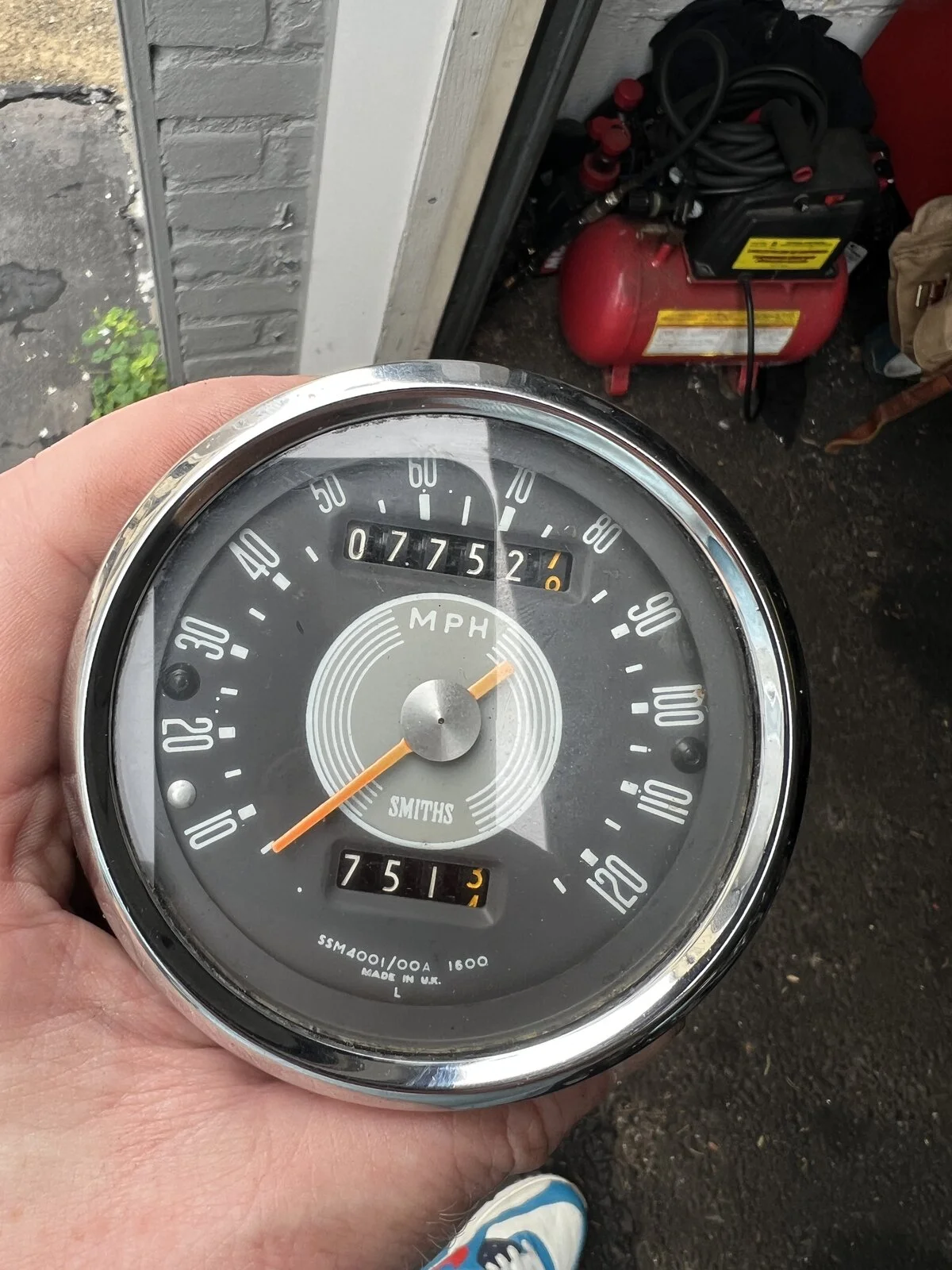

I got this speedo and the reset knob is missing. Looks like it would have out the bottom as there are no holes on the side . Anyone where I can get one or even more interestingly how does it stay in place ?

texasSlick · Sep 10, 2023

Yes, the knob comes out the bottom. It's pull and twist to reset. IIRC, the shaft of the reset knob is a tube that slips over a rod and is retained by a small cotter pin.

Slick

baz · Sep 11, 2023

I'm pretty sure it's this type
It's just a push in snap fit https://www.ebay.co.uk/itm/11360696...gGXShiHQWK&var=&widget_ver=artemis&media=COPY

texasSlick · Sep 11, 2023

My speedo is a chronometric ...... might be different from later magnetics.

Richard Tool · Sep 12, 2023

Nisonger may be able to help

Nisonger Instruments :: the Exclusive U.S. Distributor, Warranty & Service Center for Smiths & British Jaeger Instruments since 1949,

Nisonger Instruments is a full-service supplier of Smiths Instruments gauges and high performance components and trim items for Shelby Cobras and other high-performance applications.

www.nisonger.com

baz · Sep 12, 2023

texasSlick said:
My speedo is a chronometric ...... might be different from later magnetics.

Yep chronos are an external male fitting

speirmoor · Sep 12, 2023

baz said:
I'm pretty sure it's this type
It's just a push in snap fit https://www.ebay.co.uk/itm/11360696...gGXShiHQWK&var=&widget_ver=artemis&media=COPY

This one says it for the "Side"
Do you think it'll still work?

Onder · Sep 12, 2023

They come in different lengths for the magnetic. Push in and pull out fit.

baz · Sep 12, 2023

speirmoor said:
This one says it for the "Side"
Do you think it'll still work?

I think it's the same fitting
Bottom or side
But the bottom fitting one was longer so you can reach it
If memory serves me correctly
