Schematics Lucas Rita Powerbox

cliffa said:

Just posted this on your other thread..

Workshop Services

Testing and repair of motorcycle stators, electronic ignition. Pazon Sure Fire, Tri-spark and Lucas Rita AB5 AB11.

www.rexs-speedshop.com

Lucas Rita Up-grade Archives - Rex's Speed Shop

www.rexs-speedshop.com

Cheers,

cliffa.

Click to expand...

arch said:

There is a schematic in the Norton Tech Digest which is sold by the INOA.

Click to expand...

dynodave said:

Yes it's in there, as contributing editor, I researched it and submitted it.
FWIW it is clearly the "A" version AB11

Click to expand...

Rex’s “Rita Revival” Replacement for Lucas Rita AB11 & AB5

Modern repair for Lucas Rita AB11 and AB5 electronic ignitions. Brand new electronics to fit inside existing cases. Rex's Rita Revival

www.rexs-speedshop.com

Kjell said:

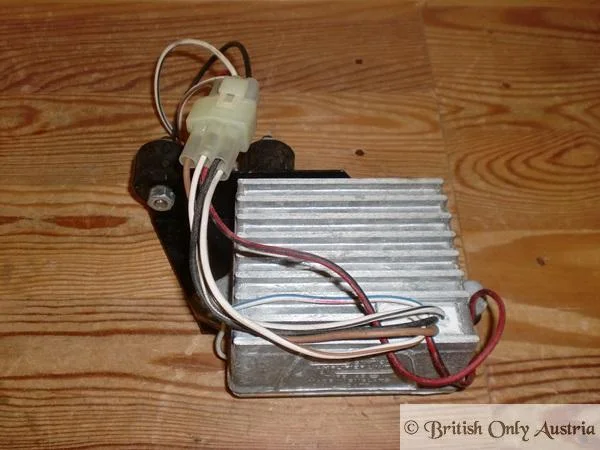

View attachment 17781


Anybody out there with some kind of schematics for this unit ? I am trying to find out if it is working or not before I throw in the towel and buy a tri spark. I presume it at least is supposed to get 12 Volts over the ignition key. Which wire ?

Click to expand...

hubertcook said:

I also have one of these that came with a 75 Mk3 basket case that has been sleeping in someone's garage since 1981. Did you get a wiring diagram for it? I need one as well.

Click to expand...

cliffa said:

Welcome hubertcook. Have a look at the link in post #5 above.

Cheers,

cliffa

Click to expand...

gforce said:

@hubertcook same username when you google it:

https://granttiller.com/custom-norton-commando-wiring-diagram-kjell

Click to expand...
