Runs well, plugs foul....

Discussion in 'Norton Commando Motorcycles (Classic)' started by Lineslinger, Mar 30, 2019.

  1. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    A bit lengthy but please bear with me, just making info as complete and accurate as I can.

    1974 850 Cmndo. The engine starts and runs well through full RPM range...until the plugs start to foul...within 30 miles.

    I am running twin Amal 932's that I have overhauled. New slides, 3 position needles, main jets (standard 220's), floats and float needles. Synchronization between the two is good.

    Tri spark ignition with ign. pack, fresh plugs and leads with proper resistance...set dead nuts on at 28º BTDC.

    While overhauling the head this fall, I went back into the carbs as the combustion chambers and plugs displayed rich mixture in color/deposits.
    Upon reassembly I set the needles at their upper most setting, looking for a leaner offering.

    The carb work was meticulous. Idle jets clear with smooth operation throughout. Reassembled everything and fired on 3rd kick. No air leaks around the fitting faces.

    As I rode and started and tweaking the air adjustment screws to find an acceptable mixture I noted how far in the air adjustment screws needed to be turned from recommended 1.5 turns out, 1.10+ back in apprx., thus enriching the mix.
    I attributed this, partially to the K&N air filter allowing more air intake.
    Popping gone, decelerates smoothly, good throttle response.

    Dirty/a bit sooty plugs found when starting became difficult.

    My next step is to adjust the needles one setting, to the #2 position, richer, and reset the air adjustment screws to 1.5 out from seated and see where that takes things.
    I have other ideas but would like to hear from those the have been there - done that.

    I have a clue as to how carbs work, Holley's, Webers, SU's.
    I really like the simplicity of the Amals and know there is a sweet spot in there somewhere. I would like to find said sweet spot rather than getting pissed off and end up sitting on the curb beating my dick with a brick because the beast won't run or start.

    Thanks for reading.

  2. Onder

    Onder

    Joined:
    May 11, 2010
    Dare I ask about the float level?

  3. o0norton0o

    o0norton0o VIP MEMBER

    Joined:
    Apr 27, 2015
    Rich plugs could be a weak spark or wrong plug heat range, weak coil, poor engine ground, weak battery, weak alternator, or anything that weakens the spark as you ride. If your battery is old, change it. Put a voltmeter on your bike as it runs and see if the alternator is charging when you use the throttle...

    We haven't even gotten to the carb stuff yet and there's a lot to check...

  4. 1up3down

    1up3down

    Joined:
    Jan 12, 2011
    Tri spark ignition with ign. pack, fresh plugs and leads with proper resistance...set dead nuts on at 28º BTDC.
    ========================

    Assume you mean you used a strobe light and raised the rpm's to fully advanced at 28?

    - the Trispark ignition requires a "resister" between the coil and combustion chamber
    so for example are you using resister spark plugs like NGKBPR7es?
    or resister plug leads? But NOT two methods of resister, not both plugs/leads

    what coil set up? a single 12 volt dual lead like CNW recommends with Trispark?

  5. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    I have a similar set up('74 850), but no resistor plugs & use original Amal needle setting. Carbs recently rebuilt & wassell ignition, NGK BP7ES, K&N filter. Generally I'm at close to 1 1/4 turns out on both depending on temperature, also at sea level.

  6. Onder

    Onder

    Joined:
    May 11, 2010

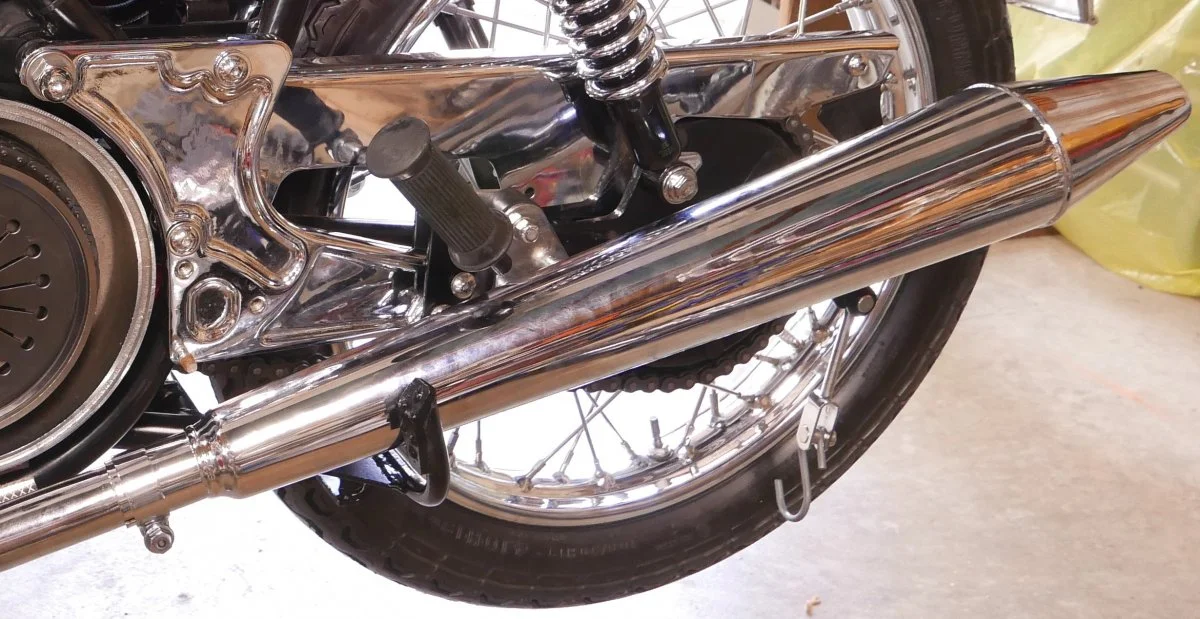

    What exhaust do you have installed?

  7. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    Been through it all. Just finished a ground up restoration.
    CNW ignition pack. New battery, 12,2 V out at 3500, always on maint. charger, ground solid, new plugs supplied with new ignition set up. No more coils or points.
    Thanks for reading.

    Last edited: Mar 30, 2019
  8. batrider

    batrider

    Joined:
    Aug 9, 2008
    I'm sure you have coils of some sort.

  9. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    Resistor plug leads. The ignition system supplied by Matt. Understood about redundancy on resistance.
    28 degrees strobed. Initial setting with degree wheel.
    Thanks for reply.

  10. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017

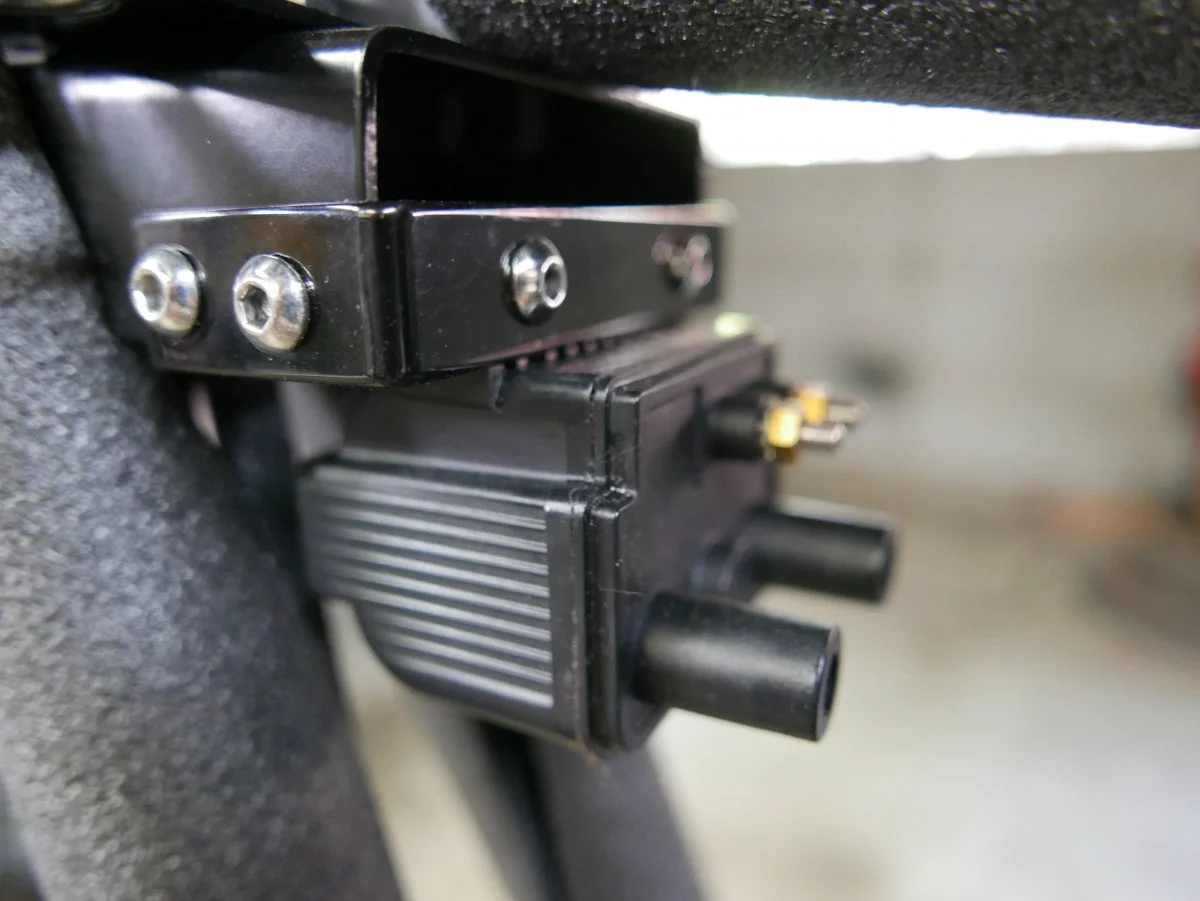

    Guess I should have made it clear when I said CNW ignition pack earlier.....no traditional coils

    Thanks for the read.


    Last edited: Mar 30, 2019
  11. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    Thank you for looking.


    Last edited: Mar 30, 2019
  12. CanukNortonNut

    CanukNortonNut

    Joined:
    Aug 8, 2005

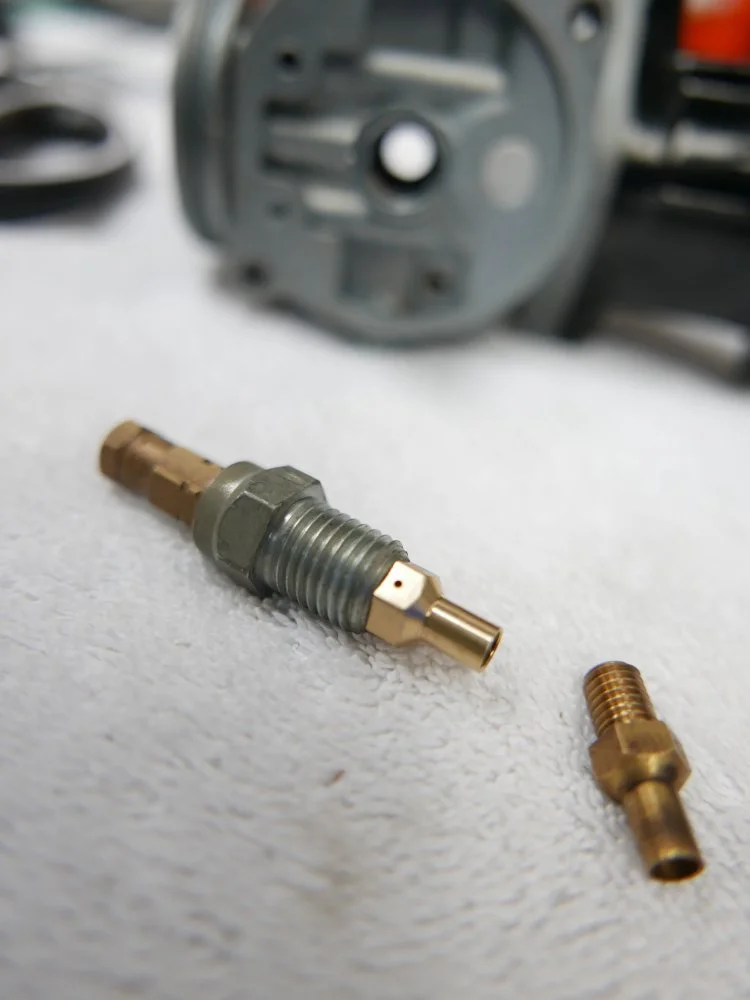

    Did you replace your needle jets?

  13. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    Original needle setting.
    So you set the clip, from top down, to the # 2 position on the needle?


  14. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    Yes.
    See original post, 3rd sentence.

    Thanks for the interest.


  15. o0norton0o

    o0norton0o VIP MEMBER

    Joined:
    Apr 27, 2015
    The logical me says that because it's both plugs on a dual carb bike, you either have both carbs set up with the same erroneous setting, OR it's electrical because it's effecting both sides... I'd run an extra ground from the engine to the battery and also from the positive terminal of the coil to the battery. (assuming pos ground)

    the 12.2 volts at 3500rpms is lower voltage than I would expect...

  16. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    The 12.2 V out is with all LED lighting turned on. 13.3 V out with lights off.

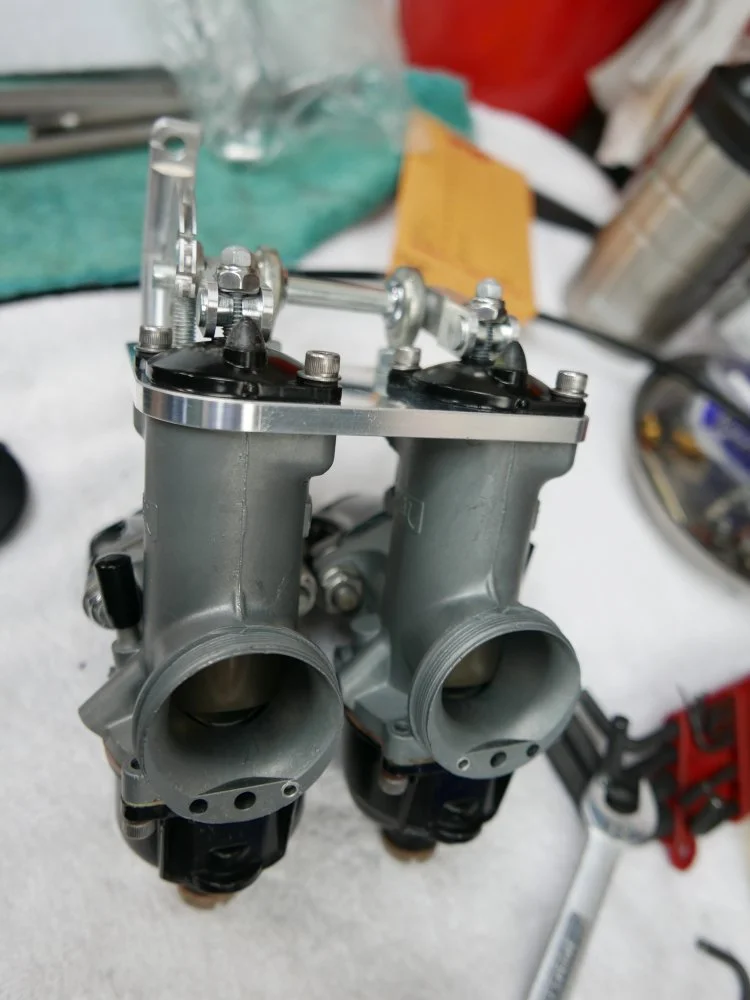

    Jets are all original spec., with The Madass sync. plate in place and adjustment settings as specified by Amal.
    I will try redundant ground even though the meter tells me ground is good.

    Thanks for the insight.

  17. CanukNortonNut

    CanukNortonNut

    Joined:
    Aug 8, 2005
  18. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    Have yet to check for accurate float level.
    Do you have an accurate technique to measure this on Amals. I did a search but not clear on method described.
    Assuming a rich condition would mandate lowering float deeper into the bowl closing off needle valve sooner?

  19. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    New style floats with black tipped aluminum (I assume) float needle valves. Bowls can be drained.
    Thank you for the link.

  20. CanukNortonNut

    CanukNortonNut

    Joined:
    Aug 8, 2005
    According to Roy Bacon's Norton Twin Restoration: 850 mk2a option for 74 would be 220 mains. The carbs should be stamped R 932/33 and L 932/34 My 74 850 Interstate had 260 mains but when I changed the cam(Megacycle) required 270 mains. My guess and Onder's is that the floats are influencing the needles during riding.

    Last edited: Mar 30, 2019
