RGM 32mm belt / Alton / Yves mod anyone?

andyd

andyd

FULL MEMBER
Joined
Jan 2012
Messages
45
Country flag
Had anyone fitted the Alton with a 32 mm RGM belt and has anyone fitted the Yves mod at the same time?

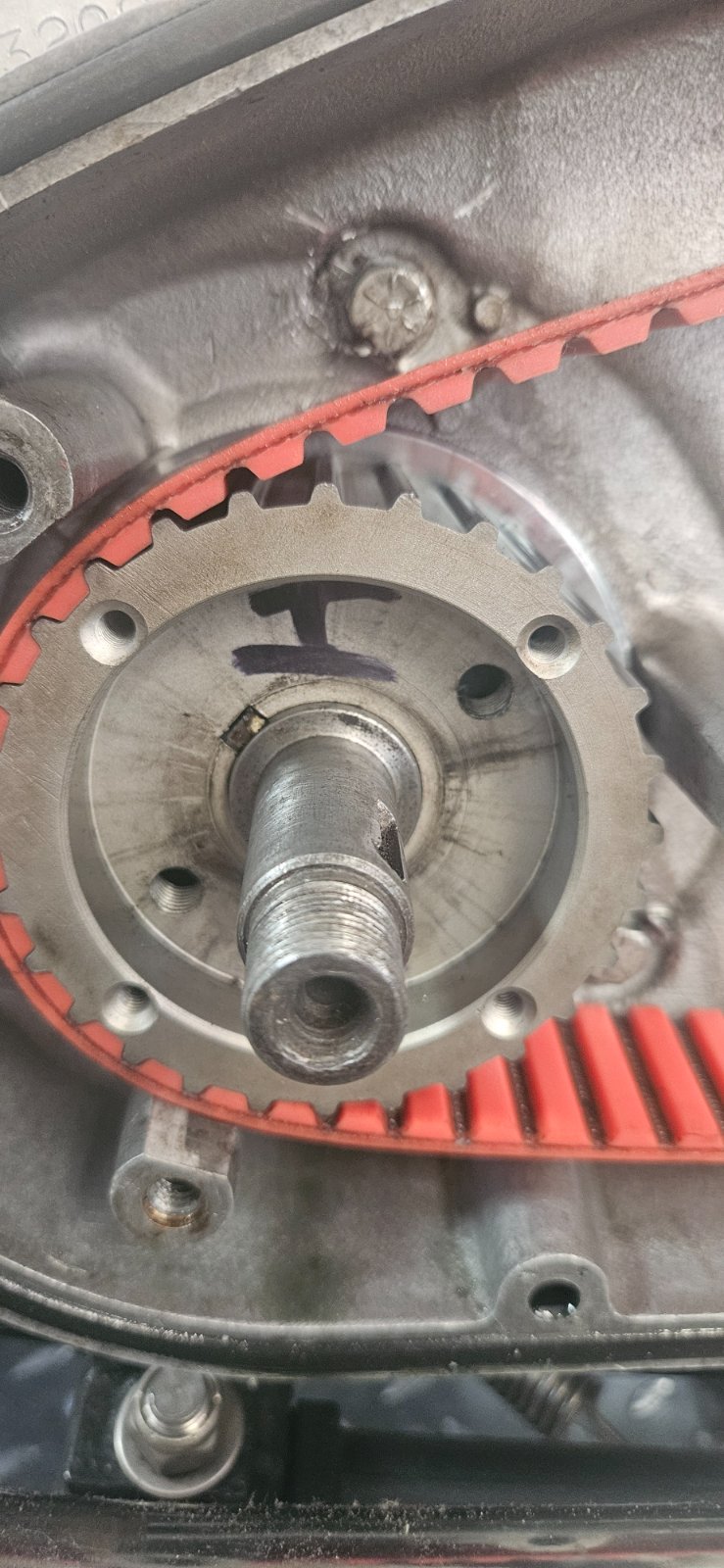

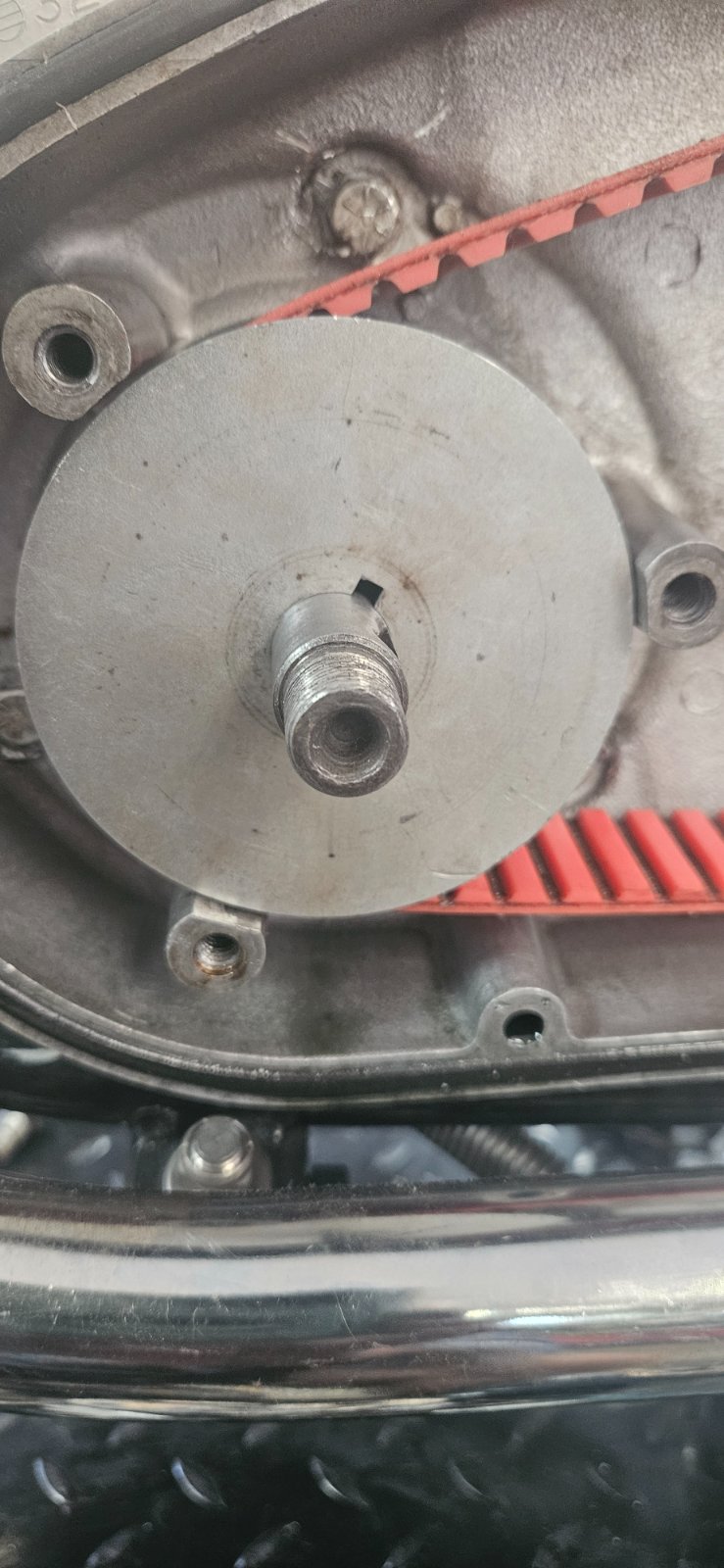

Not quite sure how I will proceed. I am thinking I have to remove the centre of the outer belt retainer and attach it to the pulley on the 4 threaded holes on the pulley outer edge and then make the required adapter as per the Yves kit to use the pulley removal holes.
Appreciate any inputs.
Cheers,
Andy


Attachments

  • RGM 32mm belt / Alton / Yves mod anyone?
    210.1 KB · Views: 9
  • RGM 32mm belt / Alton / Yves mod anyone?
    176.2 KB · Views: 7
andyd said:
Had anyone fitted the Alton with a 32 mm RGM belt and has anyone fitted the Yves mod at the same time?
Not quite sure how I will proceed. I am thinking I have to remove the centre of the outer belt retainer and attach it to the pulley on the 4 threaded holes on the pulley outer edge and then make the required adapter as per the Yves kit to use the pulley removal holes.
Appreciate any inputs.
Cheers,
Andy
Click to expand...
I've got a 32mm norvil belt drive and the Yves mod in fact I bought my Alton from Yves and re engineered it to work with my belt drive
It's on here somewhere

andyd said:
Had anyone fitted the Alton with a 32 mm RGM belt and has anyone fitted the Yves mod at the same time?
Not quite sure how I will proceed. I am thinking I have to remove the centre of the outer belt retainer and attach it to the pulley on the 4 threaded holes on the pulley outer edge and then make the required adapter as per the Yves kit to use the pulley removal holes.
Appreciate any inputs.
Cheers,
Andy
Click to expand...
I drove mine off of the two puller threaded holes in the front pulley
I remade the belt guide to incorporate the drive to the sprag clutch

I have the Rgm Belt Drive and Alton starter fitted since 2013. But it sseems I was lucky with alignment and just got away with it as far as everything fitting.
Its seems the fitting of the crankshaft pulley on the taper is key to getting it all to work so maybe i was just lucky.
