Red Top Spring

Diablouph · May 31, 2013

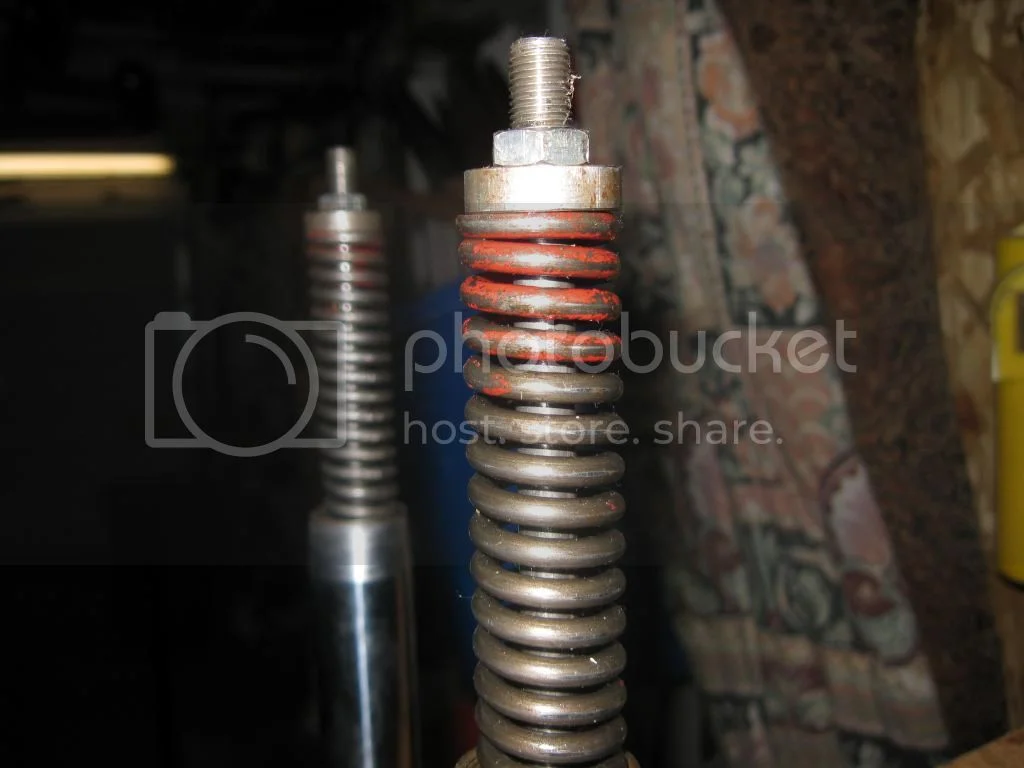

I have had the forks off 3 or 4 times since I have owned the bike. Always wondered why the tops are painted red. Are they that way for a reason or is just one more thing my Norton does to MAKE ME CRAZY.

Hobot · May 31, 2013

That is rather rare to see now a days but colors indicated the spring rate at a glance.

L.A.B. · May 31, 2013

http://www.classicbike.biz/Norton/Repai ... mmando.pdf

Section A

Front forks
.
.
.
Rate : 36.5 lb./in. (6.52 kg/cm) Red paint marked

Diablouph · May 31, 2013

Thanks, I would have never caught that.
