Rear Wheel Bearing Question

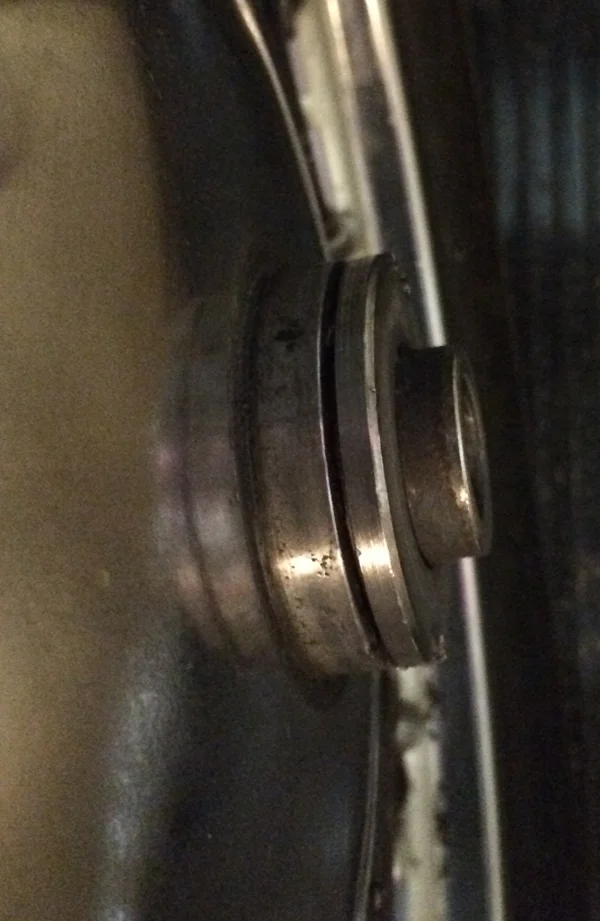

Good day, all! I am replacing the wheel bearings in my '74 Commando and have a quick question. When I put the lockring on the rear wheel and tighten it down as tight as I can get it, it doesn't sit "flush". Does this pic look correct, or should the lockring tighten down a bit more? I fear I may not have the bearing seated all the way, but thought I'd ask the experts first!

davecox2 said:

...but thought I'd ask the experts first!

Click to expand...

No expert by any stretch of the imagination, but that's correct for the nut. It needs to have some clearance, as it's built to clamp the bearing's outer race before bottoming out. My 74 looks just like that, as it did the very first time I had the rear wheel off.
Nathan

Great news, thanks!! Now I can move on to the front bearings.

Here is mine. Yours looks normal to me.
