Rear brake pivot pin nut

Status
Not open for further replies.
DogT

DogT

VIP MEMBER
Joined
Jan 20, 2009
Messages
7,394
Country flag

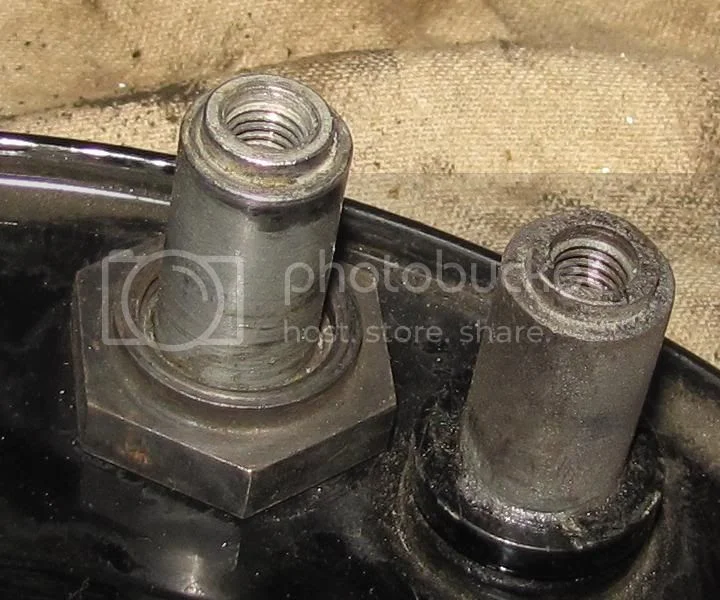

Which side does the shoulder go, towards the hub or towards the brake as it is shown? Changing shoes.

Rear brake pivot pin nut


Dave
69S

Mine was like you have it there, no guarantee that it is correct though

Dave both of mine are like your pic, so the shoulder up as you have it
Regards Mike

It came off the other way, and I was the one that did it, so can't blame anyone. Doesn't really seem to make any diff as the spacing is the same, but it looks better this way.

Dave
69S

Dave,
This is as it should be, shoulder to the shoe.

DogT said:
Which side does the shoulder go, towards the hub or towards the brake as it is shown? Changing shoes.

Rear brake pivot pin nut


Dave
69S
Click to expand...

I love your meter, is that in db or VU?

Dave
69S

It doesn't matter, VU is just damped db, so it's actually the same range, just depends if it's 600Ω telephone or 50Ω RF. 20db down is pretty small. Factor of 100 times less.

Gotta get my new rear brake back on.

Dave
69S
