Production Racer ammeter mounting bracket.

I want to mount my oil pressure gage the same way they mounted the ammeters on the production racers. Does anyone know how it was done? Was it attached to the bar or was it clamped with the handle bar clamps? Many people sell the body work but does anyone sell these brackets? I may need to make one, can someone who has one post some pictures or explain how it mounts? Thanks, Glenn.

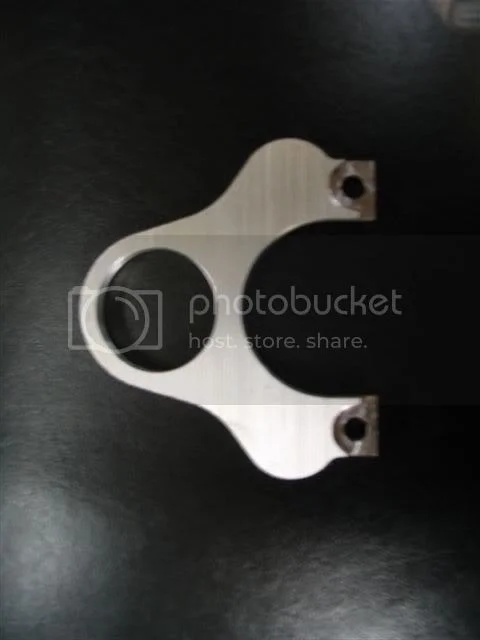

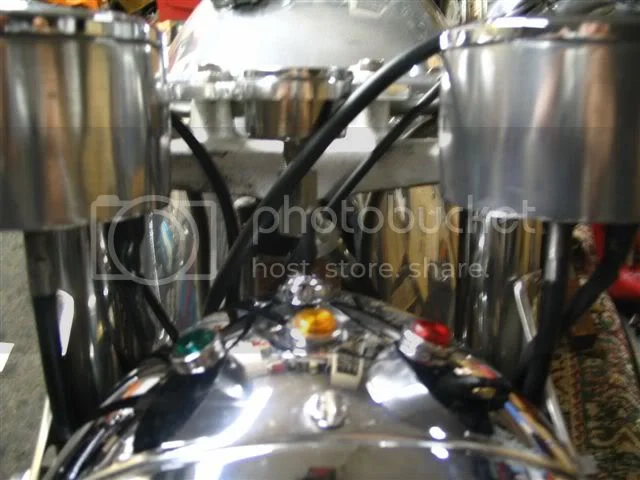

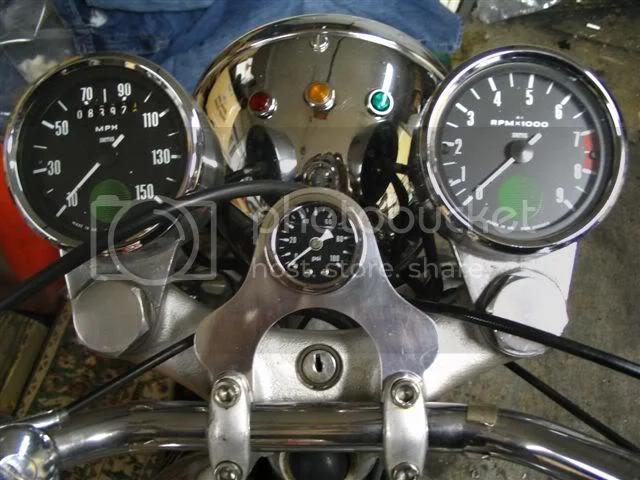

I make one that mounts like so:

Made for oil gauge that is 1.572 O.D.

Goes in with a fitting that swivels out at a 45 degree angle.

Thank you norbsa, I am currently using one very simalar although not anywhere as nice as yours. I'm realy trying to figure out how the "stock" prody racer one works & how it's made/mounted. I made a funky one for my 750 way back when but I want to know how they really did it. Thanks again. Is it snowing in your part of the world yet?

Yes there is snow and Black ice on the roads. Some where near 18 degrees F.
Some good pictures here. eBay item 190356824122 went for 16,650 what down turn?

Got one in a box somewhere, if I find it I'll post a pic.

It has a central housing for the gauge with a short stub out each side that mounts into the handlebar clamps which are redundant on the proddy racer
