So either my kickstand or the mounting tab are bent, because the little knob that rests against the frame doesn't even come close to clearing the exhaust. I don't think it's the mount, and if it is, i certainly don't want to bother fixing it. I feel like i won't use the kickstand a lot. snapped two photos, everything is installed correctly yes? My only other thought is to cut the knob off so it clears the exhaust.
Problem with kickstand, how often do you use yours?
- Thread starter kevbo82
- Start date
- Status
concours
VIP MEMBER
- Joined
- Dec 29, 2011
- Messages
- 9,693
What brand head pipes are those? they look low/in. Don't cut the knob off, it needs a rubber damper on it once we solve the alignment issue. How loose is the bush? Can you push the stand down and around the pipe? (just to get an idea how much slop in the bush)
The stand itself could be bent. As for the frame bracket, it could be bent, do you have access to a magnetic protracter? OldBritts shows 18 degrees from horizontal in this drawing: http://www.oldbritts.com/38_200002.html simply hold the bike level, (or use mainstand) and meaure what you have, then you'll know.
I use the stand every time I get off the bike. They're on there for a reason, VERY handy :lol:
The stand itself could be bent. As for the frame bracket, it could be bent, do you have access to a magnetic protracter? OldBritts shows 18 degrees from horizontal in this drawing: http://www.oldbritts.com/38_200002.html simply hold the bike level, (or use mainstand) and meaure what you have, then you'll know.
I use the stand every time I get off the bike. They're on there for a reason, VERY handy :lol:
concours said:
I think the exhaust is all original? Bike belonged to my dad since the mid 70's and as far as I know most everything is original on it. Here's a few shots of the exhaust on it now. I seem to rember the stand clearing the exhaust before I took the bike apart, it scraped the underside of the exhaust just a bit, but nothing like this. It had all sorts of random nuts and bits holding it on, so I ordered new stuff from old britts including the spacer and ended up with this.
Holding the pipes in the desired position while tightening the hardware may solve your problem.
Every time I do mine without thinking about it, my kickstarter fouls my right pipe (and leaves idiot-marks). A do-over fixes it right up (but not the marks...
)
Best of luck and do let us know how you make out.
Every time I do mine without thinking about it, my kickstarter fouls my right pipe (and leaves idiot-marks). A do-over fixes it right up (but not the marks...
)Best of luck and do let us know how you make out.
- Joined
- Jan 27, 2008
- Messages
- 1,607

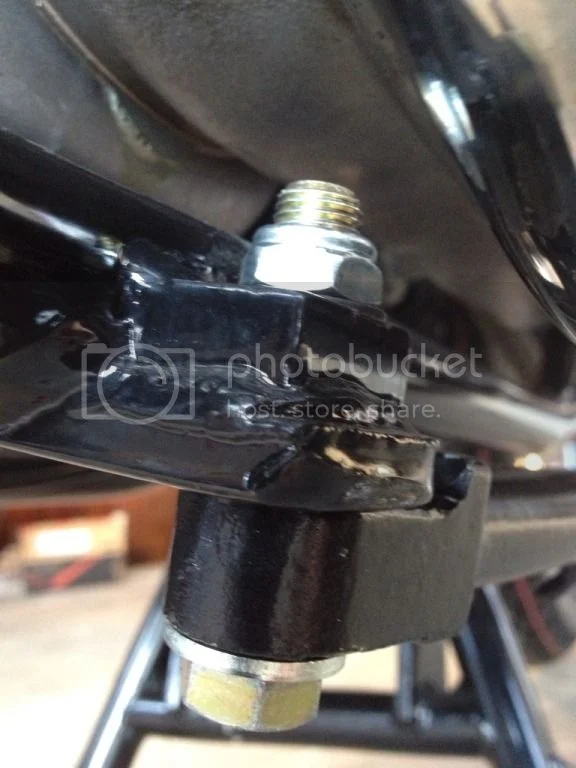

I think it just a matter of adjusting the pipes to get them up as high as possible. Also check how you've mounted the side stand, there are two washers, a bushing, bolt and nut that hold the arm to the pivot.
The bolt the holds the kick stand arm on is a special bolt with a really thin head, 06-2872, about 1/2 the thickness of the head in the pick. This is to clear the return spring, which will catch on the bolt you have.
As for the bumper, I got a 4-pack of link bushings at the local auto parts store for like $4. They fit right over that little post, and after a year or two when when the bush starts to get soft from chain oil, pop it off and stick another one on.
The bolt the holds the kick stand arm on is a special bolt with a really thin head, 06-2872, about 1/2 the thickness of the head in the pick. This is to clear the return spring, which will catch on the bolt you have.
As for the bumper, I got a 4-pack of link bushings at the local auto parts store for like $4. They fit right over that little post, and after a year or two when when the bush starts to get soft from chain oil, pop it off and stick another one on.
In answer to the question "how often do you use your kickstand" , I use mine nine out of ten stops when out on the road. If parking the bike for the night I use the centre stand, but thru the day when stopping for meals, a look at the map, change in or out of rain gear, etc etc, the side stand gets used. Not sure if the earlier Commandos are the same, but the side stand on the MK3 is a very good design, big solid and easy to use.
In comparison the stand on the 650SS is OK, but not doesn't feel as secure and the side stand(s) on the Vincent are useless and dangerous.
Glen
In comparison the stand on the 650SS is OK, but not doesn't feel as secure and the side stand(s) on the Vincent are useless and dangerous.
Glen
- Joined
- Apr 15, 2009
- Messages
- 11,534
I think the pipe is low, you know why LES? Because he said it fit before he took the exhaust off...
- Joined
- Nov 20, 2004
- Messages
- 20,654
swooshdave said:
I don't think I agree. Going by the photos, I'd say kevbo's is actually at a higher level than mine. The peg should at least be below the level of the frame tube at that position, and clearly it is not. At the angle the stand swings up at, that peg is likely to miss the frame completely. Either something is bent, or maybe the pivot bolt is not the correct diameter?
I hate to see you mess with that nice powder coating on that bracket but this really begs to either be refitted or heated up and tweaked. I think heating the stand itself is a bad thing, but the bracket is just mild steel.
Thats one thing about powdercoating, you hate to mess with it.
Speaking of powdercoating, are the surfaces clear of any residual?
You better show us a picture showing how it fits without the pipes.
Thats one thing about powdercoating, you hate to mess with it.
Speaking of powdercoating, are the surfaces clear of any residual?
You better show us a picture showing how it fits without the pipes.
took a moment to fiddle with the exhaust, got it a touch higher, and it improved things a bit. It may be a perfect storm of a little bit of everything causing this, to my eye the timing side exhaust looks like it sits a tad higher in relation to the frame than the primary side, so maybe i'll keep messing with it.
Good news, bad news.
Good news, your exhaust seems fine.
The bad news,
The stand is not right. The angle is too high. It may have retracted with the exhaust was off but I doubt it ever rested proper on the frame.
That bracket was a aftermarket unit from Old Britts. Right?
I put one on my bike also. Yours seem to be welded up/mounted improperly. Sorry.
Good news, your exhaust seems fine.
The bad news,
The stand is not right. The angle is too high. It may have retracted with the exhaust was off but I doubt it ever rested proper on the frame.
That bracket was a aftermarket unit from Old Britts. Right?
I put one on my bike also. Yours seem to be welded up/mounted improperly. Sorry.
okay, so i think i found the issue. Mostly due to my ignorance of all things norton. Bike is a 73 750, after looking around online today, i realized that the exhaust in the mkIII style that uses the collets, and according to this listing, was made to clear a larger primary on the MKIII
http://www.ebay.com/itm/Norton-Commando ... 0847950963
http://www.ebay.com/itm/Norton-Commando ... 0847950963
