Premier pilot jet

I do not believe any of the pre-Monobloc Amal carbs had pilot jets, I think they arrived at the same time as two-strokes. With a two-stroke, the most common time to get an engine seizure is at the end of a long straight as the throttle is closed.

I do not believe any of the pre-Monobloc Amal carbs had pilot jets, I think they arrived at the same time as two-strokes. With a two-stroke, the most common time to get an engine seizure is at the end of a long straight as the throttle is closed.
The most common time to get a two-stroke seizure is after holding it pinned across a lake at -25F

Are Wassell numbering systems the name as Amal and do they meter the same ?
No the numbering isn't the same but it does give the jet size in thou
I was watching a YouTube video about fitting premier jets to early carbs when I saw the bloke used wassel jets that were about £5 each

Are Wassell numbering systems the name as Amal and do they meter the same ?

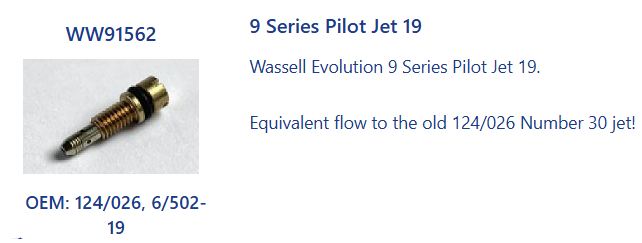

From Wassell:

Premier pilot jet


From AMAL:

Premier pilot jet


Can't say for certain that they flow the same but Wassell would say so and AMAL would say not to trust aftermarket. Also, AMAL is out of stock right now.

Getting the jetting right can be an expensive exercise with carburetors. If you get it to a level where it gives the best performance, it should probably need to be changed to suit the weather. I have never raced using petrol as fuel. The major advantage in using methanol is it hides-up the tuning errors. The latent heat of vaporisation of methanol requires the jets to flow about twice as much, so errors are about one-half as significant as when using petrol. Anybody who can get a race bike with carburetors going really fast using petrol, is an excellent tuner. Rich always means slow. I sold my first race bike back to my mate who had built it in the 1950s - I rode it after he had put it back on petrol - it was almost sane, but still went sideways in one corner.

Last edited:
Getting the jetting right can be an expensive exercise with carburetors. If you get it to a level where it gives the best performance, it should probably need to be changed to suit the weather. I have never raced using petrol as fuel. The major advantage in using methanol is it hides-up the tuning errors. The latent heat of vaporisation of methanol requires the jets to flow about twice as much, so errors are about one-half as significant as when using petrol. Anybody who can get a race bike with carburetors going really fast using petrol, is an excellent tuner. Rich always means slow. I sold my first race bike back to my mate who had built it in the 1950s - I rode it after he had put it back on petrol - it was almost sane, but still went sideways in one corner.
What gearbox did it have?

The 32- 45 minute, sum up the Commando quite well, in the latest "Cycle World" pod cast on Exhaust Systems and power curves.

Norton did one of their Norton Girl magazine ads for the 850 Commando with the caption " Rideability".

A Commandos best weapon and strong suit, "Rideability", along with a diaphragm clutch than you use to feed the power in with. It makes them have lots of "Raceability" with "Streetability" too!

Last edited:
I use the same clutch as is usually fitted to a Manx Norton, behind my 850 motor. However the bike is much lighter than a road going Commando. Norton clutches have been used on drag bikes which have extremely powerful motors. I suggest the Commando clutch probably takes longer to wear out. It is surprising how long a single-row primary chain lasts on a race bike. Mine is out in the air, and sometimes gets a squirt of chain lube.

Well Al its been so long since you have ridden your bike so a squirt of chain lube is only needed to stop the chain from rusting while sitting.

Well Al its been so long since you have ridden your bike so a squirt of chain lube is only needed to stop the chain from rusting while sitting.
I used to enjoy even looking at my bike. Now I cannot bear to even do that. I cannot remember my mate being happier than when he rode it after I had got it sorted. It has been really strange, small changes have made so much difference. One day I will ride it with the 6 speed gearbox. It really needed that. It is just a bloody joke that something so bad can be so good. In the early1970s, I raced against Z900 and H2 Kawasakis in Allpowers road races - I wish that I'd had it back then. If I had continued on, I would have bought a programmable Boyer ignition system. Most guys cannot use a computer to do much. I now have a bit of a theory about old British motorcycles - they are all there, but need perfecting. Carburetors are not good enough.
