Pazon ignition

baz said:

Just got my new project bike home
It's got pazon sure fire ignition and no spark it's wired negative earth
Am I right in assuming that this ignition is pretty much the same as Boyer ?
IE can I test the CDI by touching the pickup wires together?
I have power at the CDI and power at the coils but no spark when the engine is turned over
And no spark when the ignition is turned on and off

Click to expand...

marshg246 said:

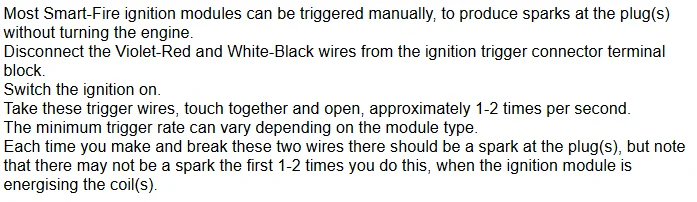

View attachment 114672

Click to expand...

concours said:

Install manual here: ( to verify it's been done correctly)

http://www.pazon.com/files/PDF/PA2.pdf

And trouble shooting:

SURE-FIRE FAULT FINDING :: Pazon Ignitions Limited

Overview of Digital & Analogue Ignition Systems. Classic bike & car electronic ignitions for road & racing.

www.pazon.com

Click to expand...

baz said:

This is for a "smart fire" unit
I'm guessing the test would be the same for a "sure fire" ?

Click to expand...

marshg246 said:

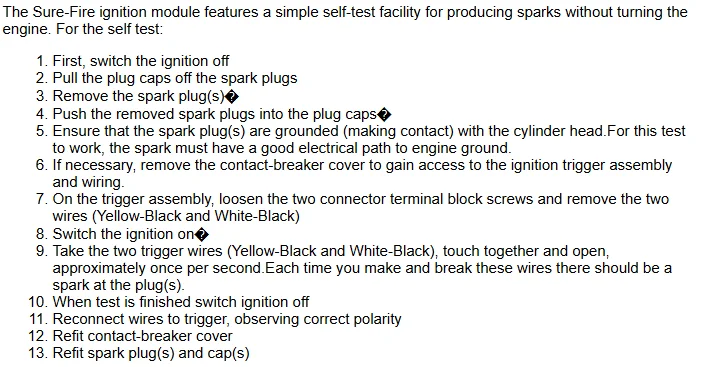

Sure Fire

View attachment 114676

Click to expand...

baz said:

Found corrosion on the Lt leads on the coils
I now have a spark
Thanks for the help

Click to expand...

concours said:

Great job!

Inspect!

And test.

Click to expand...

concours said:

Bin the adapters, change over to #10 ring terminals.

A thin layer of regular old chassis grease () on all surfaces before assembly will keep the corrosion from ever returning.

Click to expand...

laurentdom said:

Hi Baz,
From my and some other friends' experience with a Sure Fire, I know that those 2 connector terminal block screws may have a tendancy to unscrew due to heat and vibrations. It results in erratic ignition or no ignition. Worth being checked from time to time and easy to fix!

Click to expand...
