Outrigger plate stud

uneasy rider

MEMBER

Joined

Oct 2023

Messages

88

• Yesterday at 5:50 AM

• #1

Anyone tell me the thread size on the outrigger plate stud, part number 06-4728. The threads on the case are stripped and need to be heli-coiled. British thread size, American thread size?
Thanks



L.A.B.

FULL MEMBER

Joined

Nov 2004

Messages

21,503

• Yesterday at 6:17 AM

• #2

06-4728 is the tab washer https://andover-norton.co.uk/en/shop-details-2/16370
The stud is UNF that end 06-4688 but there's no thread so do you mean stud 24 which is 18 UNC?.



uneasy rider

MEMBER

Joined

Oct 2023

Messages

88

• Yesterday at 6:33 AM

• #3

Yes, 06-4688 is the PN, no 06-4728. ( my mistake) Thread on the case is stripped.



uneasy rider

MEMBER

Joined

Oct 2023

Messages

88

• Yesterday at 6:36 AM

• #4

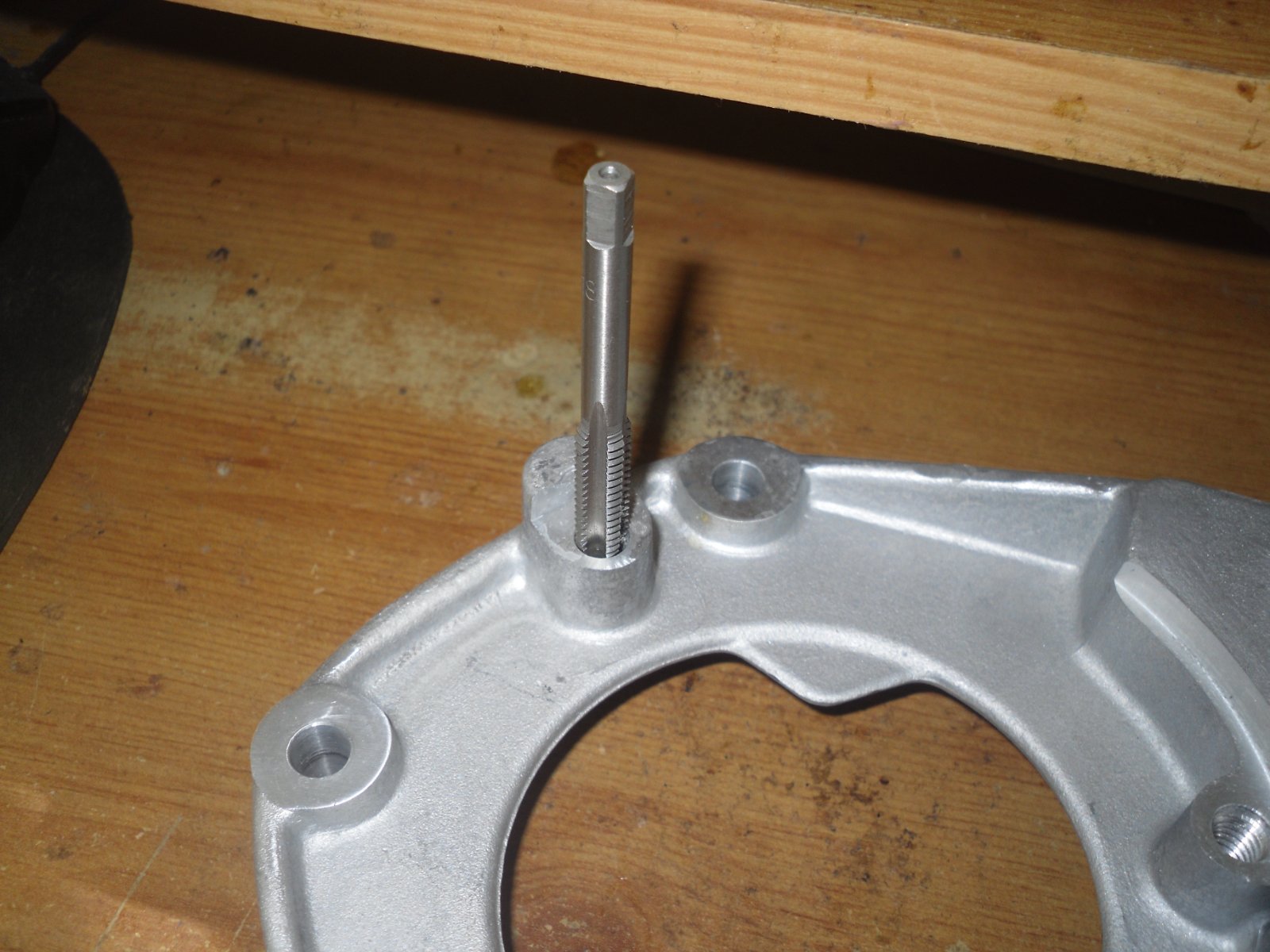

The MK111 parts diagram shows PN 06-4688 outrigger plate stud. with more threads on one end than the other. I need to helicoil the threads in the inner case



L.A.B.

FULL MEMBER

Joined

Nov 2004

Messages

21,503

• Yesterday at 6:53 AM

• #5

Yes as I said they're (5/16") x 18 UNC.

.
