Oil valve solution to oil falling to crankcase

ILLF8ED said:
Or if you can’t do that and you don’t want wet sumping, drain the oil after the last ride.
Click to expand...

Most Norton's only wet sump overtime if not used enough some quicker than others mine has never had a wet sumping problem in 46+ years of ownership as it was ridden daily but since its now semi retired and sometime sitting for a few months doing other things and riding my other daily ride that has took over the duties of my Norton since 2013 but it takes at lease 4 months before it wet sumps and needs draining of the sump, to me it's not a big task to pull the sump plug to drain and refill the oil tank I do it while doing other checks of the bike before taking it out, takes 5 minutes or less to drain even when cold.
It's been just over 3 weeks since I been out on the Norton and the oil level in the tank is in normal position ready to go, I am still using original oil pump and has had no mods done to it since new and over 140k miles on it.
As I say each Norton is not the same with wet sumping, some do it sooner than others but putting things in between tank and motor no matter what precautions you take is not in my mine at all when draining the sump is so simple when needed.

Ashley

As well a micro safety switch on a shut off valve won't work on my Norton as I run a JH maggie independent to electrics but still won't do a shut off valve period.

ashman said:
As well a micro safety switch on a shut off valve won't work on my Norton as I run a JH maggie independent to electrics but still won't do a shut off valve period.
Click to expand...
Doesn't the Joe Hunt have an earthing kill-switch wire (like Lucas)?
If so, the micro switch could take this wire to earth while the oil flow is "off"?
Cheers

Last edited:
I've mentioned previously, I think when this topic has come up before, I removed the sprung ball 'automatic' anti-wet-sump valve after watching a video on here. It showed the reduction in oil flow this type of valve caused. Scary.

I bought the Feked Cut off switch type valve, but never fitted it, as I found I was fine for at least a fortnight of not riding. I rarely leave it unridden beyond that, but when i do, I empty the sump. So, I added the Andover Norton easy open sump drain instead, to avoid wearing the thread cast into the engine case.

At around the same time as deleting the ball valve, I added the XS650 breather, which transformed the feel of the engine. It feels much happier and oil stays where it should. But it did nothing to reduce wet sumping, not that I expected it to.

Between the two modifications I now have a smooth oil return to the tank, whereas previously it was aerated. I suspect that may be all down to the breather, but removing a minor obstruction from the feed pipe can't have hurt that and may have contributed to the improvement.

Mart UK said:
I've mentioned previously, I think when this topic has come up before, I removed the sprung ball 'automatic' anti-wet-sump valve after watching a video on here. It showed the reduction in oil flow this type of valve caused. Scary.

I bought the Feked Cut off switch type valve, but never fitted it, as I found I was fine for at least a fortnight of not riding. I rarely leave it unridden beyond that, but when i do, I empty the sump. So, I added the Andover Norton easy open sump drain instead, to avoid wearing the thread cast into the engine case.

At around the same time as deleting the ball valve, I added the XS650 breather, which transformed the feel of the engine. It feels much happier and oil stays where it should. But it did nothing to reduce wet sumping, not that I expected it to.

Between the two modifications I now have a smooth oil return to the tank, whereas previously it was aerated. I suspect that may be all down to the breather, but removing a minor obstruction from the feed pipe can't have hurt that and may have contributed to the improvement.
Click to expand...
Is that video still available please Mark ?

Mart UK said:
Afraid I didn't download it. But I think it was this one:
Click to expand...

Thanks Mark 👍...I had a parts supplier here years ago send me the experiment 1 spring ball valve (free) and said to try it out....first thing I did when I got it was suck and blow through it and didn't feel that confident with it...there were many types made/available at the time....[edit]...its free if any one wants it :)
He also sent me around the same time
a mainshaft clutch rod seal which was choice.!!

Last edited:
robs ss said:
Doesn't the Joe Hunt have an earthing kill-switch wire (like Lucas)?
If so, the micro switch could take this wire to earth while the oil flow is "off"?
Cheers
Click to expand...

Rob it does but I still wouldn't put any device between tank and motor, besides it takes months before it wet sumps if sat for that long, just ride it regularly and no problems at all with wet sumping.
In over 46 years my Norton has only wet sumped 4 times.

Cheer Ashley

ashman said:
Rob it does but I still wouldn't put any device between tank and motor, besides it takes months before it wet sumps if sat for that long, just ride it regularly and no problems at all with wet sumping.
In over 46 years my Norton has only wet sumped 4 times.

Cheer Ashley
Click to expand...
We need to clone your oil pump :)

ashman said:
Rob it does but I still wouldn't put any device between tank and motor, besides it takes months before it wet sumps if sat for that long, just ride it regularly and no problems at all with wet sumping.
In over 46 years my Norton has only wet sumped 4 times.
Click to expand...

Ash - I get that, but my point was that a valve with a micro switch will work with a magneto.
Cheers

Last edited:
Mart UK said:
Afraid I didn't download it. But I think it was this one:
Click to expand...

So - other than some obvious flaws in that video (unprimed oil feed to the pump!) how does this prove that the Velocette (proven) system of spring-loaded check valve in the base of the oil tank and gear oil pump (not dissimilar to Norton's) should never have worked?
How many Velo riders do you hear of crying about their seized engine?
I am not a fan of impediments on the suction line but that video is just like so much social media crap.
I actually had the young woman at the local bottle-o trying to convince me that the earth actually is flat - no kidding!
Cheers

KiwiShane said:
We need to clone your oil pump :)
Click to expand...

Not really as most of my Norton's life was a everyday rider and for a long time was my only transport when I didn't own a car and when I did have a car I still preferred to ride, but not all Commando's wet sump, it's just luck of the draw.
Back in the 70s one of my mate's 750 Commando wet sumped daily it was so bad he got rid of it.
But then I been lucky with my Norton since new, it's a freak of a Norton it's been very good for me yes it's had some failures from my early young days of flogging the crap out of it but the last 40 years it's been a freak, a good freak.

Last edited:
robs ss said:
So - other than some obvious flaws in that video (unprimed oil feed to the pump!) how does this prove that the Velocette (proven) system of spring-loaded check valve in the base of the oil tank and gear oil pump (not dissimilar to Norton's) should never have worked?
How many Velo riders do you hear of crying about their seized engine?
I am not a fan of impediments on the suction line but that video is just like so much social media crap.
I actually had the young woman at the local bottle-o trying to convince me that the earth actually is flat - no kidding!
Cheers
Click to expand...
The clear feed line set up on a running primed pumped engine would be a beter indicator ...than a battery drill driving that demo pump...I must admit it was a sales promotion
The flat earth ..debate has been running longer than when Marco Polo was a boy ...it must be something in the water that effects these crazies..or over indulgence at the Bottle -O🤣

Tornado said:

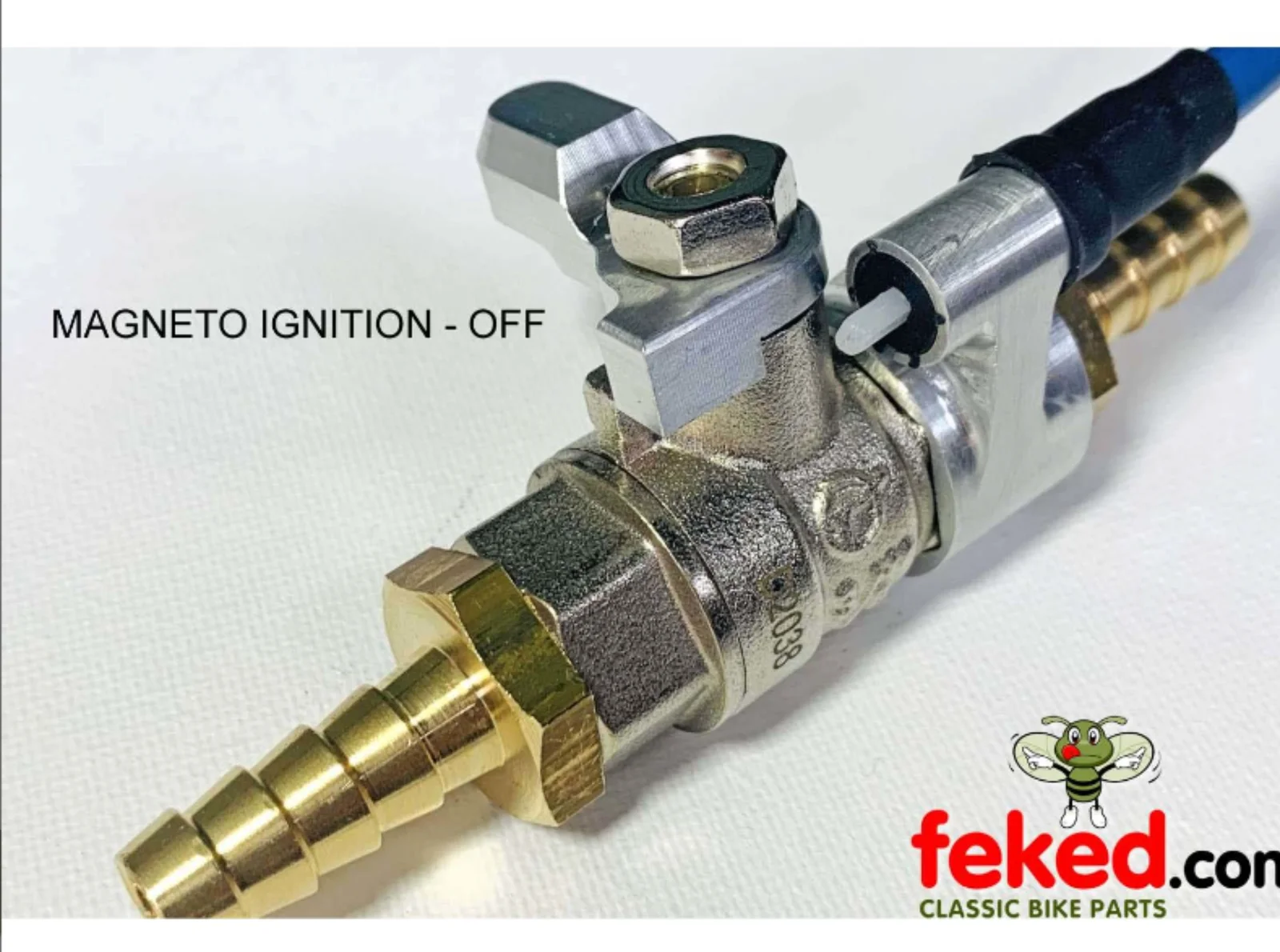

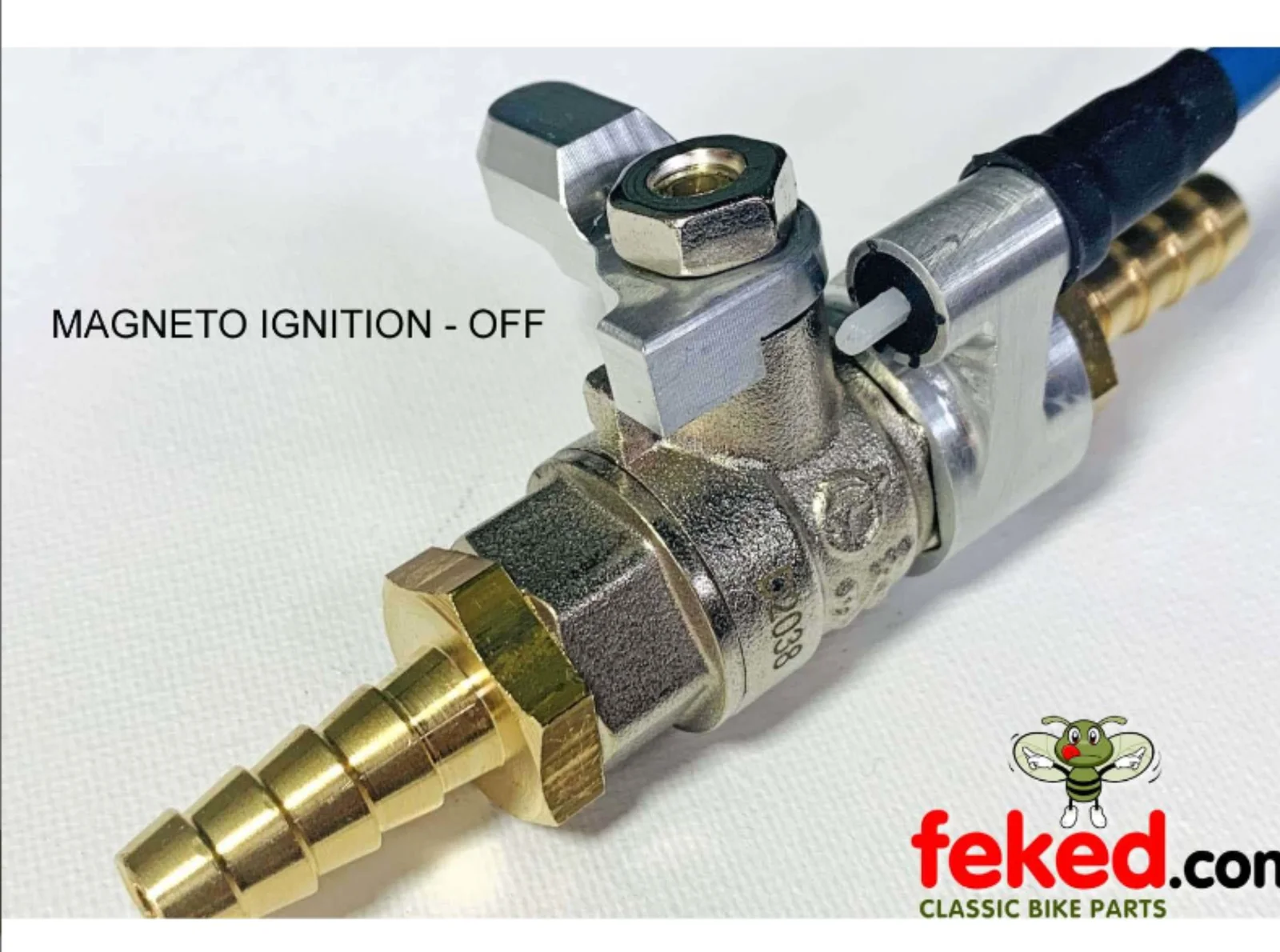

If you don't want to make your own AWS valve with ign defeat, Feked has one here :

Engine & Transmission :: Engine Upper :: Oil Feed Pipes :: Anti Wet Sump Oil Pipe Tap With Switch - Magneto or Coil Ignition Systems

Anti Wet Sump Oil Pipe Tap With Switch - Magneto or Coil Ignition Systems A solution to a frequent problem of wet sumping. Available in two types - please selection option MAG TYPE: Magneto ignition engines - closed circuit - Tap OFF (to earth the magneto
www.feked.com www.feked.com

View attachment 106581
Click to expand...
They look very nicely made. My one concern is the cheap switch (it looks like it's from a front brake light). I would definitely use a relay in combination to limit the current through it.

Last edited:
cliffa said:
They look very nicely made. My one concern is the cheap switch (it looks like it's from a front brake light). I would definitely use a relay in combination to limit the current through it.
Click to expand...
I would not worry about switch capability. Even a brake light switch has to handle 21w power. Ignition shouldn't draw that much.

robs ss said:
Well he's obviously trying to increase his chances of making a sale isn't he? ;)
Click to expand...
I did spy this model that I've not seen before with a clear acrylic sight window...

Lubrication System : Legend Cycle, Breathing New Life into Classic British Motorcycles

Legend Cycle : Lubrication System - Air & Fuel Badges & Decals Hardware Brakes Chains & Sprockets Electrical Clutch & Primary Controls & Cables Engine Exhaust Fenders Frame Front Suspension Gaskets & Seals Gearbox Gifts & Collectables Hoses & Clamps Instruments Lubrication System Manuals Mirrors...
www.legendcycle.net
