oil tank variations

I bought a used oil tank off eBay and sent it out for the cNw mod. I did that instead of sending mine out because I don't like the way the cap fits my old tank. The used one was in very nice shape, even had the rear tab intact.

Anyhoo, when I went to install it on my 74 850 I discovered that the spigot for the return line is about 2 inches short.

Were there different part numbers for side mounted tanks, or should they all be the same? I can't imagine why someone would cut that pipe short.

maylar said:

Were there different part numbers for side mounted tanks,

Click to expand...

06-1856 - 1971
06-3090 - 1972-3
06-3975 - 850 Mk2/2A
06-3456 - 850 Mk3 (No chain oiler spigot)

Thanks. Any idea what the differences are?

maylar said:

Any idea what the differences are?

Click to expand...

Except for the 850 Mk3.....no.

Longer hose?

There certainly appears to be 'long' and 'short' pipe variants.

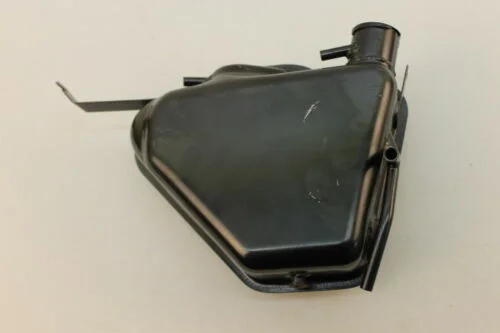

This one is supposedly 06-3456 (Mk3) but it has a spigot.
https://www.ebay.co.uk/itm/NOS-OEM-NORTON-COMMANDO-1971-ON-OIL-TANK-PART-06-3456-/232448208504


https://www.ebay.co.uk/itm/1972-NOR...270467?hash=item4415e784c3:g:wScAAOSwDDRbz7AB


850 Mk3 (06-3456)


Long seem to be 'late'.

swooshdave said:

Longer hose?

Click to expand...

Hose goes to the oil filter which is not a fun thing to mess with. I added an extension using a barbed 3/8 fitting.

I have a box full of slightly differing oil tanks.
oil tank 06-3095? in the 73 parts book ?
Not sure what was going on but there is possibly a hose difference for the 73 850 VS the combat breather 73 750
On this issue I had thought that some tank vent exit tubing therefore had different sizes...but not sure
