Number on the neck

Status
Not open for further replies.

pierodn

Joined
Nov 10, 2012
Messages
3,154
Country flag
A frame i bought many time ago, without tag, has stamped the n. 00106 on the neck.
I bought thinking may be it was an 850 frame.
The number says something?
Ciao.
Piero

pierodn said:
A frame i bought many time ago, without tag, has stamped the n. 00106 on the neck.
Click to expand...

Some frames are stamped with a 001xx number in that position, however the significance of the number is still as yet, unknown.

pierodn said:
I bought thinking may be it was an 850 frame.
Click to expand...

850 frames usually have their 6-digit part number (either 064140, 065404 or MkIII - 065632) stamped on the front face of the left hand fuel tank support bracket .

Hi Les,
this frame is in very good conditio but it dont have ..... the fuel tank support bracket.
Someone company supplies this frame parts?
I thought the frame was 850 because the upper rear shock absorver mounts have the internals hears more long welded along the resr frame.
I have never seen before.
Coao
Piero

pierodn said:
Someone company supplies this frame parts?
Click to expand...

They should be easy enough to make from a piece of sheet metal.


pierodn said:
I thought the frame was 850 because the upper rear shock absorver mounts have the internals hears more long welded along the resr frame.
Click to expand...

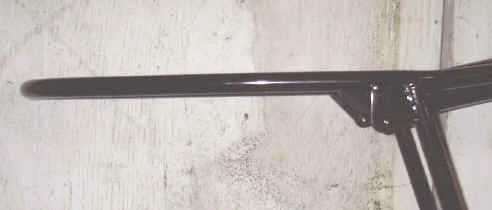

Yes, it could be an 850 frame if it has the extended inner gusset plates if they look like this?:


If the plates look any different, then it could be a modification?

Also, see if there is a date stamp on the (inside of?) left hand lower (Rear Iso. mount) frame gusset plate?

Yes,
The same ineer gusset plates.
Please,
can correctly fit on this 850 frame the 1971/72 triple tree/yokes?
Regards.
Ciao.
Piero

pierodn said:
can correctly fit on this 850 frame the 1971/72 triple tree/yokes?
Click to expand...

Some say yes...

....and some say no, that only the "ANG" marked yokes should be used with 850 frames.

But..... the triple tree (750/850) seem to be the same: i cannot see a different angle or other!.
Where is the differences thant i dont see?
Ciao
Piero
