Norris Cam and Regrind Questions

Joined
Apr 15, 2009
Messages
10,722
Country flag
A friend of mine pulled apart his engine (850) and found the cam to be pitted. So he bought a core cam and had it reground.

When he brought the reground cam over I thought it looked strange. It was apparently reground to Megacycle specs(?). I'll try to post the specs soon. The lobes are very steep.

I helped him get the crankshaft pinion off (thanks @Mike T!) so he could split the cases and get the pitted cam out. Then he noticed the pitted cam was marked Norris SS.









So what would you do? I don't know if you can tell how pointy the lobes are in these pictures.

It was done by a local company that I suspect is use to doing cars cams and perhaps big four cylinder motorcycle cams. Not sure how familiar they are with Nortons.

Reground cam looks odd. Norris cam is pitted.


Time Warp

.......back to the 70's.
VIP MEMBER
Joined
Dec 3, 2012
Messages
1,980
Country flag
It must be the picture, that reground lobe looks like an insane lift speed with a ski jump closure along with minimal duration.
Does it even have a transition over the nose.


johnm

VIP MEMBER
Joined
Feb 26, 2008
Messages
932
Country flag
Your best bet is to rough assemble it in a set of cases. Put on the barrel with the followers. Mount a degree disc on the end of the cam where the sprocket normally fits . Put a pushrod on the follower and then record the lift profile with a dial gauge vs degrees. Remember you usually put the degree disc on the crank. Then compare the profile to those on Dynodave’s site.


gortnipper

VIP MEMBER
Joined
Nov 11, 2013
Messages
3,218
Country flag

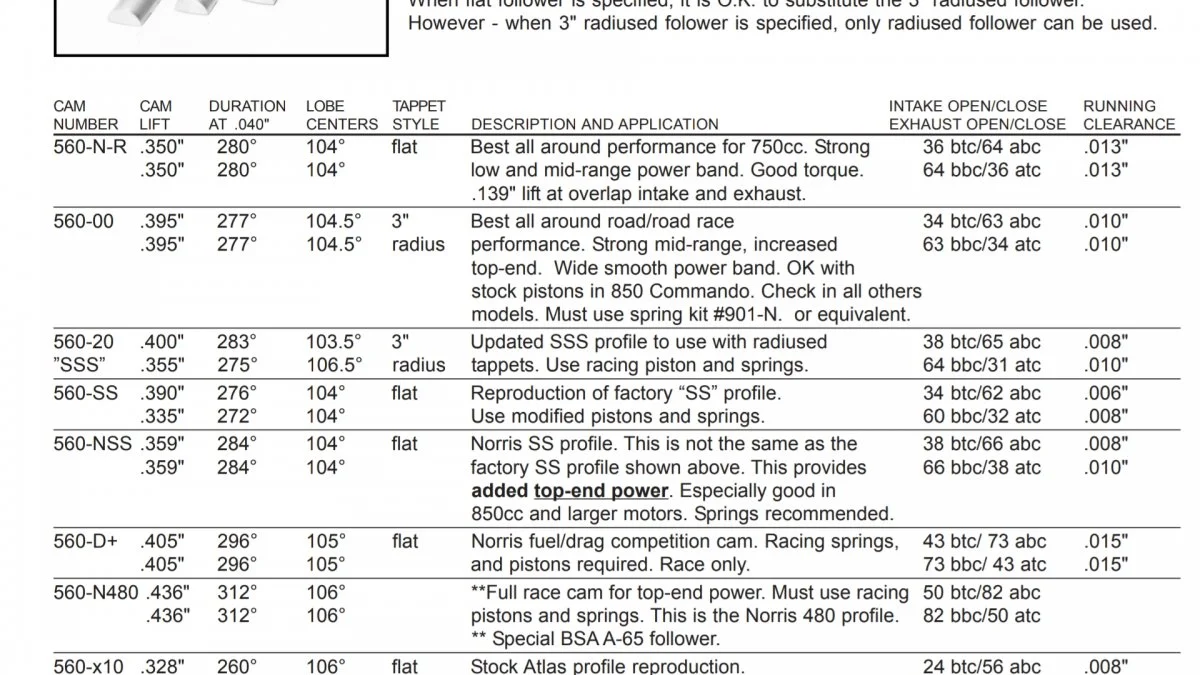

Norris SS is Megacycle 560-NSS now.


Edit: corrected typo on MC #

Last edited:
Joined
May 28, 2003
Messages
2,181
Country flag
GN Read the chart you provided...
5600-SS is the 2S combat grind

The Megacycle (norris SS) .359" in/ex is a bit hotter than a 5600-NR but not as hot as a PW3. I have not had access or tested/profiled a similar symetrical cam.

SD The regrind reduces the base circle and may require a new set of push rods...did they re-case harden the cam? I would not use your cams on a bet...maybe a web- hard face weld regrind to a symetrical NSS .359 lift on a full diameter core.
Just get a new NSS cam from megacycle?

Joined
Apr 15, 2009
Messages
10,722
Country flag
Here’s what the shop said they reground it to:





I can’t imagine that profile would be kind to a flat lifter.

Joined
Apr 15, 2009
Messages
10,722
Country flag
Does anyone have a good used cam for my friend? New cams are not cheap.

Although the ones from Andover aren’t bad, under $250. Unfortunately not in stock.

Joined
Nov 26, 2009
Messages
2,370
Country flag
That cam is just wrong. Way too sharp on the nose. Someone miscalculated.

Joined
Dec 21, 2008
Messages
158
Country flag
.


I have a few cams laying around, but I'm not entirely sure what they are. I think I have a clean stock cam with the matching lifters somewhere. Feel free to have your friend contact me directly. I'm in Seattle at four, two, five, four, eight, six, six, zero, four, zero


First I'd work with the cam grinder, though. If they're at fault I think it would be unusual if they won't guarantee their work.




.

Joined
Apr 15, 2009
Messages
10,722
Country flag
.


I have a few cams laying around, but I'm not entirely sure what they are. I think I have a clean stock cam with the matching lifters somewhere. Feel free to have your friend contact me directly. I'm in Seattle at four, two, five, four, eight, six, six, zero, four, zero


First I'd work with the cam grinder, though. If they're at fault I think it would be unusual if they won't guarantee their work.




.
Sweet!


illf8ed

VIP MEMBER
Joined
Dec 30, 2003
Messages
2,870
Country flag
Hi Dave
I have a Norris RX. The open and close on the spec you show are very narrow compared to the RX sheet from Norris.
RX intake open 54 BTDC close 82 ABDC
Exhaust open 82 BBDC close 54 ATDC
Overlap 108 degrees
Lift at the valve intake .424 with tappet clearance .006
Exhaust .425 with tappet clearance .008
Physically the cam lobes on mine are much fatter.

Joined
Apr 15, 2009
Messages
10,722
Country flag
Hi Dave
I have a Norris RX. The open and close on the spec you show are very narrow compared to the RX sheet from Norris.
RX intake open 54 BTDC close 82 ABDC
Exhaust open 82 BBDC close 54 ATDC
Overlap 108 degrees
Lift at the valve intake .424 with tappet clearance .006
Exhaust .425 with tappet clearance .008
Physically the cam lobes on mine are much fatter.
It would be interesting to see where they got their specs from.
