No spark

FL54 said:

Turn the key back on and no ignition light. All the other lights work so I’m at a loss as to why this happened

Click to expand...

It's really a charge warning lamp of sorts as it only tells you if there's some AC power leaving the stator when it goes off it doesn't tell you if the system is charging or not and is not connected to the other lights.

Thanks LAB. Does that mean that there is still current to the ignition system even though the light is off?

In addition to the ignition light not working, his bike would not start.

The ignition light and ignition circuits are fed from the same white power wire while the horn and lights are from another circuit.
I sent him a troubleshooting PM for this that might uncover the problem and point to the cause somewhere along one wire!

Dennis

FL54 said:

Thanks LAB. Does that mean that there is still current to the ignition system even though the light is off?

Click to expand...

Yes it's a different ciucuit to the ignition system although both are fed from white.

You can check if the bike is charging by checking AC volts off the alternator or DC volts at the battery. If charging, is the bulb simply burned out. I've connected mine to an oil pressure switch so it illuminates on low oil pressure.

With the aid of Dennismo who was kind enough to spent a great deal of time walking me through some troubleshooting steps, we got it to run. No obvious smoking gun but possibly intermittent failure of white wire from ignition switch to ballast resistor. Lots of cobbling together of wires on this bike as it has been through a few hands. Ignition light is still off but confirmed that bulb is good. We were concentrating on getting the bike running but
I’ve since found that.
White wire to indicator light is hot with key on.
Bulb is good.
W/P wire from indicator light to assimilator is good.
G/W wire from assimilator to rectifier is good.
’That’s as far as I’ve gotten.

FL54 said:

W/P wire from indicator light to assimilator is good.

Click to expand...

Should be white/brown wire.

FL54 said:

G/W wire from assimilator to rectifier is good.

Click to expand...

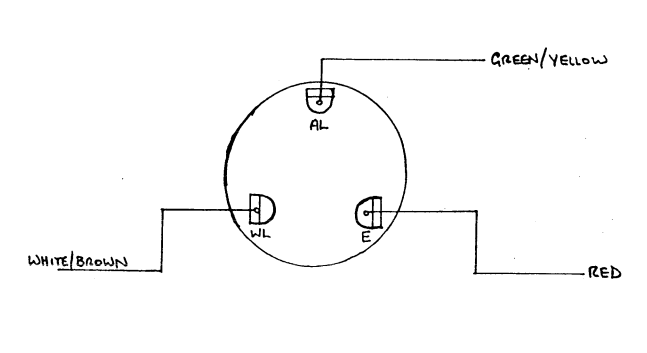

There isn't one there should be a green/yellow to the stator and a red to earth/ground.The stator wire mybe connected at the rectifier.

Sounds like a new wiring harness would not go wrong!

L.A.B. said:

Should be white/brown wire.

There isn't one there should be a green/yellow to the stator and a red to earth/ground.The stator wire mybe connected at the rectifier.

Click to expand...

You’re right LAB it is white/brown. Green/yellow looks like green/ white but all the colors are really faded it’s hard to tell. At the rectifier I see a little yellow but there is continuity between them.
