NJB shocks (2010)

I'm saying the shock is just a tad too close to the guard for comfort (no pun intended).

Bonzo said:
I'm saying the shock is just a tad too close to the guard for comfort (no pun intended).
Click to expand...
"If thine guard offends thee pluck it out " throw it over the fence with the indicators/choke slides/center stand /mirrors :D :D:D

I wouldn't worry too much
It's not unusual for lack of clearance with different shocks
Do you have enough room/thread on the shock mount to get a washer behind the shock?
Or give the chainguard a tweek?

No clearance issues on my Mk3
Picked them up from Norman, be surprised if they are Emgo!


EstuaryBoy said:
No clearance issues on my Mk3
Picked them up from Norman, be surprised if they are Emgo!

Click to expand...

Yes , no clearance issues at all on My MK 111 as well. Plastic bolt size inserts are standard procedure with many shocks. Picked mine up from Walridge and they were just fine. Moved on to Koni Dial a ride shocks , no fitment issues as well. The JBL's are now in a box and still work well. Price was good.

Torontonian said:
Yes , no clearance issues at all on My MK 111 as well. Plastic bolt size inserts are standard procedure with many shocks. Picked mine up from Walridge and they were just fine. Moved on to Koni Dial a ride shocks , no fitment issues as well. The JBL's are now in a box and still work well. Price was good.
Click to expand...

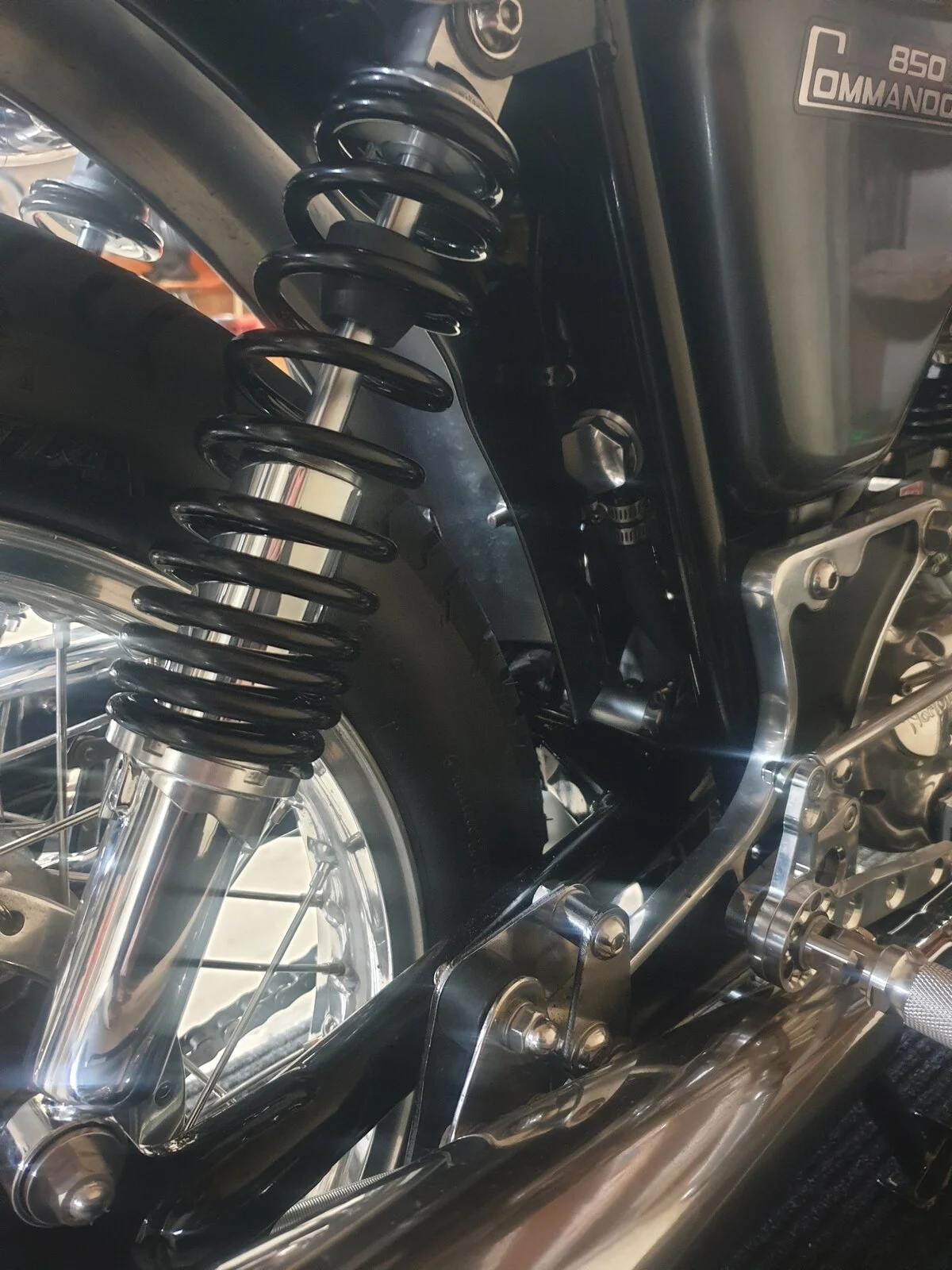

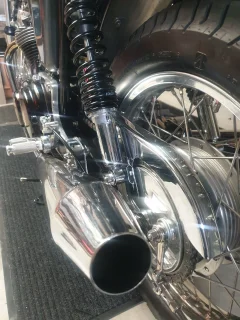

Just fitted these Ikon (dial a ride type)
shocks ...stainless bushings needed a touch with a file...all in all a nice fit


Attachments

  • NJB shocks (2010)
    383.2 KB · Views: 93
  • NJB shocks (2010)
    293 KB · Views: 79
I've had NJBs on mine since 2017. I also found the chainguard interference but solved with a thick washer on the lower shock mount. This required a longer bolt which has a thin head for the chainguard slot. I thinned the bolt head mostly with a grinder and belt sander. The bolt goes in from the brake drum side so you'll have to take the wheel off, etc. Yes, the shock will be at a tiny angle but well within what the rubber buffers can handle.
I don't put many miles on anymore but they work ok and aren't leaking.

batrider said:
I've had NJBs on mine since 2017. I also found the chainguard interference but solved with a thick washer on the lower shock mount. This required a longer bolt which has a thin head for the chainguard slot. I thinned the bolt head mostly with a grinder and belt sander. The bolt goes in from the brake drum side so you'll have to take the wheel off, etc. Yes, the shock will be at a tiny angle but well within what the rubber buffers can handle.
I don't put many miles on anymore but they work ok and aren't leaking.
Click to expand...
batrider said:
I've had NJBs on mine since 2017. I also found the chainguard interference but solved with a thick washer on the lower shock mount. This required a longer bolt which has a thin head for the chainguard slot. I thinned the bolt head mostly with a grinder and belt sander. The bolt goes in from the brake drum side so you'll have to take the wheel off, etc. Yes, the shock will be at a tiny angle but well within what the rubber buffers can handle.
I don't put many miles on anymore but they work ok and aren't leaking.
Click to expand...
I took a set of konis off that I've had on for 30 years (rebuilt) which had a slight clash with the C/guard....so i thought bugger it will stick on some new set and rebuild the konis in my leisure

gortnipper said:
Oh - and note that you cannot go half settings on the damping dial, as that will block the holes internally.
Click to expand...
Cheers...the folk at ikon are good buggers...still waiting for a firm price from cycle treads...ya snooze ya lose..
