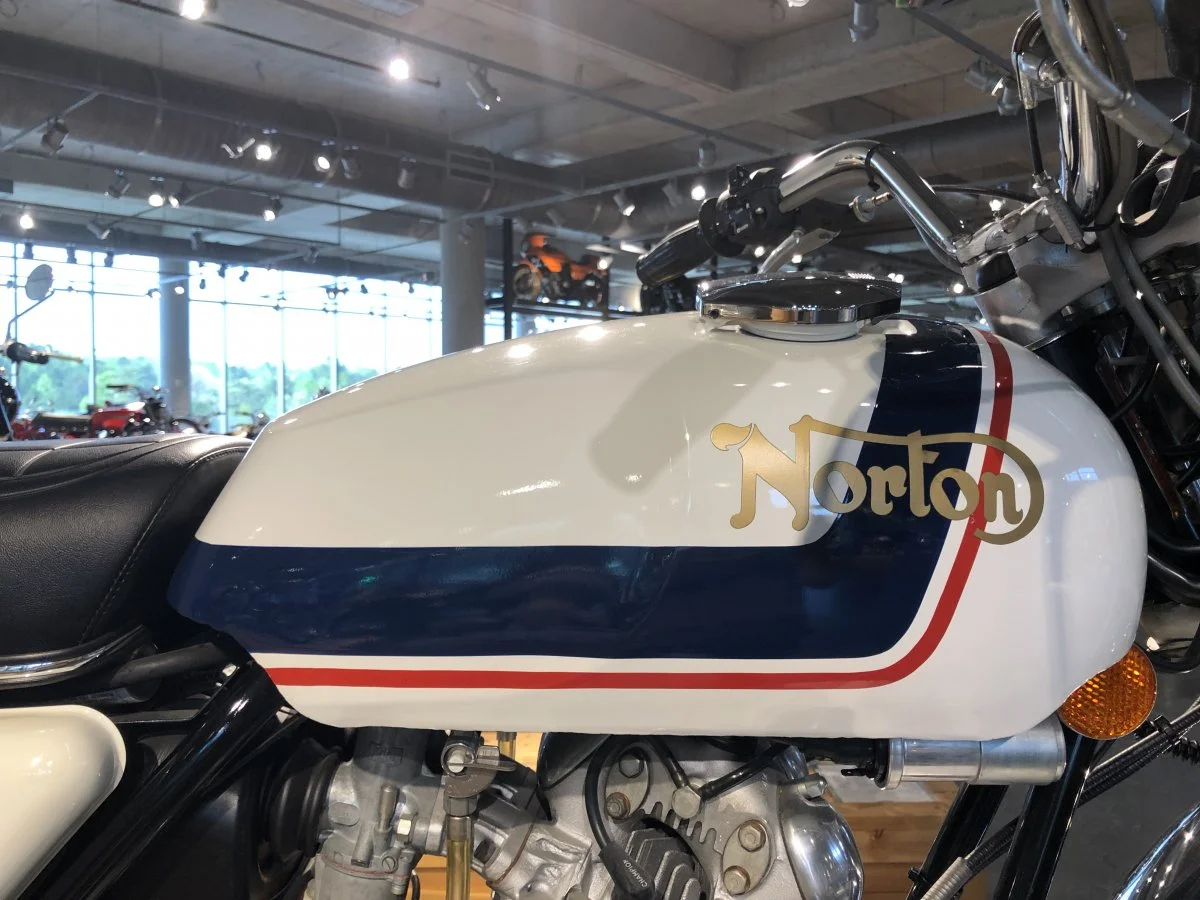

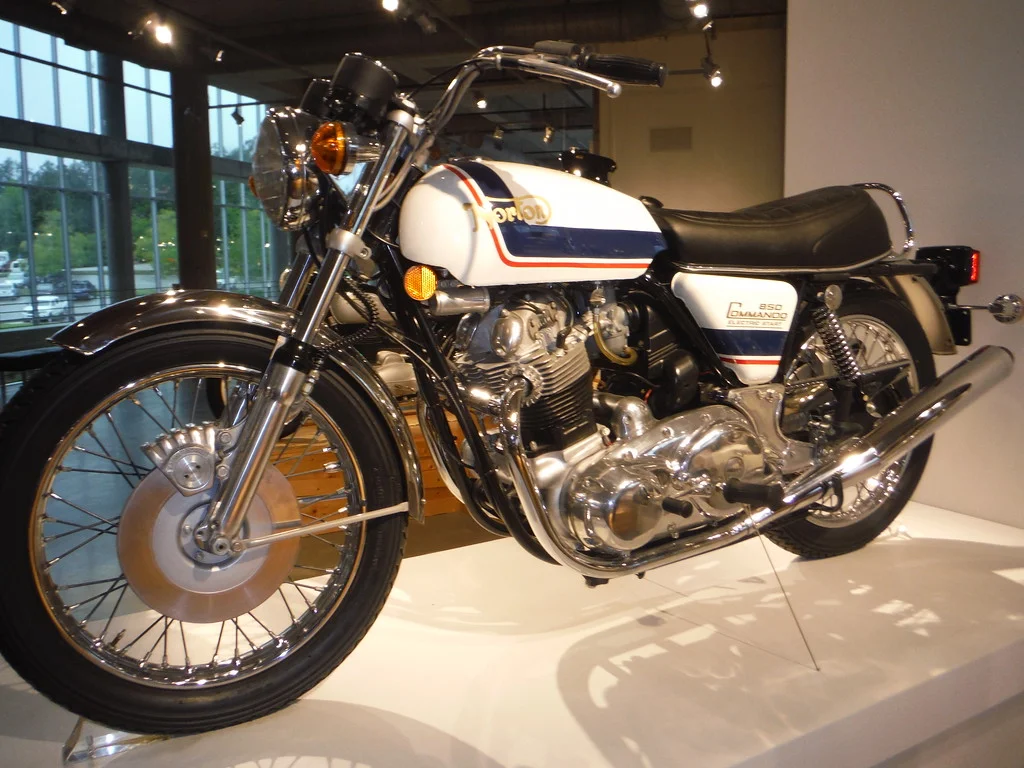

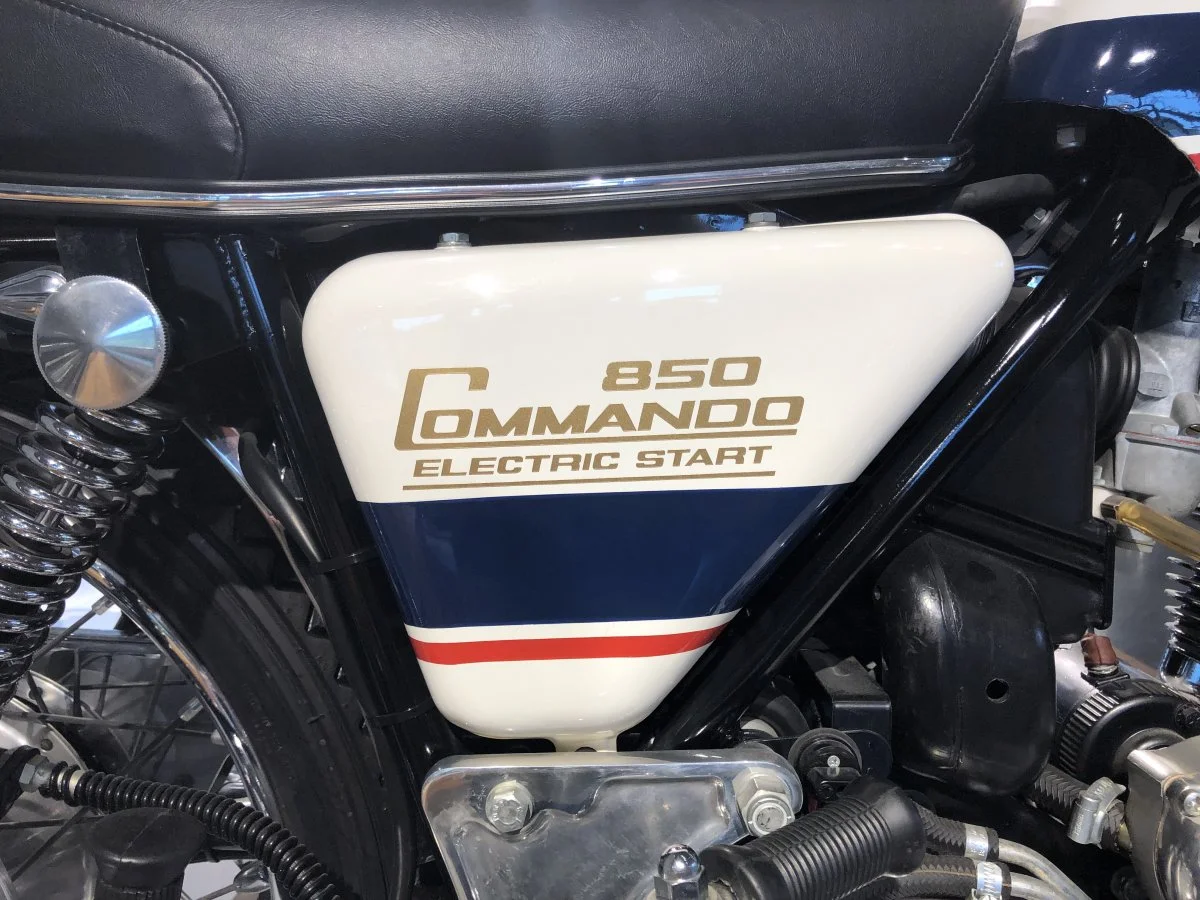

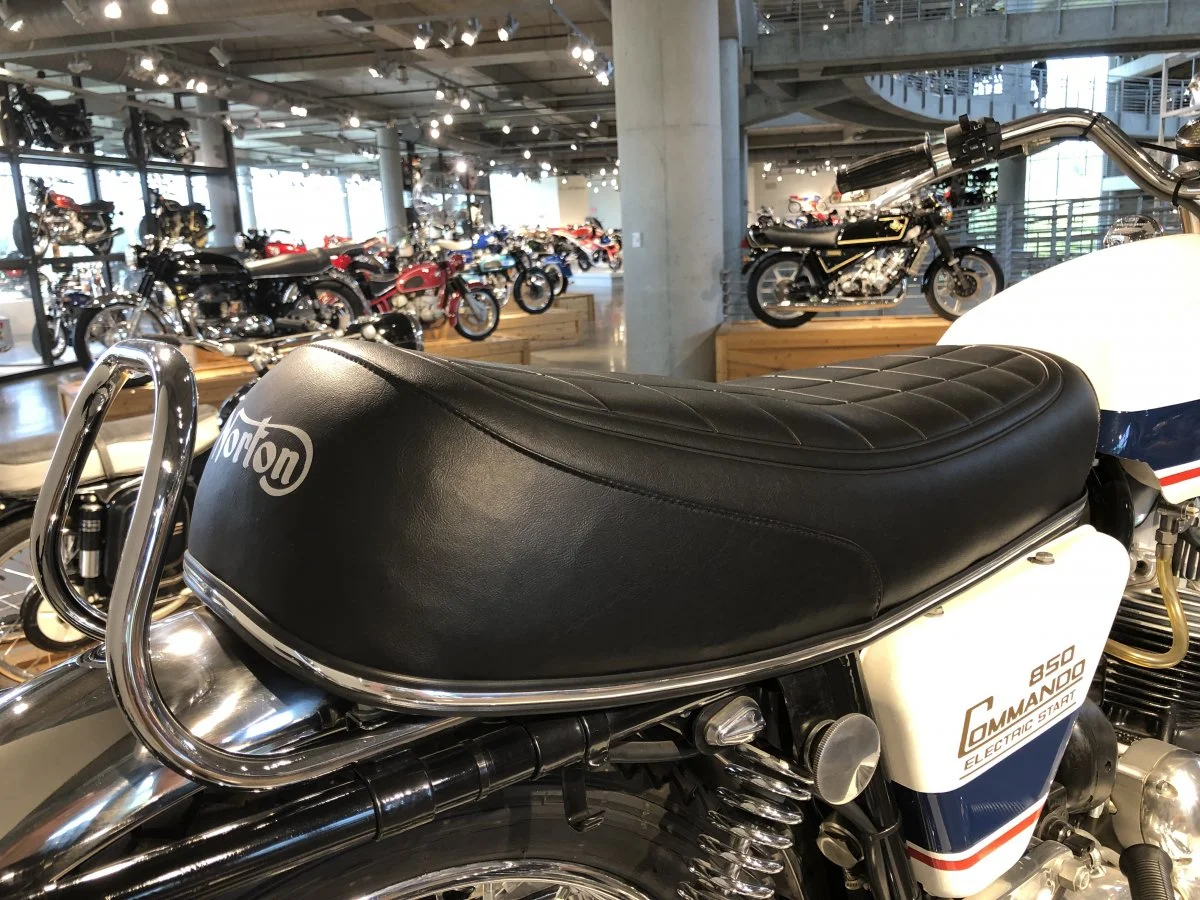

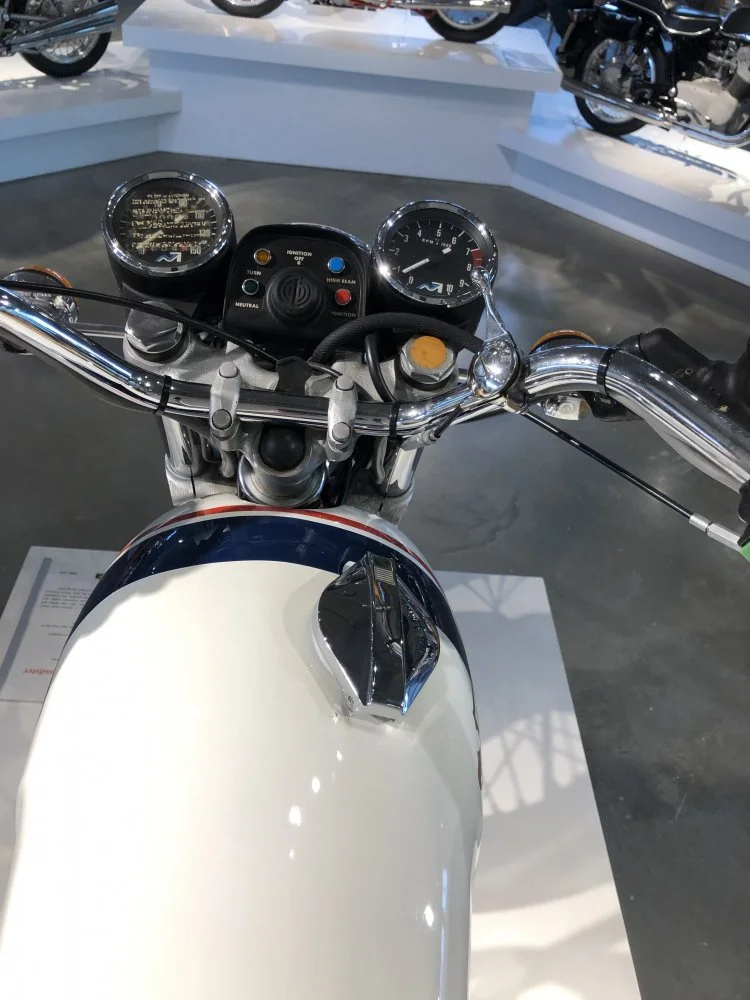

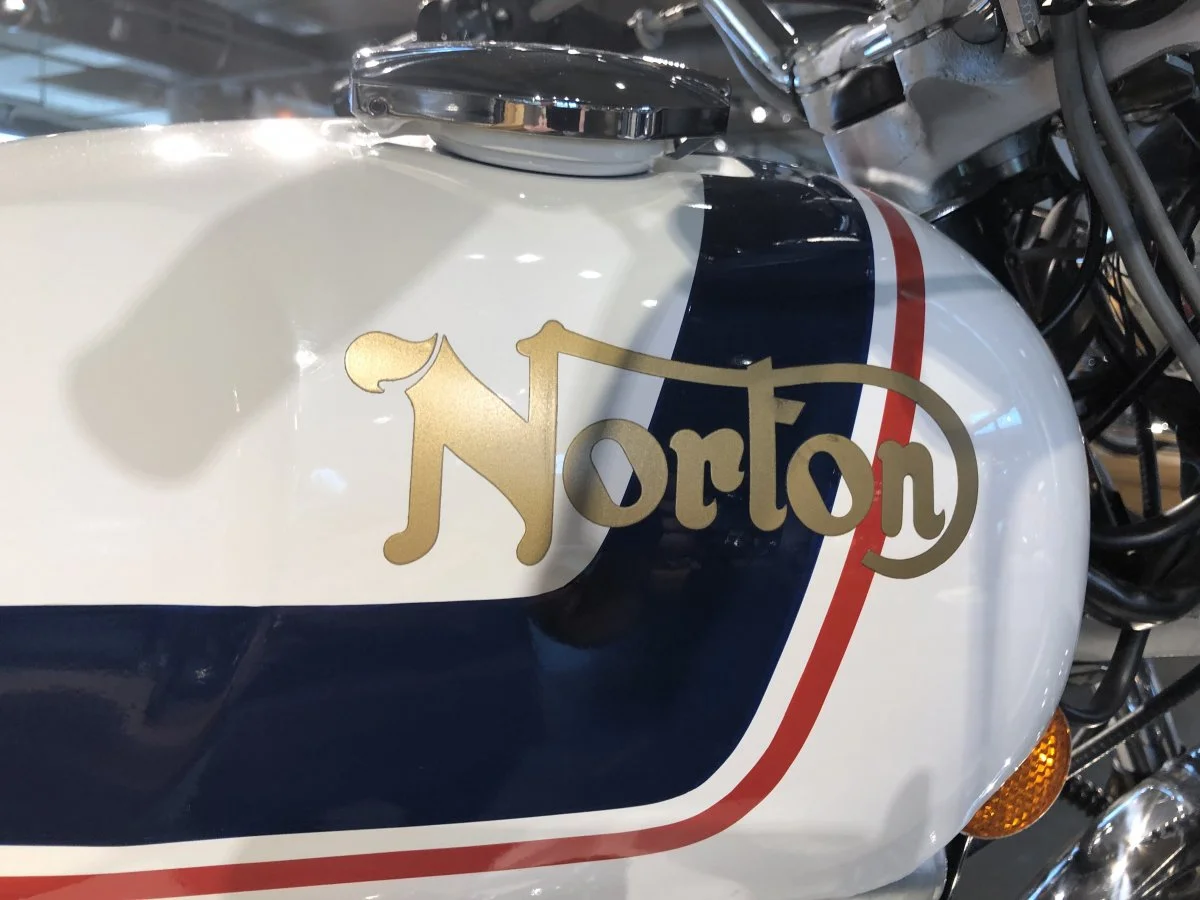

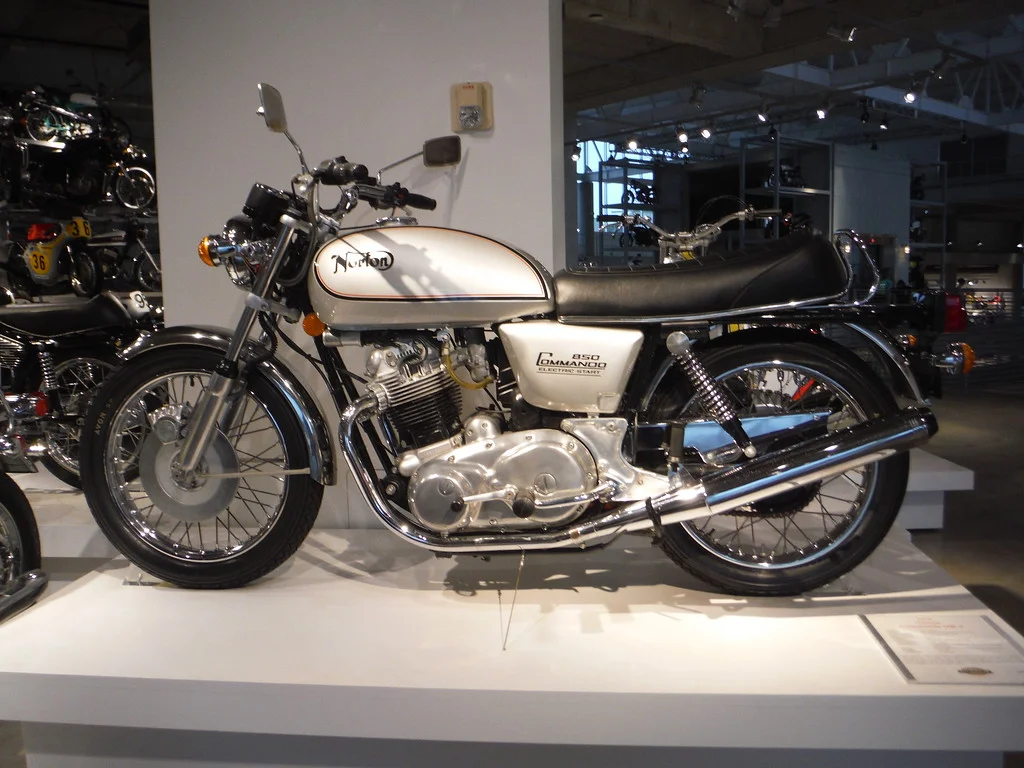

New 850 at Barber

Discussion in 'Norton Commando Motorcycles (Classic)' started by Fast Eddie, Apr 13, 2019.

  1. cliffa

    cliffa

    Joined:
    May 26, 2013
    A very direct descendant!

    I always liked the look of them, and as far as I can remember only ever saw one on the road.

  2. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Quote from the 850 Mk3 manual (MISCELLANEOUS DATA):

    "Dry weight includes battery, but not petrol, oil and tools
    Roadster 465 lb. (211 kg) Interstate 475 lb. (215 kg)
    (For motorcycle equipped with 4.10 in. x 19 in. tyres front and rear)
    Weights rounded to nearest 5lbs to allow for variations in materials of construction;
    castings, forgings, tubes, etc. ranging 5 %"

    CanukNortonNut likes this.
  3. Danno

    Danno

    Joined:
    Feb 7, 2010
    <----That weighs right at 400 lbs soaking wet. Used to be a bit under with alloy fenders, but I got tired of polishing 'em.

    Showed about 410 total on two 250-lb. bath scales and even less on a grain elevator scale.

  4. acotrel

    acotrel

    Joined:
    Jun 30, 2012
    I am surprised that the carbs were still rigidly mounted. I would have thought by that time, they would have changed to flexible mounts. Perhaps they believed the motor did not shake ?

  5. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    I'm going to have to look that up.
    I have it somewhere in the file for that bike.

  6. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    My MK3 Interstate weighs 448 lbs without fuel. That number would be 454 without alloy rims and Madass front brake, a six pound savings.

  7. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Thanks, plus I guess you have some other savings, pea shooter instead of black caps for example?

  8. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    Possibly, I haven't any original black caps to weigh for comparison.
    Other than that the bike is stock.
    Some days I think about removing some weight, then I remember it's my most comfortable riding bike and refrain from doing so.
    I recall that Ludwig had some initial ride issues with his Superlight Commando.
    My 348 lb Egli with GSXR suspension is also quite harsh.


    Glen

  9. norton73

    norton73

    Joined:
    Dec 11, 2008
    You would think with Brian Slark working at Barber, any info on a Norton Commando should be reliable.

    There is a 30's Norton single there, the placard states it's a Model 19, but the crankcase is clearly marked 79x100.

    I live about 20 minutes from Barber, I have been through there a bunch.

  10. Jackson5

    Jackson5

    Joined:
    Jan 25, 2015
  11. norton73

    norton73

    Joined:
    Dec 11, 2008
  12. Torontonian

    Torontonian

    Joined:
    Dec 28, 2009
    I have one exactly like that too . Also the Silver Interstate too. That makes too (2).

  13. norton73

    norton73

    Joined:
    Dec 11, 2008
  14. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    My 850 on a $140,000 scale, Department of weights and measure approved.
    I put in a bit over 2 Imperial gallons of fuel, so fuel, oil and battery are 16kgs.
    Most manufacturers using dry weight do not include the battery. Some even remove the chain. That's how they get those numbers down!
    215-16 = 199 kgs or 438 lbs dry weight.
    I think a 750 or pre MK3 850 with an added E start is going to weigh the same +- 5 lbs.
    So much for the lardy 120 pound overweight MK3 myth!

    Glen


  15. Time Warp

    Time Warp .......back to the 70's. VIP MEMBER

    Joined:
    Dec 3, 2012

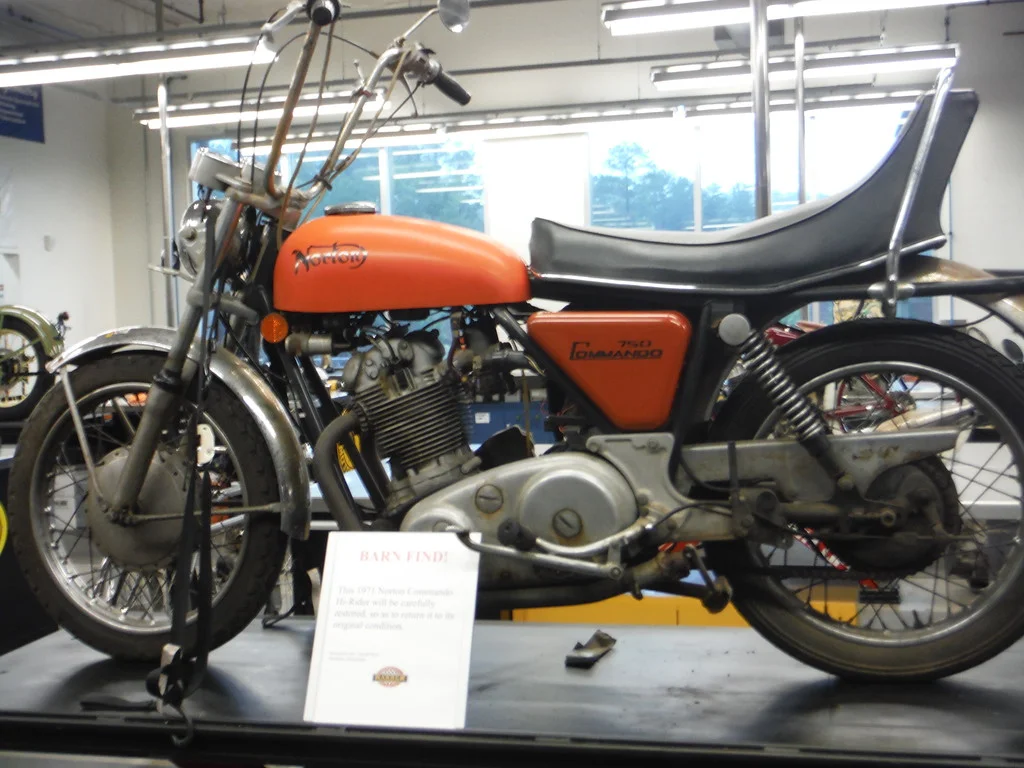

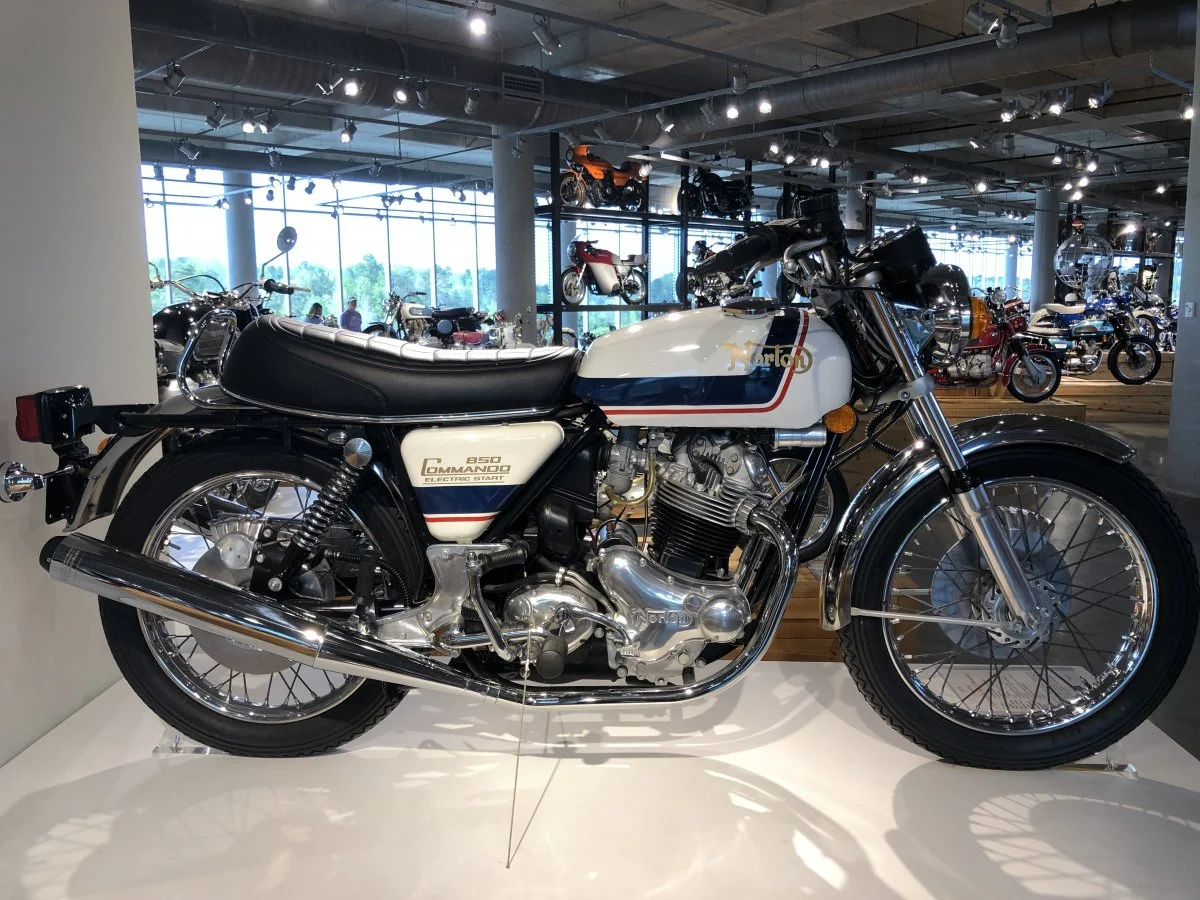

    What a travesty, that bike would look smicko original with two weeks work.
    Hey Barbers, go find a bike that would warrant a restoration instead of wrecking that one and taking the easy option.
    It is in ORIGINAL condition and that is a rarity. :(

    jimbo likes this.
  16. jimbo

    jimbo VIP MEMBER

    Joined:
    Sep 25, 2004
    IMHO Barber's Norton guy B Slark does not care about originality much.
