MK 3 instrument panel

Discussion in 'Norton Commando Motorcycles (Classic)' started by lwmcd1, Jul 29, 2019.

  1. lwmcd1

    lwmcd1

    Joined:
    May 16, 2008
    I can't find a wiring diagram for the four lights in the instrument panel. None of my manuals seem to have one.
    Any help?

  2. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Last edited: Jul 29, 2019
  3. lwmcd1

    lwmcd1

    Joined:
    May 16, 2008
    Thank you,
    That should help.
    I'll download the manual while I'm at it.
    Which I could have done in the first place, Duh.
    Larry

  4. lwmcd1

    lwmcd1

    Joined:
    May 16, 2008
    The diagram in the manual is not much help.
    I'll have to keep looking.

  5. Classic Cycle Repair

    Classic Cycle Repair

    Joined:
    Apr 1, 2019
    What is your actual question?

  6. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Why? Look for...what?

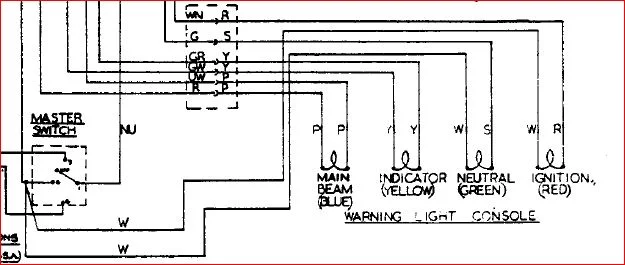

    [​IMG]

    Last edited: Jul 30, 2019
  7. lwmcd1

    lwmcd1

    Joined:
    May 16, 2008
    I believe that's just what I need.
    Thank you so much.

  8. lwmcd1

    lwmcd1

    Joined:
    May 16, 2008
    I needed the wiring diagram for the console showing the wires for the 4 lights.

  9. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    It's there on the Mk3 diagram so I don't know why you couldn't see it?

    As I mentioned previously, the actual console warning light wiring colours marked on the diagram are not what you are likely to find (except white 'W' which isn't part of the console sub-harness) as they will probably match the headlamp harness colours.

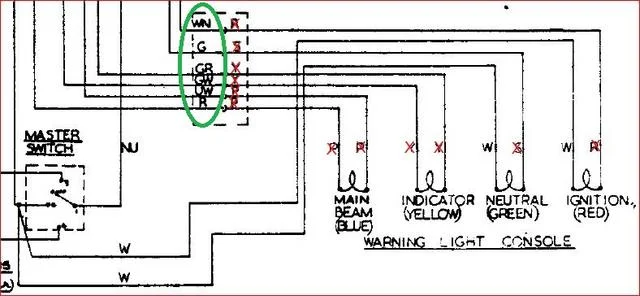

    [​IMG]

    https://andover-norton.co.uk/en/shop-details/16664

    Last edited: Jul 30, 2019
  10. lwmcd1

    lwmcd1

    Joined:
    May 16, 2008
    Didn't look close enough.
    I saw the x -r and x-w and x-x
    didn't trace them back far enough.
