Lucas K2F Points Diagram

hillbone · Mar 14, 2023

Hi. I have dismantled my points and checked things over and now I would like to reassemble everything correctly and replace a few washers etc. I cannot find a points diagram for reassembly in the correct order.
Does anyone have an exploded view diagram please?
Cheers Hillbone

Northern Norton Nut · Mar 15, 2023

Hillbone; I do not know how to attach pictures here. I have a diagram of a brass base unit I can email: northernnortonnut@gmail.com Mark Ring cam instruments (K1F, K2F, KVF and MN2) with the earlier brass contact breaker back-plate

Bodger · Mar 15, 2023

hillbone said:
Hi. I have dismantled my points and checked things over and now I would like to reassemble everything correctly and replace a few washers etc. I cannot find a points diagram for reassembly in the correct order.
Does anyone have an exploded view diagram please?
Cheers Hillbone

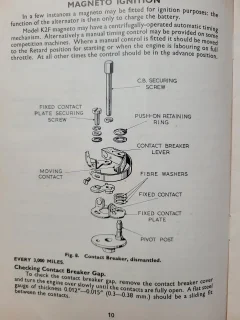

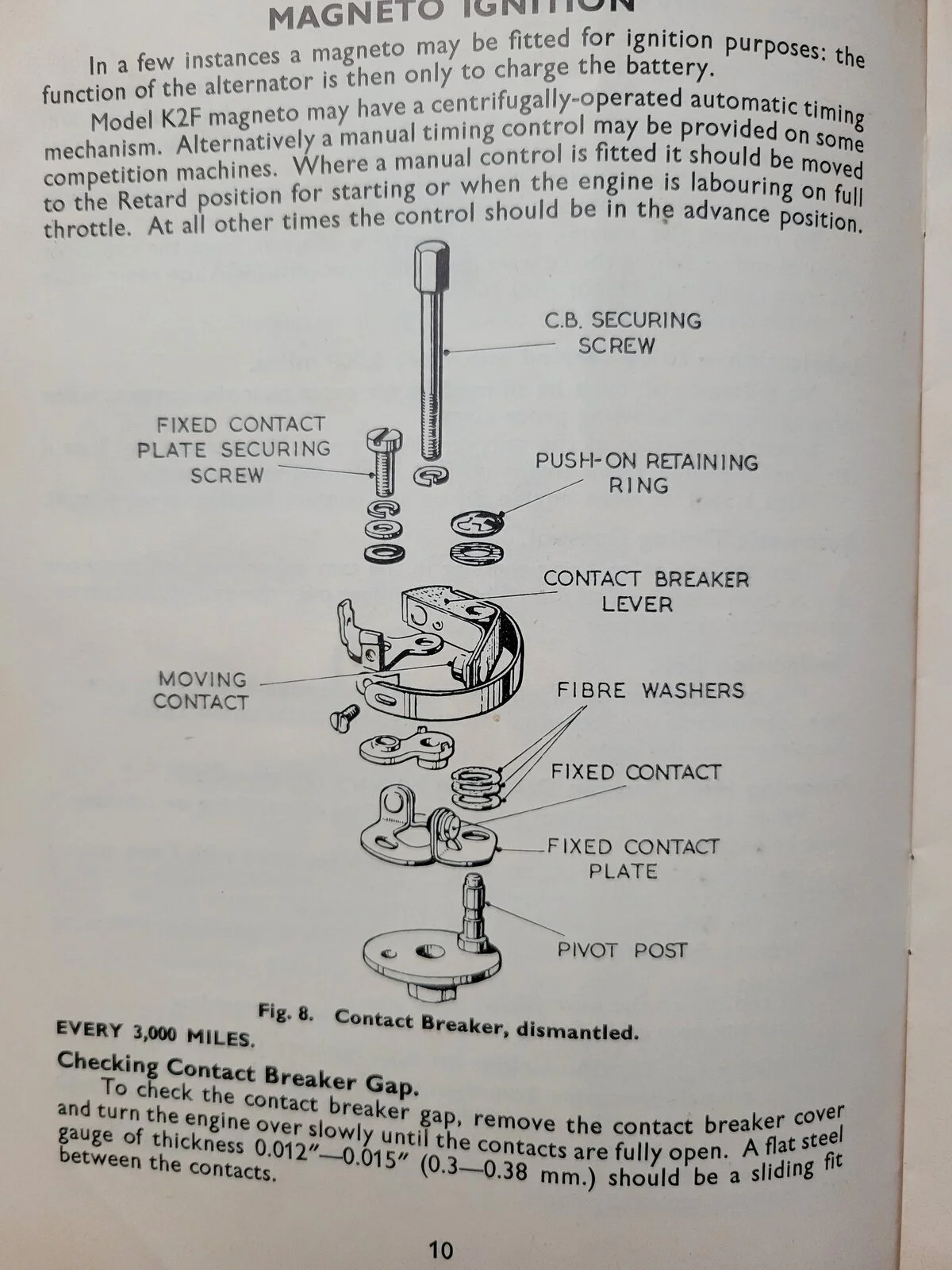

Is this what you want?

Northern Norton Nut · Mar 16, 2023

T

Bodger said:
Is this what you want?

Thank you. It is nice to have the real thing. Mark
