Lower engine mount bolt/stud question

Status
Not open for further replies.
bsanorton

bsanorton

VIP MEMBER
Joined
Nov 15, 2006
Messages
47
Country flag

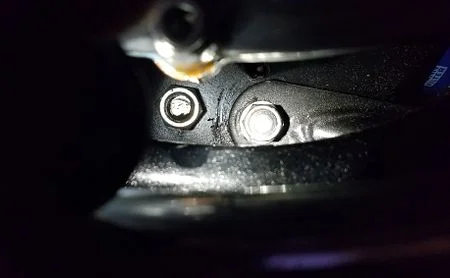

A center stand bolt fell out so I replaced both sides with new hardware. On the lower left side I noticed a nut that looks to be barely hanging on just in front of the center stand bolt. The other side has a large flat head to it. My question is did something break off on the left side?
Lower engine mount bolt/stud question

I recently had those engine frame plate bolts come loose and one nut lost on my 850.
Not sure what you mean by large flat head. Do you mean a hex bolt head?
It may be a stud threaded at both ends and not a through bolt arrangement.
Check all the frame plate bolts for proper torque, not just the obviously loose one.

bsanorton said:
On the lower left side I noticed a nut that looks to be barely hanging on just in front of the center stand bolt. The other side has a large flat head to it.
Click to expand...

It's the lower gearbox mounting which should be a 1/2" x 5" stud.
andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

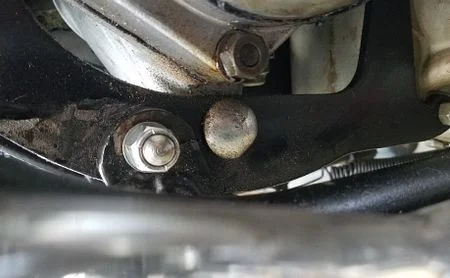

Yes, it's the one that goes through the bottom of the gear box. Below is the right side with the flat head Tornado for you to see
Lower engine mount bolt/stud question

bsanorton said:
A center stand bolt fell out so I replaced both sides with new hardware. On the lower left side I noticed a nut that looks to be barely hanging on just in front of the center stand bolt. The other side has a large flat head to it. My question is did something break off on the left side?
Lower engine mount bolt/stud question
Click to expand...

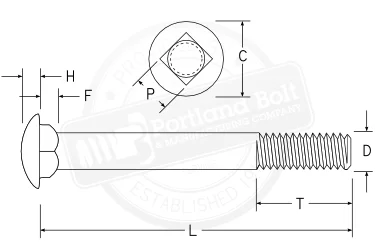

so the first thing i'd do is pull that bolt. this location should have a minimum Gr5 fastener, hope and pray that whoever put that in there didn't also open up the hole so the sq. carriage bolt head would go in too. replace with a proper fastener.
