LED instrument bulbs

Discussion in 'Norton Commando Motorcycles (Classic)' started by Dommie Nator, Jul 5, 2019.

  1. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013
    Is it possible to get some for a positive earth system. If so, any recommendations from anyone who had used them. TIA.

    Last edited: Jul 5, 2019
  2. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
  3. Onder

    Onder

    Joined:
    May 11, 2010
    Have same +1.

  4. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013
    Thank you gents.

  5. Danno

    Danno

    Joined:
    Feb 7, 2010
    <---That is all-LED, including the gauge bulbs.

  6. maylar

    maylar VIP MEMBER

    Joined:
    May 13, 2007
  7. Alan W

    Alan W

    Joined:
    Apr 5, 2006
    Goffy's LDT10DW works well in my experience, lights up my speedo across the range

  8. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    And it depends on whether you have wedge or bayonet fixture.

    The light will never be fantastic, due to the clock/hole design.

  9. Pushed it n rode it

    Pushed it n rode it

    Joined:
    Jun 10, 2019
    Got mine off fleabay a couple of weeks back. Capless (wedge) work fine and you can have bright white or warm. Just reverse fit for possy earth.

    kommando likes this.
  10. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013
    Not necessarily:

    Wedge bulb.
    Pete

  11. kerinorton

    kerinorton

    Joined:
    Feb 12, 2013
    Hi Pete, are those original instruments, or modern copies. Mine are original and with the led bulbs I put in [ they were designed as dash bulbs and only 4 LED's on each bulb facing straight out.], are no where near as what you are getting. Mine are not bright enough [ for my eyes ] and only illuminate the LHS of the area.
    Dereck

  12. kommando

    kommando

    Joined:
    May 7, 2005
    The key is the lumens, I got the highest lumens for bulb type required.

  13. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013

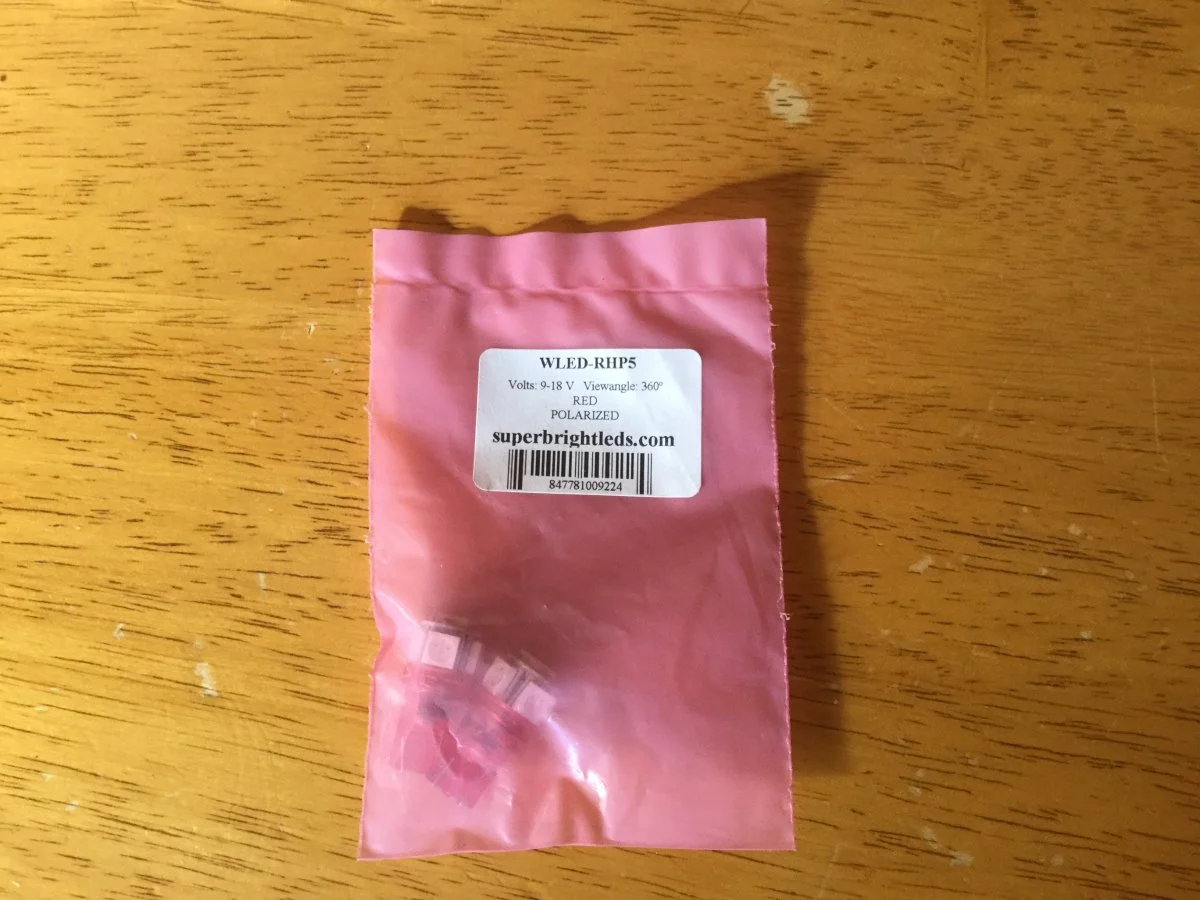

    Original Veglia w/ one bulb hole. As kommando states get the highest lumens possible, but also look for beam pattern. The bulbs I am using are 360 degrees, the ones with a narrow beam just light up a small section of the face. It took a couple of attempts to find the right bulb.

    Pete

    kommando likes this.
  14. texasSlick

    texasSlick VIP MEMBER

    Joined:
    Jan 2, 2013
    If you are willing to go to the trouble, painting the inside of the instruments case white, will somewhat improve the light distribution.

    There was a thread on this Forum, where the poster showed how to fabricate LED's on a strip into stop/tail configurations. This technique could be used to fashion 360 degree illumination by bonding the strip around the inside of the instrument case. Use the search function to find that thread.

    Slick

  15. batrider

    batrider

    Joined:
    Aug 9, 2008
    Why does it need to be so bright?

    MexicoMike likes this.
  16. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013
    Russ,

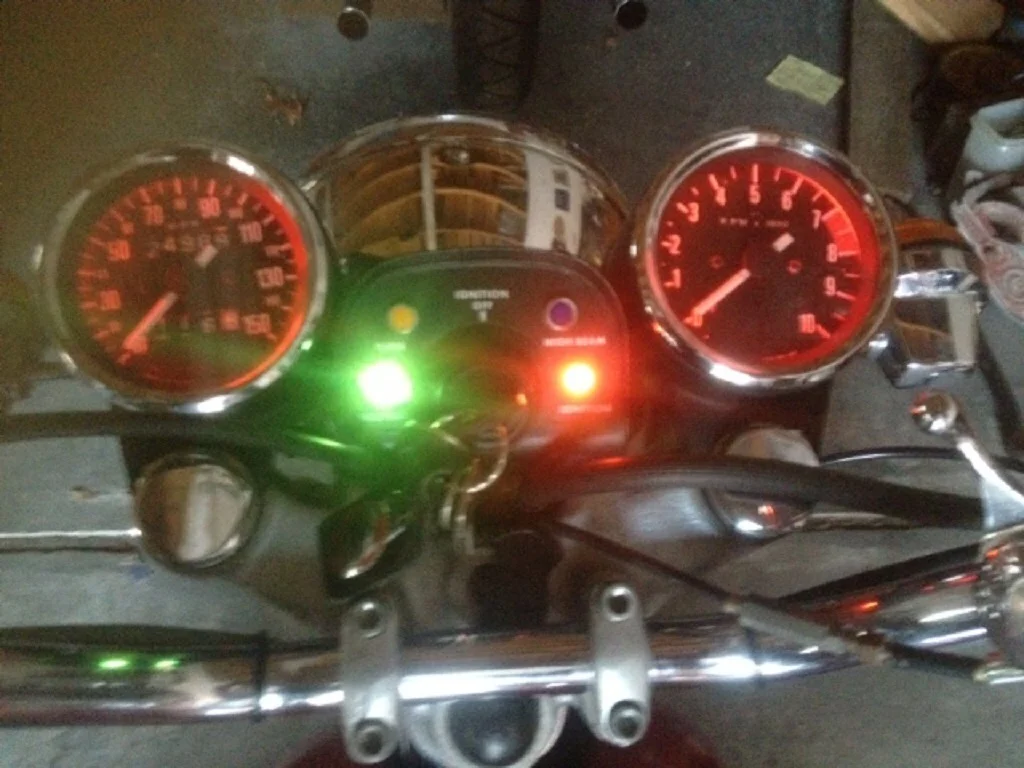

    The picture is a little deceiving. The gauges are actually a soft red and very easy to see at night without being obtrusive, but with 100% coverage. The same with the warning lights which are regular incandescent bulbs. Cell phone photo made everything seem to have sharp glare.
    Pete

  17. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013
    I bought four for £10.60 (2 each for the Domminatrix and Commando).
    Came in a few days and seem very bright.
    Thanks for the help again.

    https://www.classiccarleds.co.uk

    Pushed it n rode it likes this.
  18. maylar

    maylar VIP MEMBER

    Joined:
    May 13, 2007
    Is there a good substitute for the round bulb bayonet style? Most of the multi-LED versions I see look to be too big to fit through the hole.

  19. Pushed it n rode it

    Pushed it n rode it

    Joined:
    Jun 10, 2019
    Classic car LEDs, ordered a stop n tail on Saturday arrived today, Monday !

  20. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013

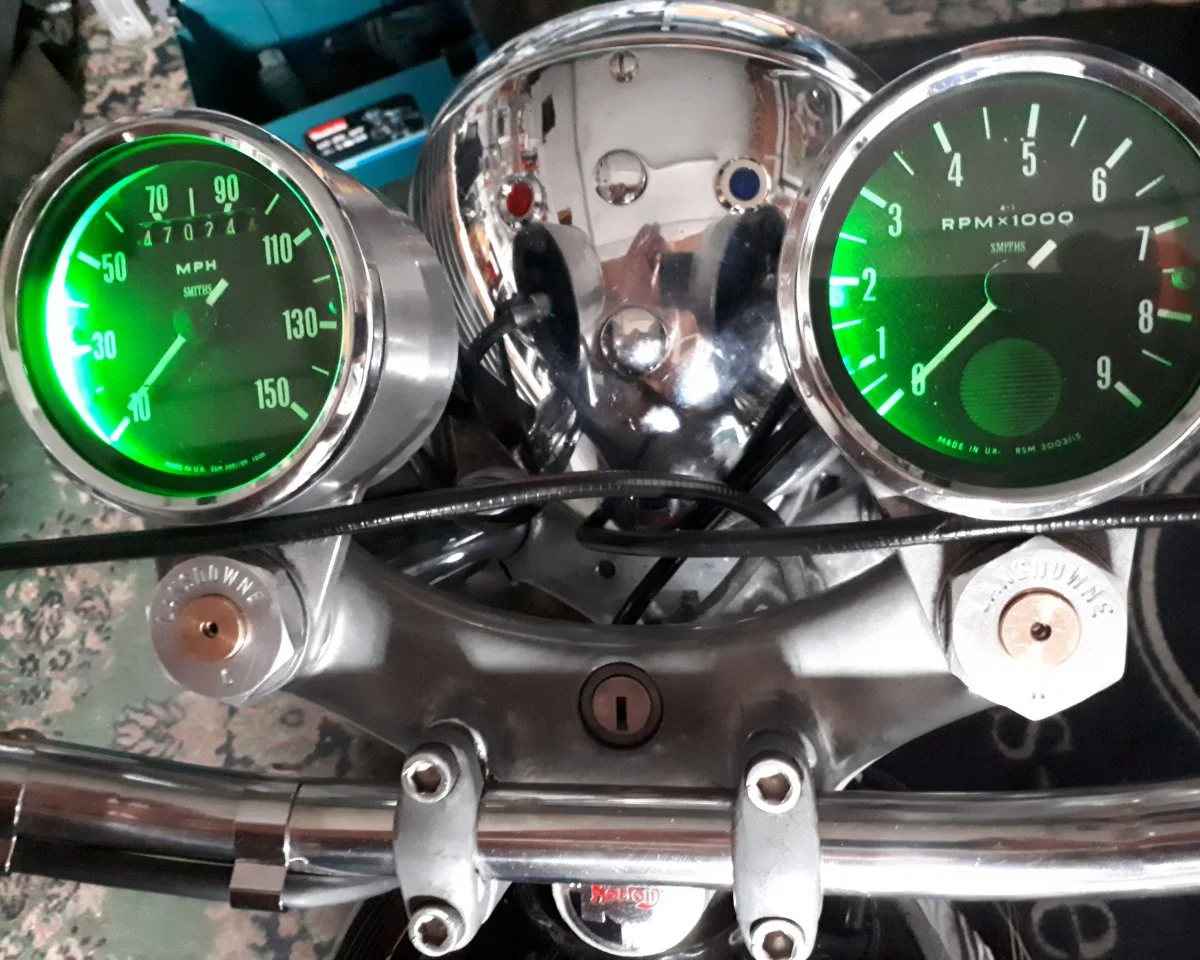

    20190712_045048.jpg I thought the green would look ok so I bought some extra ones.

    Esmerela likes this.
