Indicators

colin davie · Mar 10, 2022

Been thinking for a while about fitting mini led indicators with a "modern" switch unit for everything ,turn, lights ,dip, kill sw ,horn .
what have people fitted ?

Derek Wilson · Mar 10, 2022

I have had Norton F1 indicators fitted to my Commando with LED bulbs and a LH Yamaha XS650 switch gear for about 20 years. The indicators are not "mini" but the are a little more slick and understated than the original Lucas ones. The fronts are mounted below the tank a la CNW. The taper of the rears match the contours of the L679 tail light.

The switch gear embodies a balance of modern function with a period look.

I have installed a generic, small RHS switch gear (sourced from Amazon) to handle the starter button (Alton fitted), and latching kill switch

You can see the indicators in my profile pic.

My $0.02

Fast Eddie · Mar 10, 2022

I used this one, doesn’t have a kill switch tho…

Handlebar switch, left hand

Multi function handlebar switch left hand Made by in Italy by Tommaselli Domino Group Fits 22mm 7 8 handlebars Supplied complete with sub-loom 50cm

www.discovolantemoto.co.uk

Fast Eddie · Mar 10, 2022

When you say ‘mini’… how mini dya wanna go?

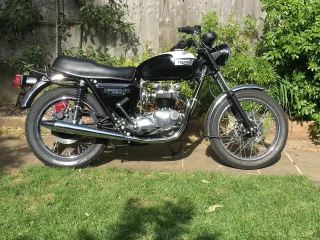

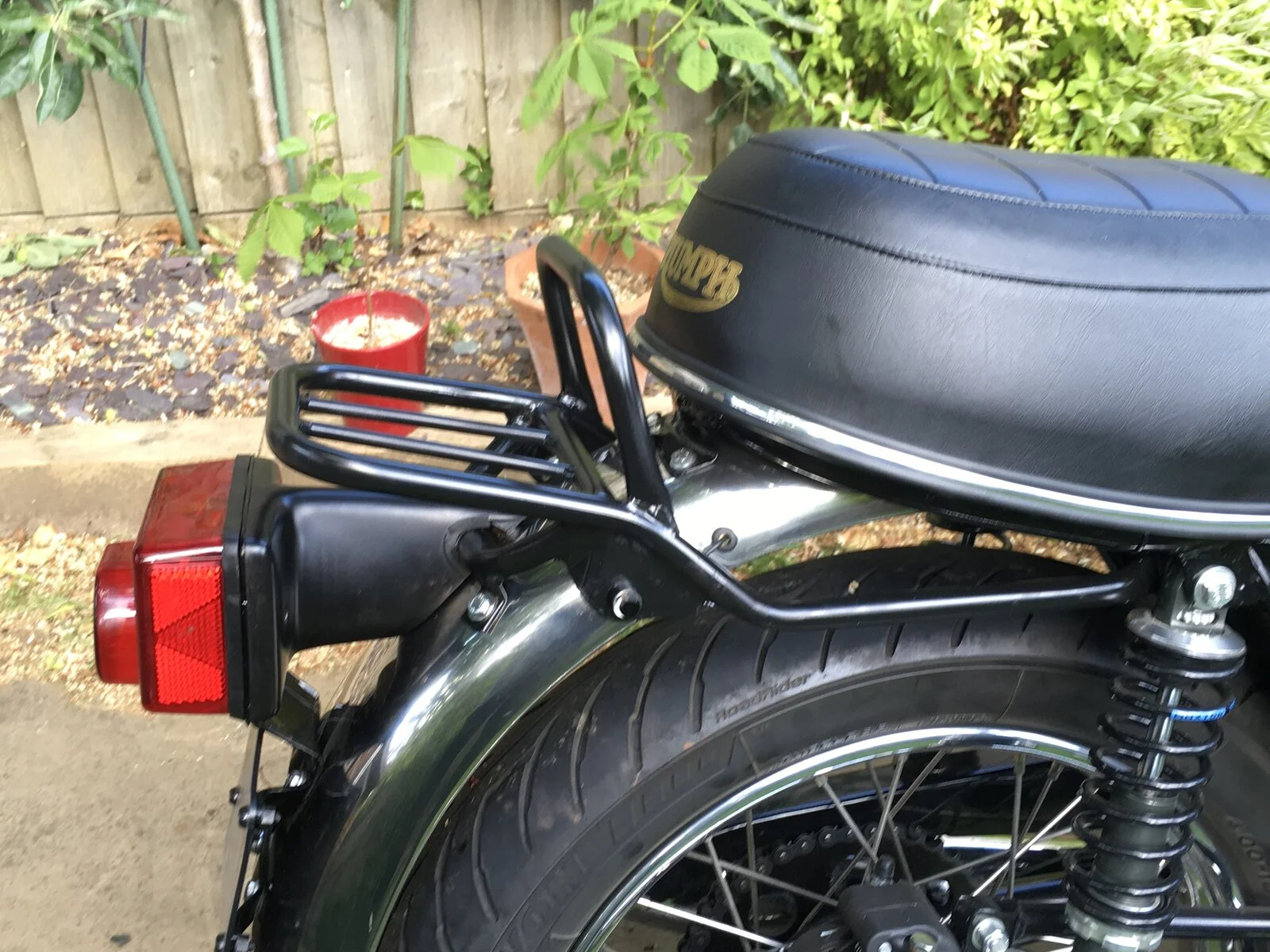

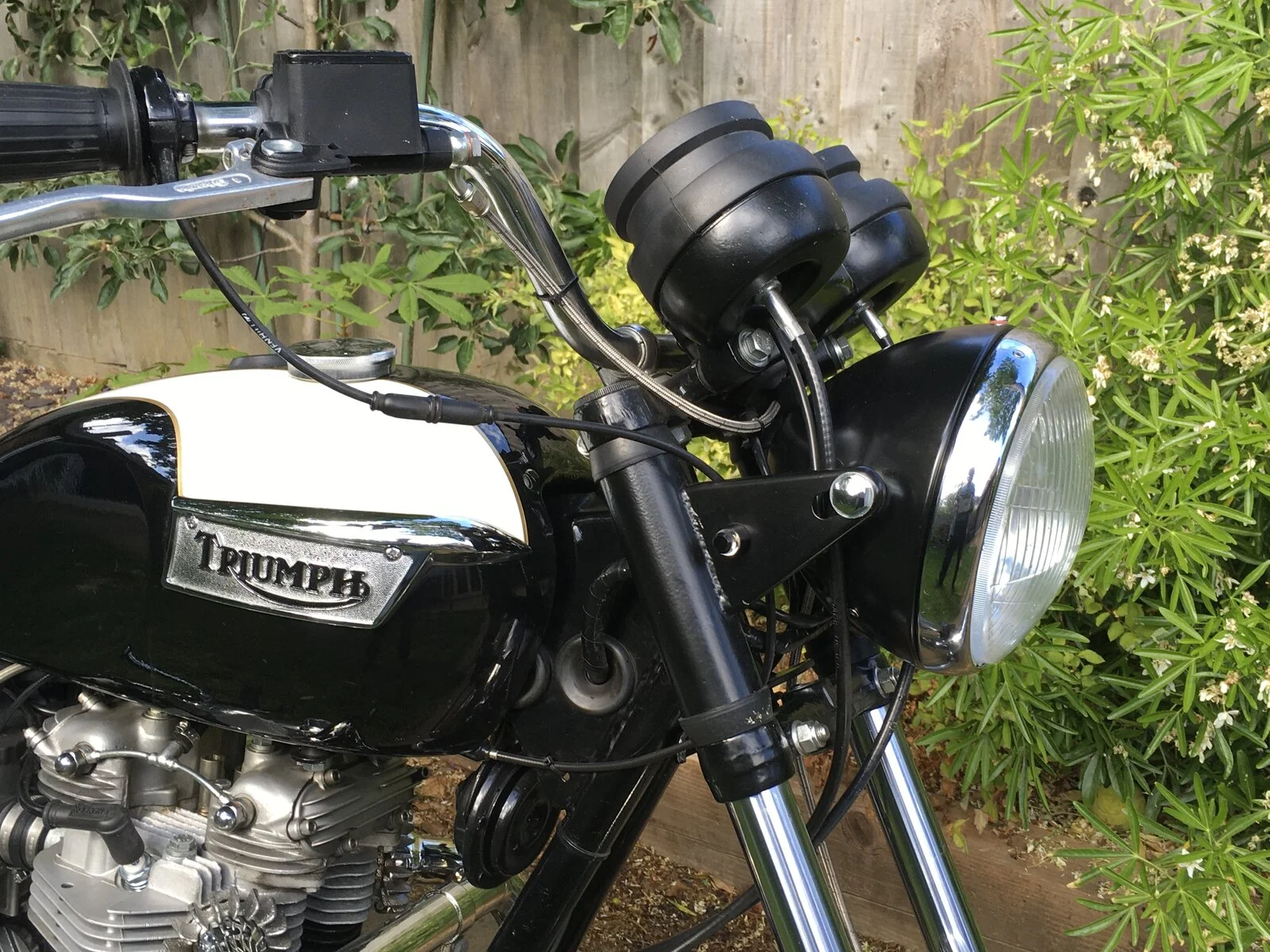

You’ll have to look twice to even know the bike below has got any indicators, and they’re brighter than ANY incandescent bulb indicator…

texasSlick · Mar 10, 2022

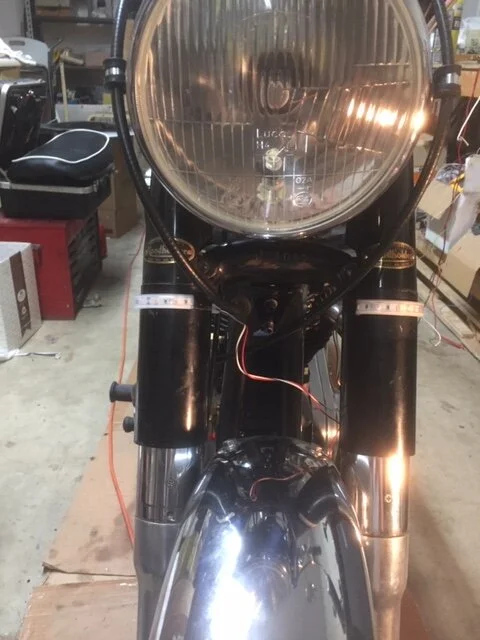

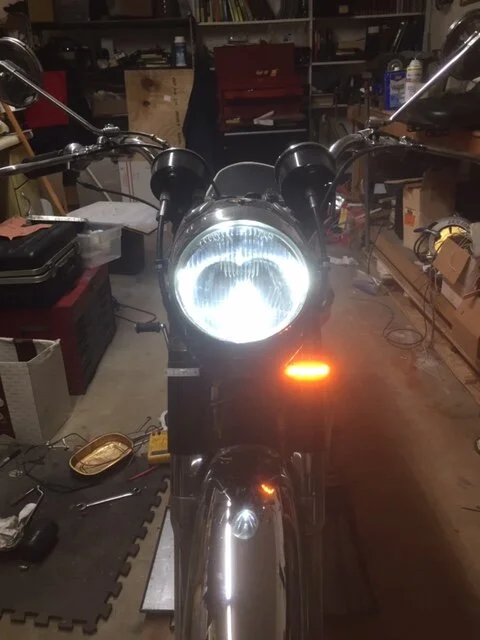

I used flexible LED strips, as I did not want indicators sticking out on a stalk or post. I wrapped the strips around the front fork tubes and the rear shock tubes.

These things are extremely bright!

See also: https://www.accessnorton.com/Norton...indicators-my-norton.31286/page-2#post-493658

Slick

colin davie · Mar 10, 2022

Fast Eddie said:
When you say ‘mini’… how mini dya wanna go?

You’ll have to look twice to even know the bike below has got any indicators, and they’re brighter than ANY incandescent bulb indicator…

View attachment 85671 View attachment 85672 View attachment 85673

Nigel ,
I can hardly see them , where did you get them and i assume they came with a flasher unit ?
Thanks for your input.
Colin

Fast Eddie · Mar 10, 2022

colin davie said:
Nigel ,
I can hardly see them , where did you get them and i assume they came with a flasher unit ?
Thanks for your input.
Colin

They’re Motogadget, Motogadget relay too.

German quality.

German prices…

colin davie · Mar 10, 2022

Thanks Nigel ,i will look into this , positive earth not a problem ?

robs ss · Mar 10, 2022

Fast Eddie said:
They’re Motogadget, Motogadget relay too.

German quality.

German prices…

Did you fit the M-Flash (self cancelling)?

Fast Eddie · Mar 10, 2022

robs ss said:
Did you fit the M-Flash (self cancelling)?

No. But I shudda !

Fast Eddie · Mar 10, 2022

colin davie said:
Thanks Nigel ,i will look into this , positive earth not a problem ?

Good question. I would think they wouldn’t care either way. But best to enquire.

robs ss · Mar 10, 2022

Fast Eddie said:
No. But I shudda !

Better option for self cancelling is the Kisan SignalMinder (@Tornado put me on to them). They're US items.
It is superior IMHO because:
1. The countdown to "off" is suspended while the brake light is on, and
2. Offers the option of having the indicators as running lights - only half strength (works well according to my mates)
Cheers

alan hodge · Mar 10, 2022

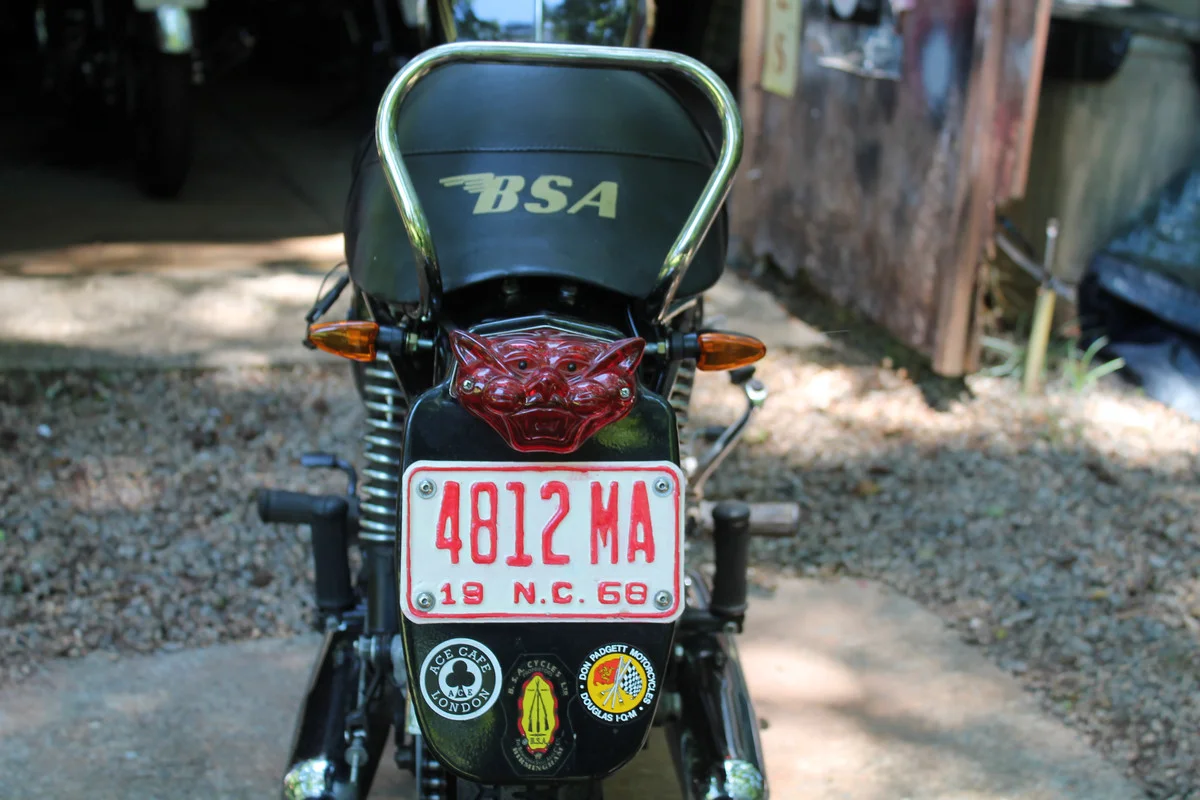

i showed these a while back but sense you axt....... both emgo by the way
