Hyde MK3 Rear Sets Installation

Status
Not open for further replies.
SquareHead

SquareHead

Joined
Sep 27, 2012
Messages
234
Hi Folks,

Does anyone have instructions, directions, suggestions and/or pictures of Norman Hyde MK3 rear sets? I purchased a used set but there are no instructions. Can probably figure it out easily enough, but thought I would ask the collective first...

Thanks!

SquareHead said:
Hi Folks,

Does anyone have instructions, directions, suggestions and/or pictures of Norman Hyde MK3 rear sets? I purchased a used set but there are no instructions. Can probably figure it out easily enough, but thought I would ask the collective first...

Thanks!
Click to expand...

I had to shorten the shifter linkage as it was making the throw too long. I had to make a bushing for the shifter to keep it from binding. Also the Kick start lever has nowhere to go and it was in the way so I took it off( the kick start shaft too). Great footrest position with an Interstate setup and me being 6'3". Not so good with a Roadster two up ,IMHO

SquareHead said:
What did you put in place of the kick start shaft?
Click to expand...

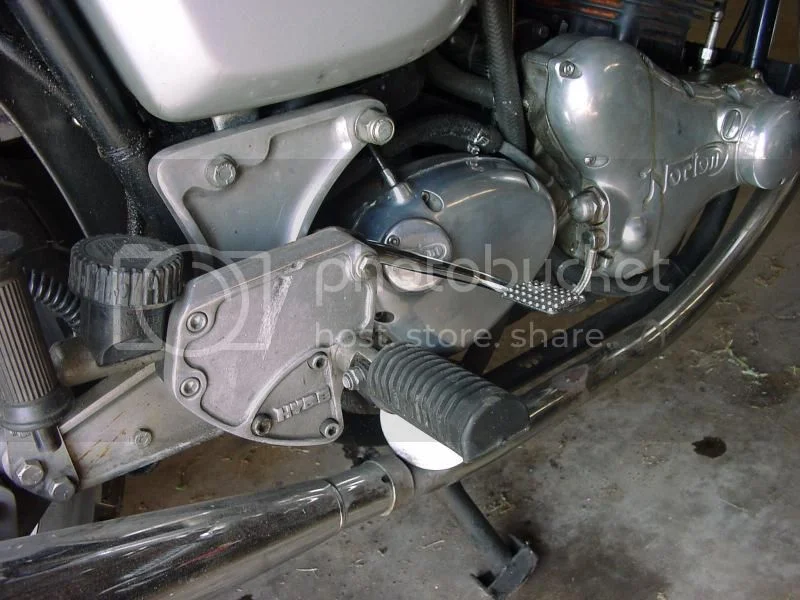

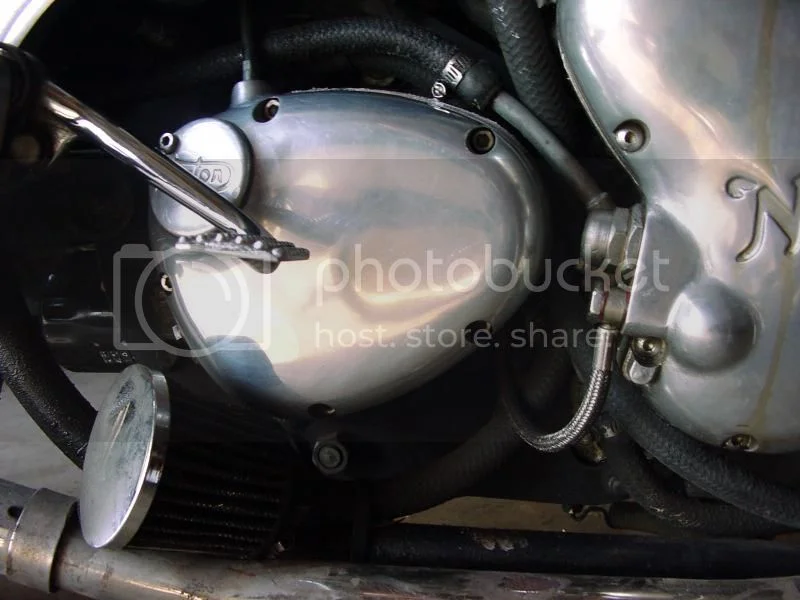

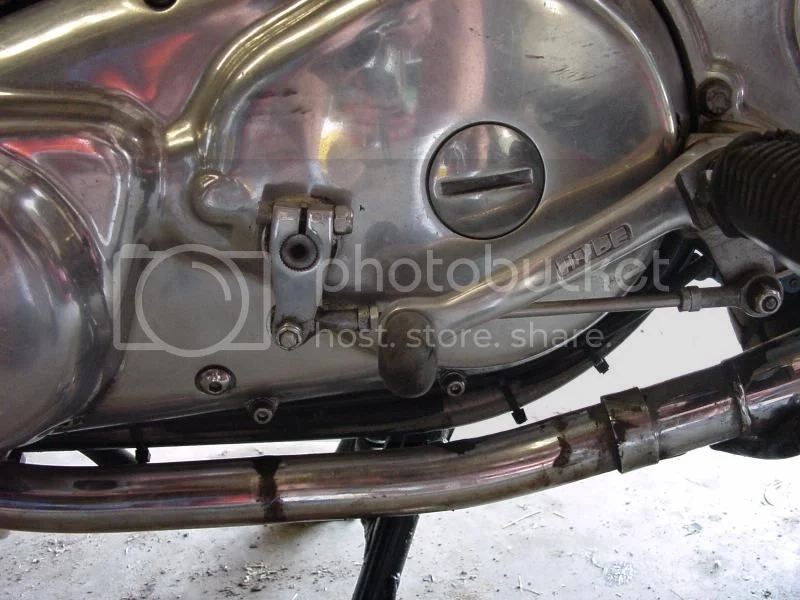

carrier bearing, filled the hole ,polished nicely. I'll take a pic.

Hyde MK3 Rear Sets Installation



Hyde MK3 Rear Sets Installation



Hyde MK3 Rear Sets Installation

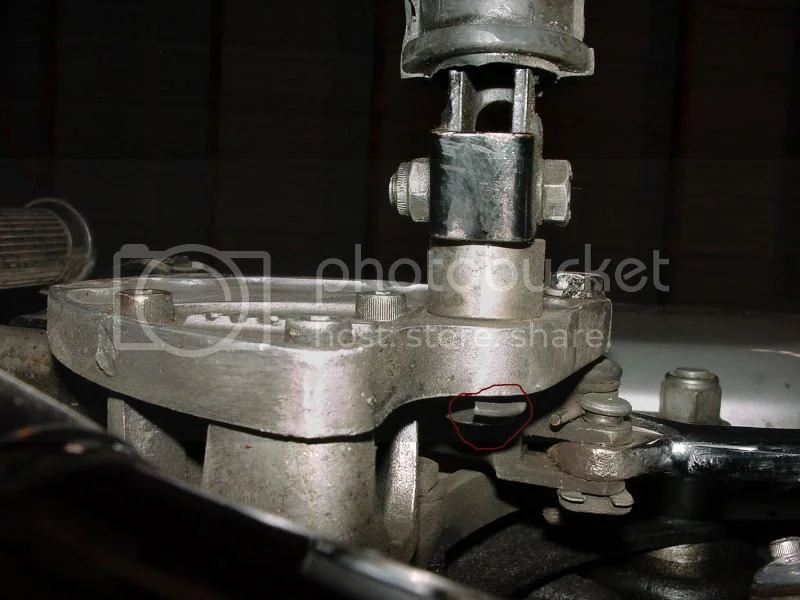

see where the kick starter was rubbing behind the footpeg?


Hyde MK3 Rear Sets Installation



Hyde MK3 Rear Sets Installation

Okay, I have the rear sets installed, brake line flushed, etc. The only problem I am having is determining where the return spring attaches to. Does anyone have any pictures or can explain to me how the return spring is installed properly?

Thanks!

I have that part of the spring in the proper place. What about the end with the hook? Where does that fit?

Hyde MK3 Rear Sets Installation

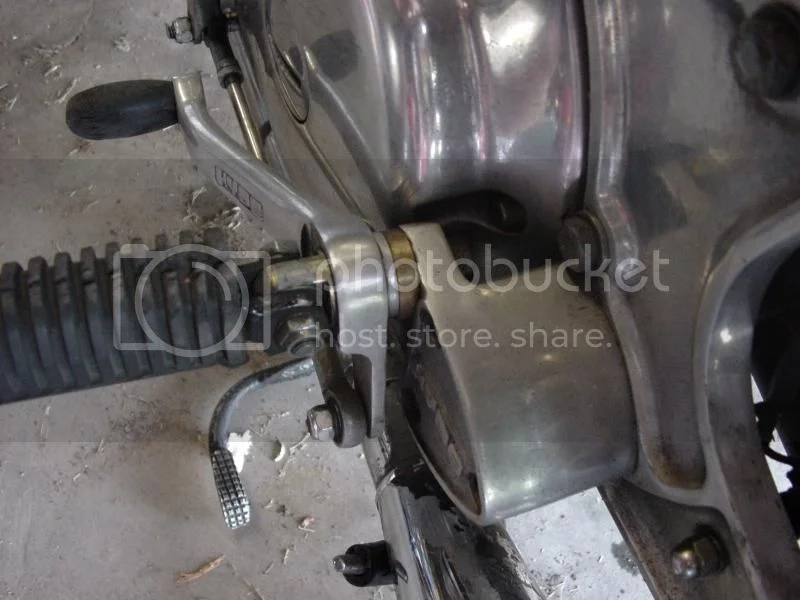

footpeg bolt head


Hyde MK3 Rear Sets Installation


did you notice my right side casting is cracked? Its been like that for years. :?
