I have had some interest in what I used to wire my Combat, so here it is.

http://www.ultimaproducts.com/wiringsystemleds.html Electrical center
http://www.ballisticparts.com/products/ ... /8cell.php Battery
http://www.pazon.com/ignition-system/su ... 2volt.html Pazon Sure Fire Ignition
http://www.radioshack.com/product/index ... PerPage=60 Switch boots
http://www.radioshack.com/product/index ... =CT2032232 Green Light
http://www.radioshack.com/product/index ... =CT2032232 Blue Light
http://www.radioshack.com/product/index ... =CT2032232 Red Light

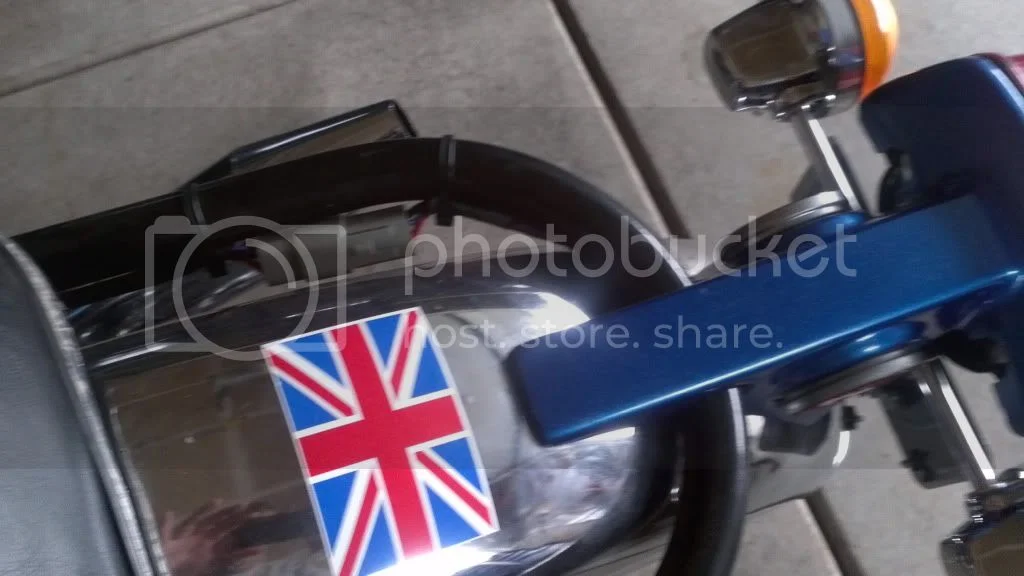

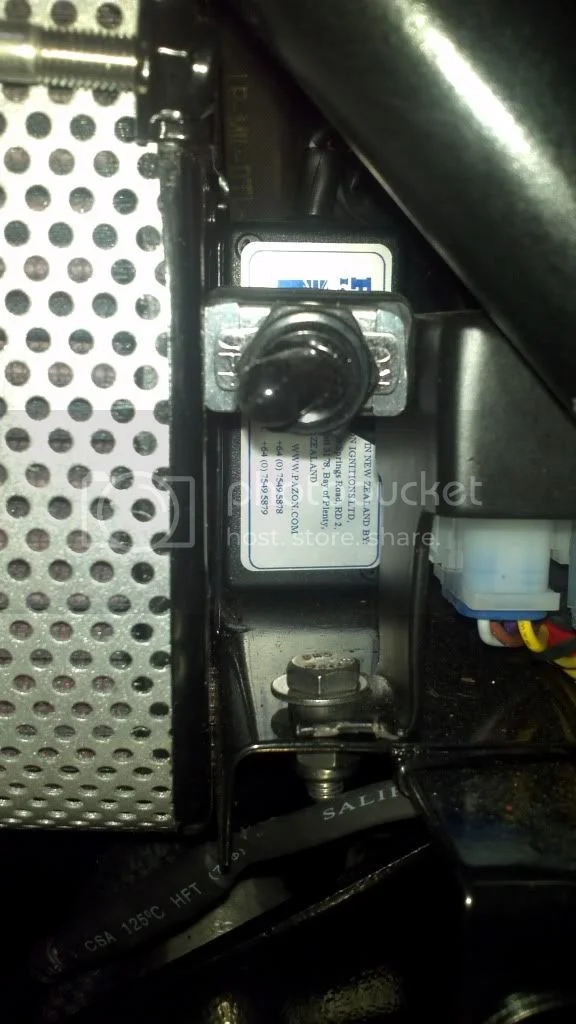

Power switch, no key on this bike
How I wired my Combat.

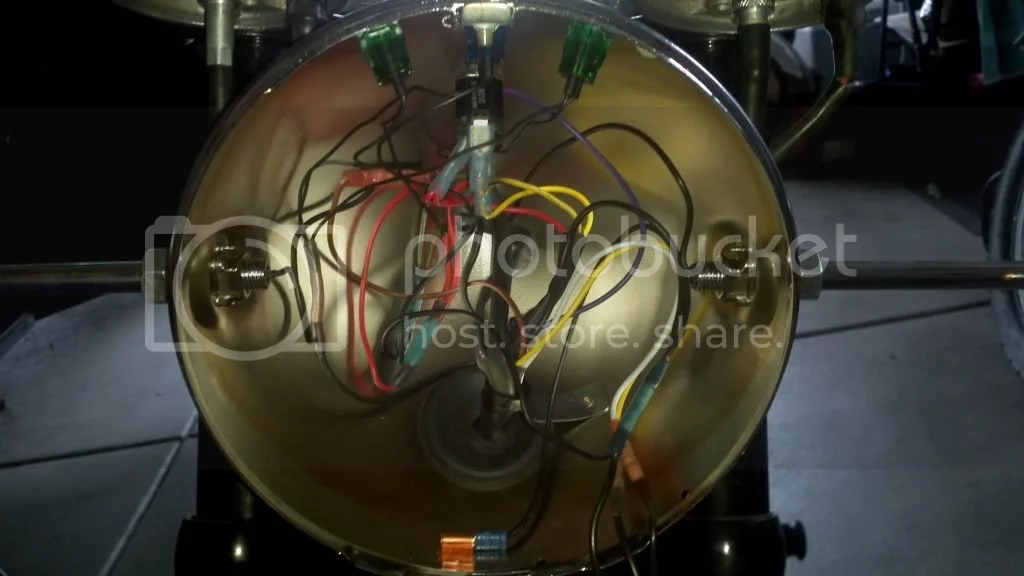

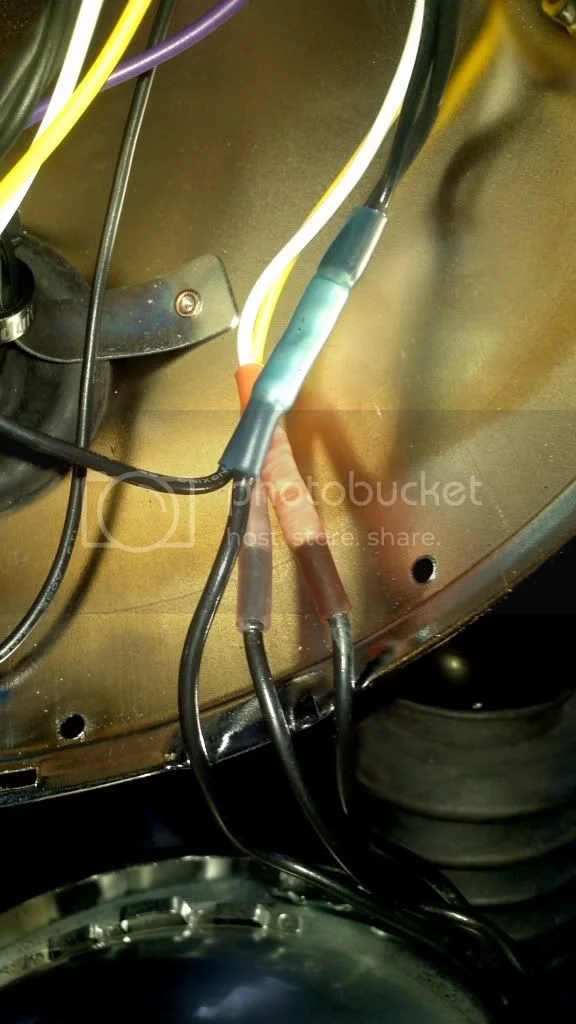

Inside headlight shell
How I wired my Combat.

How I wired my Combat.

How I wired my Combat.

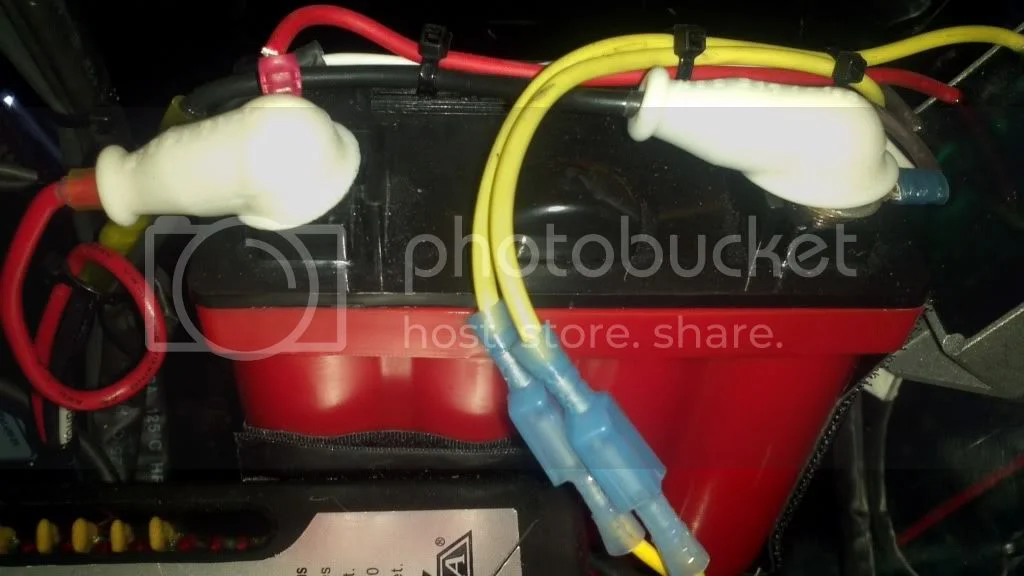

Battery
How I wired my Combat.

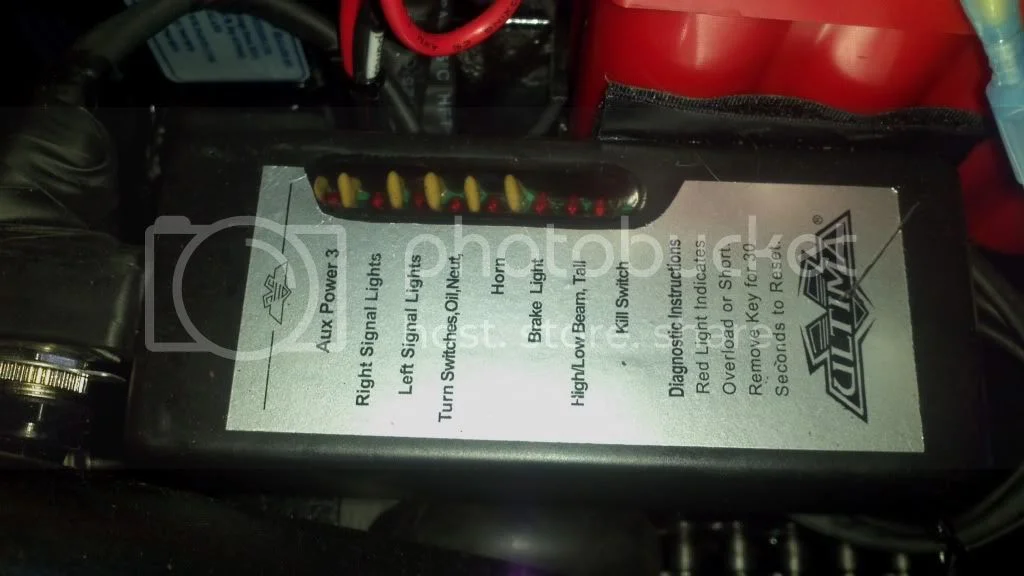

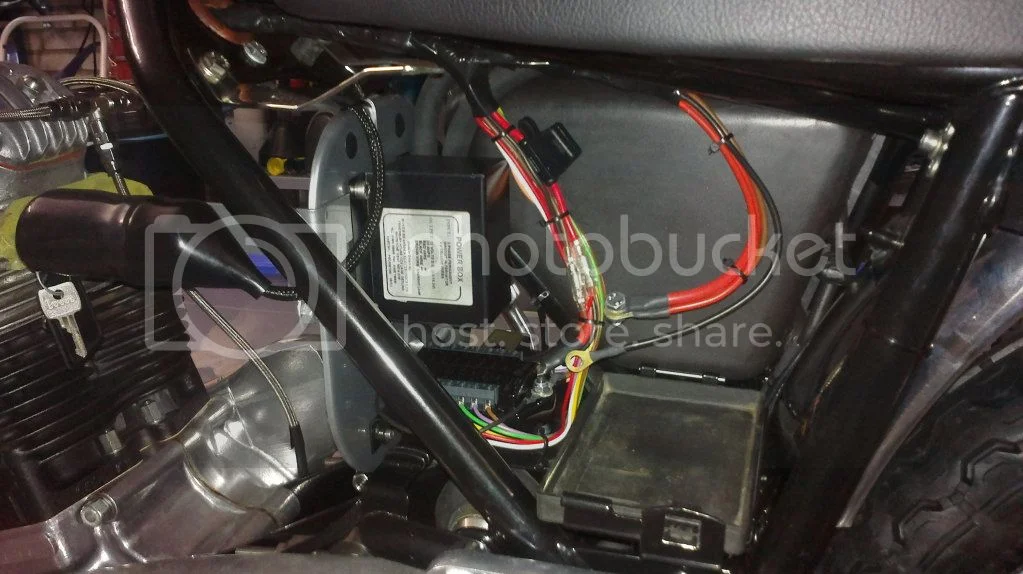

Power center
How I wired my Combat.

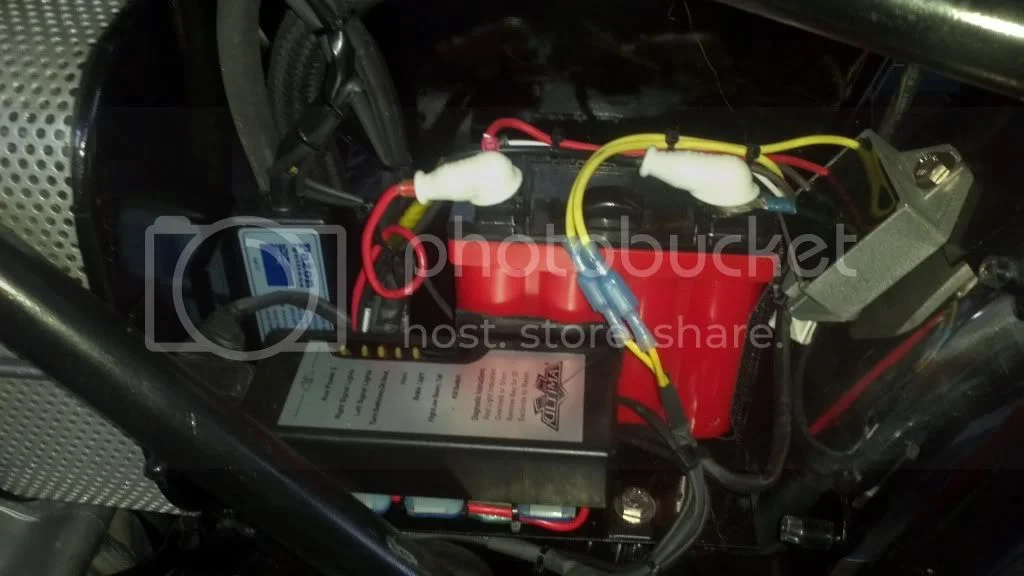

Battery Compartment
How I wired my Combat.

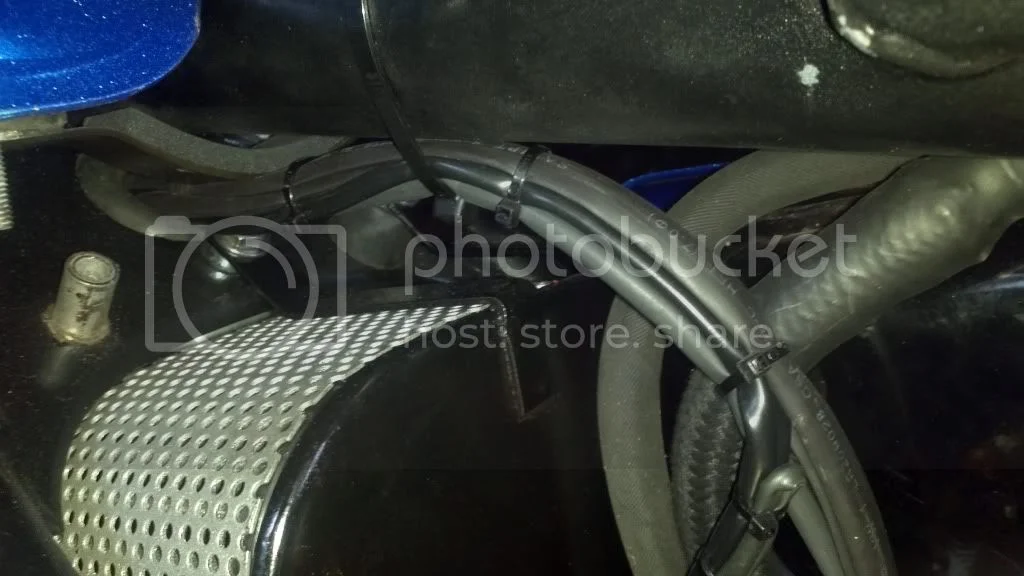

Wiring run
How I wired my Combat.

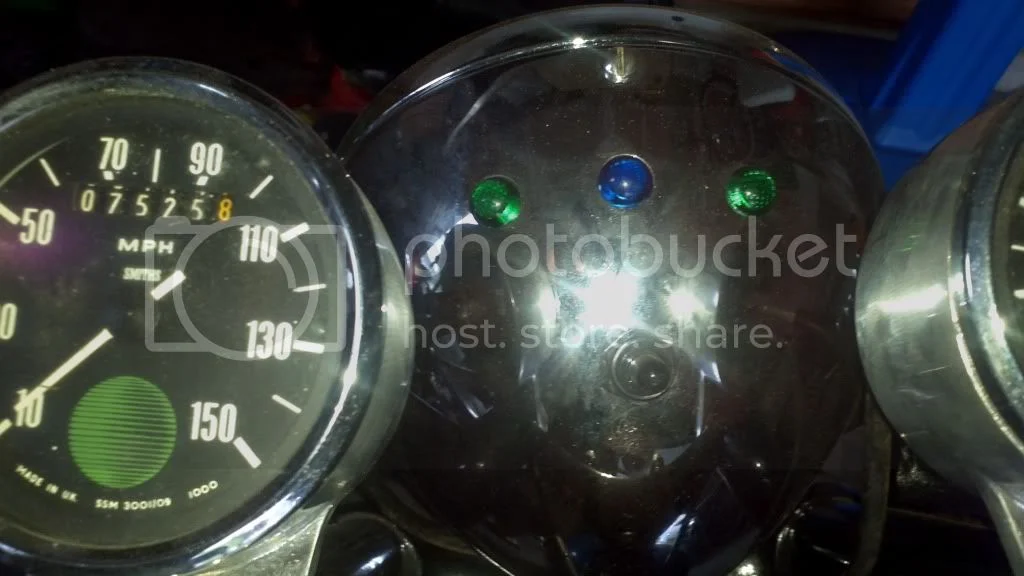

Outside of headlight with LH/RH indicators, HI beam indicator and HI/OFF/LOW switch.
How I wired my Combat.

Tail light Deuch connector
How I wired my Combat.

The M-unit is on my alloy bike. I have a friend with a harley shop who recommended the Ultima. It was affordable and did what I wanted.

G'day Brent, its all looking very neat and tidy. Once you've worked on and with aircraft a high standard is learned and I can see its been carried through here. Although some bits don't behave as they should, that blue bulb...... lock wire gets handy! :mrgreen:
(The Ultima site has lots of good bits including a 140 cuba. My mate has one, very addictive grunt/sound/HP. Another project someday?!)

foxy

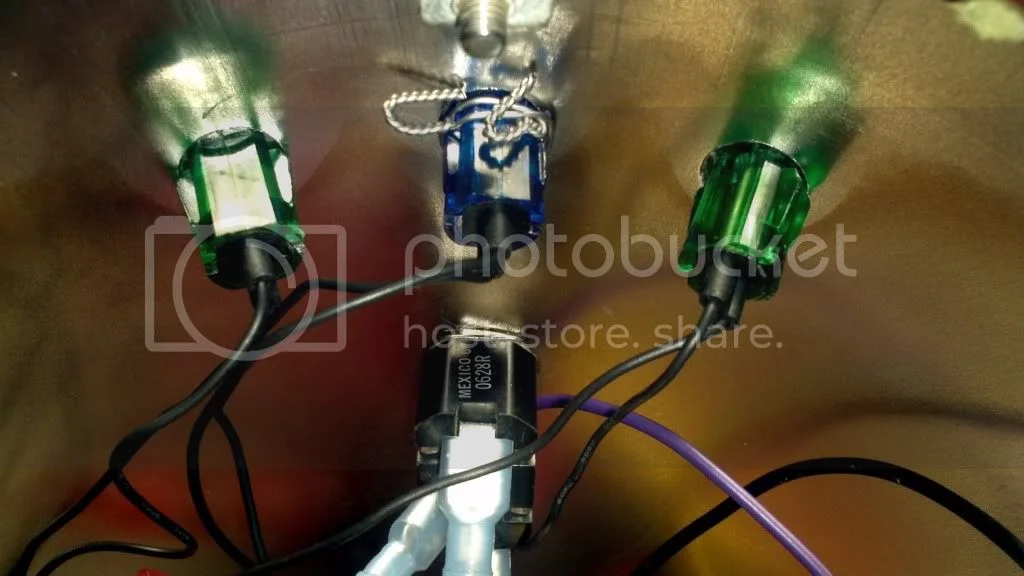

That lockwire was a temporary stop gap. The holes are a little too big for the indicator lights. I have to unwire them and use some thin grommet material. Its on the to do list.

High Tech Baling wire, fixes everything.

Looks good man. I really like that bike in your avatar. You get that tank from Evan Wilcox?

Nice job Brent,
That job is a source of inspiration for all of us. You should not have any electrical gremlins for years with that set up :)
Just one question, why no oil pressure light, or do you have a gauge or something that I haven't seen?

All the best

Webby

How much is the harness running looks like a great system? did see the cost online . Like the no key setup
:D

well Brent I will have to say, it is a MUCH better job than our resident professional restorer.

Thanks for noticing. I used to install aircraft avionics for a living, you get used to a certain level of fit and finish.

bwolfie,
With over 20 years as an Army Aviation maintenance officer, I’ve learned to spot the perfection of the anal retentive. Almost a shame covering it up.

Chuck

Super job, Wolfie. This should be the standard for any vintage motorcycle rewiring. I cringe when I see posts telling us how they soldered their bike's electrical connections.
