Holes for 850 centre stand

Hi all

I am fitting a 850 style centre stand to my 68 commando need some help with the hole locations. Is there anyone who has a late model rear cradle that they can do a tracing of on an A4 sheet of paper and scan and send it to me so I can print and use as a template.

Thanks in advance.
Dean

I have a cradle which I can take pics of with dimensions added. It is a 850 MK3 hybrid as it has the cotter pin slots for the swingarm spindle but it was fitted to a 72 Combat. Will look it out tomorrow.

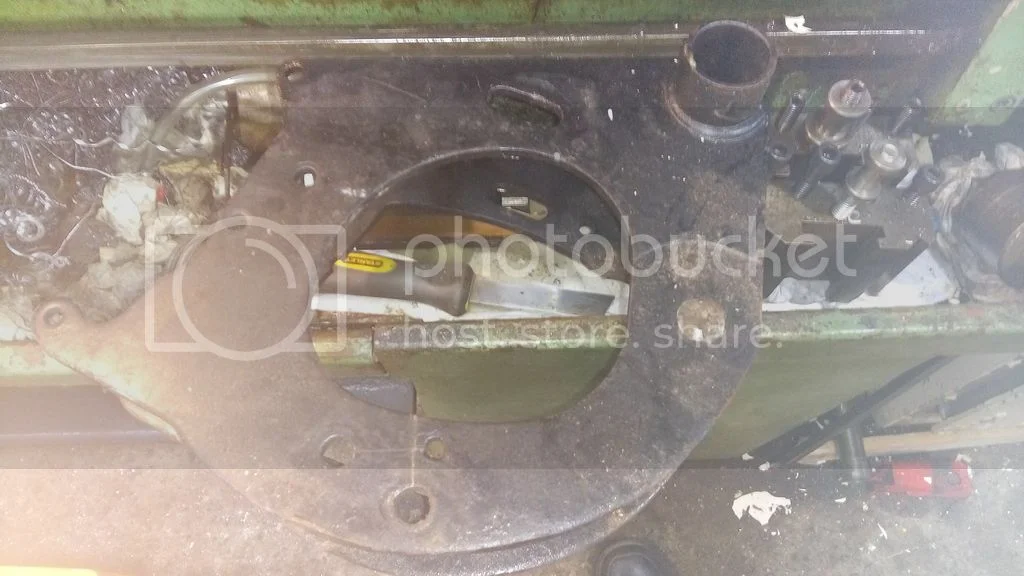

The first pic is of the left hand side, you can see 3 holes close to one another at the bottom with 2 score marks.



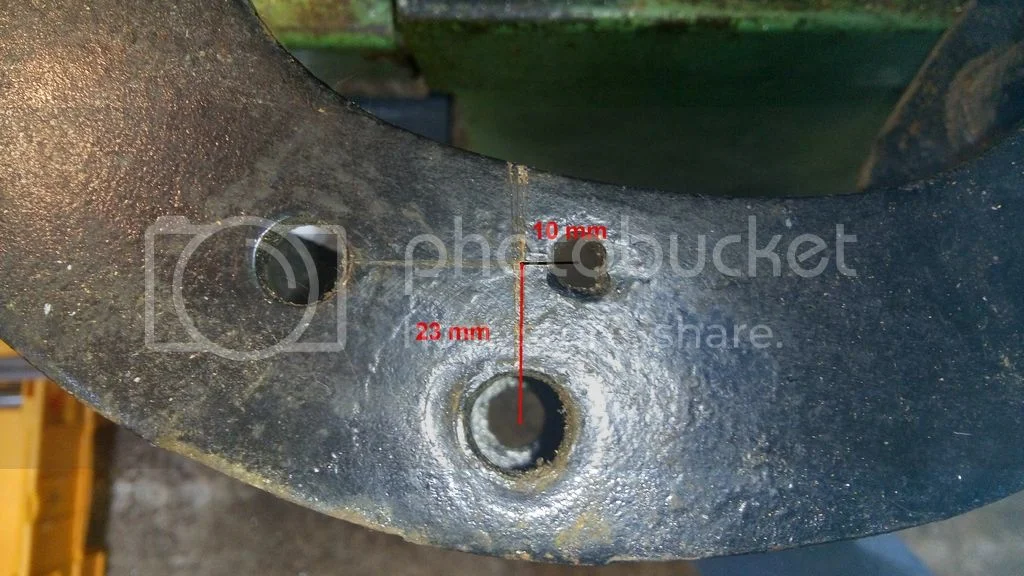

This is the close up, I scored one line through the 2 upper holes through the nominal centres and then drew a line perpendicular that went through the nominal centre of the centre stand hole.

The perpendicular line measured 10mm away from the centre of the small hole and the centre of the centre stand hole was 23mm down the perpendicular line.

Hi Kommando

Thanks for the pics and dimensions.

D
