Heart Transplant

Discussion in 'Norton Commando Motorcycles (Classic)' started by swooshdave, Aug 17, 2018.

  1. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Lord no.

    Mike T likes this.
  2. Hortons Norton

    Hortons Norton

    Joined:
    Oct 12, 2007
    Gold leaf Dave.

  3. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    The problem is the rest of the engine looks so nice.

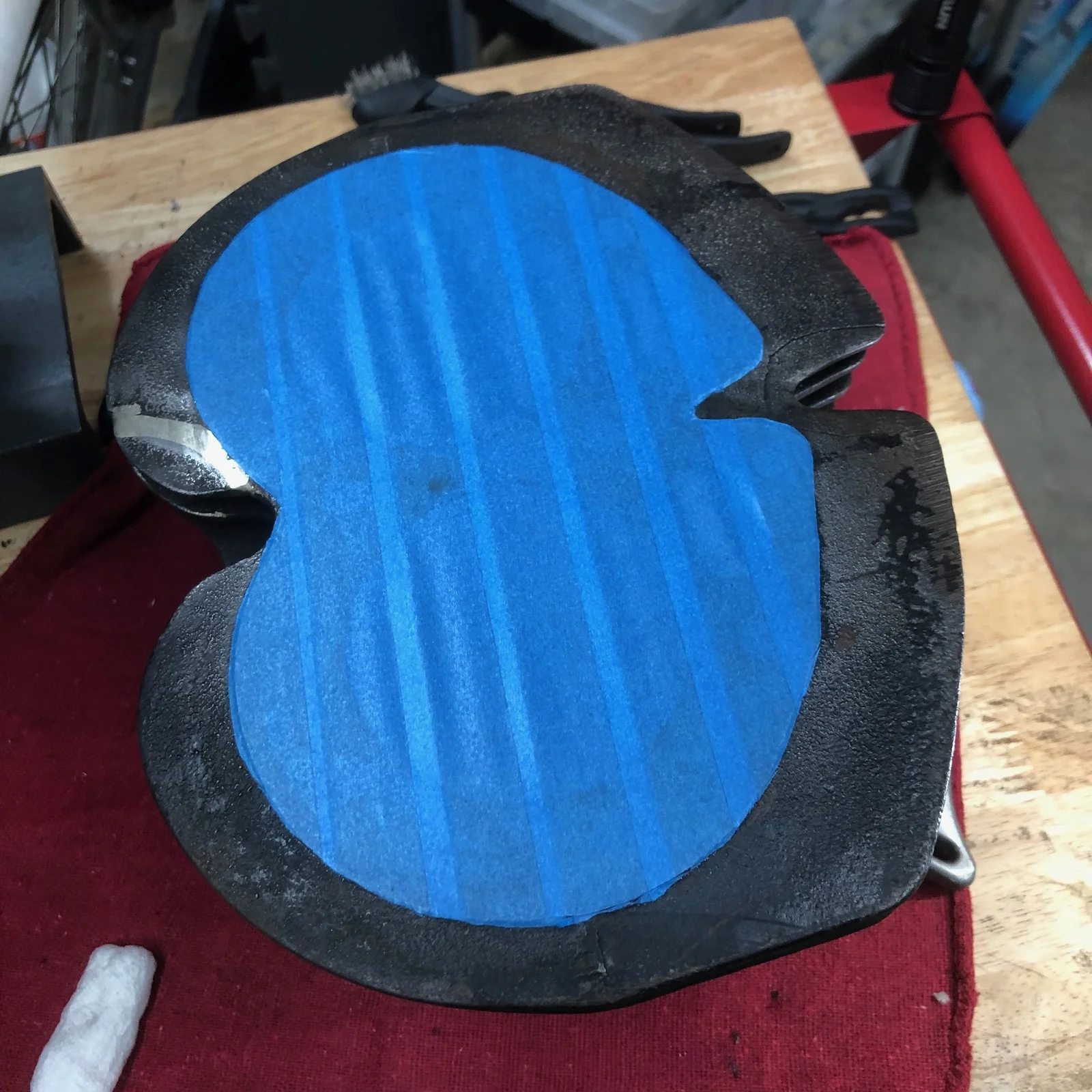

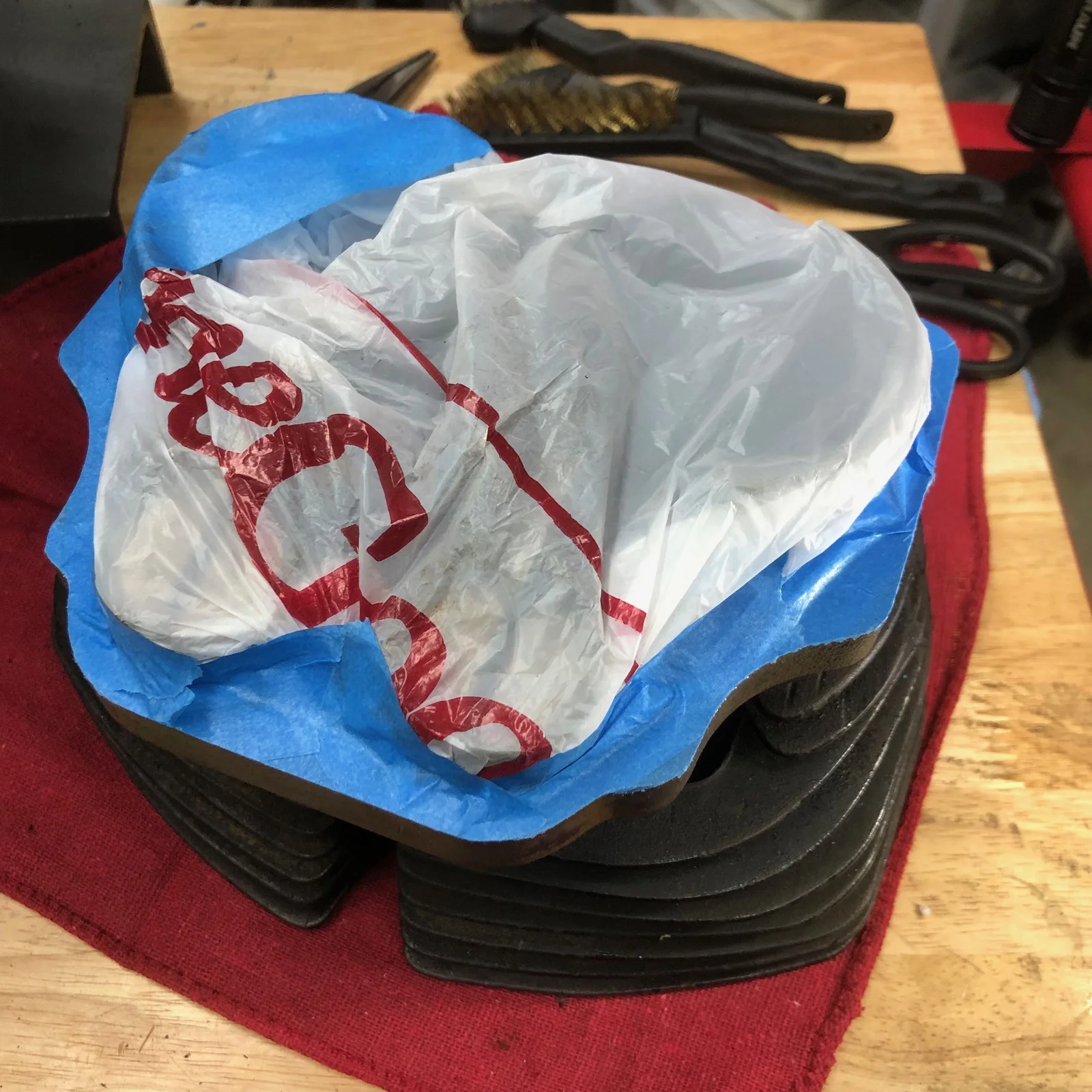

    I though Jim said he was going to paint the barrel but I was mistaken. No problem, I’ve already got some paint ready. Just need to mask off.

    Hortons Norton likes this.
  4. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    [​IMG]
    [​IMG]

    It's pretty damp outside right now. I may hold off until it dries out more. Unfortunately in Oregon that means July. So I'll paint it soon.

  5. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    Heat lamps

  6. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Hmmm, don't have.

  7. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    Have any halogen work lamps? I've used those.

    Mike T likes this.
  8. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Yes, I have one. Good suggestion!

  9. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    [​IMG]
    [​IMG] [​IMG]

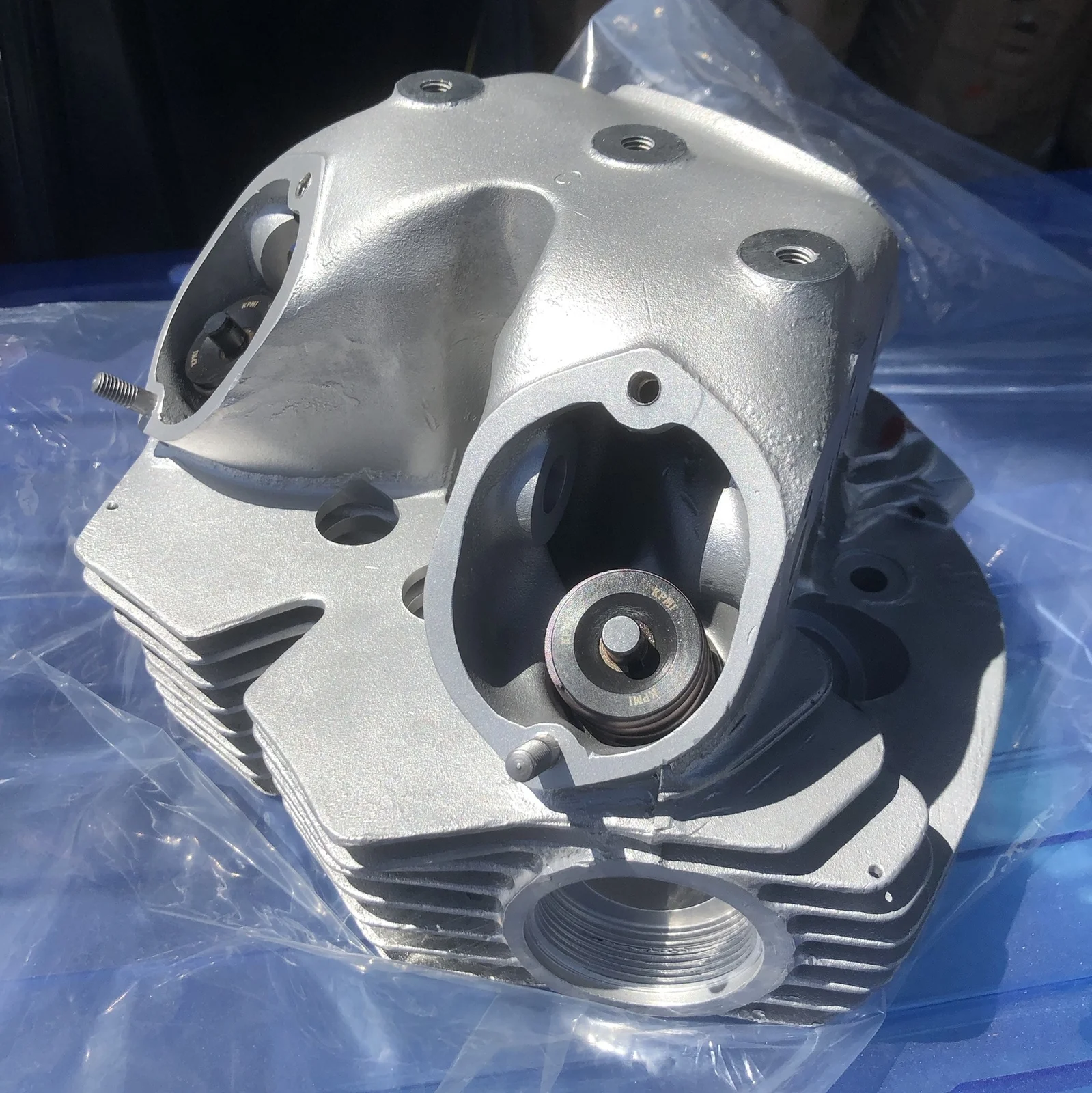

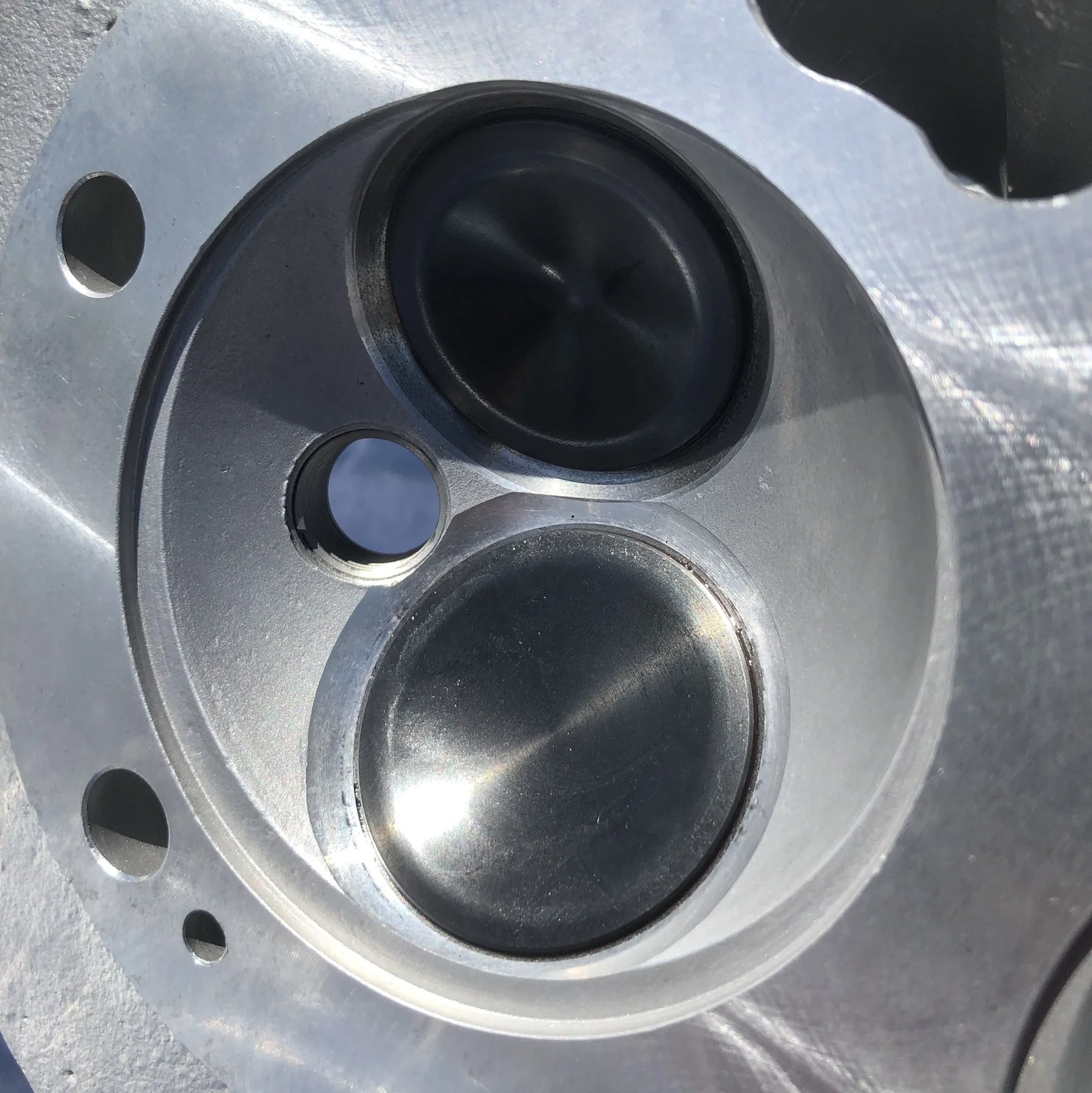

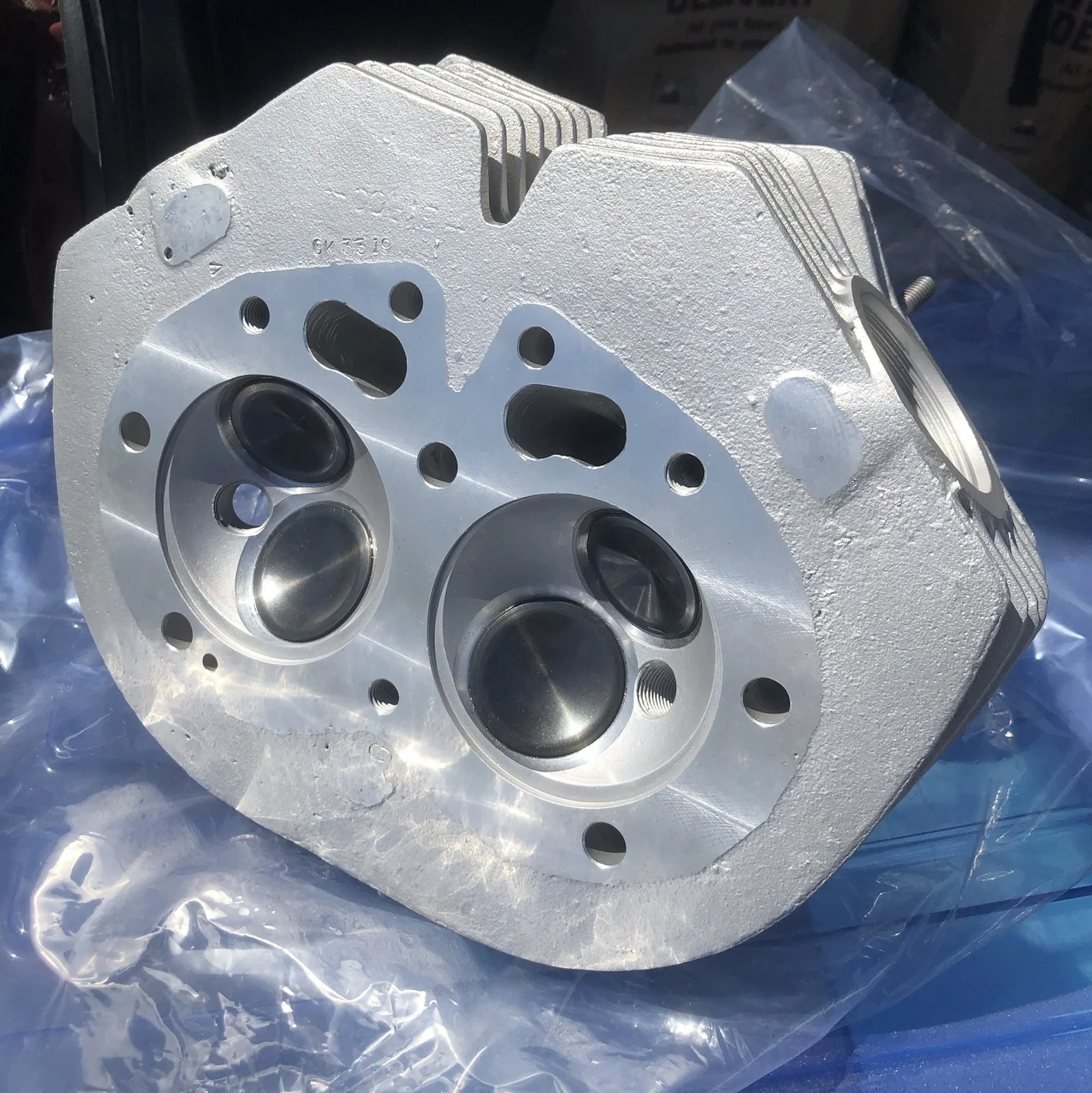

    I had a local shop here do the head. http://www.baisley.com/ This guy use to do work for Kenny Dreer so he knows his way around a Norton head. Sandblasted, new guides and valves (Black Diamond) and seats recut. They also took a smidge off the surface. Of course as I slide down the slippery slope I need to order new hardware to match the refreshened surfaces...

    Mike T, Deets55 and gortnipper like this.
  10. CanukNortonNut

    CanukNortonNut

    Joined:
    Aug 8, 2005
    Kibblewhite springs? Looks like retainers.

  11. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Yes. I believe so. I need to look at the invoice again.

  12. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    [​IMG]

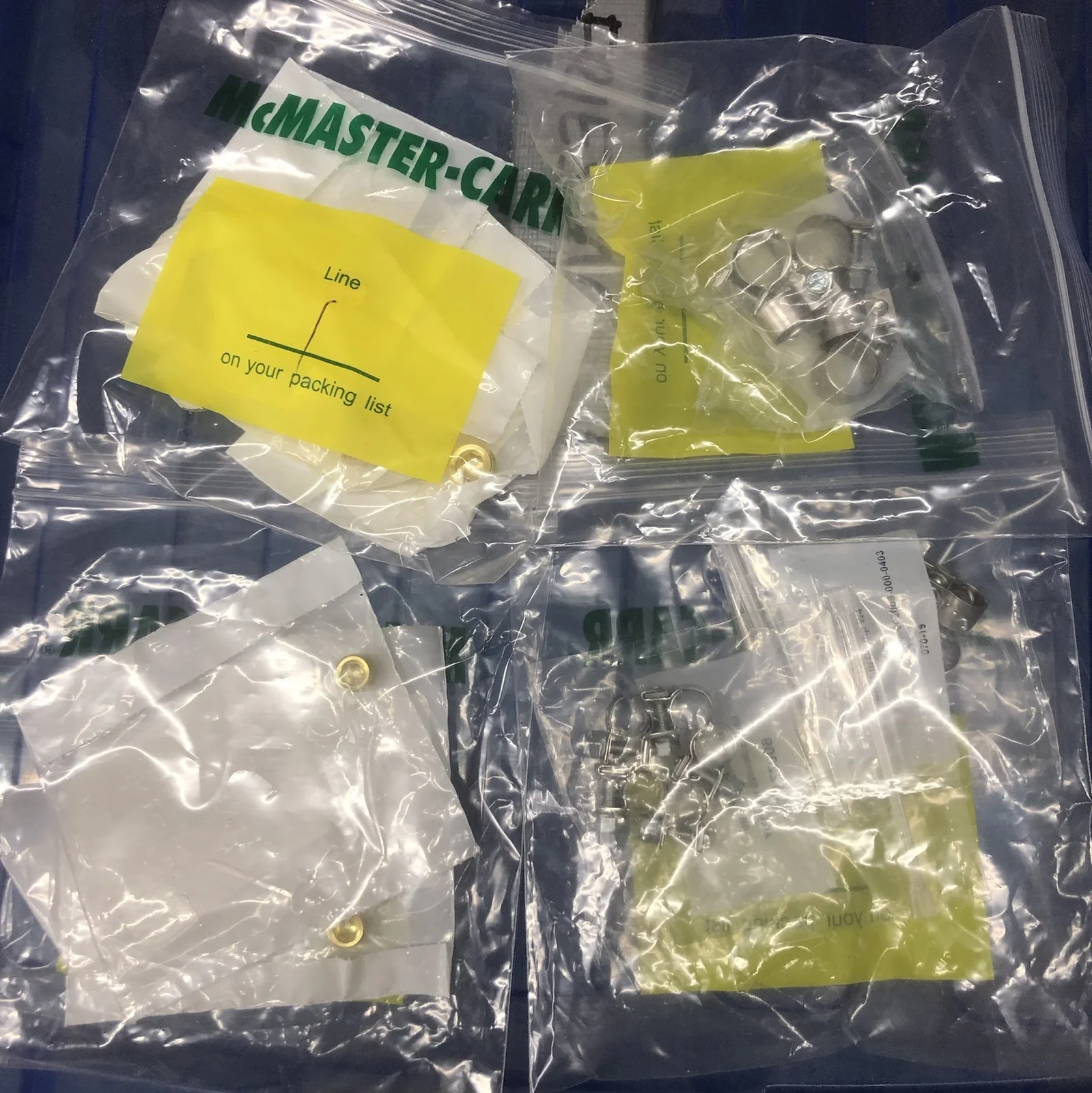

    I procrastinated putting this order together. I know how much shipping is from McMaster so I didn't want to just order $3 worth of plugs and pay $8 for shipping. So I added on hose clamps for the fuel and oil lines. When I got the order I realized I should have bought enough plugs for two engines... Doh!

  13. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    The invoice doesn't call out the brand of springs (I think it just says Pro Set). But valves, springs, retainers, etc. are all new.

  14. Time Warp

    Time Warp .......back to the 70's. VIP MEMBER

    Joined:
    Dec 3, 2012
    Very shiny SD ... Is that vapour blasted, if so I would be curious to know what happens if you put WD40 on a clean (white) rag and rub it on the head and if the rag rub spot is silver/grey/gray ish.

    Peter K. likes this.
  15. comnoz

    comnoz VIP MEMBER

    Joined:
    Dec 10, 2008
    Sorry if I missed doing the stoving enamel on the barrel. I didn't have it on my list. Jim

    PS Those are some seriously recessed seats.

  16. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    That is the oddest request ever.

  17. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    I need to find a picture of the head to see what it looked like before getting worked on.


  18. Time Warp

    Time Warp .......back to the 70's. VIP MEMBER

    Joined:
    Dec 3, 2012
    Vapour blasted parts still need a lot of cleaning afterwards from personal experience so was curious.

    The last thing I got blasted was both Norton and Moto Guzzi parts... when they came back they looked spotless, doing as I said up the page left the rag a silver grey suggesting there is still glass ? residue left on the surface and took a lot of cleaning, internal sections are somewhat of a worry.

  19. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Head was sandblasted, not sure what media they used.

    Cases were vapor blasted. I'll try to see what happens when I wipe them down.

  20. comnoz

    comnoz VIP MEMBER

    Joined:
    Dec 10, 2008
    I know that I would have replaced the seat before I cut deeply into the aluminum around the seat.
    Replacing seats is easy. Replacing aluminum is not.
