Head flow testing.

comnoz

VIP MEMBER
Joined
Dec 10, 2008
Messages
7,193
Country flag
I would like to build up a database of flowtests on modified Norton heads. The tests would be done on one intake port and be from 0 to .450 lift and would include a single velocity measurement measured central in the port 3/4 inch in front of the guide.
If anyone has a modified head setting around that you are curious about and want to get it to me I will test it and pay the return freight. [domestic only] I will post the results here for all to see. It would need to be disassembled and I would need 2 valves. No springs or hardware. Jim

Joined
Oct 19, 2005
Messages
18,978
Country flag
Well if someone knew what they were doing I've a somewhat modified CHO head with Dreer K/W 6mm valves in factory dia. What may qualify it as modified, it had its ports cast and they were described as 'hogged out' compared to other 750 heads. I'm told this is early Combat hand ported at factory before casting refined. Ken Canaga has it now and itching to finish and get it out for more projects.


rvich

VIP MEMBER
Joined
Jul 25, 2009
Messages
3,150
Country flag
I have been modifying my head a few brain cells at a time for years. But that probably doesn't make it unique in this crowd.

Joined
Aug 22, 2006
Messages
109
Country flag
Jim
I have a RH4 that T C's shop modified for hot street use in the late 70's. Is this the type of thing you are looking to test? Do the rockers need to come out too?
Bill G


comnoz

VIP MEMBER
Joined
Dec 10, 2008
Messages
7,193
Country flag
Bill, Yes I would love to see what TC was doing back then. The RH intake rocker would need to be removed along with the 3 studs at the head gasket surface. I can pull the rocker spindle if you don't have a puller. Jim

Joined
Aug 22, 2006
Messages
109
Country flag
I'll send it out. Probably later this week or early next. I'll email you when its on its way. I am curious too.
Bill G


lcrken

VIP MEMBER
Joined
Mar 15, 2009
Messages
4,143
Country flag
Jim,

I have Stage 2 and Stage 3 Maney heads that I can send. I have a couple Axtell heads, but the standard one is on an engine, and the short stroke one is waiting for new seats and guides. If this is going to be a long term project, I can eventually get them to you. I also have one of the factory short stroke race heads on a 920 engine that I will eventually have apart, and could send to you then. Also a slightly cleaned up stock short stroke head that I can send as soon as I disassemble it.

Just a bare head with an intake valve, right?

Ken


comnoz

VIP MEMBER
Joined
Dec 10, 2008
Messages
7,193
Country flag
lcrken said:
Jim,

I have Stage 2 and Stage 3 Maney heads that I can send. I have a couple Axtell heads, but the standard one is on an engine, and the short stroke one is waiting for new seats and guides. If this is going to be a long term project, I can eventually get them to you. I also have one of the factory short stroke race heads on a 920 engine that I will eventually have apart, and could send to you then. Also a slightly cleaned up stock short stroke head that I can send as soon as I disassemble it.

Just a bare head with an intake valve, right?

Ken
Ken, I will keep doing this for as long as I can. I will just do the RH intake port unless I see something that catches my eye and want to do some more checking. I would need 1 intake valve and one exhaust valve. The rocker arm for the RH intake will need to come out so my valve lifter will fit. I will fit my own lightweight spring on that intake. Jim

Joined
Aug 26, 2010
Messages
8,216
Any chance of a pic or 2 of these short stroke heads ?
If they are not on the secret list....

Combustion chamber and down the ports shots could be interesting.
Are they far different, if at all, from roadgoing heads ?

I seem to recall the racers asking for a extra 1/2" height on the inlet valve side of things on new heads, if at all possile, to give more downdraft ports. So short stroke heads have this ??


lcrken

VIP MEMBER
Joined
Mar 15, 2009
Messages
4,143
Country flag
Rohan said:
Any chance of a pic or 2 of these short stroke heads ?
If they are not on the secret list....

Combustion chamber and down the ports shots could be interesting.
Are they far different, if at all, from roadgoing heads ?

I seem to recall the racers asking for a extra 1/2" height on the inlet valve side of things on new heads, if at all possile, to give more downdraft ports. So short stroke heads have this ??
I have some pics of the heads, but I'll try to take some better ones and post them later. The short stroke heads used the same castings as standard heads, and the intake ports were in the same location as standard. The main difference was valve size and combustion chamber shape. The factory changed the angle on the intakes from the stock 28 degrees from vertica to 26.5 degrees to let them fit larger intake valves. The production short stroke had had the same size exhaust valve as standard, but a larger 1.625" intake. The other change was to machine the combustion chamber to a full hemi shape with no squish bands. The intake and exhaust ports were the same as standard heads, except for the difference at short side radius and the seat to accomodate the larger intake. There was also a race kit head, but I don't have any info on it. The factory race heads had even larger intake valves, as well as larger exhaust valves. The one I have from one of the factory flat track racers has 1.696" intake and 1.370" exhaust, but it was modified by the race shop, so I don't think those are necessarily the sizes on the race kit heads.

This is a shot of the combusion chamber or a production RH7 short stroke head, but with non-stock black diamond valves fitted. This is the head from the 750 engine I ran in my featherbed racer at Bonneville.



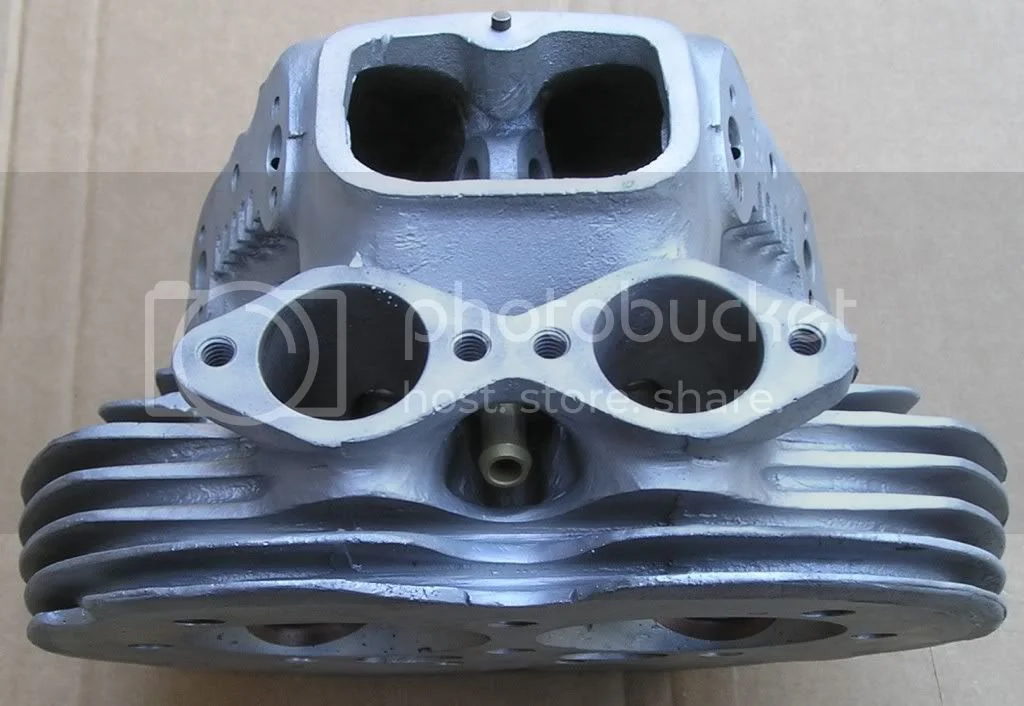

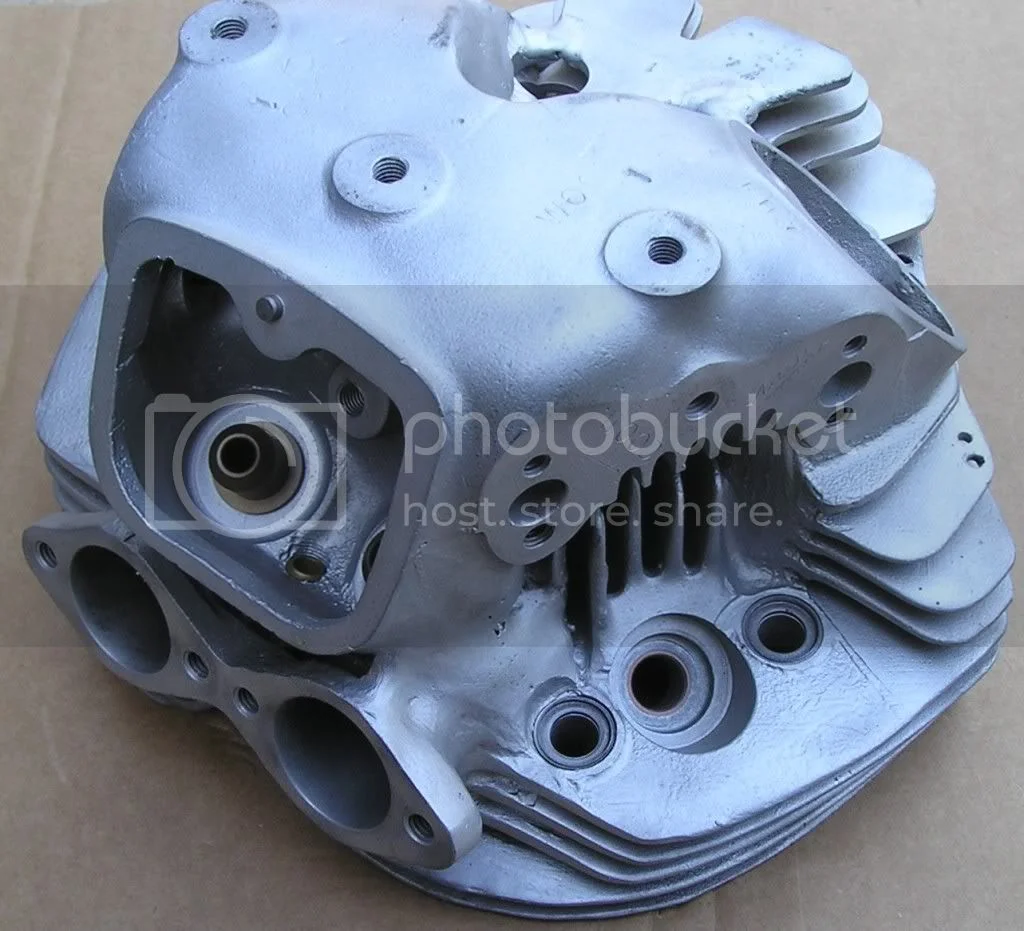

These are pictures of a short stroke head I got from Ron Wood. It had been modified by Axtell, and was from one of Ron's flat track bikes. It needed some repairs in the stud thread areas, and still needs new intake valve seats, which I plan to get to this year. The extra cooling fins were added by Ron and Axe. The valve guides and oil return fitting are also Axtell's, not factory. The spark plug and cylinder head inserts are also not factory. Valve sizes are very close to those in the factory race head I mentioned above.









Ken


lcrken

VIP MEMBER
Joined
Mar 15, 2009
Messages
4,143
Country flag
I found one more. This is a pic of the head from the factory flat track racer. It's now on the 920 engine in our streamliner. I use a flat top piston with the 920, so you don't see the clean area that you see on the other heads, which are used on 750 engines where I use a dome on the piston that is carefully shaped to provide a squish area between it and the combustion chamber



This pic shows the shape of the pistons for the 750 engines, and you can see the curved area on the side of the dome that provices the squish clearance.



Ken

Joined
Oct 19, 2005
Messages
18,978
Country flag
What is the thingagig under/between the intake ports?
The hemi dome piston squish bands have enough area to put in Singh Grooves, whether it'd matter or not.


Joined
Apr 15, 2009
Messages
10,729
Country flag
hobot said:
What is the thingagig under/between the intake ports?
The hemi dome piston squish bands have enough area to put in Singh Grooves, whether it'd matter or not.
I bet it's a breather. Or extra oil drain, but I think a breather.


comnoz

VIP MEMBER
Joined
Dec 10, 2008
Messages
7,193
Country flag
swooshdave said:
hobot said:
What is the thingagig under/between the intake ports?
The hemi dome piston squish bands have enough area to put in Singh Grooves, whether it'd matter or not.
I bet it's a breather. Or extra oil drain, but I think a breather.
It is an oil drain. When the ports are enlarged that much you cut into the stock oil return and it must be blocked off. Jim


lcrken

VIP MEMBER
Joined
Mar 15, 2009
Messages
4,143
Country flag
comnoz said:
It is an oil drain. When the ports are enlarged that much you cut into the stock oil return and it must be blocked off. Jim
Correctamundo. Same sort of mods on some of the Maney heads. The other short stroke heads I posted pictures of don't need it because they kept the stock 32 mm port diameter.

Ken


lcrken

VIP MEMBER
Joined
Mar 15, 2009
Messages
4,143
Country flag
A couple pictures of a Maney Stage 2 head. Both intake and exhaust valves are 3 mm larger than stock. I'll take some pictures of the stage 3 head when I send it to Jim, and post them then.





Ken

Joined
Oct 19, 2005
Messages
18,978
Country flag
Ok thanks for educating me. Peel head will need intake drain, I've hay seed visions, but rather be told, ok have a slick compact install of drain and whatever tube/hose arrangement attaches to it. How would the God's do it?

Sure would like to see experiments with dome squish groove jets, in set up that detonates w/o them.


lcrken

VIP MEMBER
Joined
Mar 15, 2009
Messages
4,143
Country flag
Just took some detailed pictures of the Stage 3 Maney head. I'm sending this one to Jim for flow testing this week.

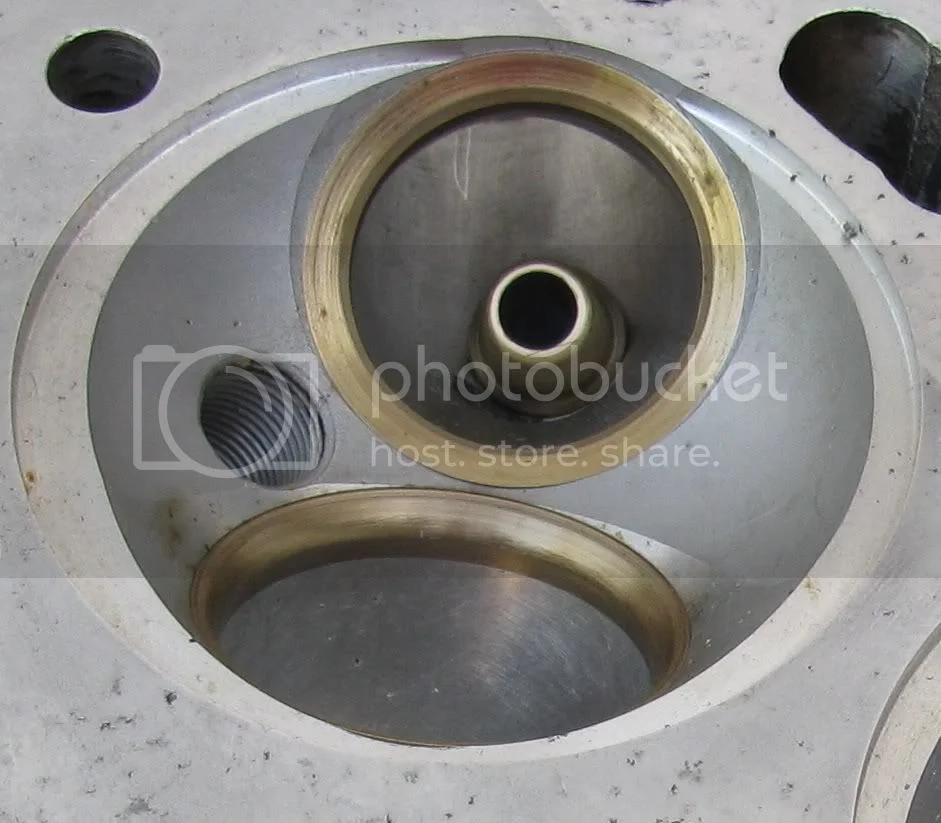

Combuston chamber and ports.



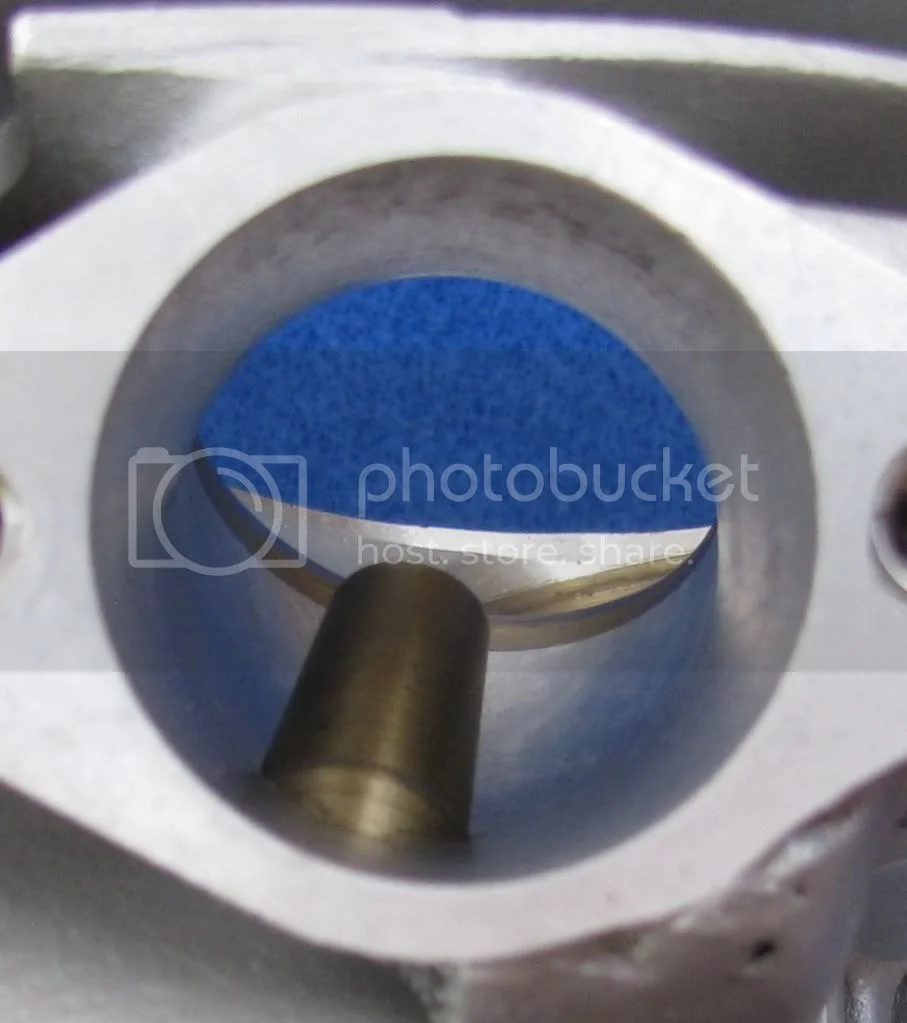

Intake ports.





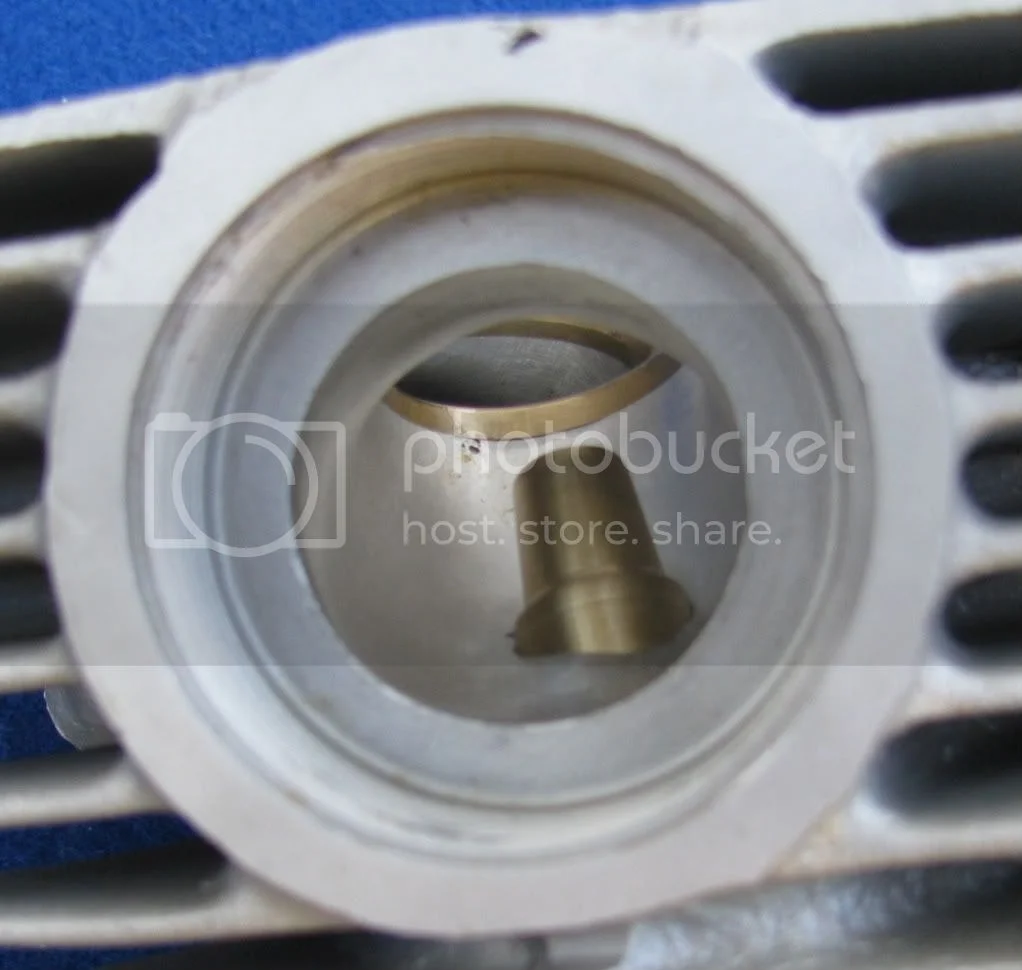

Exhaust ports.





Oil drain details.



Exhaust side view.



Intake side view.



Ken

Joined
Nov 26, 2009
Messages
2,379
Country flag
Jim C

What about volume of flow and how that relates to velocity. Both the high RPM and the large displacement motors should need more volume to breath freely - not just the same small port with a higher velocity. How do you deal with that? The large port Maney head shown above is not going to have the velocity of a small port - but when you put them both on the track - one is going to run away from the other. Maybe this is not a fair question - trying to get the best of both worlds.
