Handy Tool for Twin Amals
Handy Tool for Twin Amals
Hello everybody,

I found a handy tool for the socket head screws manifold to head.

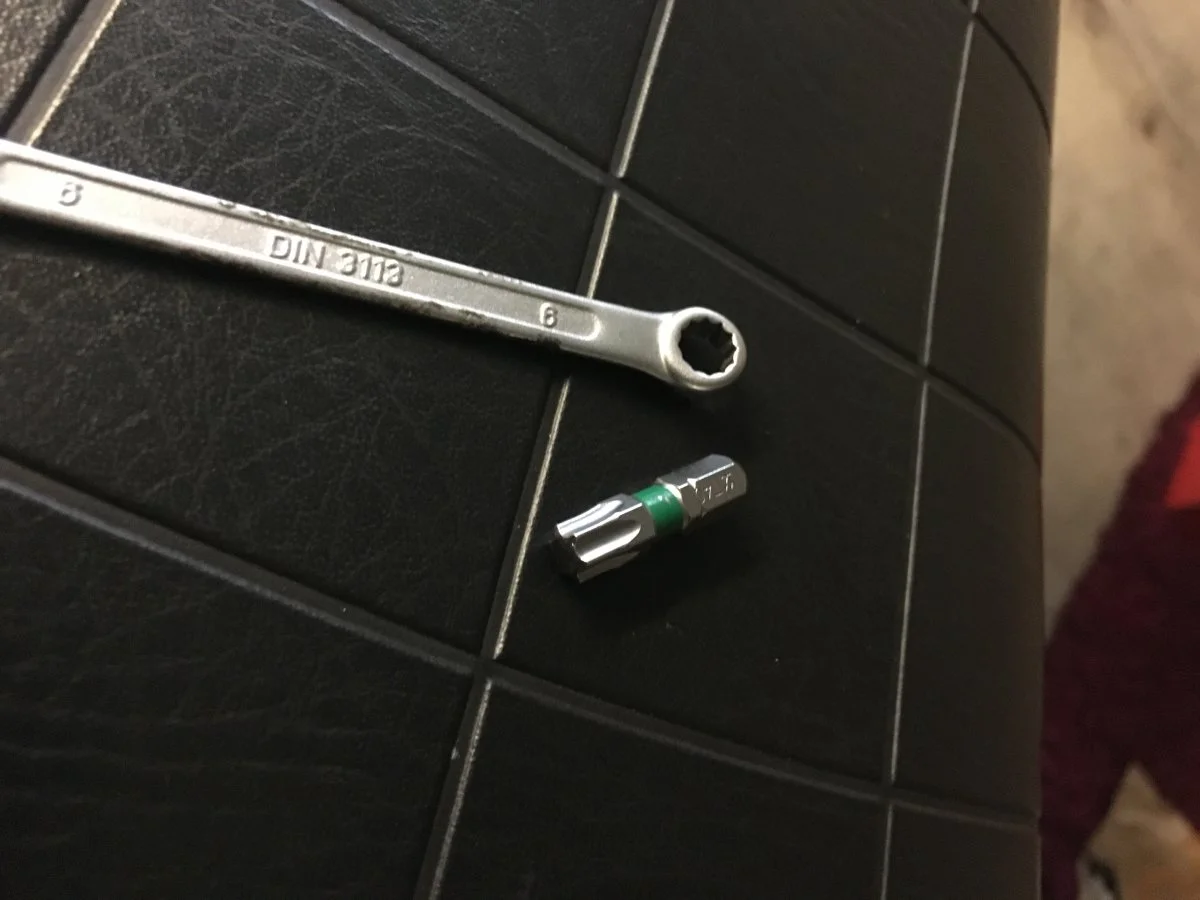

It‘s a 1/4“ drive Torxx T40 screwdriver bit with a 6mm ring spanner.

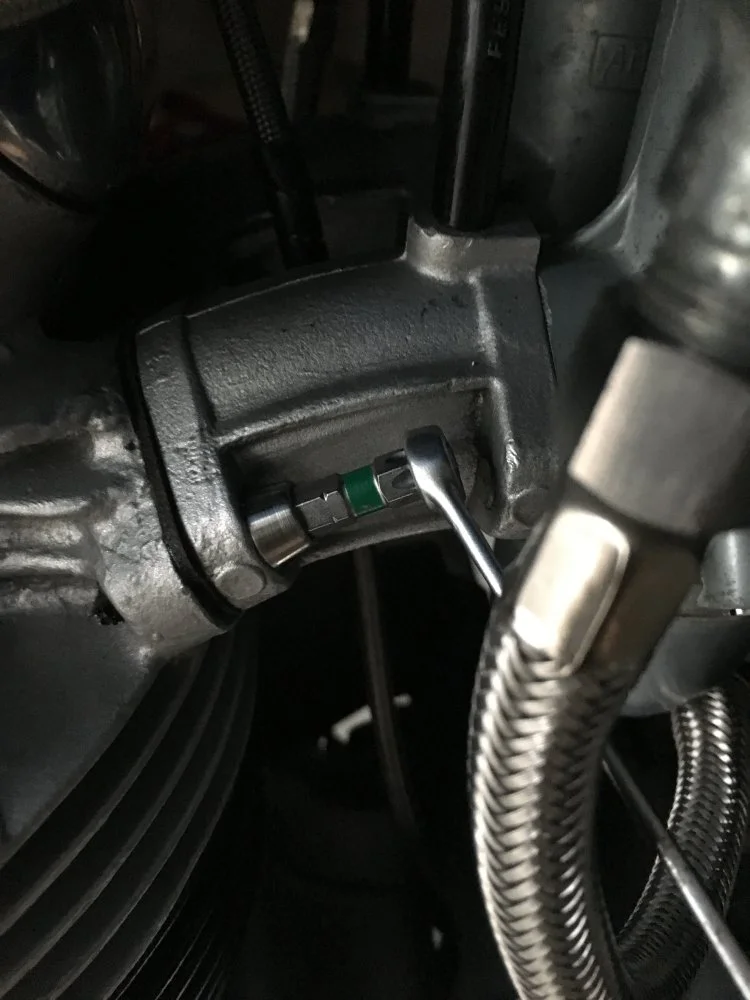

My photo is of the outer screw but it makes the inner one easy too and saved me loads of time changing pilot jets 19 back to 17 as the 19 were not right for my machine. Can recommend 100%.

Have a good day,

Martin

I just keep using the orginal allen key that came with the orginal took kit with my new Norton all them years ago, it works good with the two inside AH bolts, the allen key has its own special place on my tool board.

Ashley

ashman said:
I just keep using the orginal allen key that came with the orginal took kit with my new Norton all them years ago, it works good with the two inside AH bolts, the allen key has its own special place on my tool board.

Ashley
Click to expand...

Is that just a shortened allen key? Not lucky enough to have acquired the original tool kit.

Gadge said:
Is that just a shortened allen key? Not lucky enough to have acquired the original tool kit.
Click to expand...
That's correct. The shorter end is about 50% of a normal allen so you can get it in the tight spot between the manifold flanges with the carb still bolted up, if necessary.

Danno said:
That's correct. The shorter end is about 50% of a normal allen so you can get it in the tight spot between the manifold flanges with the carb still bolted up, if necessary.
Click to expand...

Thanks - I created one of those some time ago!

ashman said:
Even better if I had a ratchet box spanner, but the orginal allen key that came with my Norton is even less than 50% of a normal allen key.
Click to expand...

Okay, if ya wanna split hairs, we could mic one and do the math.
