Fuel leak

B

Bikefalcon

Joined

May 24, 2019

Messages

38

• Sep 24, 2019

• #1

I noticed a fuel leak under the tank(961). After tank removal found a crack in the red plastic male fuel fitting on bottom of fuel pump. Can this be replaced by oem plastic part or even better a steel fitting. If so what hold this fitting in place? Here’s hoping that a whole fuel pump is not reqiured



BLIGHTYBRIT/SF

VIP MEMBER

Joined

Feb 28, 2016

Messages

1,359

• Sep 24, 2019

• #2

Bikefalcon said:

I noticed a fuel leak under the tank(961). After tank removal found a crack in the red plastic male fuel fitting on bottom of fuel pump. Can this be replaced by oem plastic part or even better a steel fitting. If so what hold this fitting in place? Here’s hoping that a whole fuel pump is not reqiured

Click to expand...

It’s made by JG( John guest) for the automotive industry,come in white/black & red,used in cars on fuel injector rails,also in Moto guzi V7 bikes,I replaced mine for approx £25,there are a few threads on here about those fuel spigots,MXmartin had the part number,held in by a star shaped washer that’s a push fit,



TonyA

Joined

Jan 16, 2015

Messages

5,856

• Sep 24, 2019

• #3

Just like Richard Pearce said. I also went to this UK site to buy my extra fuel pump elbow. (please notice says also fits Norton !)



Britfan60

Joined

Jan 5, 2014

Messages

2,706

• Sep 29, 2019

• #4

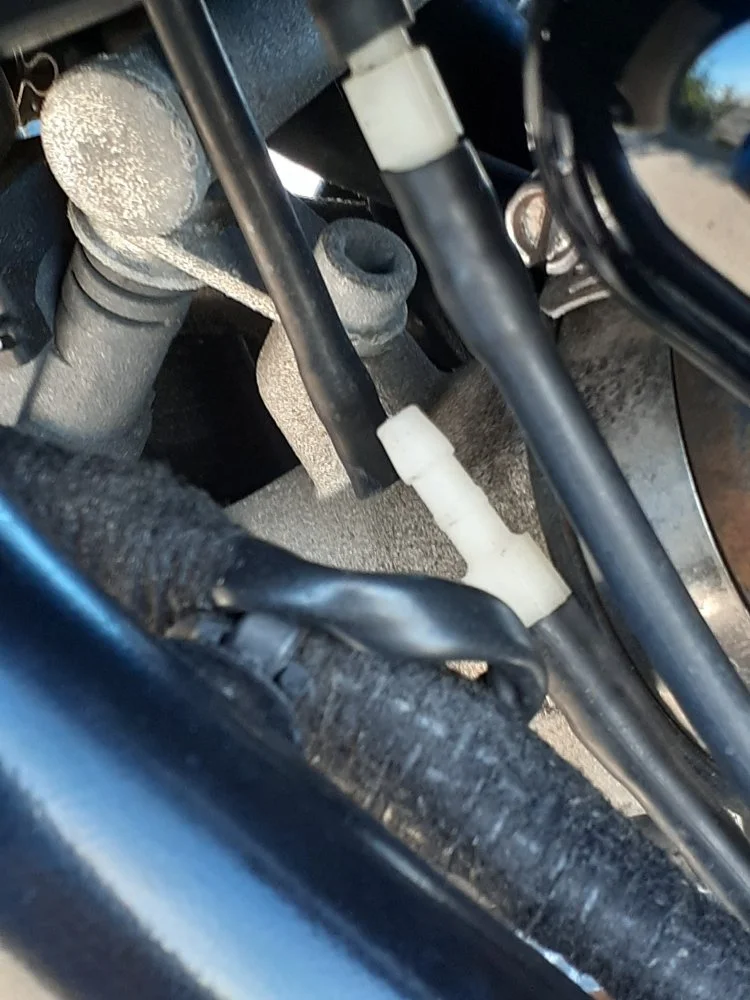

noticed this on a rest during my beach run. Hmmm.... didnt leak and bike ran ok. 47 mpg which is more than usual. Stalled once. Ran like a Swiss watch on the way home.



TonyA

Joined

Jan 16, 2015

Messages

5,856

• Sep 29, 2019

• #5

One of them is the overflow and the other will be the vent for the gas tank.



B

Bikefalcon

Joined

May 24, 2019

Messages

38

• Sep 30, 2019

• #6

I found the fuel pump elbow at MG cycles( for the moto guzzi v7). Also contacted John Guest but they only sell to OEM like auto manufacturers.
