Front Hub bearing lock ring tool
- Thread starter Yorkie
- Start date
- Status
robs ss
VIP MEMBER
I have used 2 drill bits that have a "tightish" fit (blunt end inserted) then use a large shifting spanner (adjustable wrench?), clamped down on both of them, to turn the ring.
The width of the jaws of the spanner/wrench hold the drill bits square with the ring.
Hope it works well for you!
Cheers
The width of the jaws of the spanner/wrench hold the drill bits square with the ring.
Hope it works well for you!
Cheers
NoLongerHere
VIP MEMBER

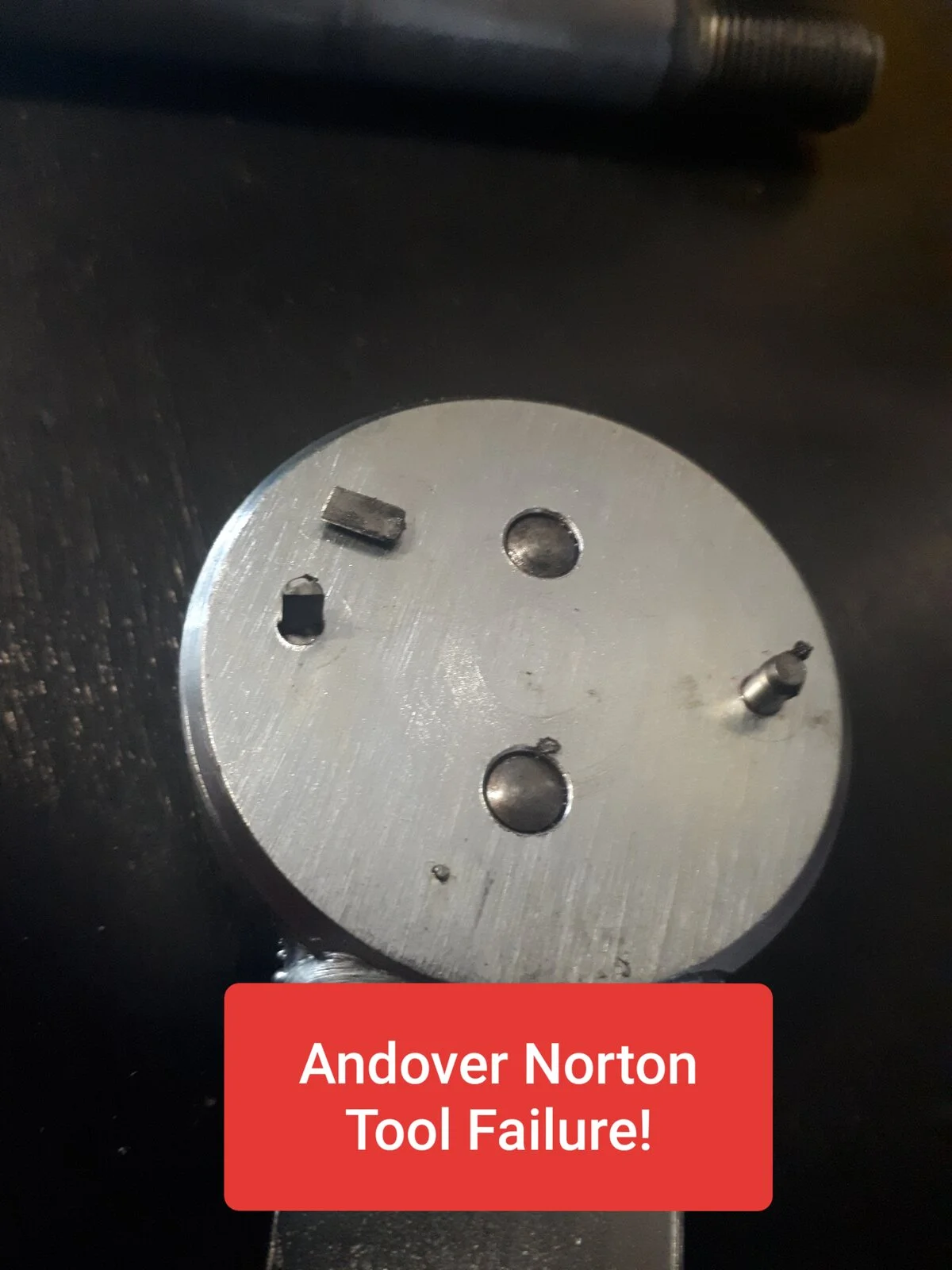

It might be as well to fabricate your own anyway as the one I had from Andover Norton broke first use putting the lock ring in!
Looking at it carefully shows the pin was split before I'd even used it.
I was offered a replacement pin but declined as they are slightly too small anyway. I replaced both pins with two of a better size.
Looking at it carefully shows the pin was split before I'd even used it.
I was offered a replacement pin but declined as they are slightly too small anyway. I replaced both pins with two of a better size.
I use a universal disc grinder pin wrench, with one adjustable swinging arm.
marshg246
VIP MEMBER
I use a JW Winco A40634 which has 5mm pins - tight fit.
Amazon is out of that one but has this: Amazon product ASIN B07HQ5B1HJ which should work. I often have to hammer the pins in which I like, but the 4mm version should work with no hammering if your holes are not bad.
Amazon is out of that one but has this: Amazon product ASIN B07HQ5B1HJ which should work. I often have to hammer the pins in which I like, but the 4mm version should work with no hammering if your holes are not bad.
