Front fender attachment

Discussion in 'Norton Commando Motorcycles (Classic)' started by JimP, May 15, 2019.

  1. JimP

    JimP

    Joined:
    Feb 17, 2008
    I’m installing the front fender and the front brake hose bracket on my stock ’74. Of course they share the same 2-stud boss on the inside of the RH fork slider.

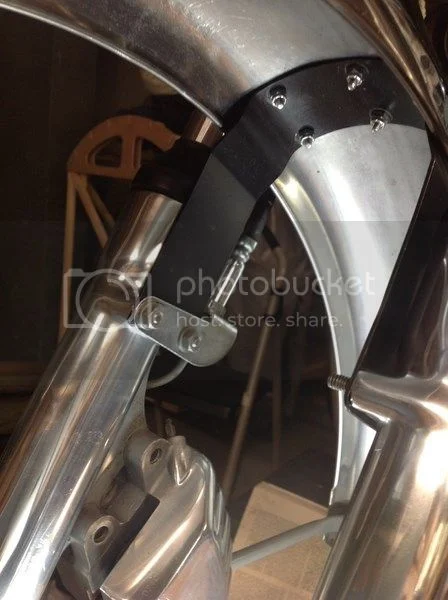

    My question: Should the hose bracket go on top the fender bridge, or sandwiched under? Mine seems to fit better on top (as shown in the photo). Am I following common practice?

    Thank you, Jim
    [​IMG]
    [​IMG]

    p400 likes this.
  2. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    My bracket was between the slider and the bridge. Dont know if it came from the factory that way, but it was like that for at least the last 25 years.

  3. gtiller

    gtiller VIP MEMBER

    Joined:
    Nov 5, 2012

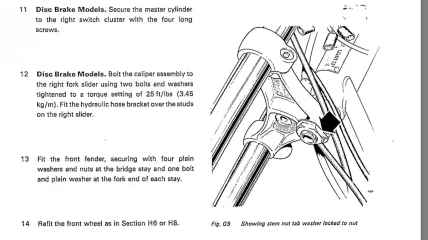

    Based on the re-fitting instructions in the manual, I’m inclined to agree with @gortnipper


    p400 likes this.
  4. JimP

    JimP

    Joined:
    Feb 17, 2008
    Thank you, I really appreciate your help. I think I'll switch it around! Jim

  5. illf8ed

    illf8ed

    Joined:
    Dec 30, 2003
    My ‘72 is like your photo, bracket over the fender brace. Just looked at the Interstate on the ‘72 sale brochure and it is this way also.

  6. JimP

    JimP

    Joined:
    Feb 17, 2008
    Yes, I found the sales brochure picture. At least now I have equally good justification for going either way!
    Thank you all,
    Jim aside: I'm so HAPPY; today I finally got all the air bubbles out of my brakes!!
