Flood Victim

Discussion in 'Norton Motorcycle Rebuilds' started by Danno, Oct 19, 2016.

  1. Danno

    Danno

    Joined:
    Feb 7, 2010

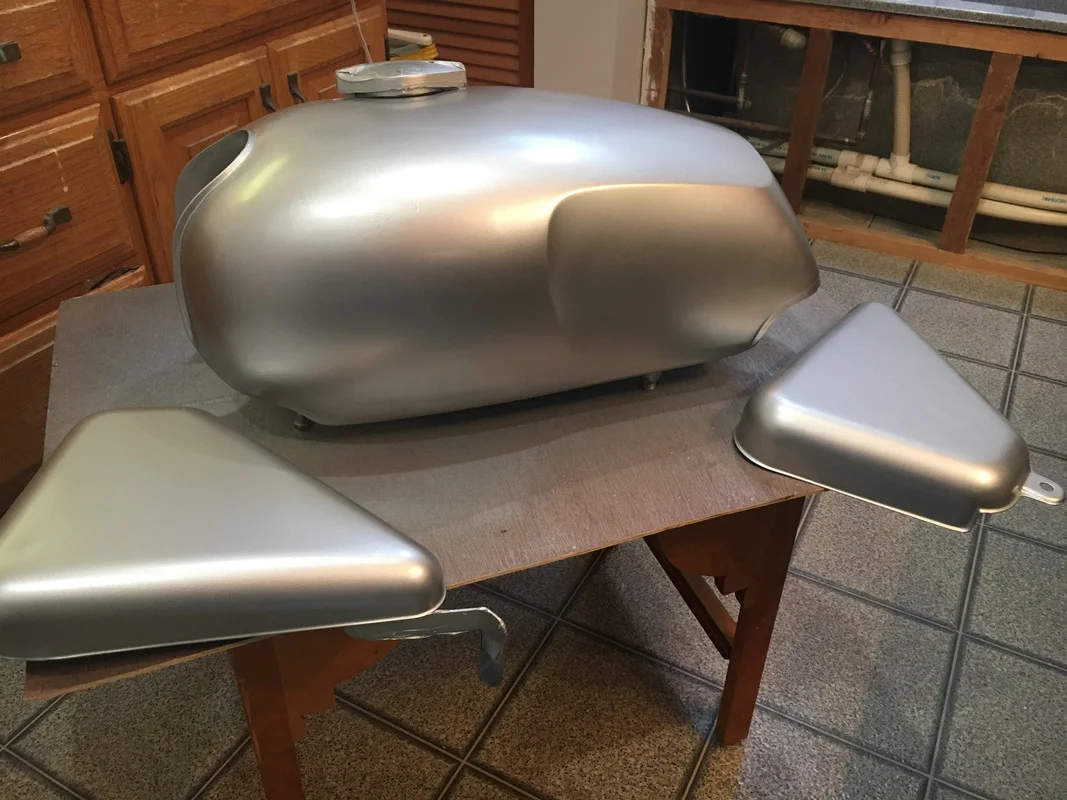

    Silver basecoat

    [​IMG]

    gortnipper likes this.
  2. Danno

    Danno

    Joined:
    Feb 7, 2010

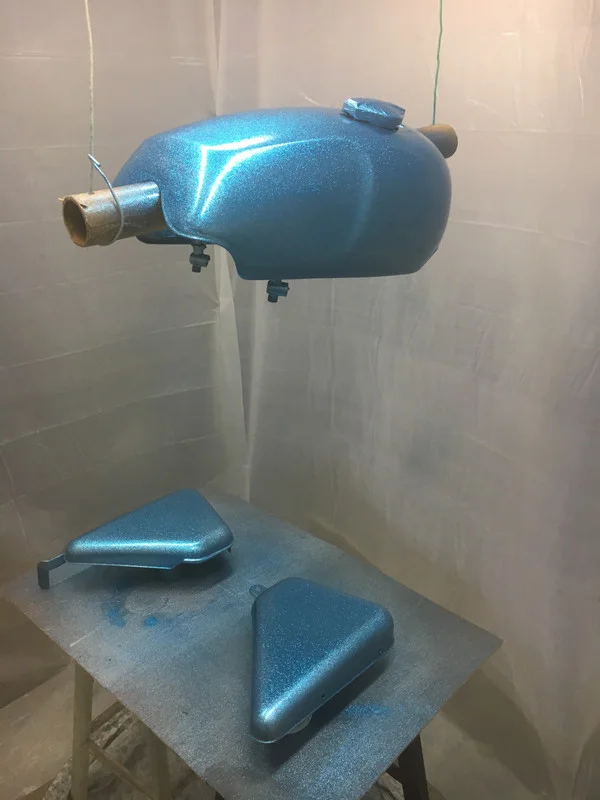

    First coat of blue flake

    [​IMG]

  3. Danno

    Danno

    Joined:
    Feb 7, 2010
    2nd coat

    [​IMG]

    nortriubuell likes this.
  4. 850cmndo

    850cmndo

    Joined:
    Dec 9, 2009
    You might be onto something.

  5. Danno

    Danno

    Joined:
    Feb 7, 2010

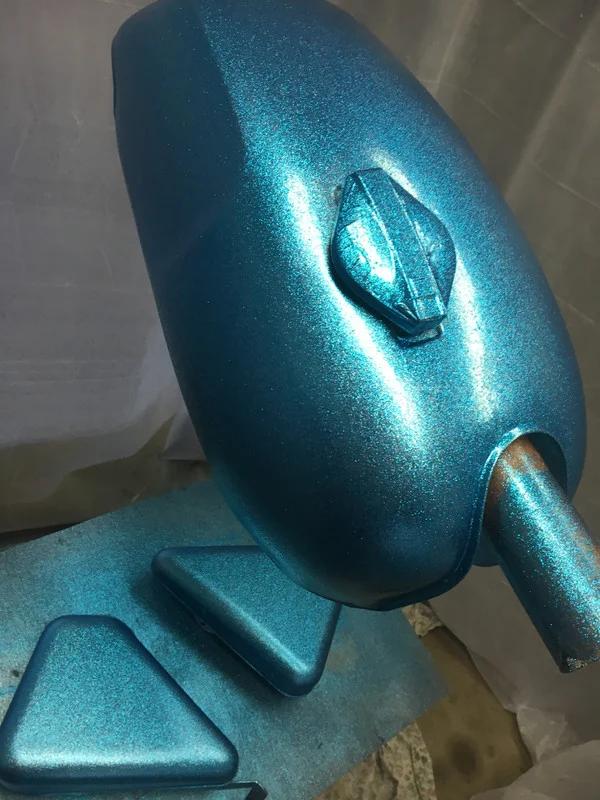

    Post 3rd coat and ready to be packed off to the pinstriper.

    [​IMG]

    nortriubuell and gortnipper like this.
  6. Danno

    Danno

    Joined:
    Feb 7, 2010

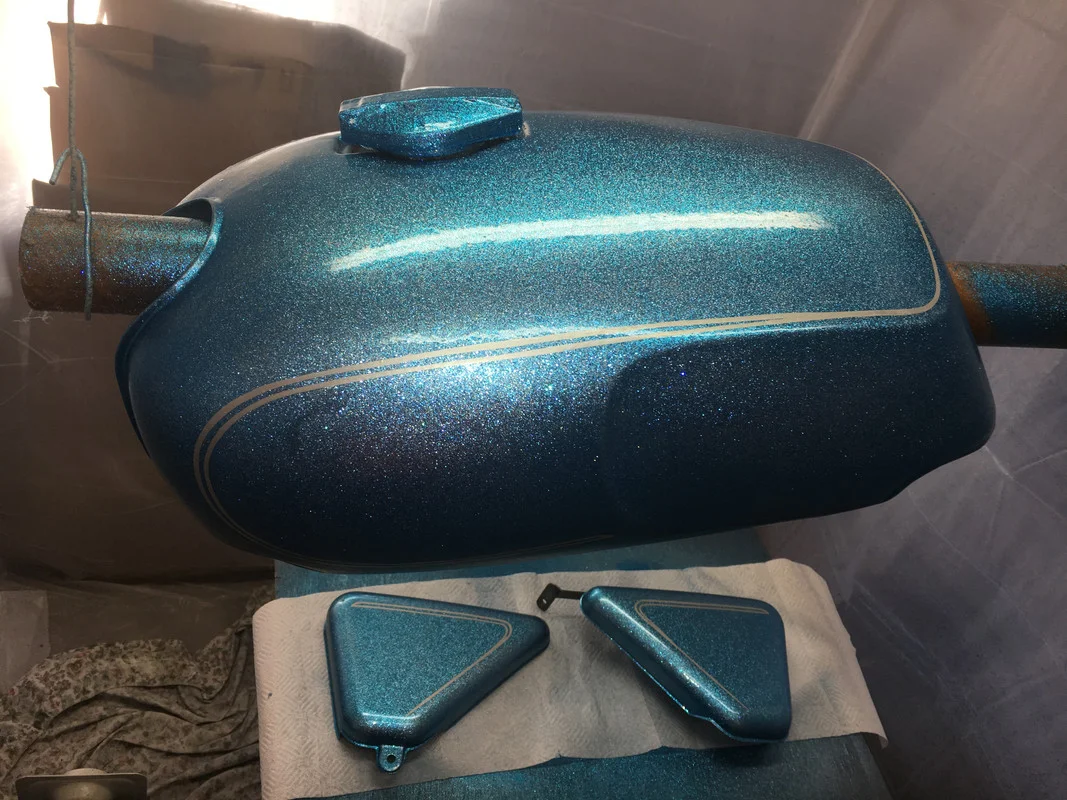

    Pinstripes by the talented and interesting Mr. Chastin Brand. I left the parts with him at the Daytona Beach Turkey Rod Run and picked them up at his shop after a little vacation in Florida.

    [​IMG]

    nortriubuell likes this.
  7. Danno

    Danno

    Joined:
    Feb 7, 2010

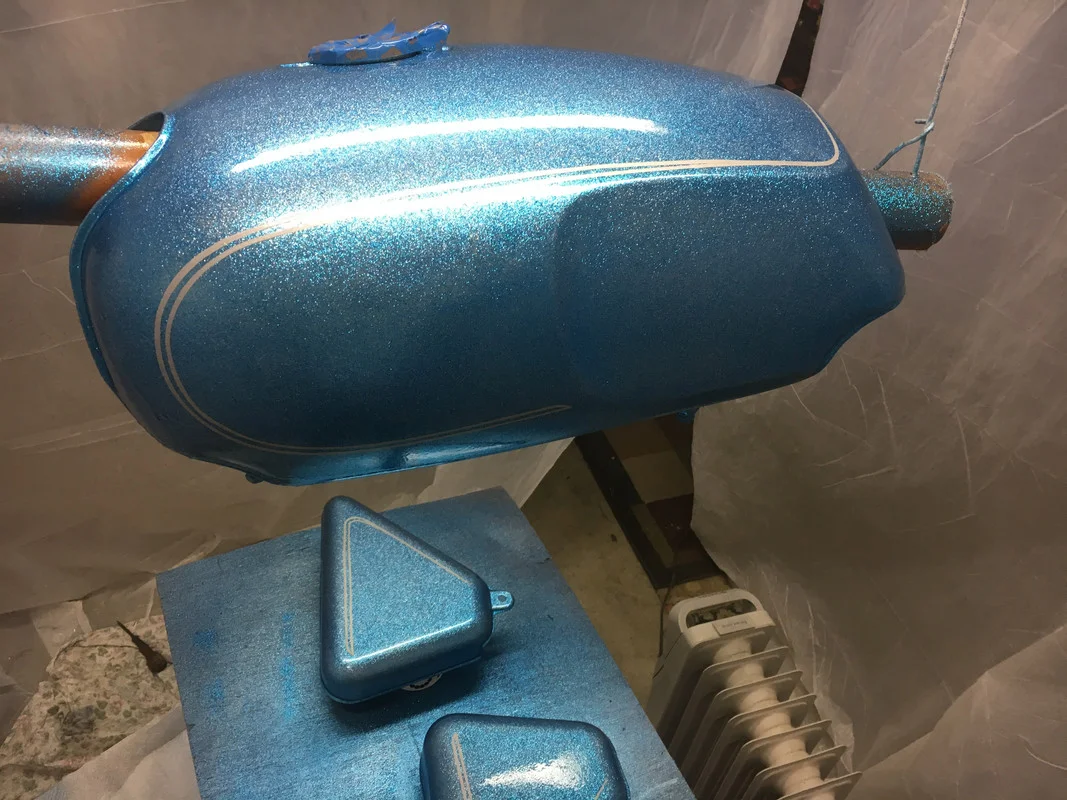

    Clear over the stripes. The next pic I post will be with the tins mounted so I can orient and level the graphics.

    [​IMG]

    nortriubuell and gortnipper like this.
  8. Danno

    Danno

    Joined:
    Feb 7, 2010
    I would hate to do this for a living because it's twice as much work as it looks like for a pro and 10 times as much for a hobbyist like myself. Luckily the material (polyurethane clear+blue flake) is pretty forgiving. But it doesn't work well in a gravity-feed gun. Luckily I had an old primer gun on hand to do the flake with and used the HVLP gravity feed for the clear only. The Flakes kept settling to the bottom and clogging it's feed. Each coat of flake was wet-sanded with finer paper than the former. After he final coat of clear dries, it will be down to the 4-digit papers and polishing compound. Only then can the vinyl graphics be applied.

  9. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    Looks superb

  10. Danno

    Danno

    Joined:
    Feb 7, 2010
    Thanks, baz. Hopefully there's enough clear on top to polish down. It's so dazzling, it's hard to see the little lumps.

  11. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    Beautiful.

  12. jimbo

    jimbo VIP MEMBER

    Joined:
    Sep 25, 2004
  13. Danno

    Danno

    Joined:
    Feb 7, 2010
    The wheels, esp the rear, had some pitting of the chrome as did the headlight bucket and fork ears. Half the spokes and nipples on one side of the front wheel were rusted. so I replaced them. Apparently there are 3 different spokes on the disc front wheel and they must have come from different lots or suppliers.

  14. Danno

    Danno

    Joined:
    Feb 7, 2010
    Thanks, GP. The color is a little lighter than original due to wetsanding between coats, which turns some of the blue flake silver.

  15. Danno

    Danno

    Joined:
    Feb 7, 2010

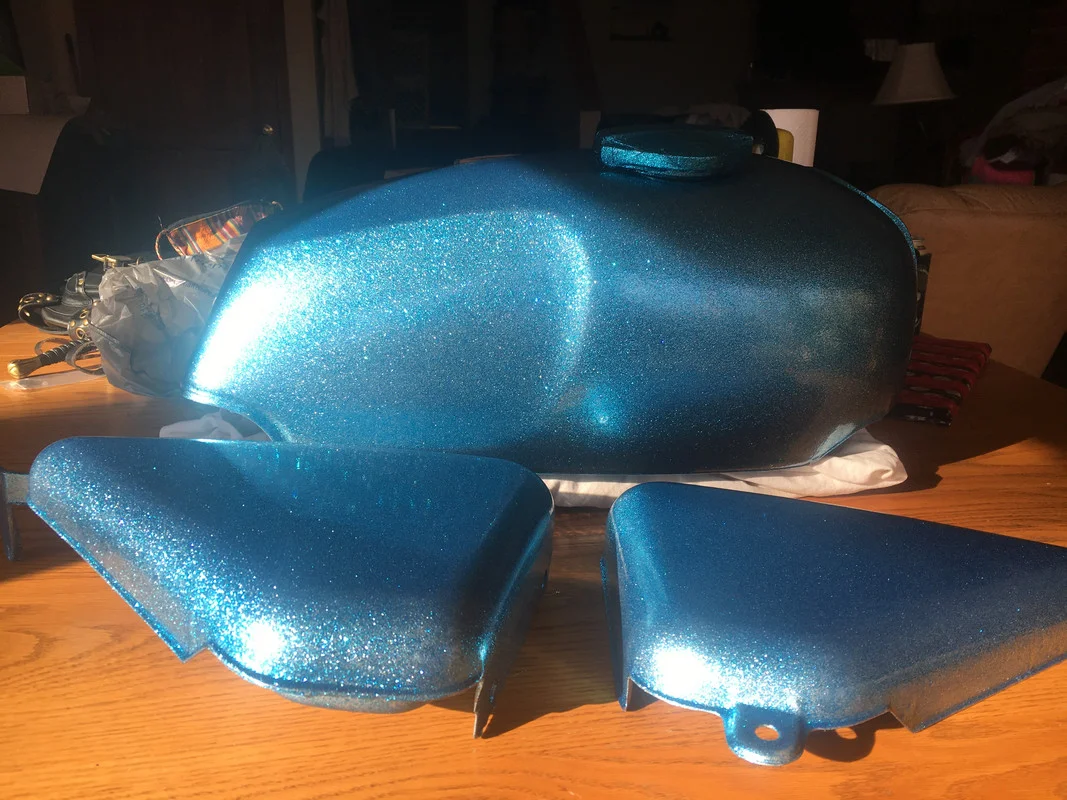

    Ready for graphics. Wetsanded with 1000, 1500 and 2000-grit waterproof and then shined up with polishing compound.

    [​IMG]

    nortriubuell likes this.
  16. Danno

    Danno

    Joined:
    Feb 7, 2010
    Don't know what that blob of crap is, but it isn't on the tank.

  17. alan hodge

    alan hodge

    Joined:
    Oct 10, 2017
    danno I have followed this project from your first post...excellent work!

  18. Danno

    Danno

    Joined:
    Feb 7, 2010

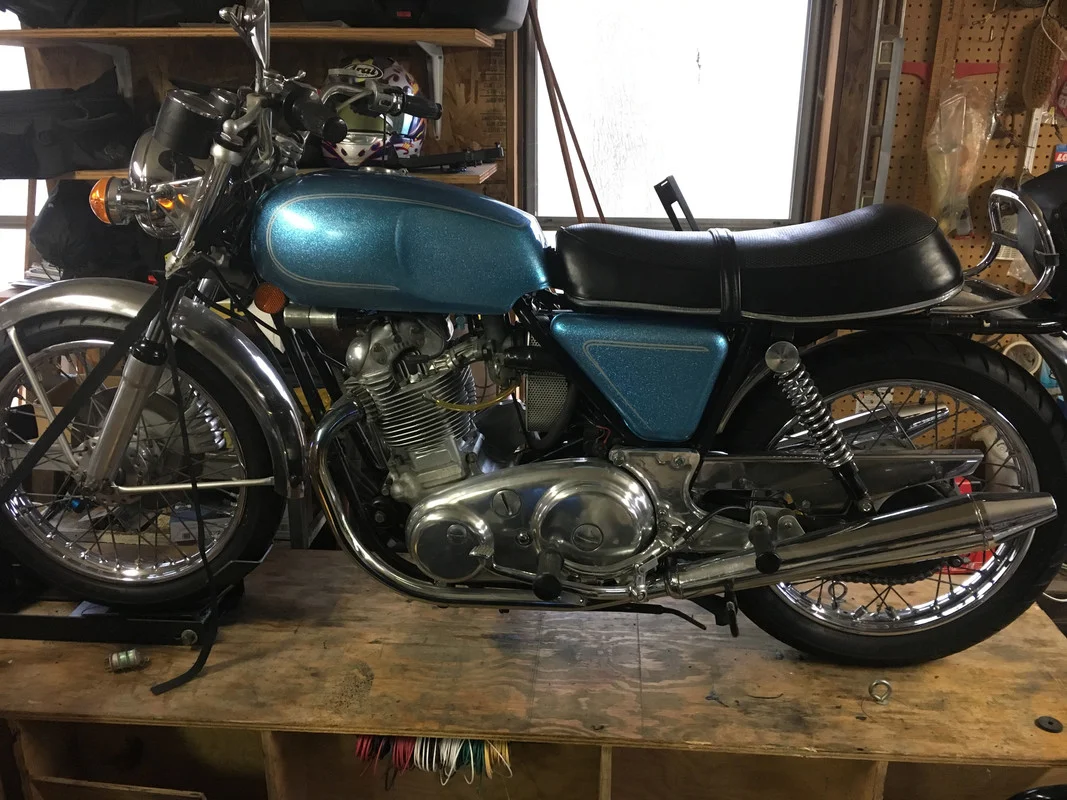

    Thanks for that, Alan. Here's a better pic;
    [​IMG]

  19. Danno

    Danno

    Joined:
    Feb 7, 2010

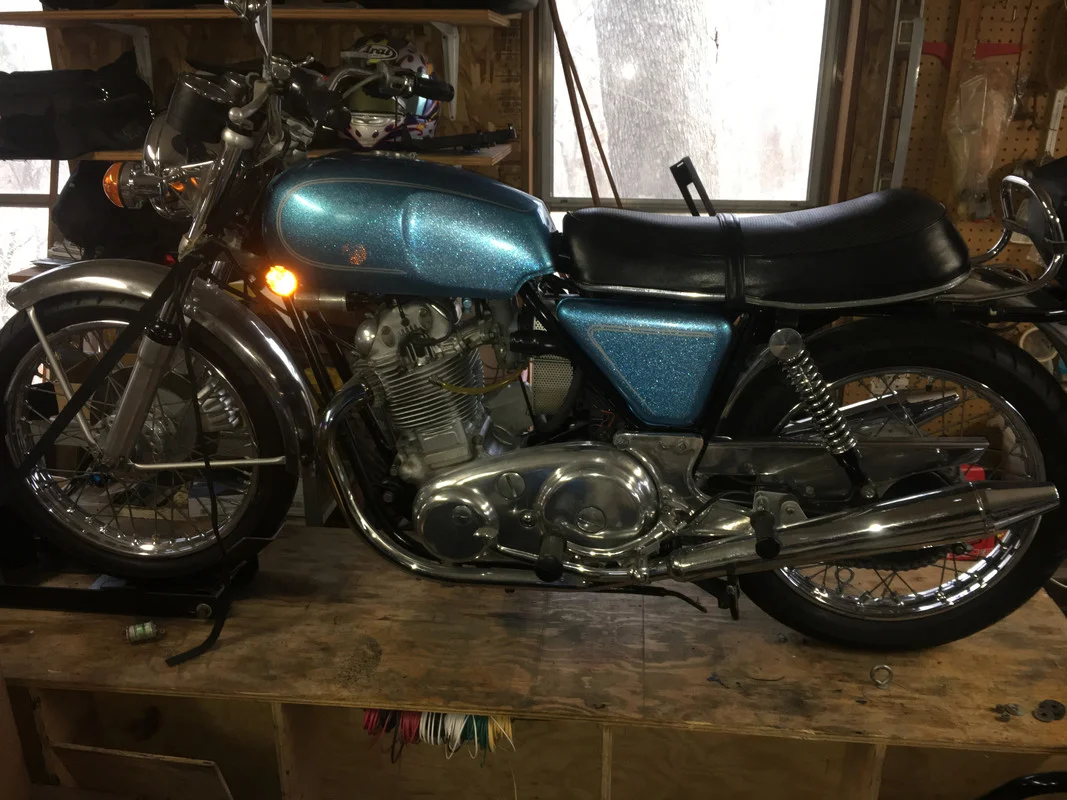

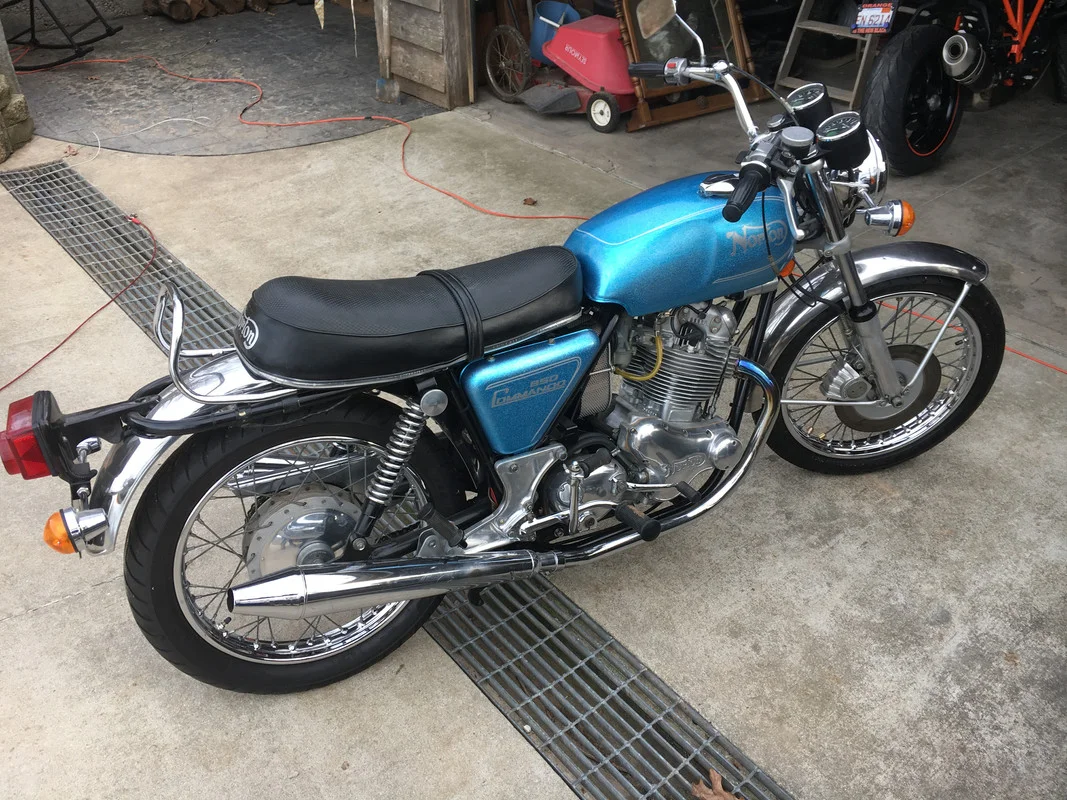

    Graphics done

    [​IMG]

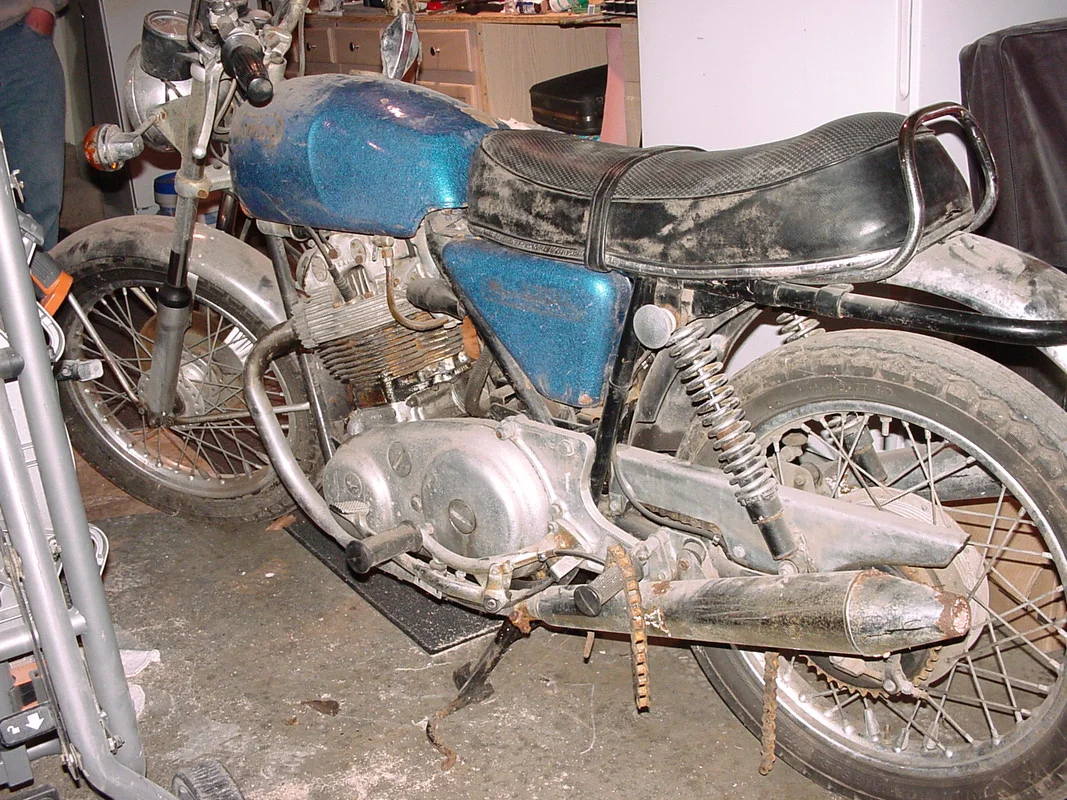

    It's been a long slog from this;

    [​IMG]

    nortriubuell and Paul W. like this.
  20. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Lookin’ good Danno !
