Float Needle seat

L.A.B. said:

There were at least six sizes originally, 0.100" being the standard size. See "Float Bowls" in the link above.

However AN at least, now appear to be selling the 0.125" seat float bowls as standard.

Andover Norton - FLOAT CHAMBER (.125

FLOAT CHAMBER (.125

andover-norton.co.uk

The original drain plug float bowl is 622/055(S).
https://amalcarb.co.uk/mk-i-concent...loat-chamber-bowl-0-1in-standrad-seating.html

According to the 850 Mk3 parts book the Mk3 float bowls (622/056) had the 0.125" seat as standard.

Click to expand...

Deets55 said:

I'm pretty sure they are also stamped on the side ".125" IIRC

Click to expand...

L.A.B. said:

Mine aren't.

Click to expand...

L.A.B. said:

No, nothing there on mine.

Click to expand...

L.A.B. said:

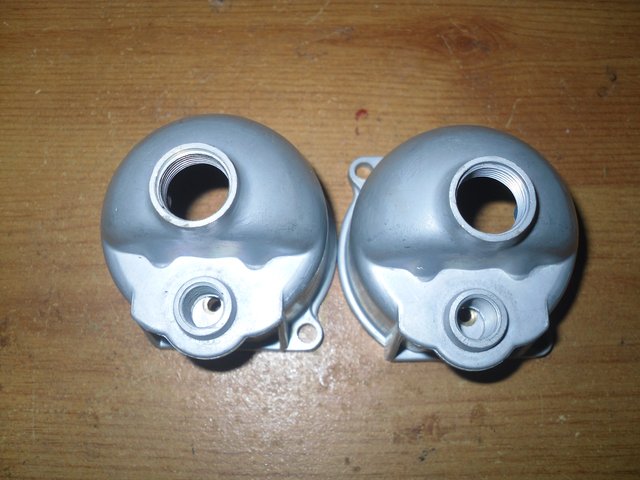

Replacements I bought from Amal some years ago which I've always meant to fit to my Mk3's carbs which are not the originals but generic 932/300 and 932/301.

Click to expand...
