Elegant placement of the XS650 valve

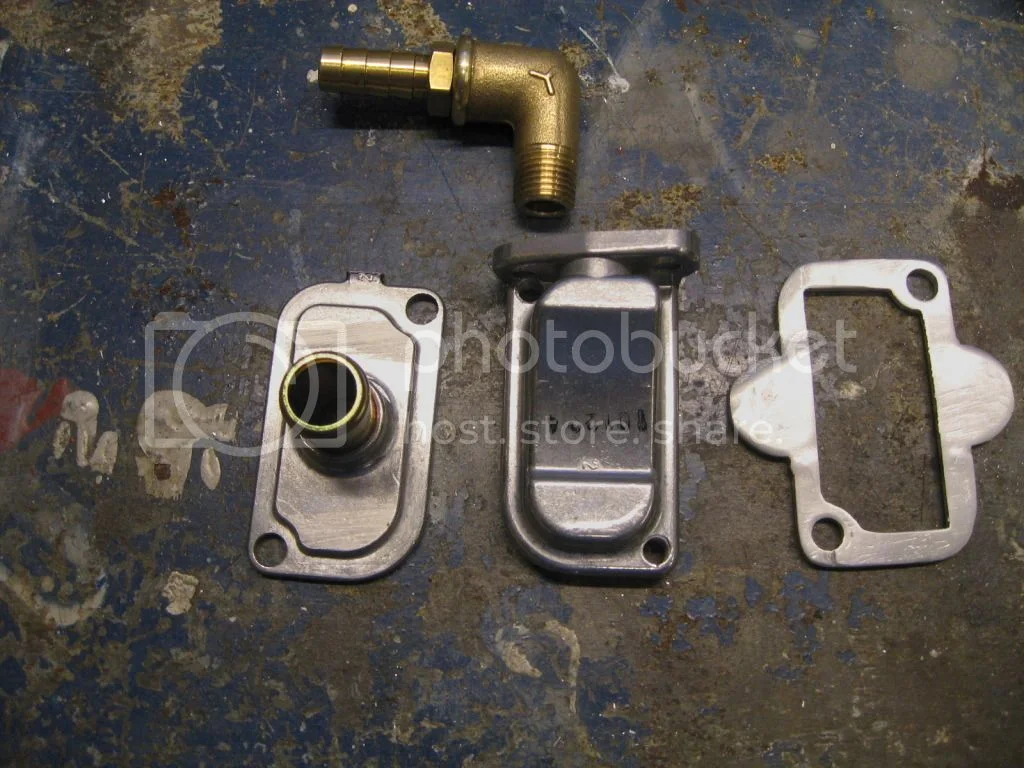

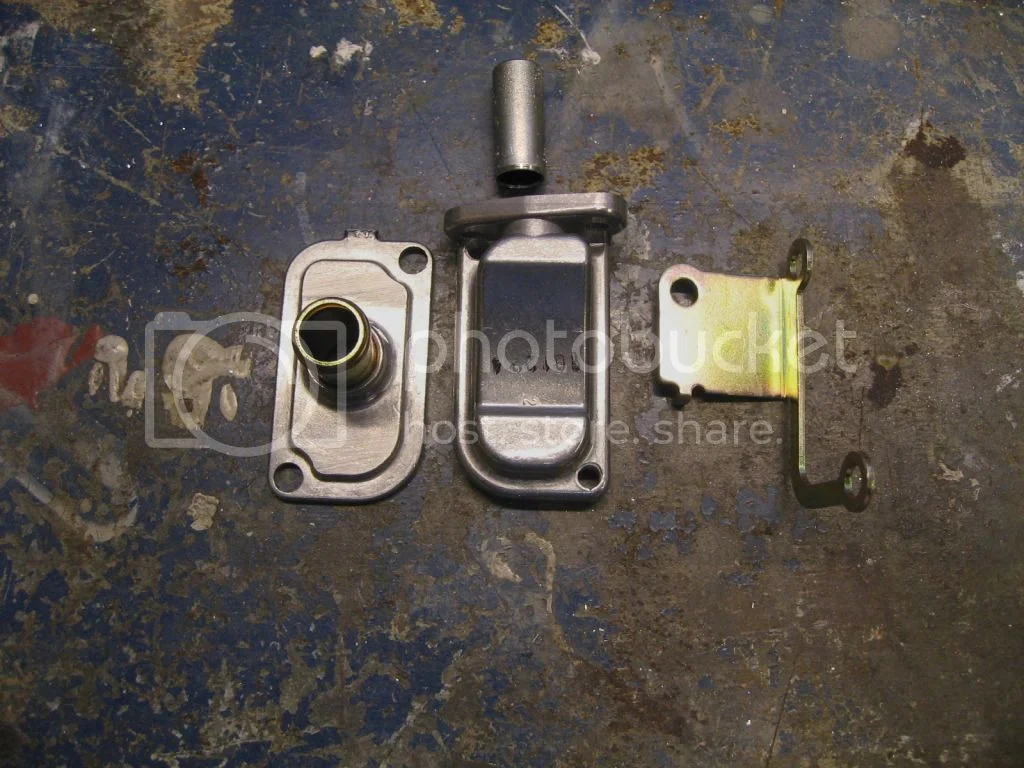

First I had to remove the original mounting bracket and the pipe

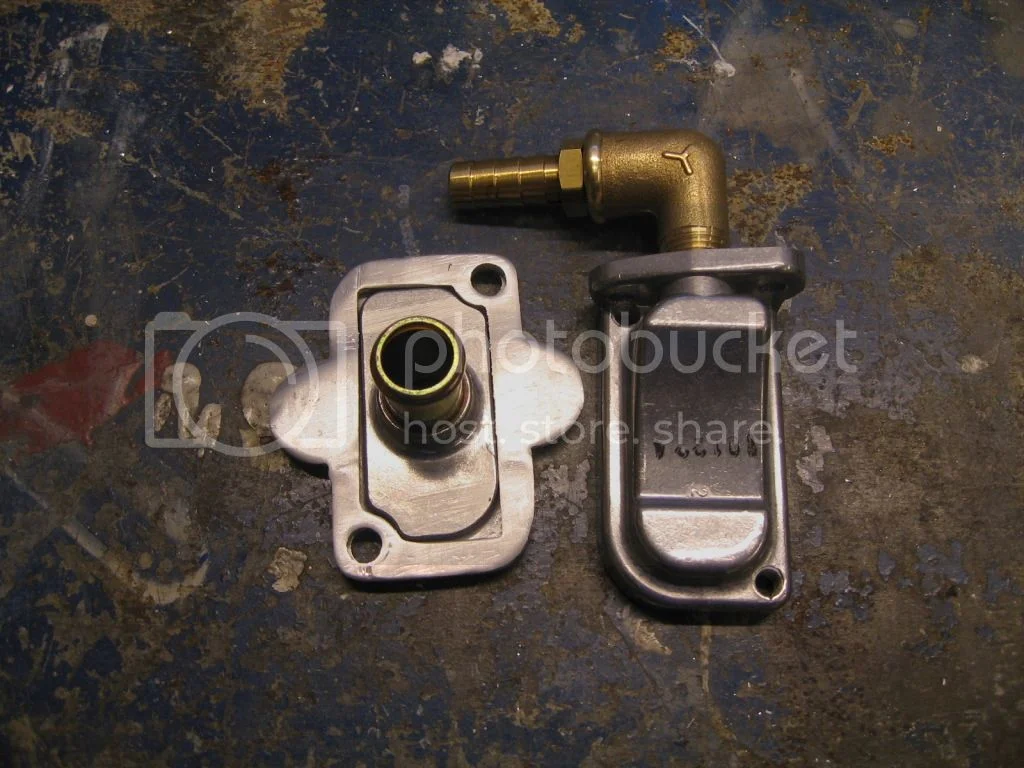

So I had to make a new bracket and a new pipeline

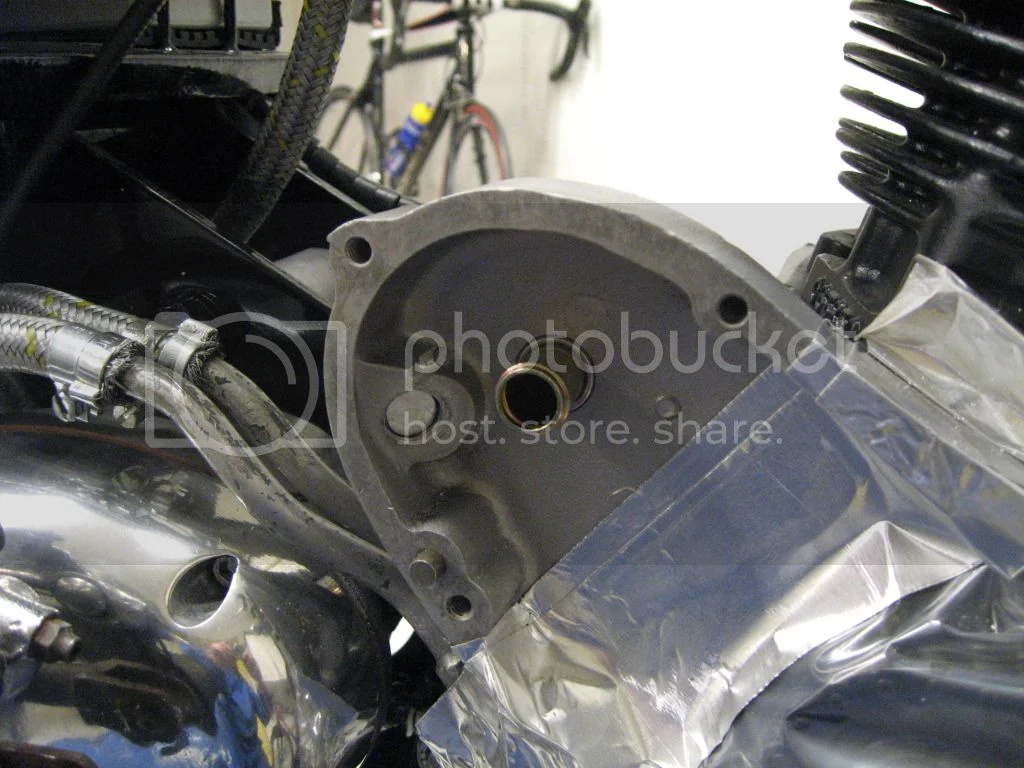

So I had to adapt and create new holes in the crankcase and close the old hole
So could I mount and Screw tight the new valve.
Thought it was an elegant solution, and just enough space behind the starter







Vidar

Elegant? Whenever I say something is elegant I get chewed out.
That's look ok to me, although someone is going to say that it is upside down. :mrgreen:

Tight and tidy install that routes the hose tucked in with the others, yes, I think its Elegant enough solution to show the world and glance at if mine. Of course it flys against what comnoz found best but is exactly what I found a completely adequate vent location to stifle oil mist pushing out with the pressure pulses.
