Lots of talk around the re-engineered Norton Birmingham 961. Worthwhile in my opinion to have a thread that records these component changes, as they become apparent over time.

This will better enable us to make a more informed decision about spares purchase and maybe provide enough information for earliest adoption of any improvements that may be applied to our bikes.

Ideally Norton would have disclosed the re-engineering works in full. Not going to re-hash why it is likely that they did not, but the information they have provided makes for a good start point.

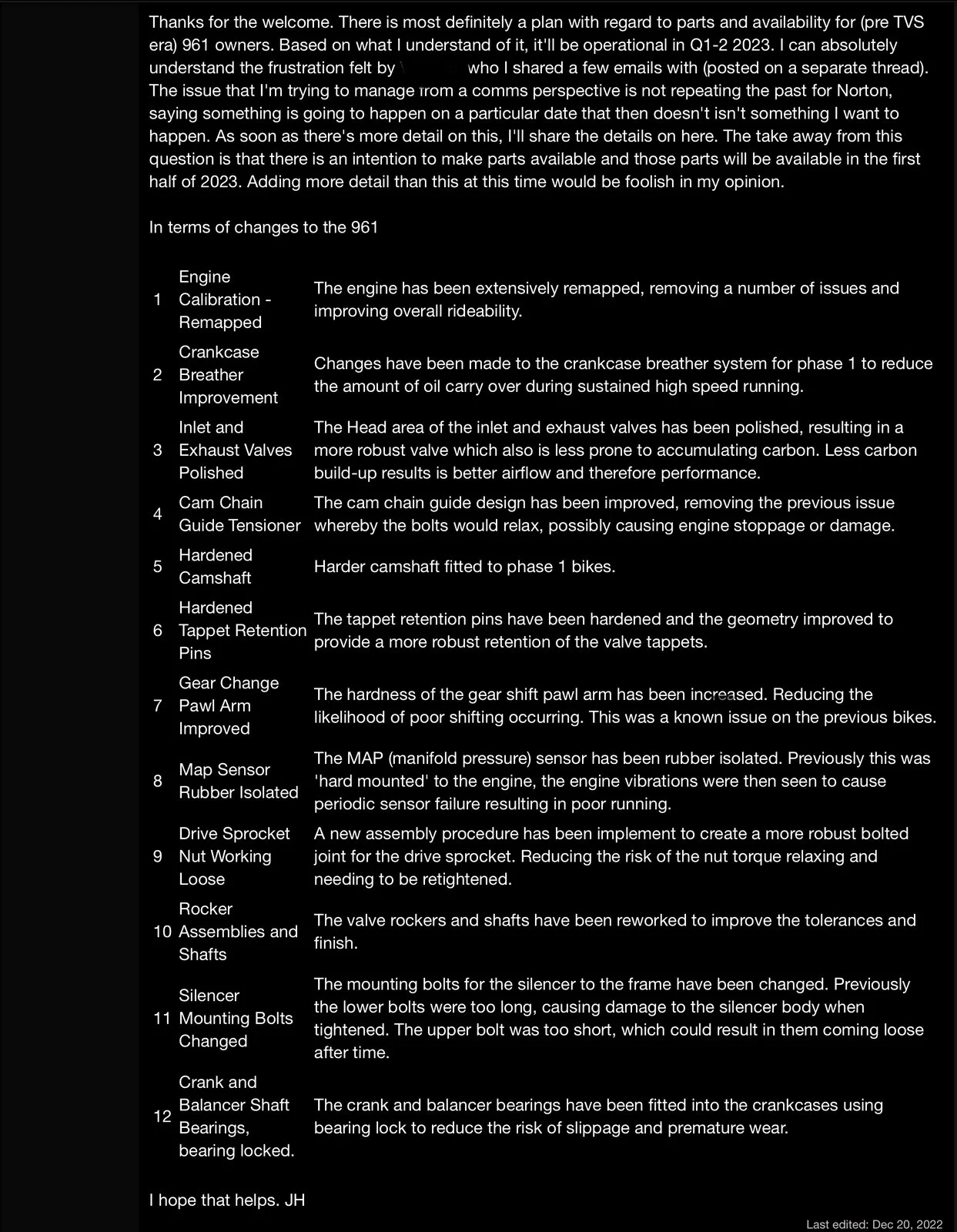

From John Hogan - Norton Birmingham: 12 Dec 22

Donington 961 - Birmingham 961: What are those re-engineered components?

Including any observations or confirmed changes to this listing will no doubt prove useful in the future; so list away!

My guess is that the content will get a significant boost when Motervated get hold of their first Birmingham Norton.

Last edited:

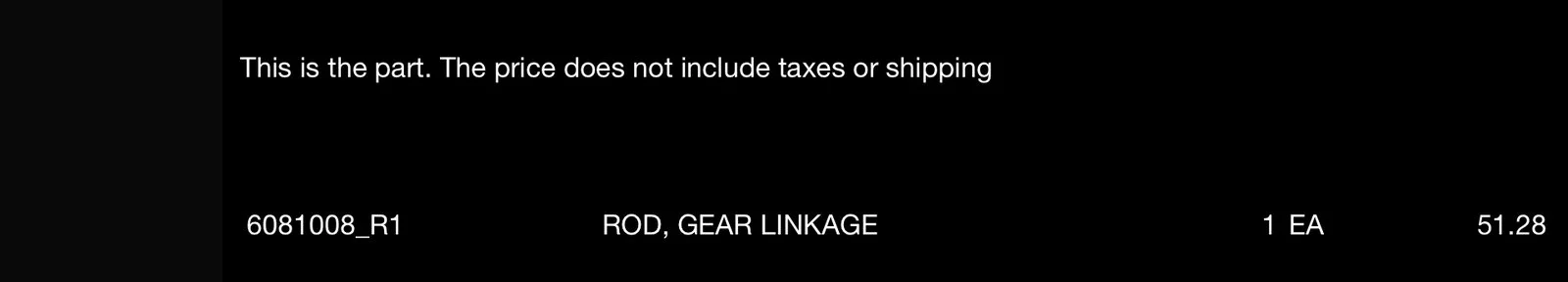

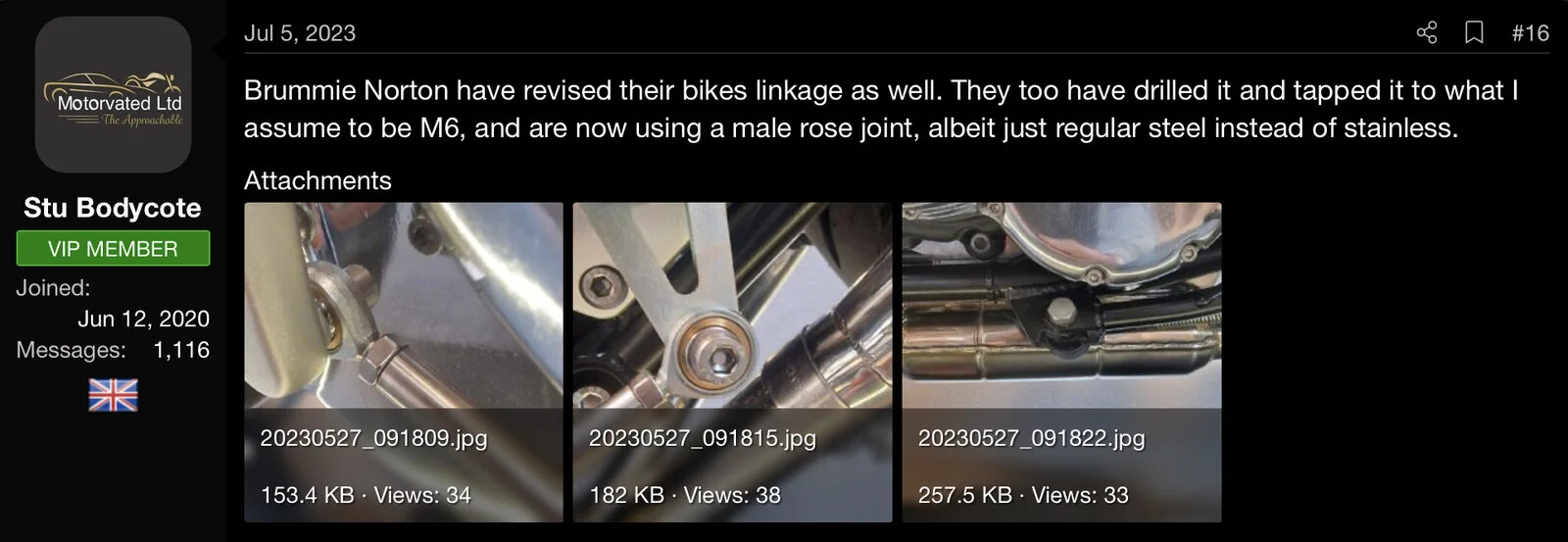

Revised gear change linkage rod. Need to order (or purchase) male rose joints to complete the upgrade.


After note: Part number comes with male rose joints.

Last edited:
Couldn’t find the gear change rod detail, which is ironic as it is the only item on this thread and I put it there:rolleyes:! It was started to (potentially) assist in recording/finding information on re-engineered components.

I still think this has some merit, but maybe in a different format - open to suggestions? Maybe it could link to the alternate parts list in some way. A slow-burn thread obviously.

I guess it needs to identify the component, any changes identified and record whether it will fit directly to the Donington bikes or require modification. Or of course whether it is not compatible. Maybe it should link/reference any threads/videos that cover re-engineering detail.

An example would be the battery box which has undergone extensive modification. Stu’s done a video on this with quite a lot of detail. I think it identifies that it is compatible.

Happy to close the thread if we think it’s not necessary.

Last edited:
Stephen_Spencer said:
Couldn’t find the gear change rod detail, which is ironic as it is the only item on this thread and I put it there:rolleyes:! It was started to (potentially) assist in recording/finding information on re-engineered components.

I still think this has some merit, but maybe in a different format - open to suggestions? Maybe it could link to the alternate parts list in some way. A slow-burn thread obviously.

I guess it needs to identify the component, any changes identified and record whether it will fit directly to the Donington bikes or require modification. Or of course whether it is not compatible. Maybe it should link/reference any threads/videos that cover re-engineering detail.

An example would be the battery box which has undergone extensive modification. Stu’s done a video on this with quite a lot of detail. I think it identifies that it is compatible.

Happy to close the thread if we think it’s not necessary.
Click to expand...
I don’t think it’s a case of not being necessary, it’s just that the information is not coming to light for whatever reasons…

This is clearly a self help project FE. These changes will become fully apparent over time, via parts purchase, trial and error, tech investigation (like Stu’s etc). Obviously it’s gonna take time but it makes sense to record them, in some way.

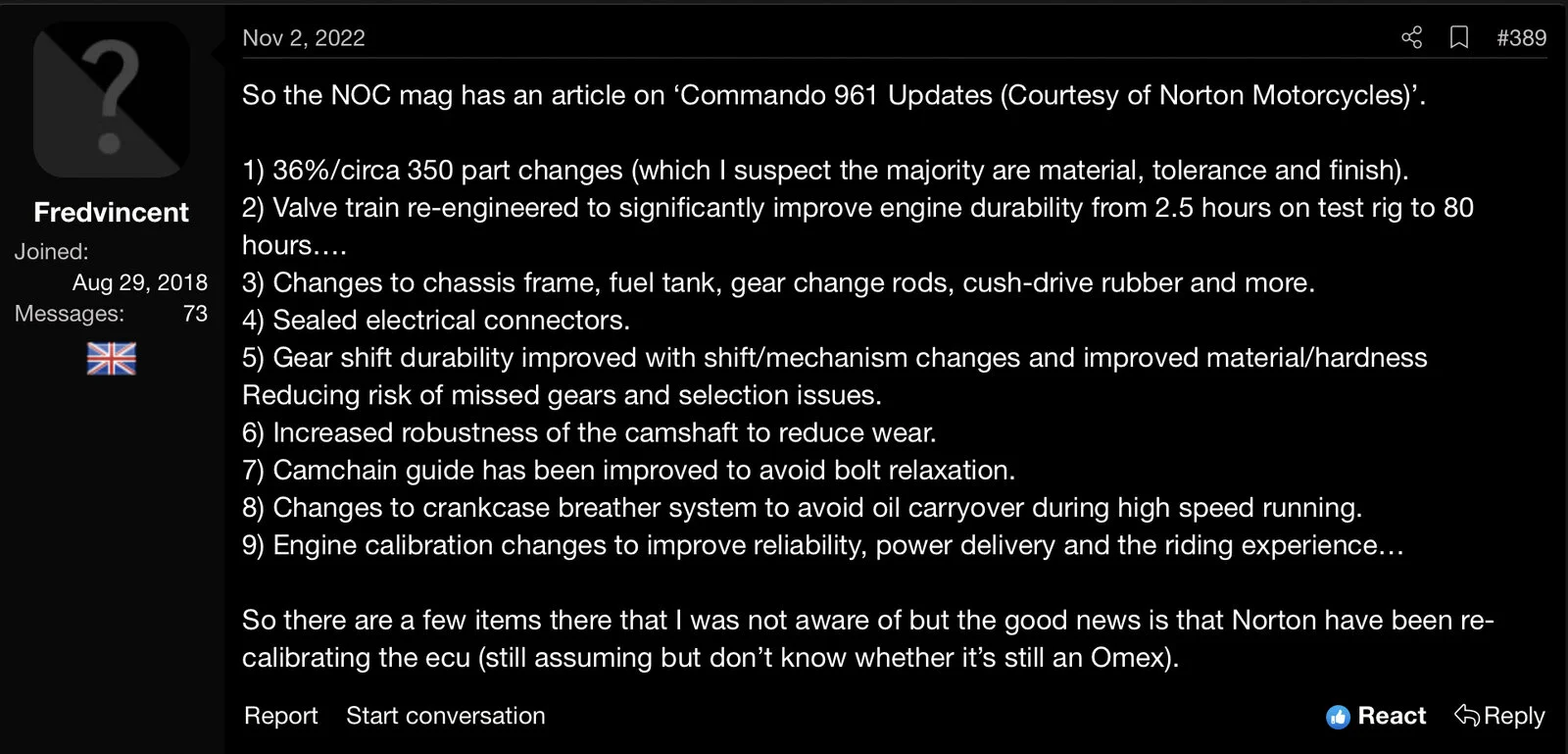

Old list here from the NOC.

Donington 961 - Birmingham 961: What are those re-engineered components?

Stephen_Spencer said:
This is clearly a self help project FE. These changes will become fully apparent over time, via parts purchase, trial and error, tech investigation (like Stu’s etc). Obviously it’s gonna take time but it makes sense to record them, in some way.

Old list here from the NOC.

View attachment 110586
Click to expand...
Yes. I know.

All I said was ‘information is not coming to light for whatever reason’.

Stu’s videos have stopped, and that was the only decent information flow up to this point.

Stephen_Spencer said:
This is clearly a self help project FE. These changes will become fully apparent over time, via parts purchase, trial and error, tech investigation (like Stu’s etc). Obviously it’s gonna take time but it makes sense to record them, in some way.

Old list here from the NOC.

View attachment 110586
Click to expand...
How are we going to compare parts and what changes were made, and what does and doesn’t fit if we can’t get those new spares?
Good luck.

Two observations:
- the original Hogan post would get him fired today for disclosing top secret information
- Joseph the new parts man serves as the new hope for spare parts on the Death Star

CR961 said:
Two observations:
- the original Hogan post would get him fired today for disclosing top secret information
- Joseph the new parts man serves as the new hope for spare parts on the Death Star
Click to expand...
I never in my life seen an employee turn over as Donington and Solihull.
Something’s never change.

Voodooo said:
I never in my life seen an employee turn over as Donington and Solihull.
Something’s never change.
Click to expand...
I can concur from my short history of communicating with Norton that the few people I talked to are either no longer there or not at their positions.

Shit, sorry guys I've let you down. Its just been the lack of time....when ever I've had some down time, I've made the most of it and spent time with the family....like today where I took Mikey to his first motorcycle event (piccy attached).
I'm planning on stripping the engine over winter. I know its the one people have been waiting on, so my apologies for the delay.


Attachments

  • Donington 961 - Birmingham 961: What are those re-engineered components?
    196.9 KB · Views: 76
Stu Bodycote said:
Shit, sorry guys I've let you down. Its just been the lack of time....when ever I've had some down time, I've made the most of it and spent time with the family....like today where I took Mikey to his first motorcycle event (piccy attached).
I'm planning on stripping the engine over winter. I know its the one people have been waiting on, so my apologies for the delay.
Click to expand...
Unless the bikes are outlawed by then, I can see this photo of him somewhere in his garage with the JPS on the stand and him working on it with Stu Jr.
May well happen.
