Custom primary cover

D

dero

VIP MEMBER
Joined
Jan 22, 2010
Messages
228
Country flag
I have picked up a primary cover that has had a poor job of hole drilling done on it .
The ones I have looked at that I like have some form of mesh attached & I am wondering how the mesh is fixed to the cover .
I will need to remove quite a bit of metal to clean it up , most of the raised circular sections & some of the center part .
I saw one where the mesh was held on by an external ring fixed to the cover .
Any experience or ideas would be greatly appreciated before I start hogging out material .

www.eurojamb.com

Norton 750 850 Commando BELT DRIVE Plug Set BILLET vented

Astounding stuff. So beautiful they could be worn as jewelry. And some of you Norton guys will surely want to.... The bodies of the caps are crafted from billet aluminum with stainless steel screens, suitable for a dry (belt) primary drive. Screens are retained by inserts threaded from the...
www.eurojamb.com www.eurojamb.com

Yeah, but if the threads for the original access holes are trashed the Eurotrash vented plugs are useless and likely the entire primary cover is a throwaway. Maybe someone has an idea how to make something of it. And, unless the primary is a belt drive, the chain oil would spew out the vented holes Anyway .

dero said:
I have picked up a primary cover that has had a poor job of hole drilling done on it .
The ones I have looked at that I like have some form of mesh attached & I am wondering how the mesh is fixed to the cover .
I will need to remove quite a bit of metal to clean it up , most of the raised circular sections & some of the center part .
I saw one where the mesh was held on by an external ring fixed to the cover .
Any experience or ideas would be greatly appreciated before I start hogging out material .
Click to expand...
A photo would be helpful

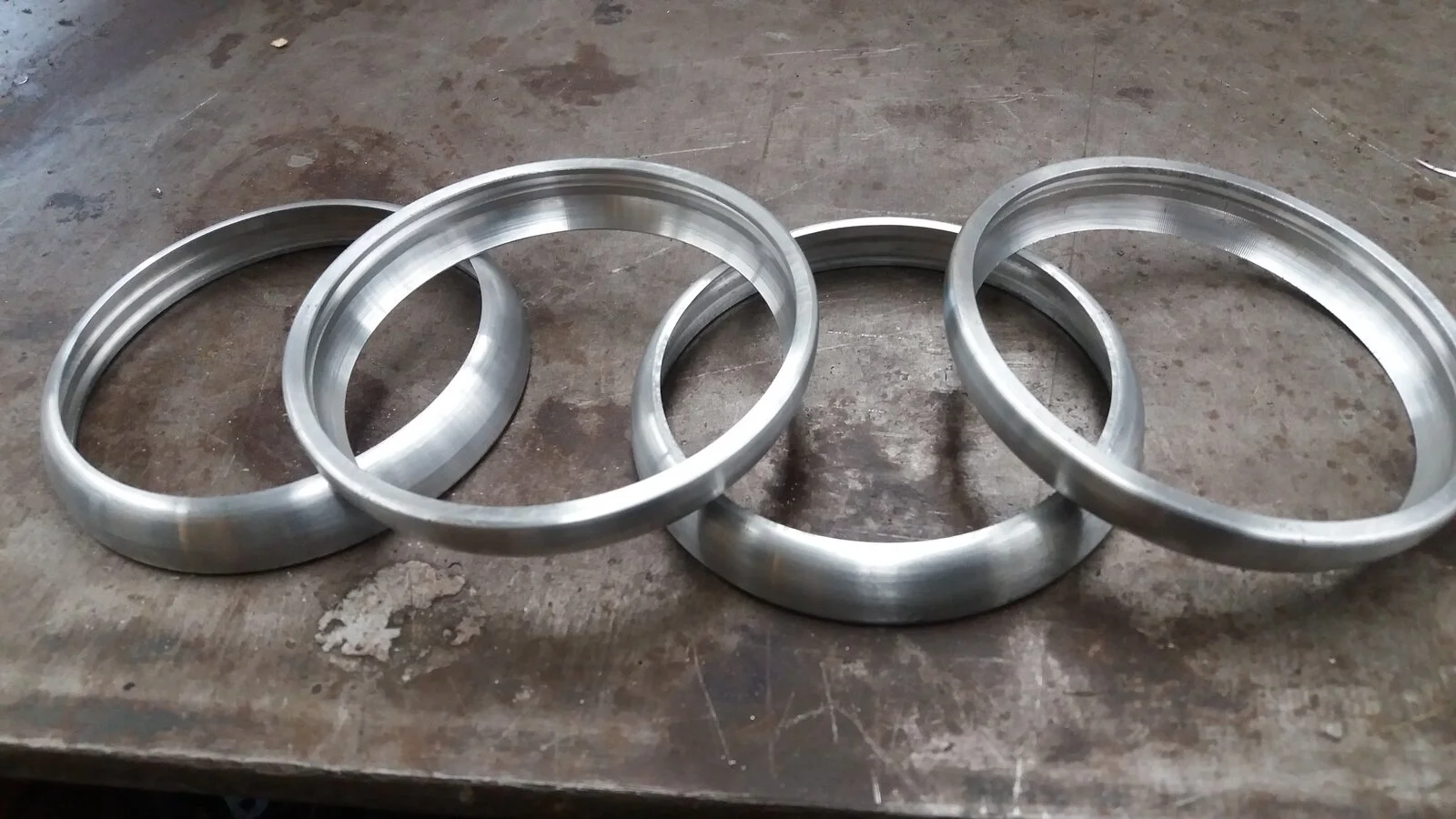

Hi Shane, are you meaning mesh or perforated stainless , you could weld on some material, x4 so that you could thread it , and bolt it on , this isn't the same but I machined a tool up for rock guards on a crossram , and made the trumpet guards and there is a special way to cut the mesh to avoid pleating , basically cut out a square at 45 degrees to the mesh then round off each corner , not sure if this is any good but just an idea for you to think about , they clip in real tight onto a step , you can size them to protrude less . Or just make your external plate/flange ring and samwhich the mesh , is this for a belt drive .
Custom primary cover
Custom primary cover

Last edited:

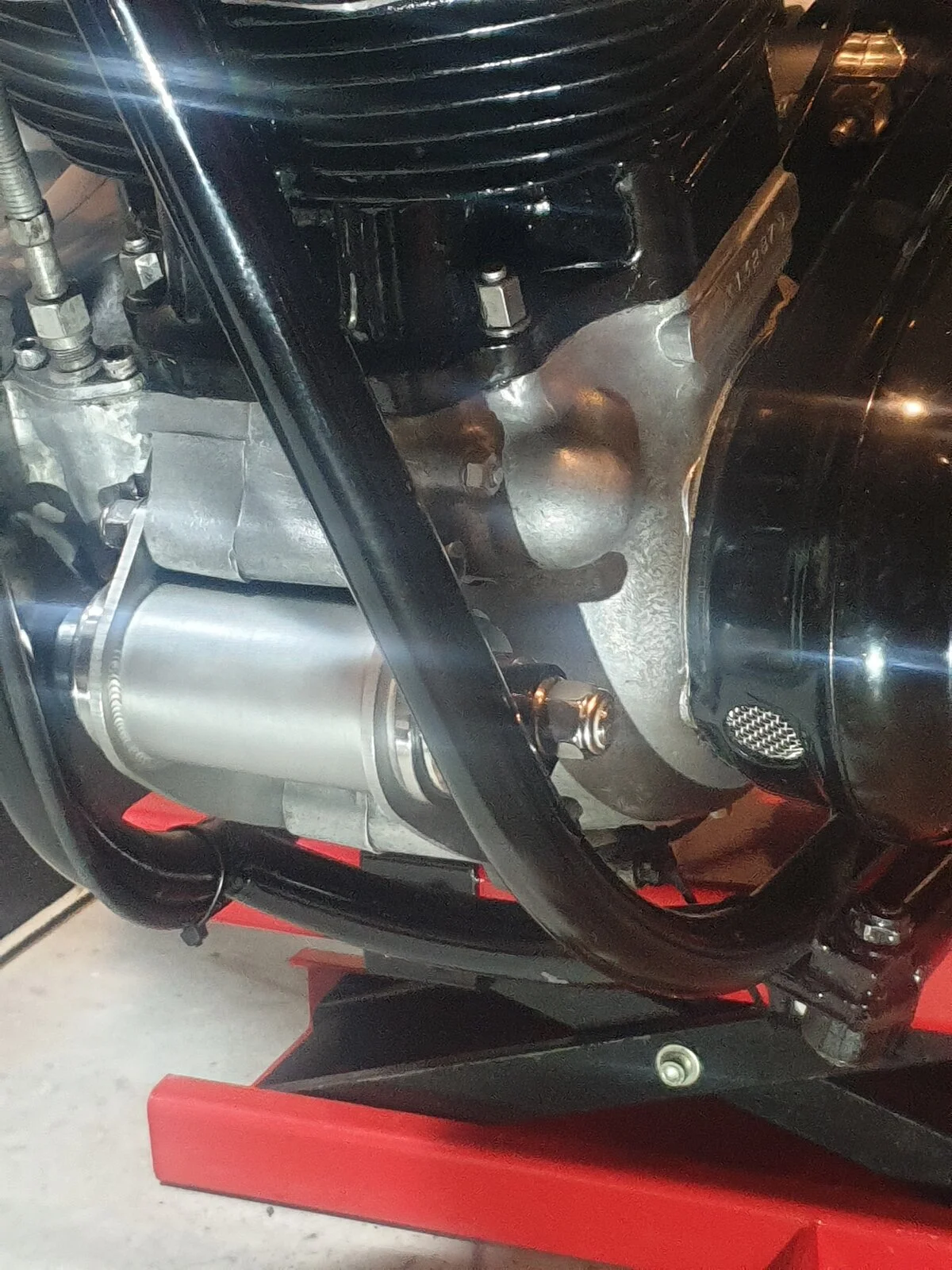

I've run a fully covered belt drive for many years with no issue...but decided to slightly vent both ends of the inner cover (with center drain provision) and used s/s security mesh that i shaped and fixed with a equivalent type adhesive sealant as what Dave M has used....rock solid


Attachments

  • Custom primary cover
    367.7 KB · Views: 107
Sorry I have not mastered the picture posting thing yet .
It is well beyond the screw in plugs , I was thinking JB weld or similar , but was worried that if it let go it would not end well .
Glad to hear that adhesive seems to be standing up .
Yes , belt drive . My original cover is fine , but I was hoping to give a second life to this butchered cover & maybe add a bit of bling .

You can support the JB weld with some steel/brass flat plates held by screws to the cover, but I doubt its needed. If you pick the right mesh then you can form reverse tapers on the OD so it grips better.

dero said:
Sorry I have not mastered the picture posting thing yet .
It is well beyond the screw in plugs , I was thinking JB weld or similar , but was worried that if it let go it would not end well .
Glad to hear that adhesive seems to be standing up .
Yes , belt drive . My original cover is fine , but I was hoping to give a second life to this butchered cover & maybe add a bit of bling .
Click to expand...

www.returnofthecaferacers.com

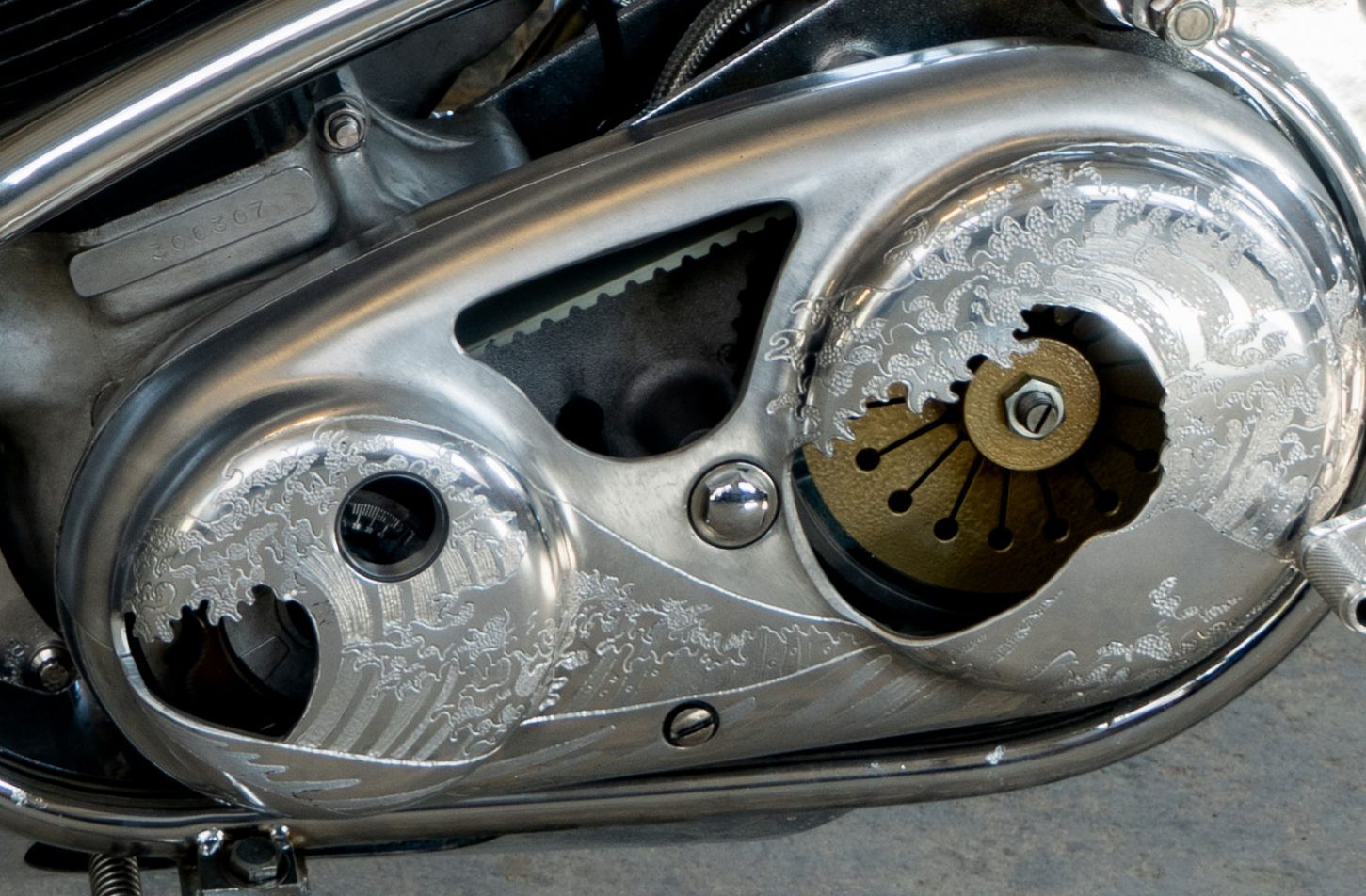

Asohka: Brent King's Norton Commando 850 - Return of the Cafe Racers

There are days when I struggle to get anything done. I thought this was a problem everyone experienced, but then I met Brent King, aka Mifune Werx. Brent
www.returnofthecaferacers.com www.returnofthecaferacers.com

  • Haha
Reactions: baz

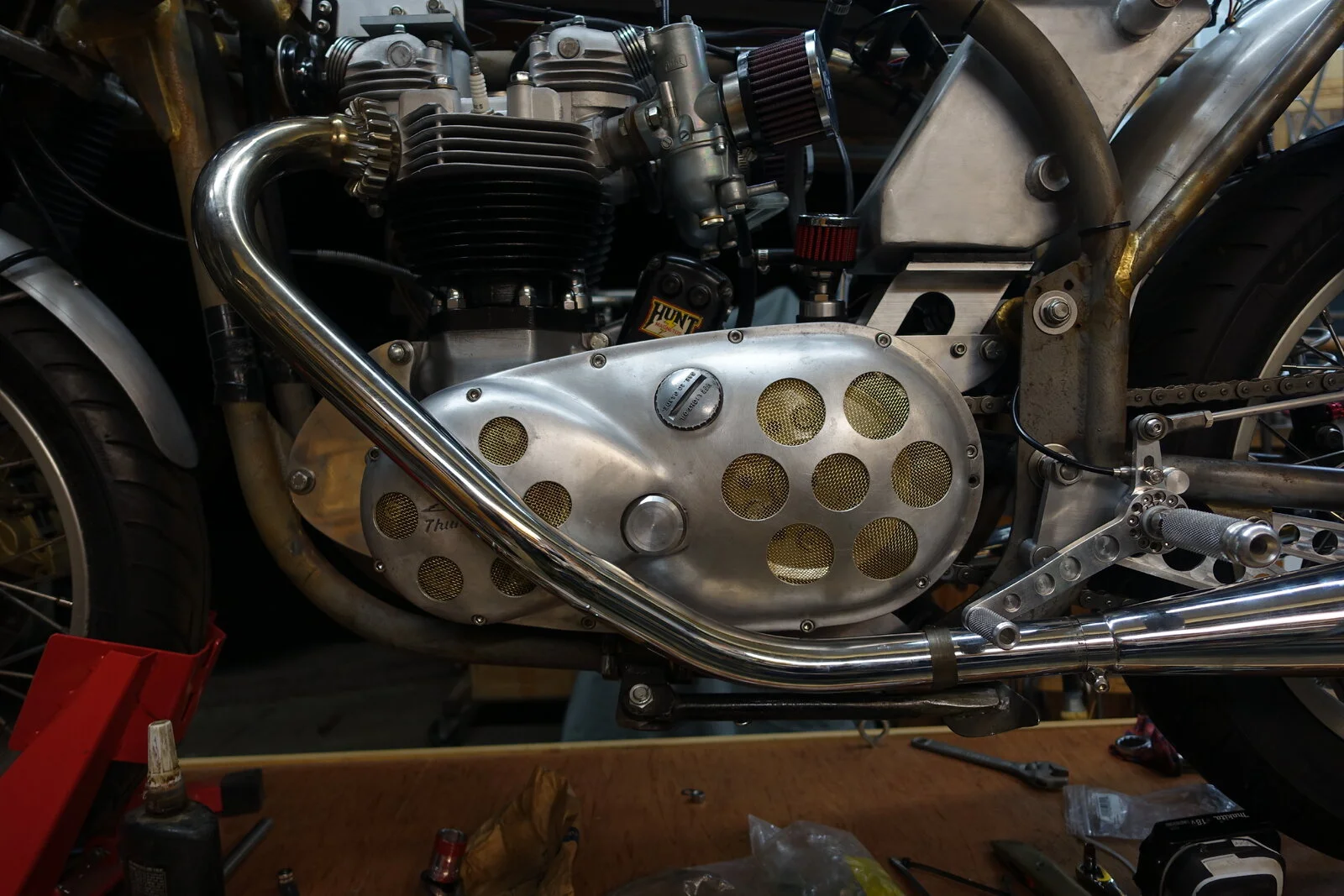

What I have is similar to ingermansons triumph , I will end up with 2 large holes front & rear .
Shelby , any more info on the cutting of the mesh , how does the 45deg sq help when the end result is a circle ?

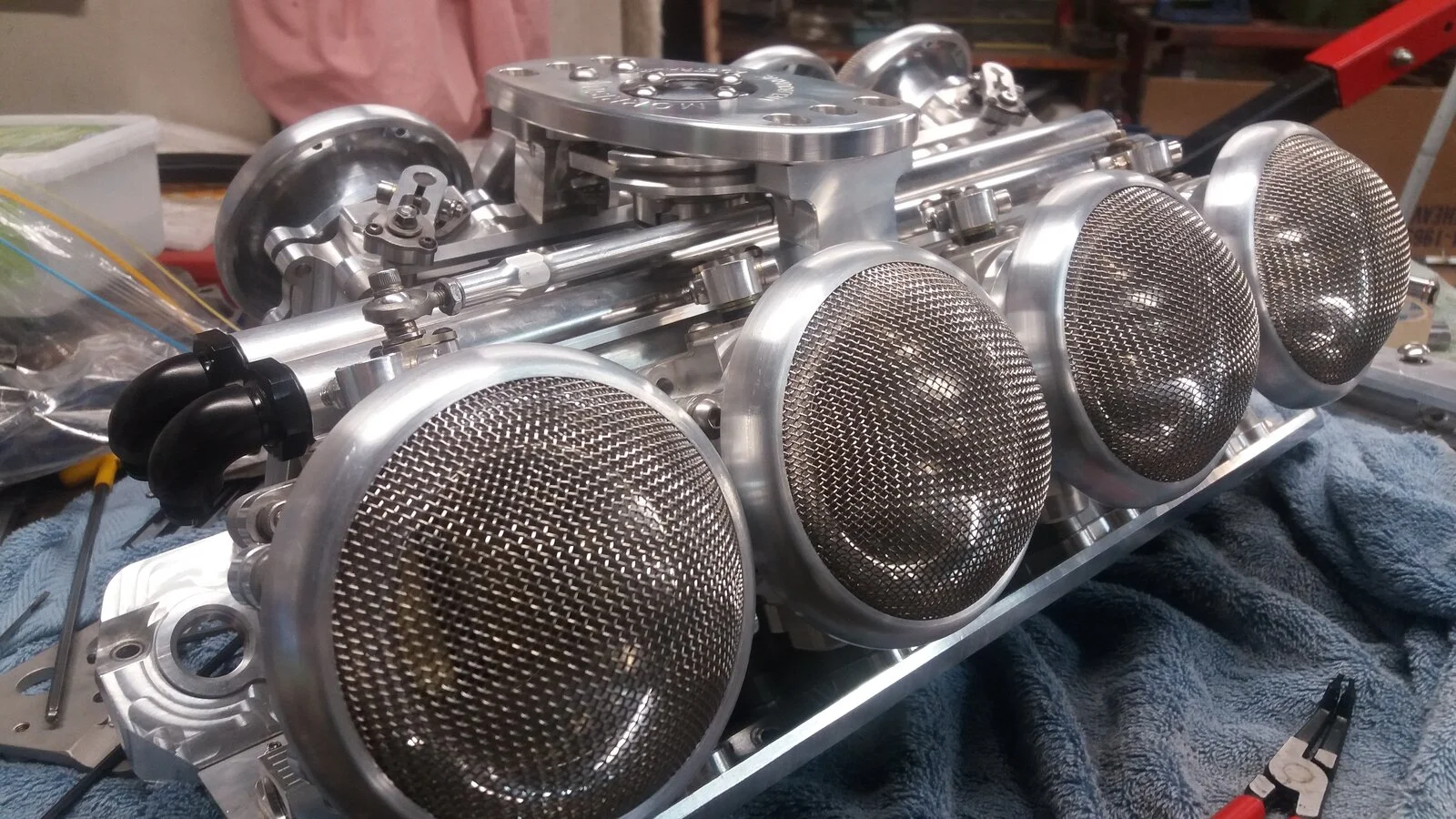

Hard to explain , I expect because I liked the dome look , so it ends up a pretty rounded off square, and you have to size it to suit to height of the dome, they only go in from the back , and if taking it out you need to go through , they click in on the step and its easy to mark any bits that need trimming when I made two sets of them I made a spare which was helpful as getting all the mesh cut and fitted is better if a once only to your good ones , I have these retained by a 98 or 99 mm ceger clip .hope this helps .

For round mesh, can get die cut stainless discs, from 1/2" dia. to 12" diameter - see examples here:

www.mcmaster.com

McMaster-Carr

McMaster-Carr is the complete source for your plant with over 595,000 products. 98% of products ordered ship from stock and deliver same or next day.
www.mcmaster.com www.mcmaster.com

You must log in or register to reply here.
