I finally tried to drill the hole on the lower left of the oil pump mount.

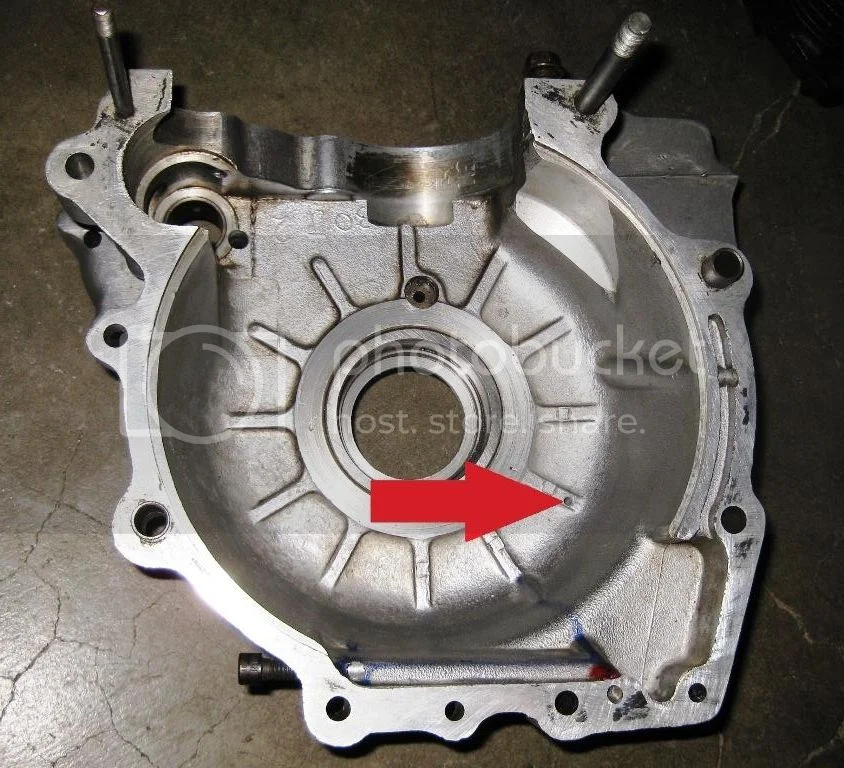

The case was a full 1" thick at this point! The new hole emerged right on a rib on the inside of the case-red arrow.
The new hole is about 2" lower than the original drain back hole on the rear of the case flange.

Crankcase mods - advice please

Bob Z. said:
I finally tried to drill the hole on the lower left of the oil pump mount.
The case was a full 1" thick at this point! The new hole emerged right on a rib on the inside of the case-red arrow.
The new hole is about 2" lower than the original drain back hole on the rear of the case flange.

Crankcase mods - advice please
Click to expand...

Not sure i have seen that before and wonder why?

an 850 I am doing was half in half out of a rib and yes it is thick there.

Bob Z. said:
I finally tried to drill the hole on the lower left of the oil pump mount.
The case was a full 1" thick at this point! The new hole emerged right on a rib on the inside of the case-red arrow.
The new hole is about 2" lower than the original drain back hole on the rear of the case flange.

Crankcase mods - advice please
Click to expand...

Two questions for Jim....does that hole go through parallel with barrel seat or point a few degrees down and is it 1/4"? Thanks.

Keith1069 said:
Two questions for Jim....does that hole go through parallel with barrel seat or point a few degrees down and is it 1/4"? Thanks.
Click to expand...

I bore them parrallel with the barrel seat. 1/4 inch is correct. Jim
