Crank case breather
- Thread starter mean gene
- Start date
- Status
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 21,596
I guess it’s a spring inside it right?
Beauty of the reed valves is they‘re designed for that rapid and constant movement.
The spring may not be…
Beauty of the reed valves is they‘re designed for that rapid and constant movement.
The spring may not be…
- Joined
- Aug 19, 2021
- Messages
- 1,456
I decided to go this way.
PCV Reed Valve - Crankcase Breather
Color/Finish: Silver Material: Metal Dimensions: Overall Length: 86.50mm Width (at widest point): 28.85mm Engine Inlet OD: 14.15mm Engine Inlet 11.85mm Filter (Air) Outlet OD: 12.00mm Filter (Air) Outlet ID: 9.45mm Fits: Universal Note: Easy Installation (Linked Below)
www.mikesxs.net
- Joined
- Jun 16, 2018
- Messages
- 93
Yup.
Mines the same , used i believe on the Yam XS 650
Works a treat, all but stopped a head gasket dripping on the exhaust
Mines the same , used i believe on the Yam XS 650
Works a treat, all but stopped a head gasket dripping on the exhaust
- Joined
- Jul 30, 2009
- Messages
- 188
I had a valve a lot like that for a while. Eventually it got all clogged up with white emulsified oil. Then I removed it and went back to my stock breathing system (MKIII) which just has a hose connected to the oil tank. The trouble is if the valve is not right on or in the engine in cooler weather it won't get warm enough to steam off the moisture. It might work better if your riding is only on hot days. I plan eventually on installing a similar valve right inside the timing cover. I think with the heat in there it will work better.
- Joined
- Aug 19, 2021
- Messages
- 1,456
I like that idea.
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 21,596
On your bike you get much closer to the engine, or the source of crankcase pressure than this:
nycnorton.com
Reed Breather Kit
The Norton twin cylinder engine creates a serious amount of pressure in the crankcase as the motor spins. Over the years the factory attempted several methods to reduce this pressure – from a timed breather off the end of the cam on earlier motors, to a crude straight pipe from the timing chest on
nycnorton.com
- Joined
- Aug 19, 2021
- Messages
- 1,456
That's a lot of money and I plan to have the check valve mod done. Why in the hell Norton didn't include a drain back valve is beyond me. Harley Davidson had them in the 1930s.On your bike you get much closer to the engine, or the source of crankcase pressure than this:
Reed Breather Kit
The Norton twin cylinder engine creates a serious amount of pressure in the crankcase as the motor spins. Over the years the factory attempted several methods to reduce this pressure – from a timed breather off the end of the cam on earlier motors, to a crude straight pipe from the timing chest on
Mart UK
VIP MEMBER
- Joined
- Mar 11, 2021
- Messages
- 1,296
Is this a common problem with the XS Reed valve?
- Joined
- Aug 19, 2021
- Messages
- 1,456
How did you mount it?
mean gene
VIP MEMBER
- Joined
- Dec 21, 2020
- Messages
- 1,297

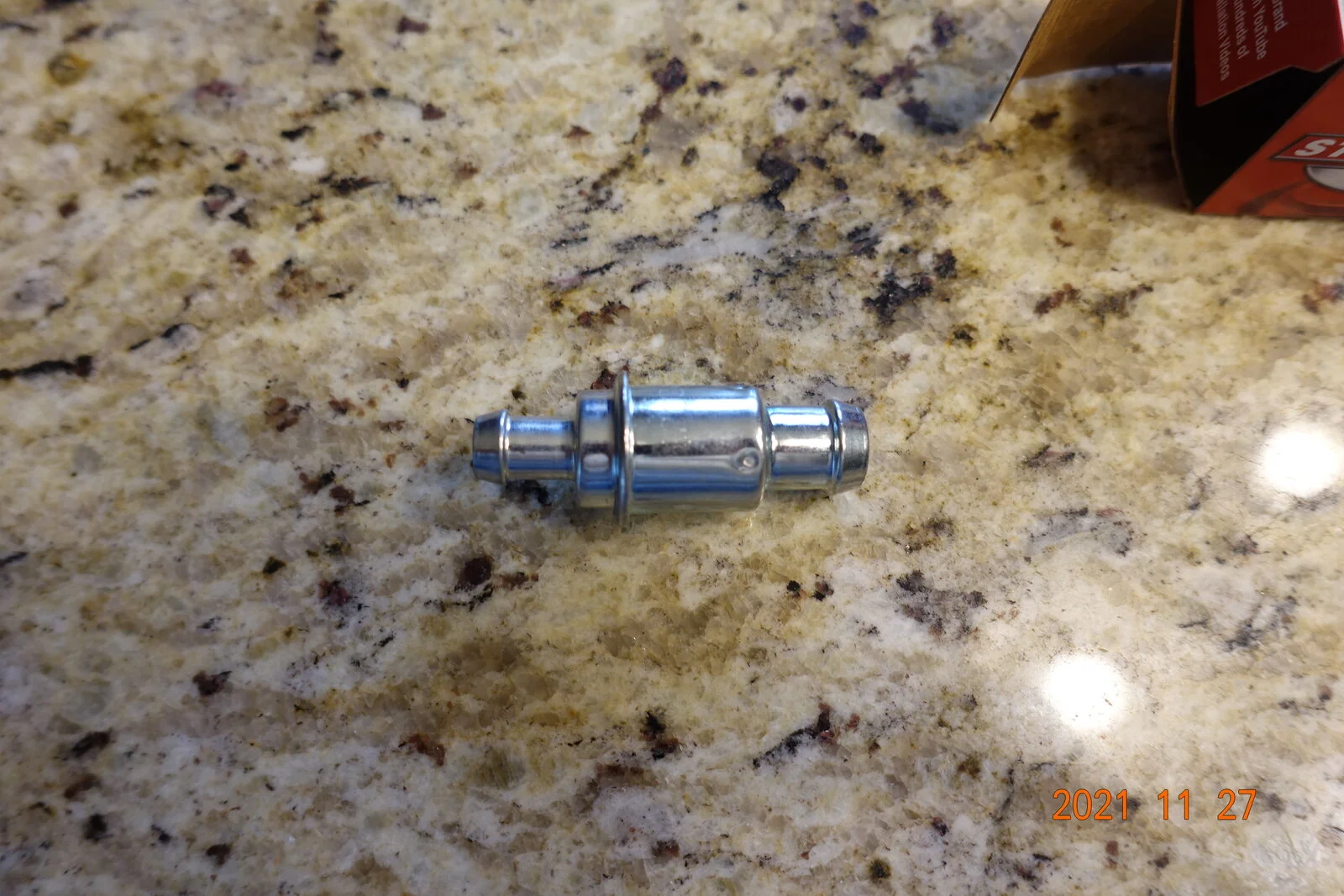

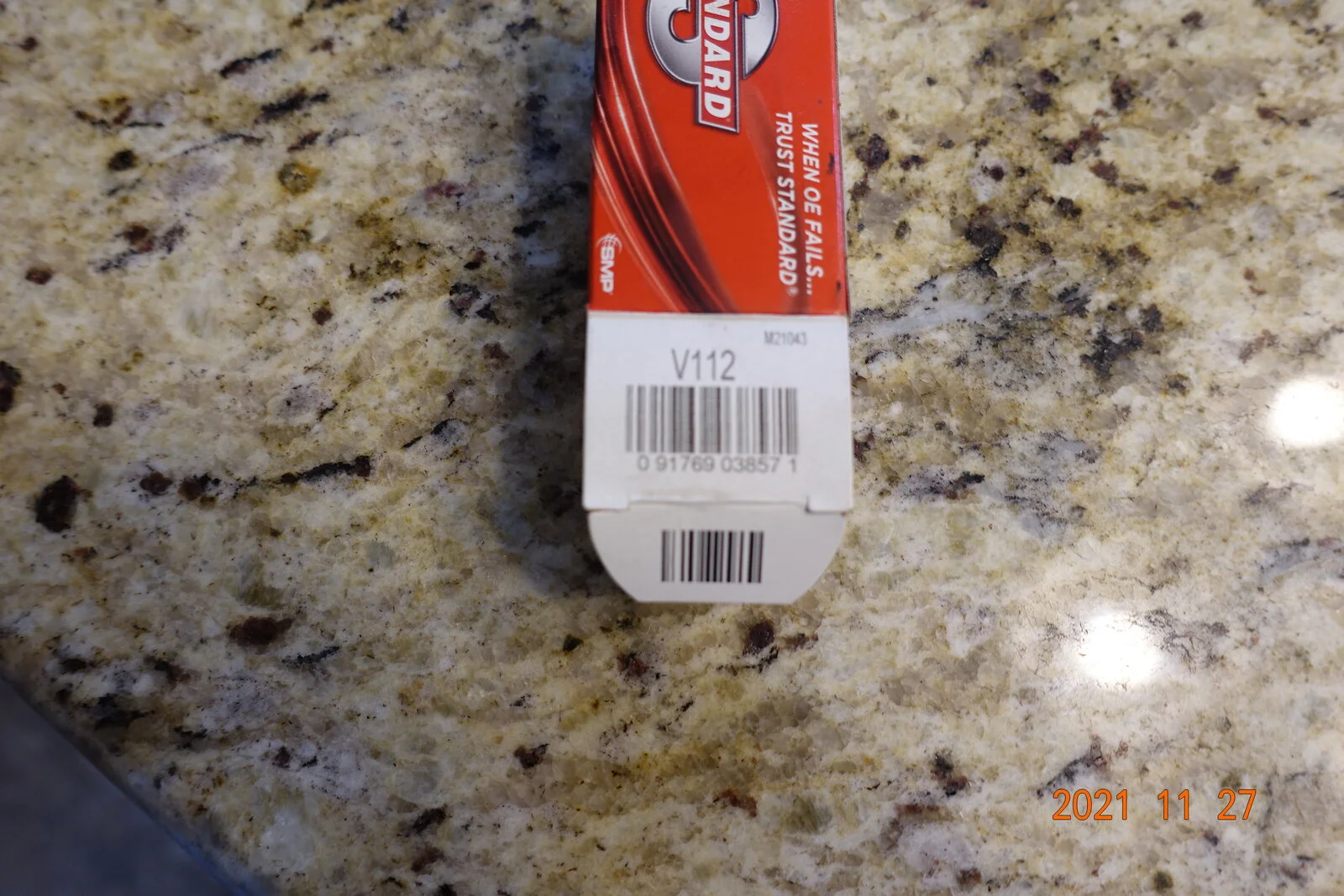

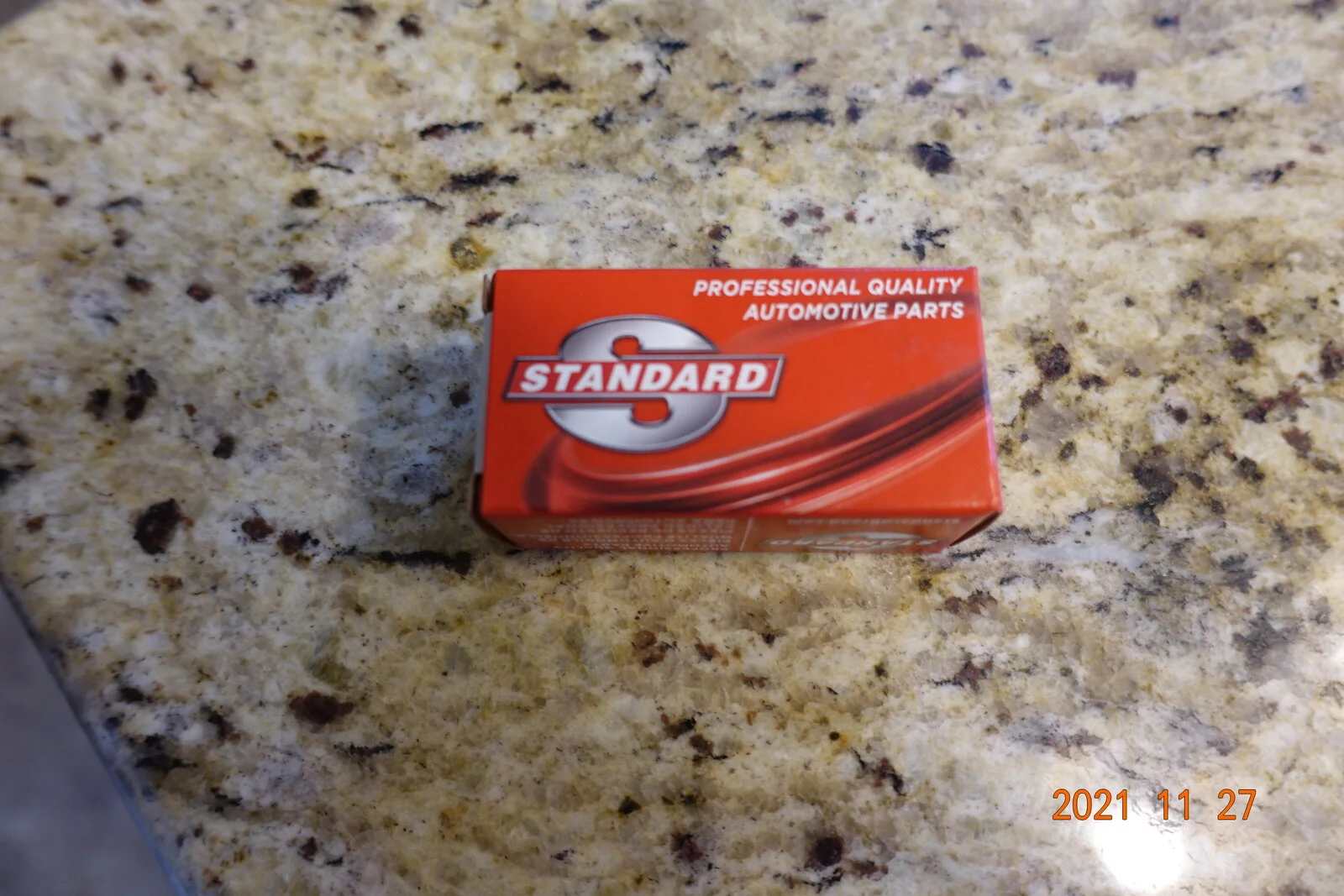

Spring loaded. Creates negative pressure in crankcase. It works. Easily hid under seat. Correct size's for breather hose, cheap! Better then nothing if your not planning on pulling engine for rebuild or have the money for reed valve modification!
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 21,596
Yes, better than nothing while it works, but I‘ve read of spring loaded devices failing before.
