Compatibility of Cyclops ultra 10.0 led headlamp with Commando

porridgebird · Feb 15, 2023

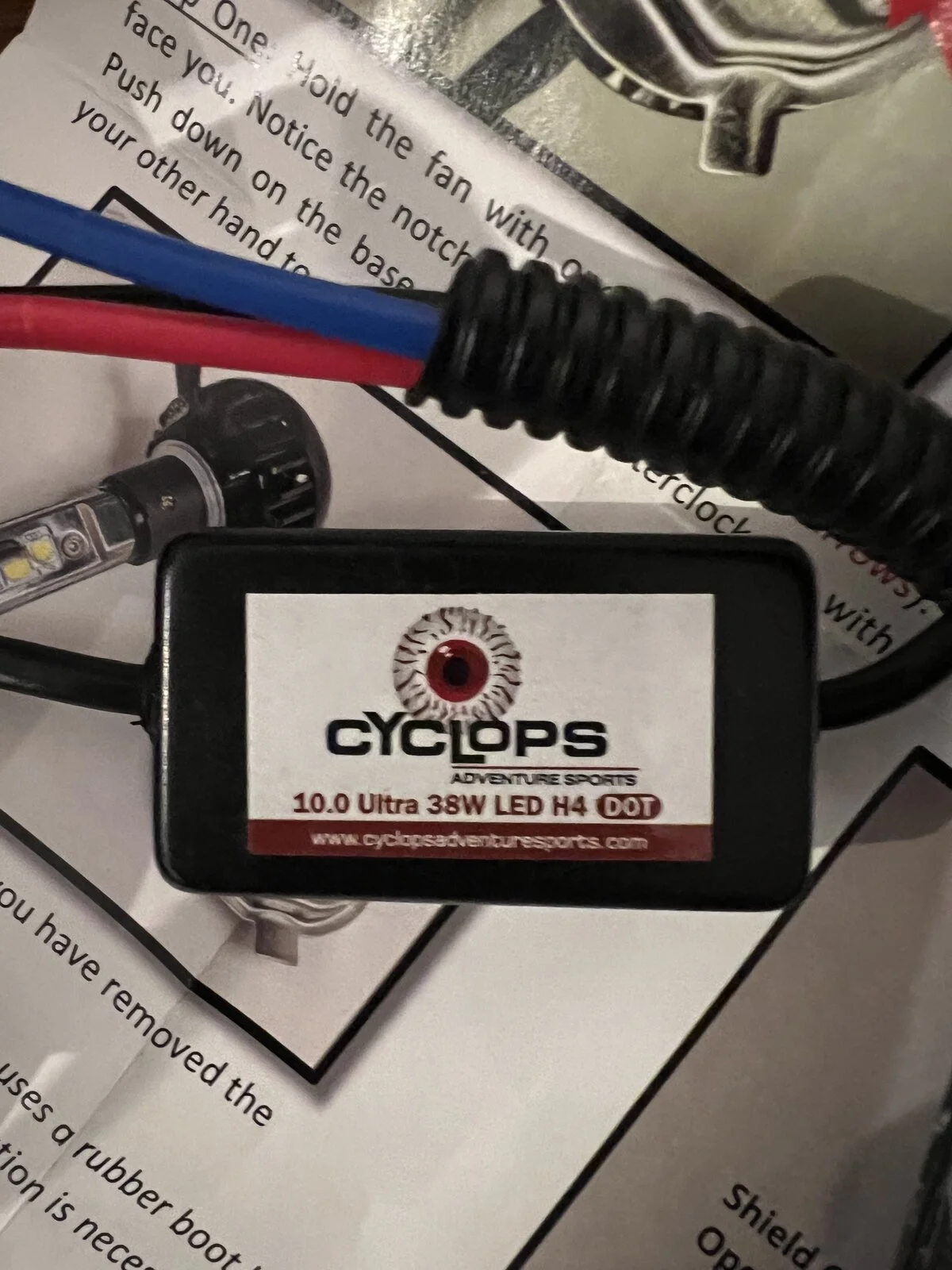

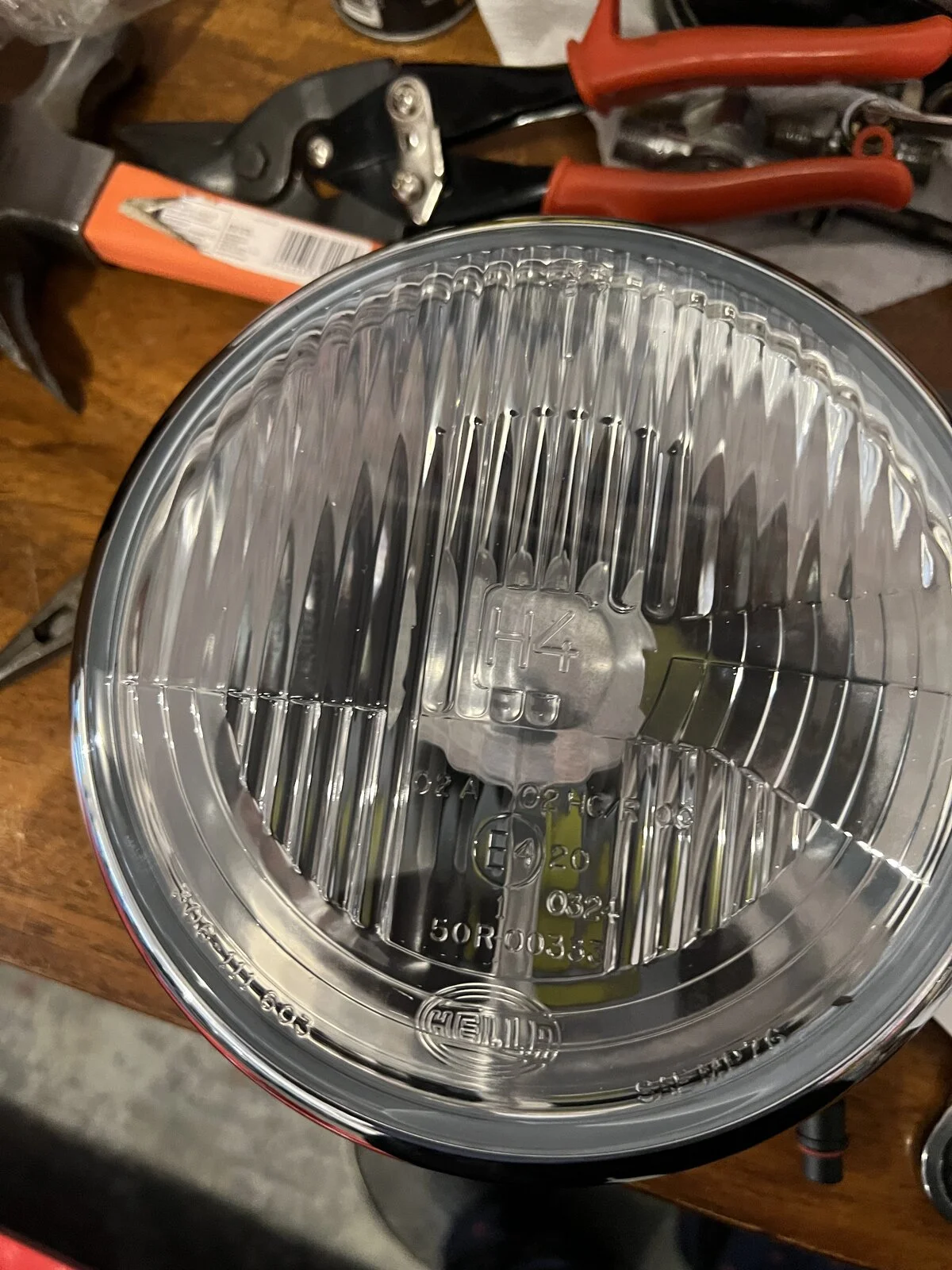

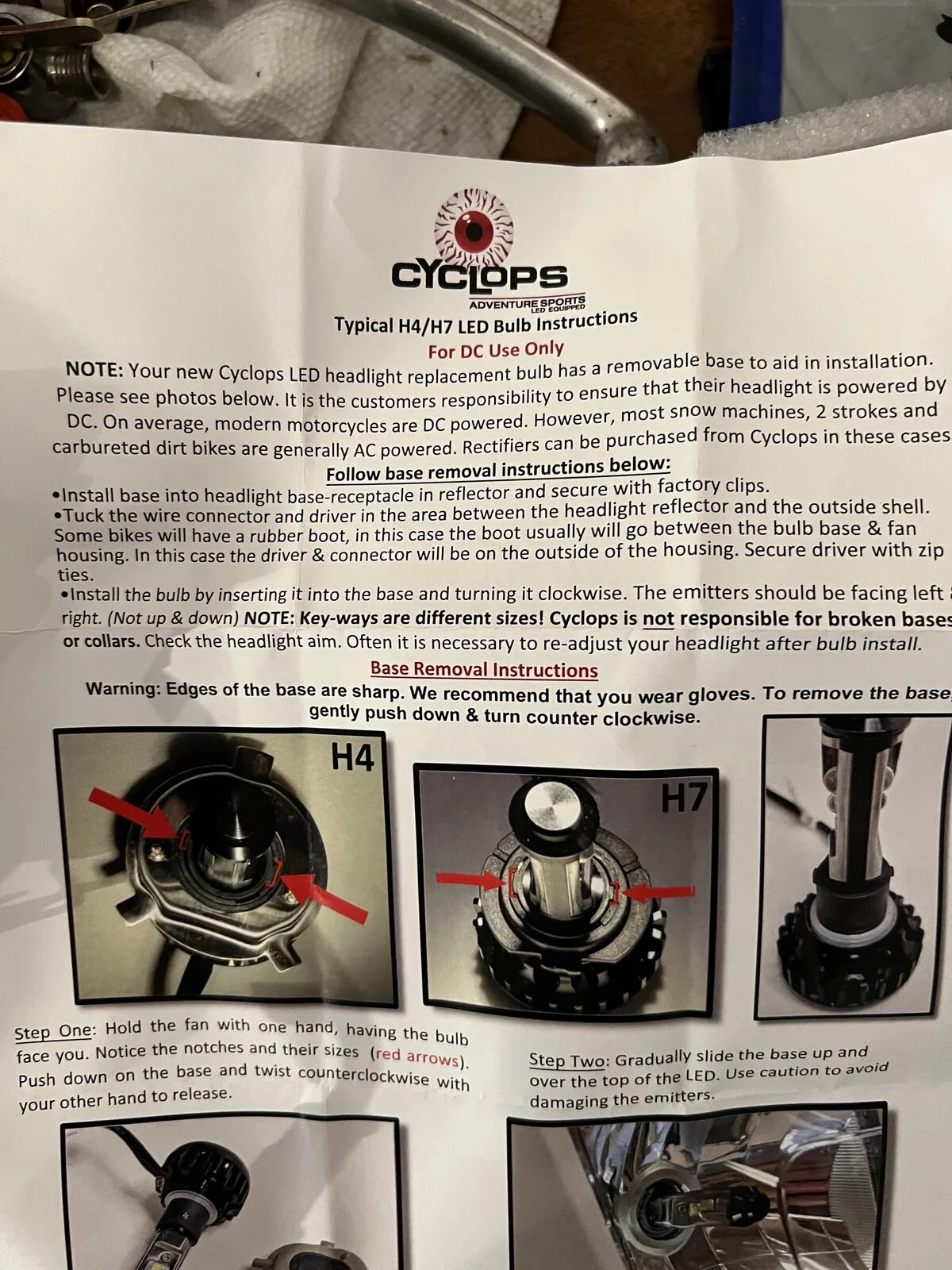

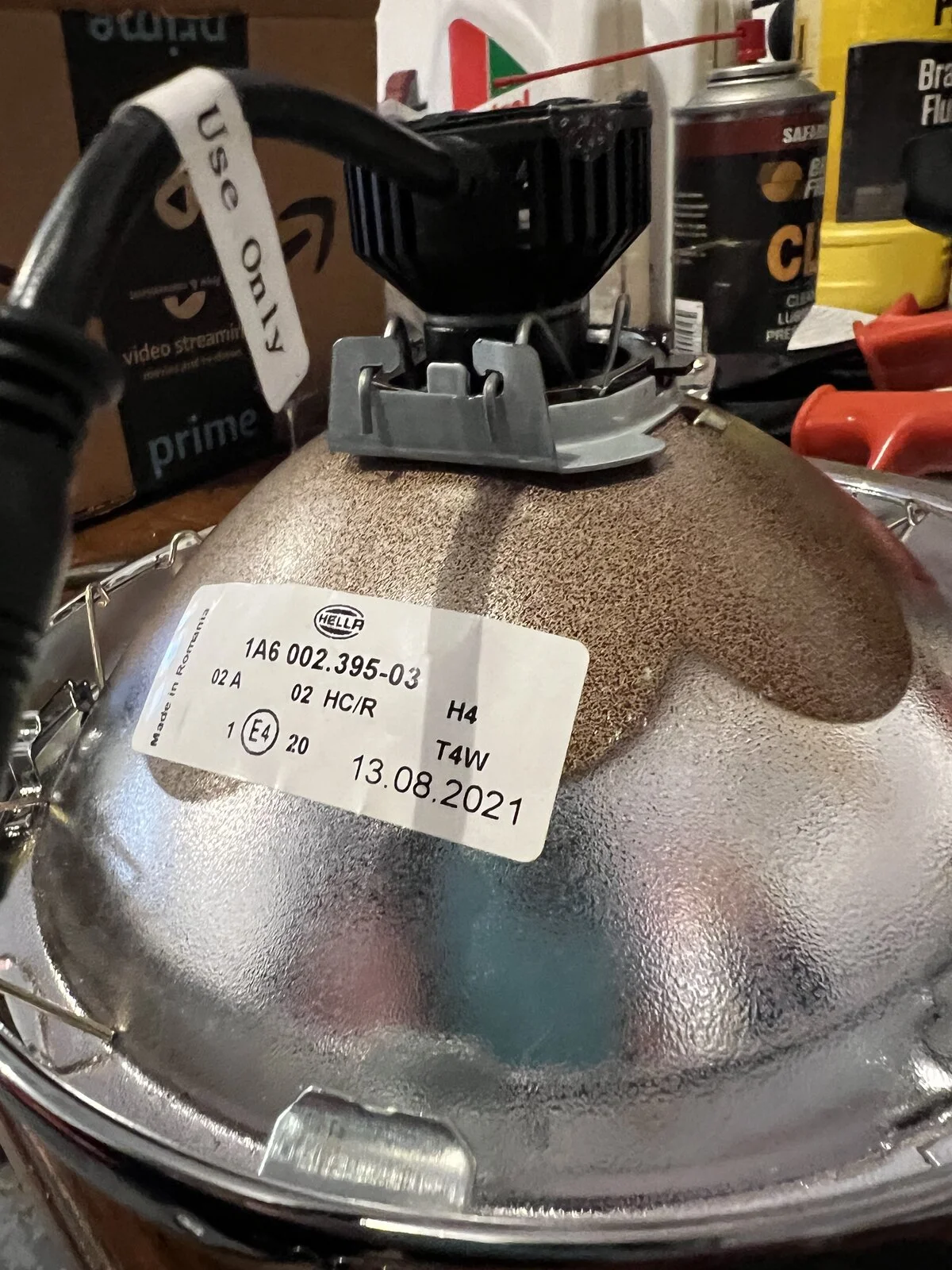

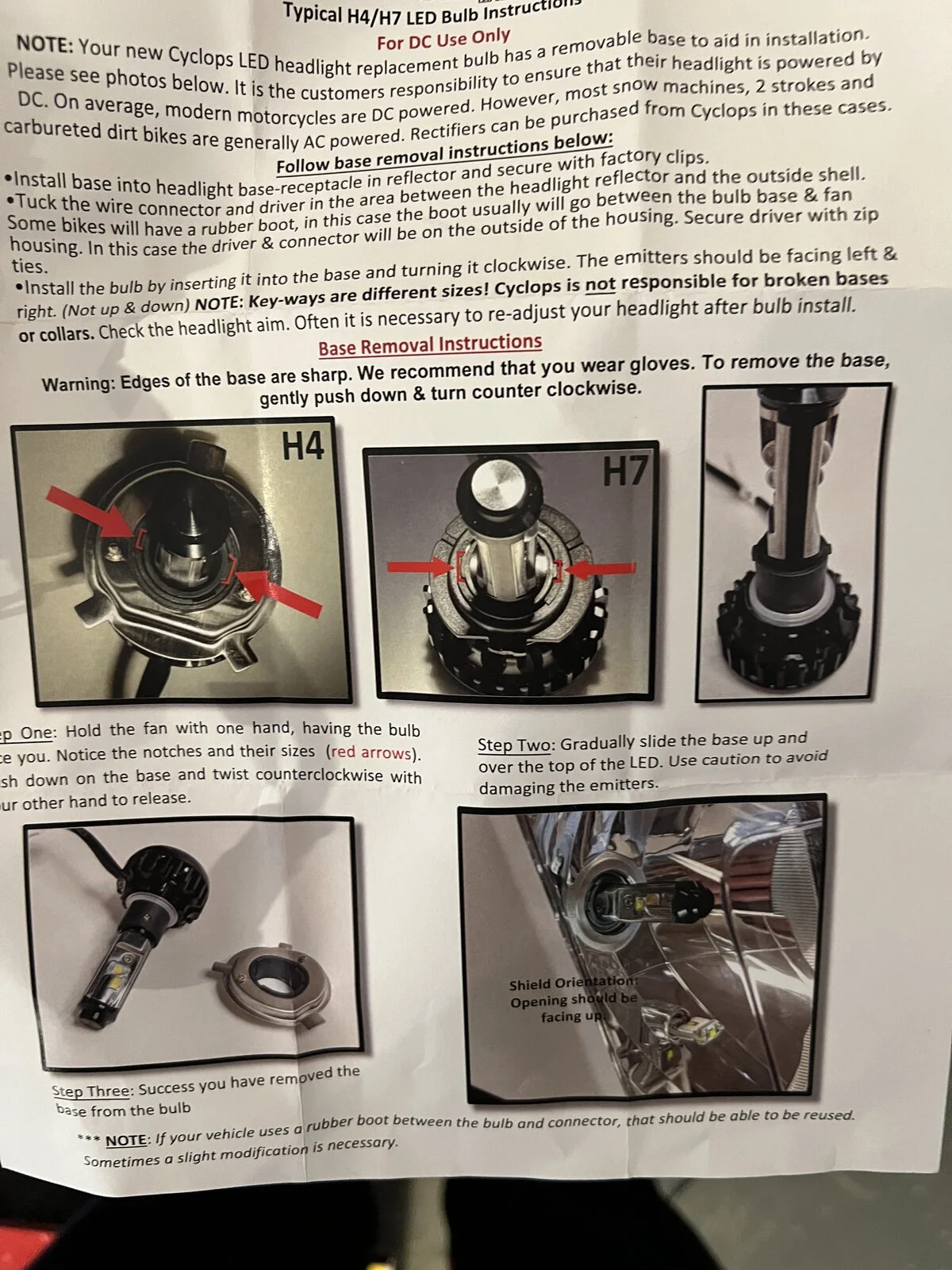

I’m interested in switching from stock Lucas headlamp for Cyclops ultra led. I’m concerned with it not being compatible because of positive ground. I’ve read some older posts before the Cyclops Ultra came out that seemed to indicate the older models would work so I’m hoping I can make the Ultra work. I appreciate any help with this. I know there’s a huge knowledge base here.

L.A.B. · Feb 15, 2023

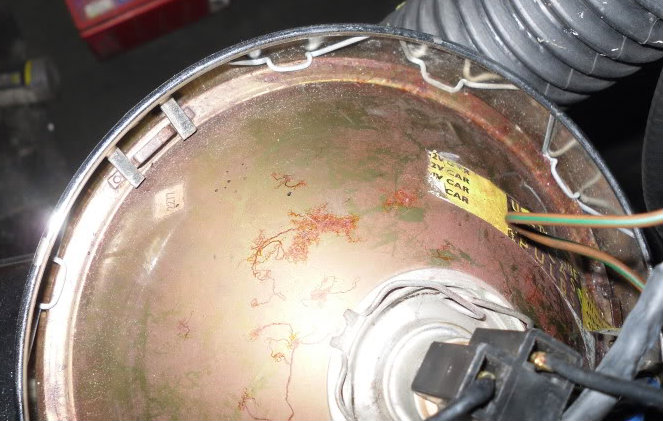

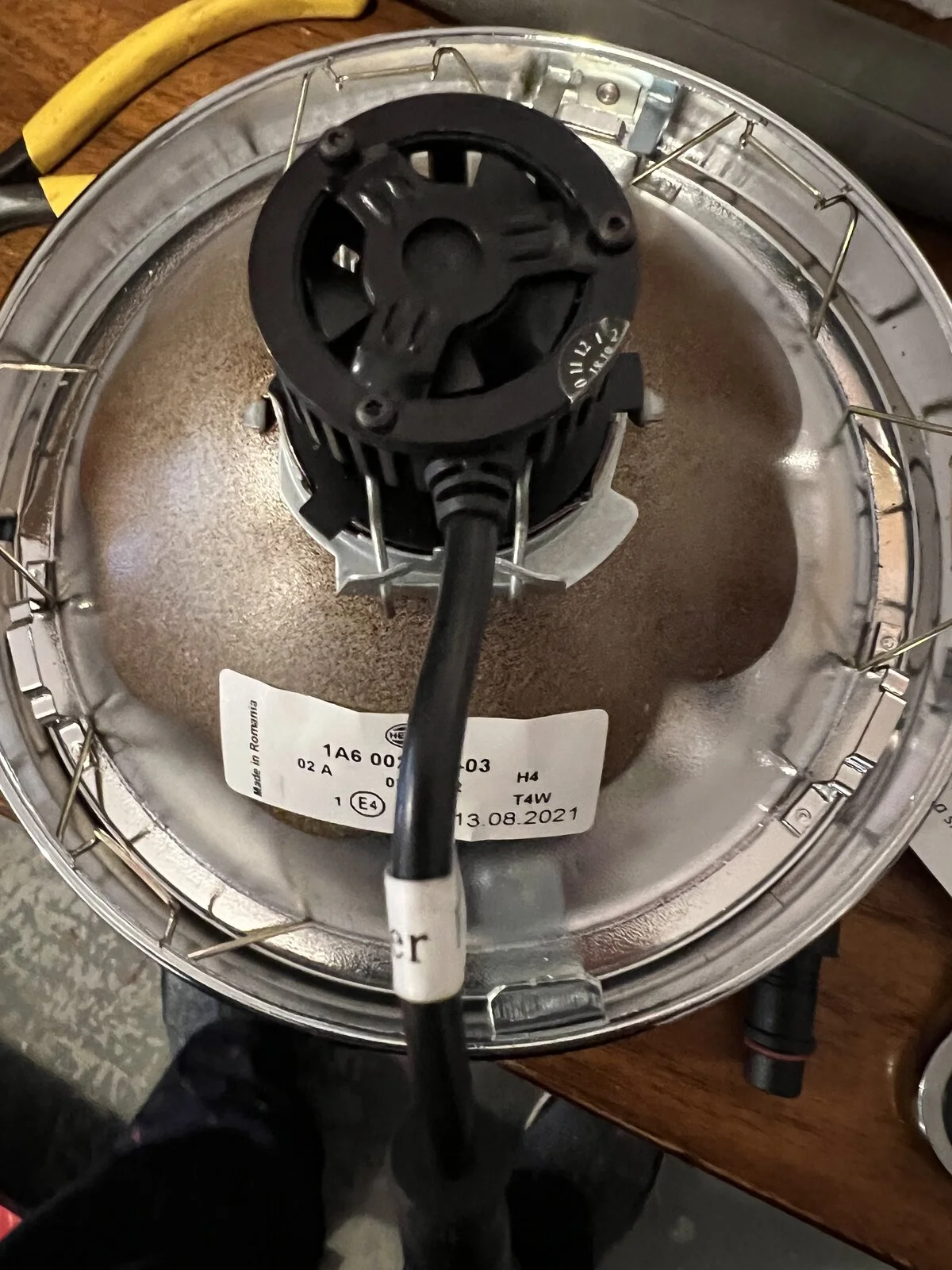

The clips would normally be fitted as they are below with the legs to the rim.

Compatibility of Cyclops ultra 10.0 led headlamp with Commando

hhh · Feb 15, 2023

You're going to have a polarity issue. You'll have to rewire the high/low beam switch to send ground (+) to either the low or high beam terminal instead of hot, and then connect hot (-) to the common on the LED bulb instead of ground. Watch that there are no shared connections or wiring with the headlight dip switch to the horn, signals etc. or it could get weird.

concours · Feb 15, 2023

porridgebird · Feb 15, 2023

L.A.B. said:
The clips would normally be fitted as they are below with the legs to the rim.

Thanks, I fixed that

porridgebird · Feb 15, 2023

concours said:
View attachment 103902

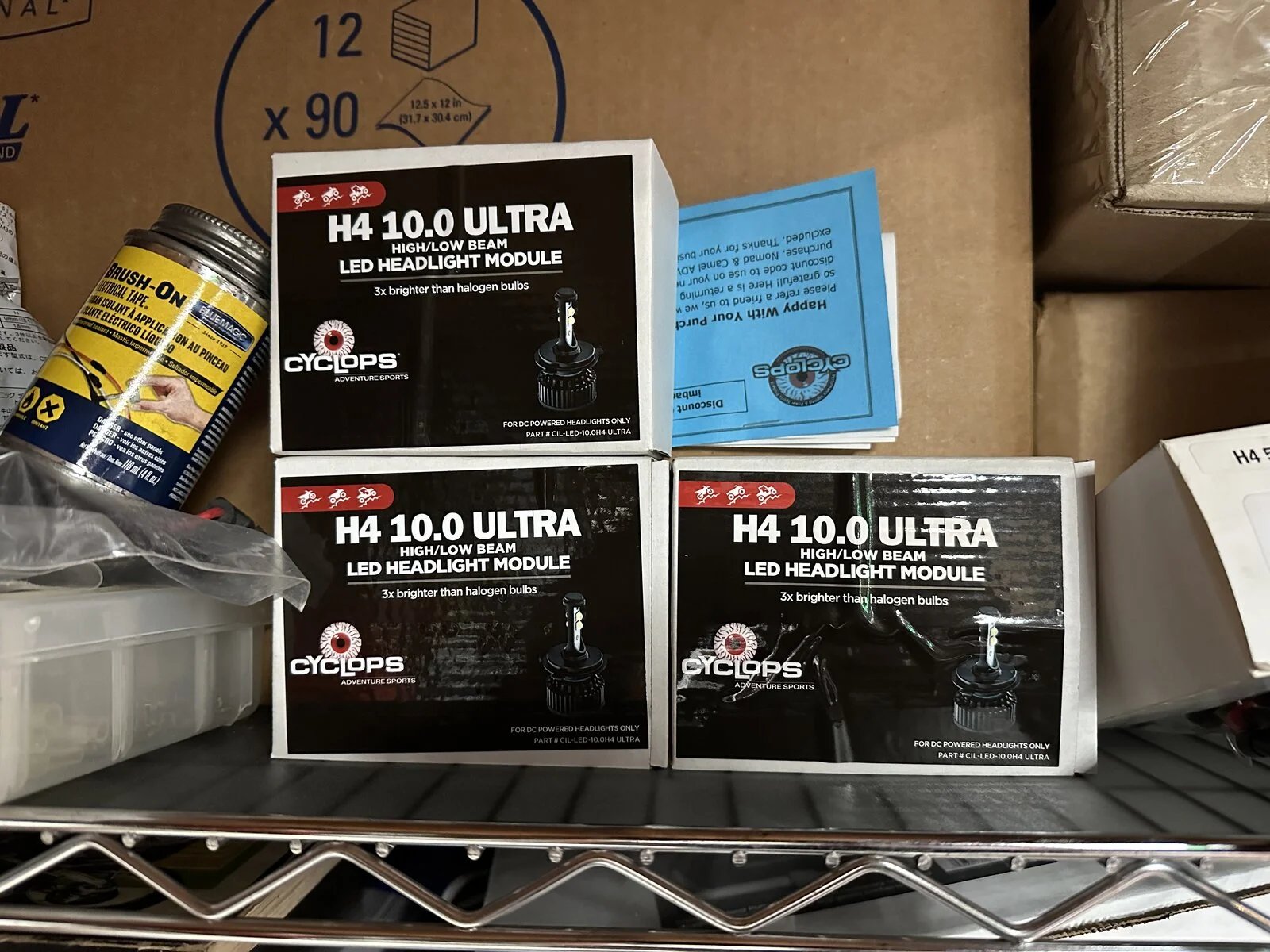

You bought a few of them??

porridgebird · Feb 15, 2023

Oh ok it’s for discount next time.

concours · Feb 15, 2023

porridgebird said:
Oh ok it’s for discount next time.

Sharing

porridgebird · Feb 15, 2023

hhh said:
You're going to have a polarity issue. You'll have to rewire the high/low beam switch to send ground (+) to either the low or high beam terminal instead of hot, and then connect hot (-) to the common on the LED bulb instead of ground. Watch that there are no shared connections or wiring with the headlight dip switch to the horn, signals etc. or it could get weird.

Thanks h. This is helpful.

Torontonian · Feb 15, 2023

Derek Wilson turned me on to a great one from evilbay that is not polarity conscious and affordable too .I love it . Bought a second one for my other build . Slightly blue tone / white , had to downpoint the headlight shell to stop drivers flashing me at night .

concours · Feb 17, 2023

ALWAYS have had great parts and service from here. HIGHLY recommended.

LED Headlight bulbs British Pre-Focus + H4s

Double Dipper, British Pre Focus LEDs, Stop tail LEDs, LED H4 car headlights, LED headlight bulbs,LED H4, H4 LED,British Pre Focus LED,Bayonet Cap LED, LED headlamp bulbs,H4 LED headlamp bulbs,LED headlights for old bikes,LED headlights for old cars

www.norbsa02.freeuk.com

Fast Eddie · Feb 17, 2023

concours said:
ALWAYS have had great parts and service from here. HIGHLY recommended.

LED Headlight bulbs British Pre-Focus + H4s

Double Dipper, British Pre Focus LEDs, Stop tail LEDs, LED H4 car headlights, LED headlight bulbs,LED H4, H4 LED,British Pre Focus LED,Bayonet Cap LED, LED headlamp bulbs,H4 LED headlamp bulbs,LED headlights for old bikes,LED headlights for old cars

www.norbsa02.freeuk.com

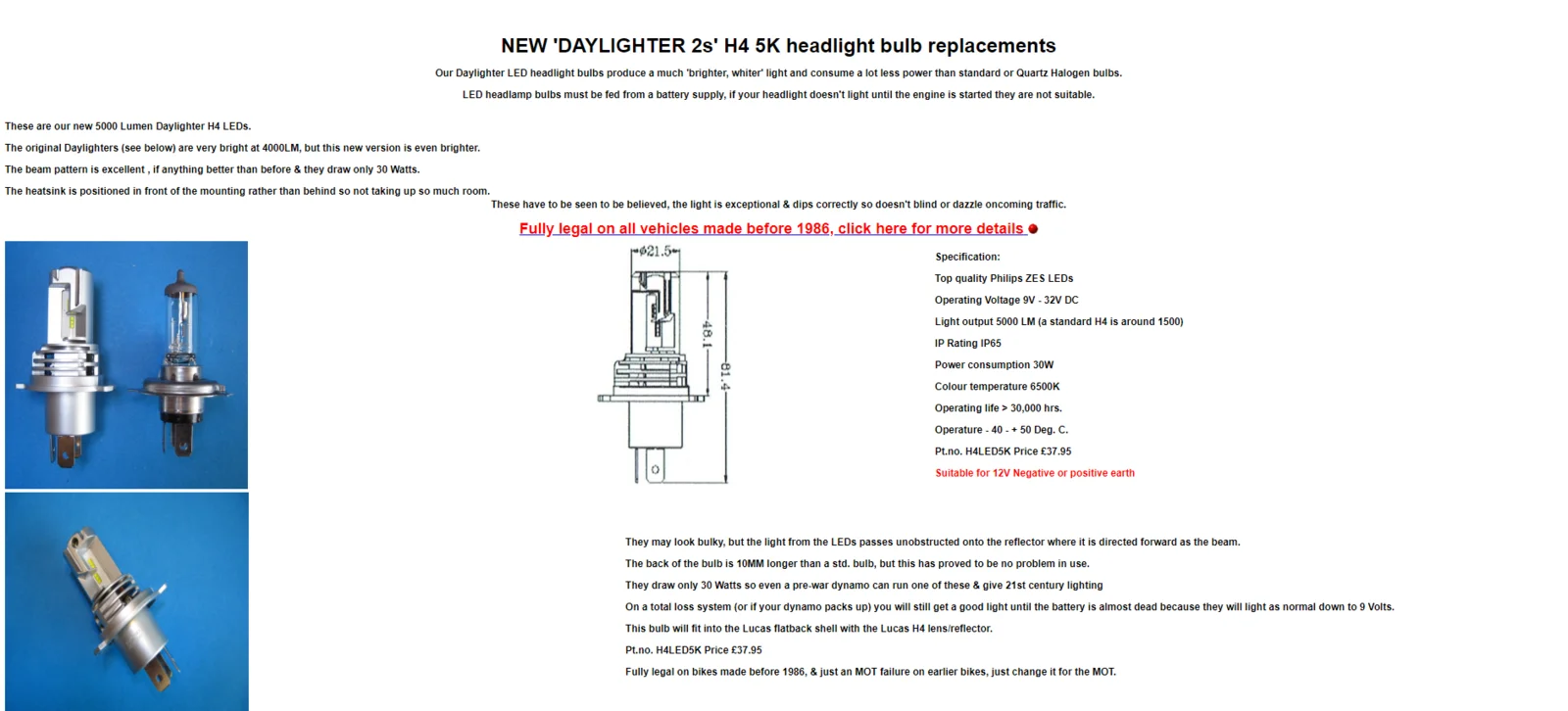

View attachment 103962

Absolutely agreed.

Its a choice between buying from a knowledgeable person who has taken the time and effort to research well and select known products from known sources, and pay a little more for that as a customer.

Or buy some random shit off of eBay and risk it being substandard and satisfying yourself that it’s ‘good enough’ and you saved almost enough money to buy half a pint…

I have a Cyclops in my T140 (recommended by concours) and it’s awesome (in the English sense of the word, not in the American sense). But that is a negative earth, and I have zero appetite modifying the wiring on my positive earth bikes. So in those, I run bulbs from Paul Goff (norbsa) and am very happy with them / him.

porridgebird · Feb 17, 2023

Thanks guys. I’m going to give him a try instead modifying my wiring.
