Commando Seeley vs Commando Manx

Status
Not open for further replies.
Looking at this, if it is correct - the Mk4 is the same as the MK3 except the tubes don't cross over above the motor. - It makes sense, because I was offered a MK3 7 R which had been crashed into a tyre wall. The frame was bent at the bit where the tubes cross over. So the next frame was probably made to avoid that happening. I think the frame that Kenny Cummins uses is the MK2 which has the tubes right around the motor. With the Mk3, the motor might be able to be slightly further forward - might be a good thing ?

https://www.bonhams.com/auctions/19766/lot/367/?category=list

In the info on the link it says 'Wasp built' and 'MkIV replica'......it may be, down tubes seem to be by builders choice...but I know that the picture I posted is Chris's MkIV frame as built by John Caffrey with Colin Seeley's approval.....I have spoken in the past with Chris and John Caffrey about the frame!

Kenny does indeed use a MkII design as do most modern Seeley Commandos, though most Seeley Commandos with Seeley built frames were MkIIIs....modern racers prefer the MkII for their builds.....

What a great thread, and a subject near and dear.

I started racing on a 1962 ES2 frame with a Commando motor, having watched what a lot of the Midwest guys were doing (Dances/Bob Goodpaster), and wanted to go that route. Dances was always very helpful in getting me going (still is!) with advice, things to do, things not to do, etc. My intentions always were (and still are) to one day own a genuine Manx, but the bitsa path allowed me to piecemeal my way into debt faster than if I would've just saved up and bought a factory 30M!

Little by little I worked at the Featherbed/Commando, developed it, broke it, fixed it, and started to figure the whole racing thing out. This bike was all I knew - I'd never ridden anything else on the track. Then after a few years on that bike, by chance a friend handed me his Seeley MK4 with a Commando motor within, and I took it out at Mid Ohio for a few laps. I couldn't believe how tiny, fast, and precise that bike felt. Almost like a little scooter with 70hp. I could lift the front wheel coming onto the back straight and chuck it into corners with great aggression! When I returned to the paddock I couldn't stop smiling. I was elated, and I knew deep down this was what I needed to do. Around that time Steve Maney was campaigning a couple of MK2 Seeleys so I reached out to him. Steve's chassis were made by Keith Stephenson, and if my memory serves, were built on Colin's actual jigs that Keith had acquired. Keith was out of the biz and these jigs were then sold on to John Woods (JWR). Maney recommended I speak to John, which I did, and soon thereafter we started working together to build my Seeley chassis. This was a great experience as John was very good at working with my needs and steering me right. I opted the MK2 simply because I was more familiar with the cradle frame and engine/gearbox mounting setup (and Maney would always advise if I needed), and certainly because it was presented right in front of me. This is the frame I use on my own Seeley Commando to this day. I took to it straight away, but distinctly remember it not feeling as "different" to my Featherbed as that MK4 did. Perhaps not quite as low and tight. In any case, I soldiered on and have done quite well with it over the years. It is my baby. As far as I know, John Woods only did frames for myself and Dave Watson/Gary Thwaites. After that his welder packed it in and said no more. Not sure where the jigs ended up. My partners at Minnovation got me good with Roger Titshmarsh, whose beautiful frames I still use today for every customer's Seeley we do at NYC Norton. I run Roger's frame on my Seeley MK2 G50 and they are very close in feel. However, the 750 with bigger tires and more weight is requires quite a bit more input compared to the lithe little G50, which I liken to a trout casually swimming upstream.

Around 2009 I raced a Molnar/Summerfield Manx for a season around the US. In my first outing with the Manx I distinctly remember thinking, "My God, this is the most comfortable race bike I've ever been on!". I did some good lap times on it right off the bat. I have very strong positive feelings about that bike, particularly the chassis. It was a wonderful experience, if only because it felt 100% neutral. Its riding position was much more relaxed than the Seeley and I was able to move around on it a bit more. In a way, I felt like I was cheating on my wife. But it's true - there's a reason the Featherbed frame is the most famous and duplicated frame in the world. Since then I've done several outings on one of Bob McKeever's 19"-wheeled original double knocker Manx. It is a hoot. It's a true vintage bike (with vintage brakes!) and it feels a little more twitchy and top heavy than the 18" wheeled Molnar. But I love it dearly. It's the bike I've always lusted after but never seem to be able to keep in my sights. I have nothing but good things to say about the Manxes and Featherbeds in general.

Having said this, I wouldn't trade either of my Seeleys. The Seeley and Featherbed are really two different animals. The Seeley is very (up)tight, precise, and nimble. You have to ride it fast and push it hard for it to really shine, otherwise it's quite unforgiving. The Manx/Featherbed is much more relaxed, easy on and off, and forgiving. I stand at just over 5' 10" tall, and the Seeley is tight for me. As mentioned, we put a foam pad on Dance's Seeley NRE at Barber one year, and he was very happy after that, so in the off season we raised his seat. He's a big dude, and this, combined with lowering his pegs, gave him a more relaxed position and his lap times showed the change. One of my biggest competitors and best friends, John Ellis, who races the hell out of a custom-framed Yamaha XS750, always jokes with me when we pull up to the line how he has to look down at me on my tiny little Seeley "like a missle" next to him. I always rib him that he's driving the big yellow school bus. He's quite the bus driver. But I digress...




-Kenny Cummings

Great thread indeed. Thank you Kenny for your insight.
On a *much* more modest note, I can confirm the general opinion regarding a Featherbed Commando.
Mine is a 1960 Slimline frame with a 850MkII engine.
The frame is standard, central alloy oil tank, 18" alloy wheels, Manx forks on Commando 600mm stanchions, Fournales oleo-pneumatic shocks, period box section swingarm (Dunstall?) about 40mm longer than stock.
Engine has lightened crank balanced for the frame, much lightened rockers (Dunstall), PW3 cams, polished conrods, flowed head etc.

The bike is a joy to ride on the road, it feels a little stiff when you first get on it and ride the first few miles in town, but as soon as you hit the open road, it really shines. Perfectly stable at all speeds, very neutral handling, the front suspension (Manx damper units and springs inside Commando forks) is flying-carpet smooth even on bad (pleonasm) Belgian roads.

It is overall the best bike I have ever owned or riden by far. My 1969 track Daytona T100 is shorter and obviously nimbler and a lot of fun at 260lbs, but it lacks the poise and mighty grunt of my Featherbed Commando.

And now...Yves wants me to try out his gorgeous 920cc Seeley, we had scheduled the test for today but I had other commitments, so it will have to wait for next week...I am -very- afraid that I might get seriously hooked...

F*ck me! Acotel Ugly?

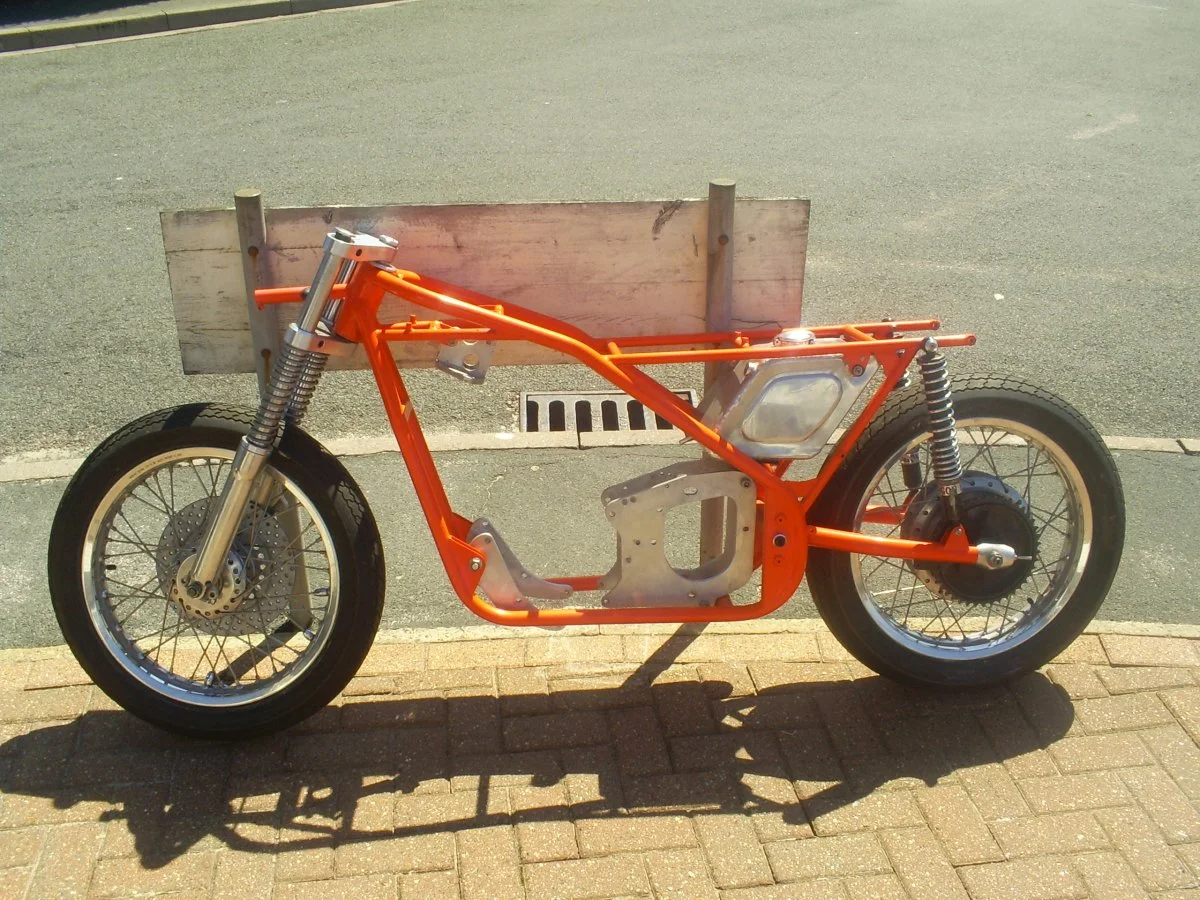

Mk2 MK3 MK4

Do I sound piqued?
Please for god sake look at the frame tubes!

Chris
Commando Seeley vs Commando Manx
Commando Seeley vs Commando Manx
Commando Seeley vs Commando Manx

Thank you for the pictures Chris.

Which begs the question - what about the Mk1? The was some discussion on this forum somehwere/somtime ago and the details escape me.

Furthermore, the bottom picture seems to indicate a single solid backbone (and maybe OIF) whereas I thought the MkIV had double sub-horizontal upper tubes as well as the double sub-horizontal lower tubes.

As for Kenny's assessment of the Featherbed/Seeley Mk2 - spot on.

Hi Dances

I will scan a photo of the MK1 frame in tomorrow. Really good write up on Colin with the first clear picture I have ever seen!

Chris

Great write-up, Kenny. I think you're exactly right in the comparison. I kept racing my featherbed/Commando combo, even after acquiring a really cool Caffrey/Seeley race bike with 872 cc Commando engine, because I just felt more confident on it. If I'd been a better rider, I might have preferred the Seeley, but the featherbed was just more forgiving and easier to ride. And in the hands of a better rider after I retired from racing, it won a lot of AHRMA races in the 750 Sportsman class.

Ken

Brilliant first hand experience guys, thank you for sharing.

“Easier to ride”... “more forgiving”... “more comfortable” that’s all positive stuff in favour of a Manx rep frame for a 6 footer like me.

But “precise” ... “nimble” ... “like a missile” is all quite stirring praise for the Seeley too!

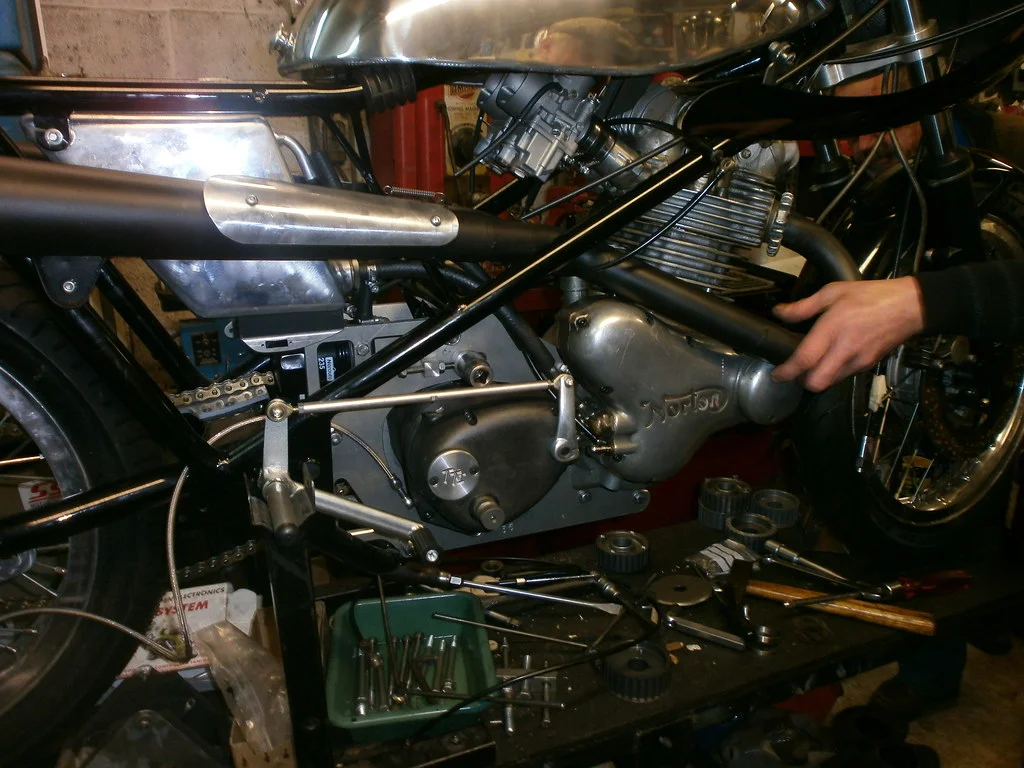

So looking at the photos I see the gearbox top bolt hole in the engine plates is actually a slot. Obviously to allow primary tension adjustment. On the first dry build on my Seeley I had noticed that my engine plates had no slot and it had occurred to me this might be a problem for the above reason. Thoughts anyone?

If I was going to build another Seeley, I'd use the MK2 frame. With my MK3 I've replaced the ladder with a piece of gusseted chrome-moly tube. We have a rider - Bill Horsman who used to race Jerry Kooistra's Seeley G50 in period 3 historics. He used to be a top A-grader and actually won the junior classic TT on the IOM a few years back. He told me that he could feel the front end of the MK3 Seeley G50 wandering, and he would know ! I have never felt that, but as I say - I would start with a Mk 2 rather than a Mk3.

Last edited:
If you are going to buy a Manx, one built by Ken McIntosh in New Zealand is probably better than most. He uses the Molnar motor , but his frames have the original geometry and the 19 inch wheels. Nobody would use a genuine Manx for racing these days. They are too valuable for that. McIntosh had Cameron Donald riding one of his bikes at Phillip Island a while back - he was extremely fast.

So looking at the photos I see the gearbox top bolt hole in the engine plates is actually a slot. Obviously to allow primary tension adjustment. On the first dry build on my Seeley I had noticed that my engine plates had no slot and it had occurred to me this might be a problem for the above reason. Thoughts anyone?

My Seeley has the slot for gearbox adjustment. But if you are using a belt primary drive, you might be able to use fixed mounting. If you use the slot, the adjuster needs to be on the side with the chains, not the right hand side. Even better - one on each side.

Hi Steve's

My MK2 has fixed gearbox holes (belt drive) the MK3 is on the road & had a chain primary drived in the begining, so adjustment was needed. Belt drive now. The MK4 is also road registered & for some reason a BSA gearbox was fitted? So that it had a kickstart? Why the previous owner didn't fit a Commando box I don't know. However the Quaife 5 speed wasnt worn out. Again I run a belt drive.

Chris

Thanks, I will see how I get on with no slot. If I use adjusters one each side for sure. I am not going to buy a Manx, maybe if I won the lottery! So a relative cheap old mix of 88 99 and 650SS Norton will have to do. I think the frame (Mk4)is up to the task of handling 43bhp with cantilevered engine, I will find out in due course ;)

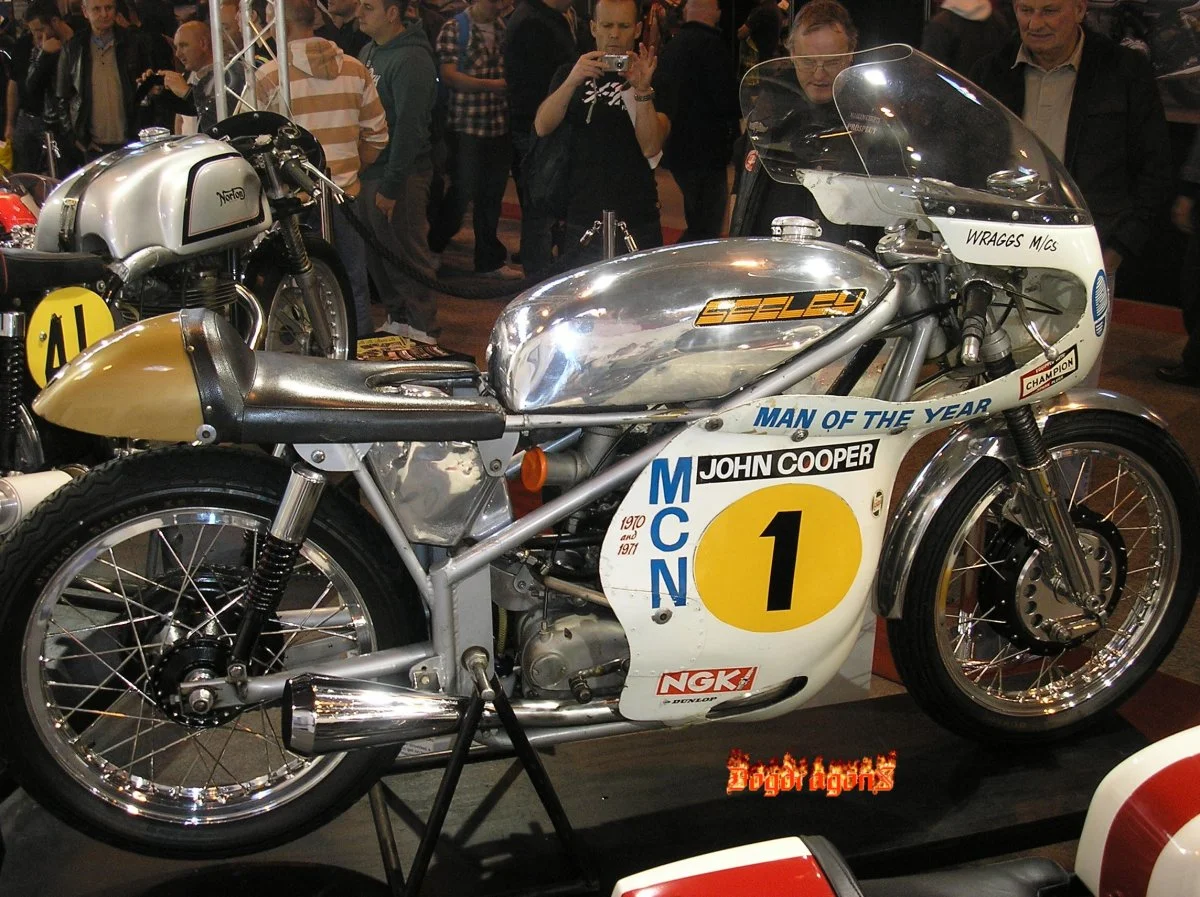

Seeley Mk1
Note the seat tubes from the rear loop up.
Photo dragondogs.com

Chris
Commando Seeley vs Commando Manx

Not so pretty around the pivot. One of the things I disliked about the featherbed were the stress raisers at the ends of the plates which hold the pivot and at the front engine mounts. That is where mine cracked, but it was a mild steel copy, not chrome-moly.
I confess I really envy you guys who are building Seeley Commandos these days. Building mine was one of the most rewarding experiences of my life. I have never had another bike which was so responsive to adjustment - everything works ! When I built it, I did not believe in the motor, so it sat unraced for years. I regret that. A Seeley with a Nourish engine would be a real killer.

the bottom picture seems to indicate a single solid backbone (and maybe OIF) whereas I thought the MkIV had double sub-horizontal upper tubes as well as the double sub-horizontal lower tubes.

Not so sure. The seat is split, and the oil tank filler is central.

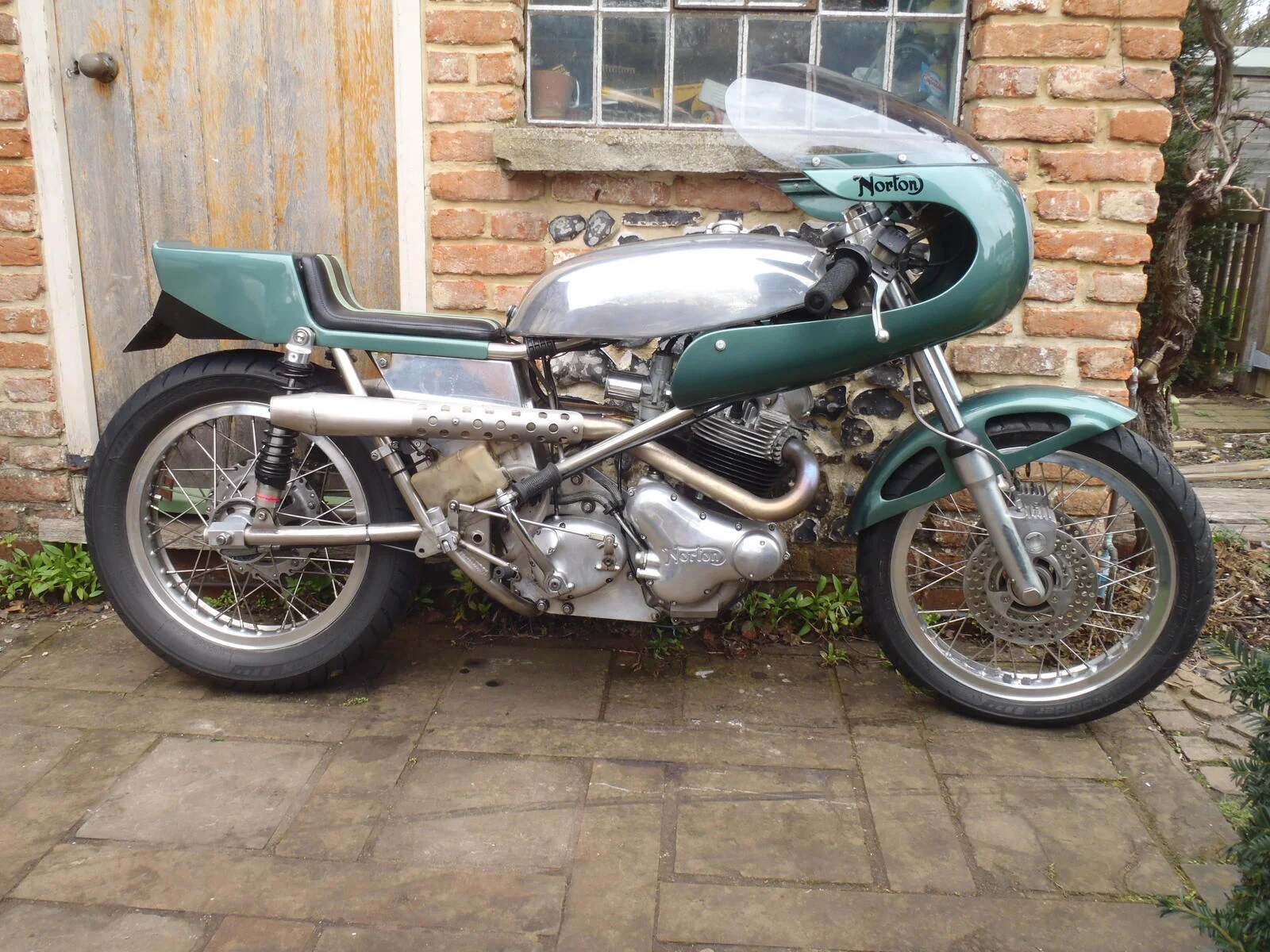

Another view of different mk4s. Clearly two top tubes.

Commando Seeley vs Commando Manx


Commando Seeley vs Commando Manx

Hi Dances Gortnipper My MK4 bare frame from above.
Chris
Commando Seeley vs Commando Manx
Commando Seeley vs Commando Manx

+1 on the write up Kenny, every time I ride my 1955 Manx (which Is not that often these days) I cannot get over how easy it is to ride relatively fast (for me that is), in their time the Featherbed must have been a big eye opener.
Never had the opportunity to ride a Seeley unfortunately but great to read the comparison here :)
Burgs
