clutch spacers

Hi All, can anyone tell me the avg amount of shims/spacers behind the clutch to align the chain? The reason I ask is because I pulled the trans apart & noticed a lot of sideplate wear on the chain. Put it back together w/out the chain & it seems I need a 1/8" spacer on top of the spacer & 2 .036 shims already fitted.
Anyone going to Sunny Hunny Sunday for NOC
As always thanks in advance for your replies, Paul.

Paul, have you got the top gear box spacer fitted on the correct side of the gear box or fitted at all, and you do still have a circlip on the shaft.

splatt said:

Paul, have you got the top gear box spacer fitted on the correct side of the gear box or fitted at all, and you do still have a circlip on the shaft.

Click to expand...

That's exactly what happened to me. Make sure the gearbox spacer is on the clutch side.

I ended up needing no spacers behind the clutch.

060752 clutch location circlip
060747 clutch location spacer
as required
060894 clutch location shim .036"
060895 clutch location shim .048"

possm said:

060752 clutch location circlip
060747 clutch location spacer
as required
060894 clutch location shim .036"
060895 clutch location shim .048"

Click to expand...

rgm-belt-illustrated-install-guide-t6750-15.html#p73331


Circlip

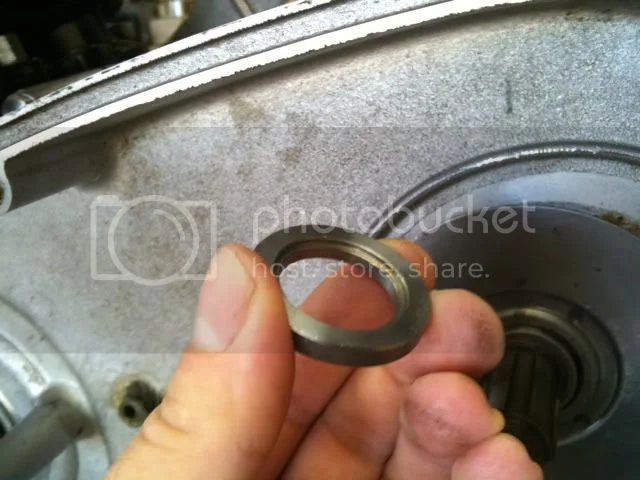

Spacer. Recess goes onto the circlip.

Shims would go after the spacer.

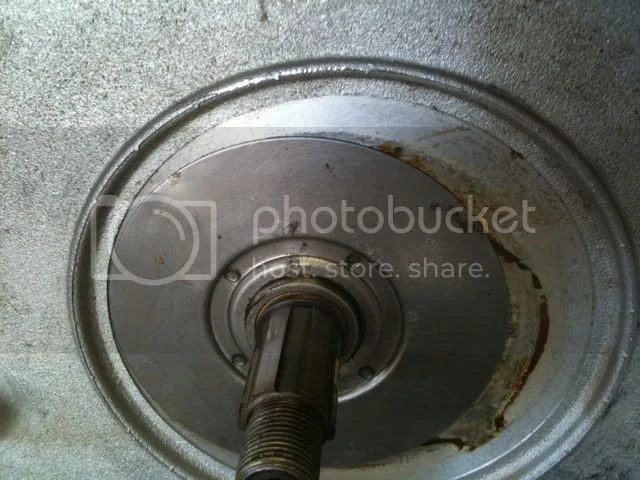

Everything is as swooshdaves pictures; ie circlip,spacer(right way round, groove to circlip) & then shims.
