Clutch Center removal
- Thread starter Jonez69
- Start date
- Joined
- Dec 28, 2009
- Messages
- 5,587

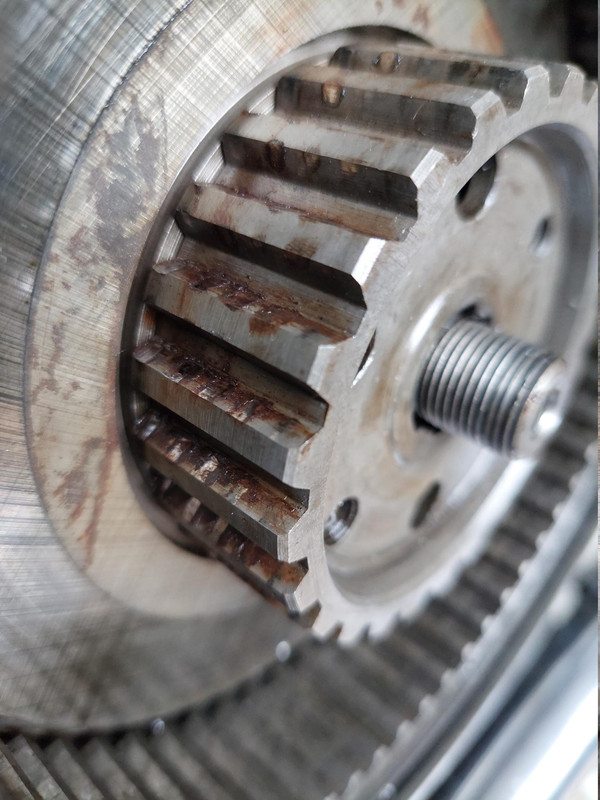

That almost looks like rust , which might explain the issue .
Since the center is trash , I would lay the clutch basket face down with circlip removed, spray penetrant about and tap it out evenly . A heat gun could help if it's really stuck . Good luck .
Since the center is trash , I would lay the clutch basket face down with circlip removed, spray penetrant about and tap it out evenly . A heat gun could help if it's really stuck . Good luck .
Jonez69
VIP MEMBER
- Joined
- Aug 15, 2024
- Messages
- 101

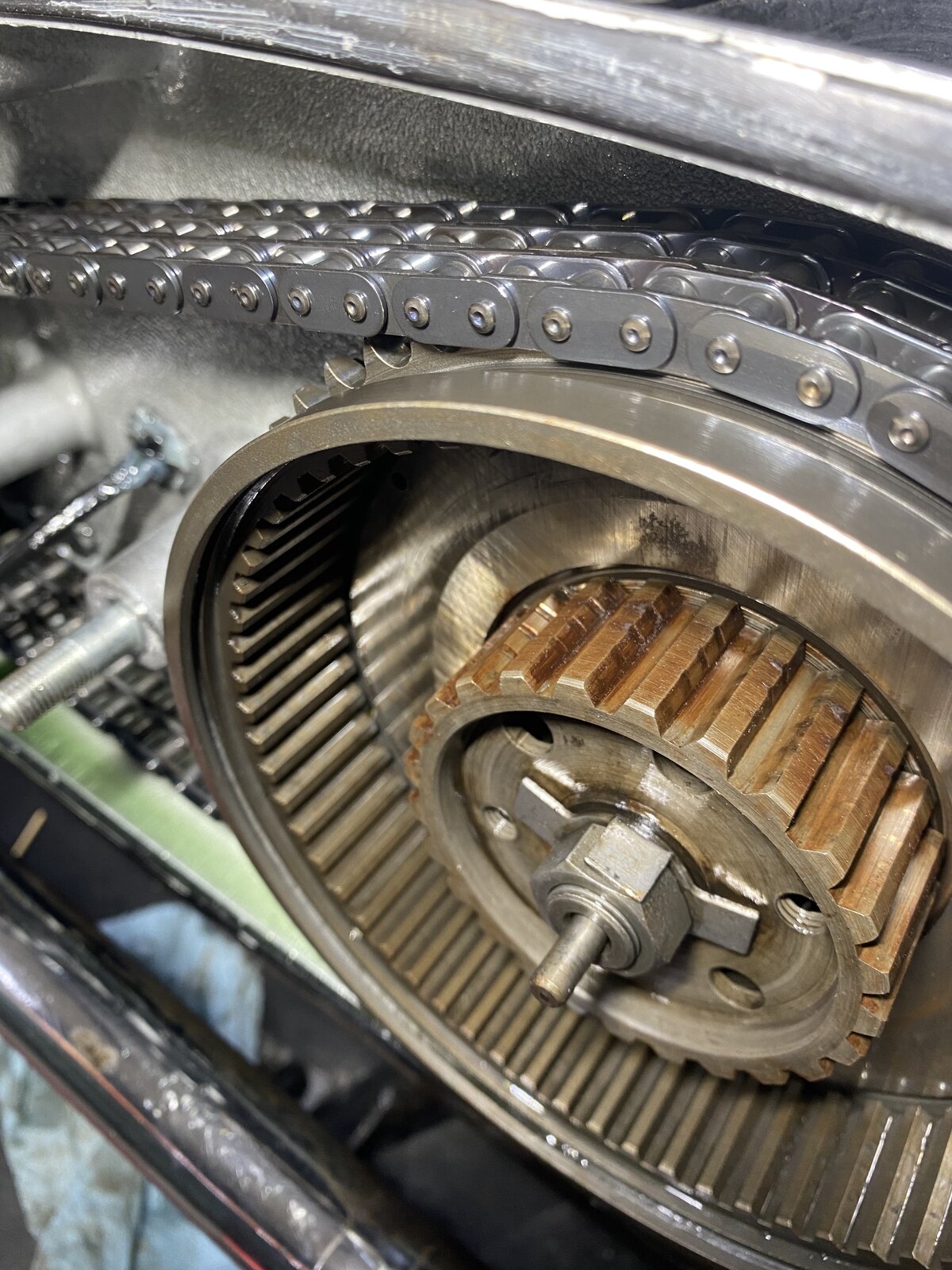

I'm pretty sure it is residue from the bronze friction plates. I was able to clean it right off. The picture is from a few months ago when I first started working on this bike. I have decided to order a Barnett plate set from CNW along with the new clutch center they offer. I also bought the clutch rod seal as well.

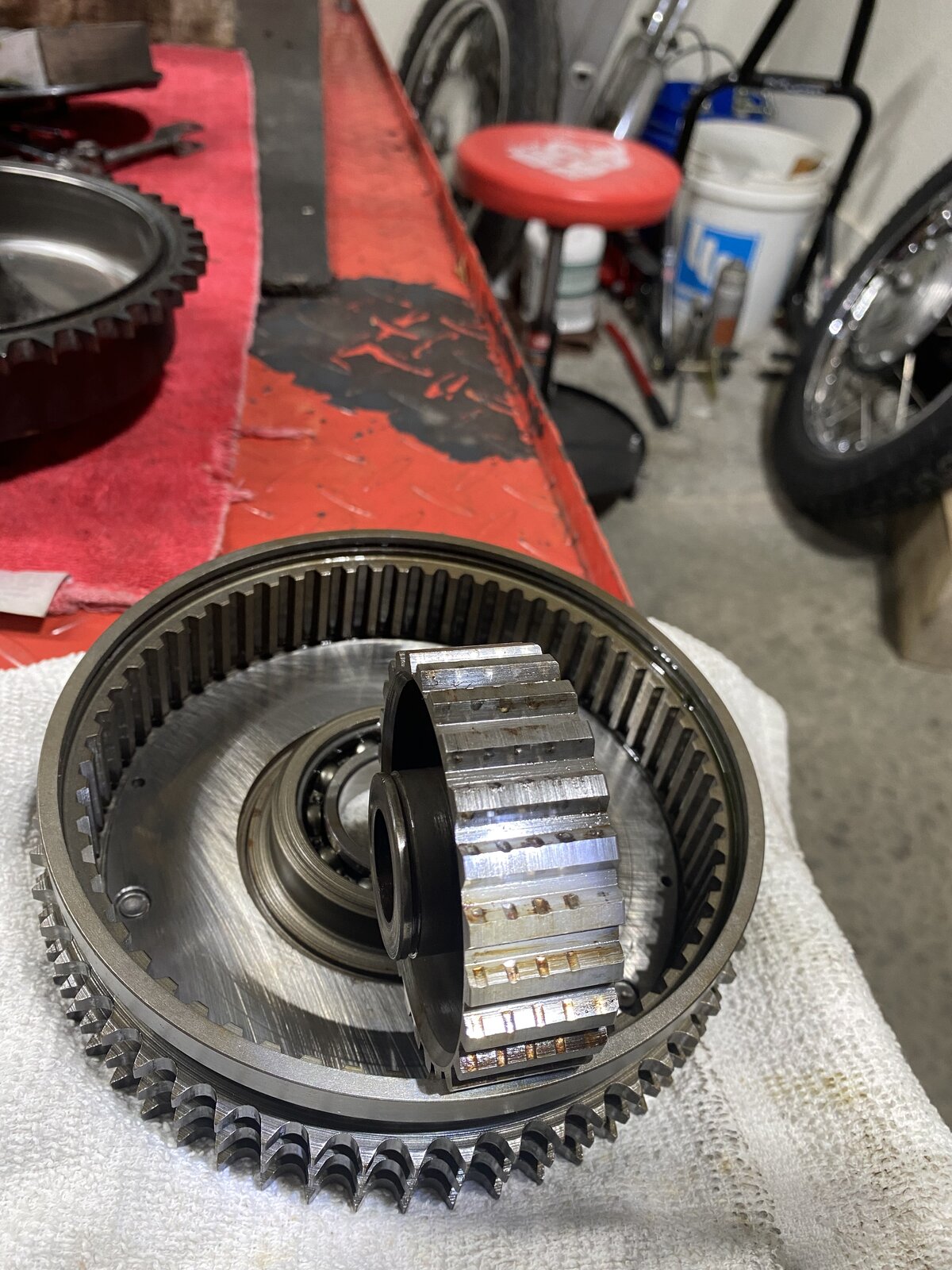

I was able to drive the old center out without any difficulty once I was assured that was the proper procedure. Thanks again!
concours
VIP MEMBER
- Joined
- Dec 29, 2011
- Messages
- 10,222
The bronze friction plates are actually sintered onto a steel host plate. That red residue you see there is fretting.
