Clutch Cable Routing

Tornado

VIP MEMBER

Joined

Dec 5, 2017

Messages

4,913

• Aug 24, 2022

• #1

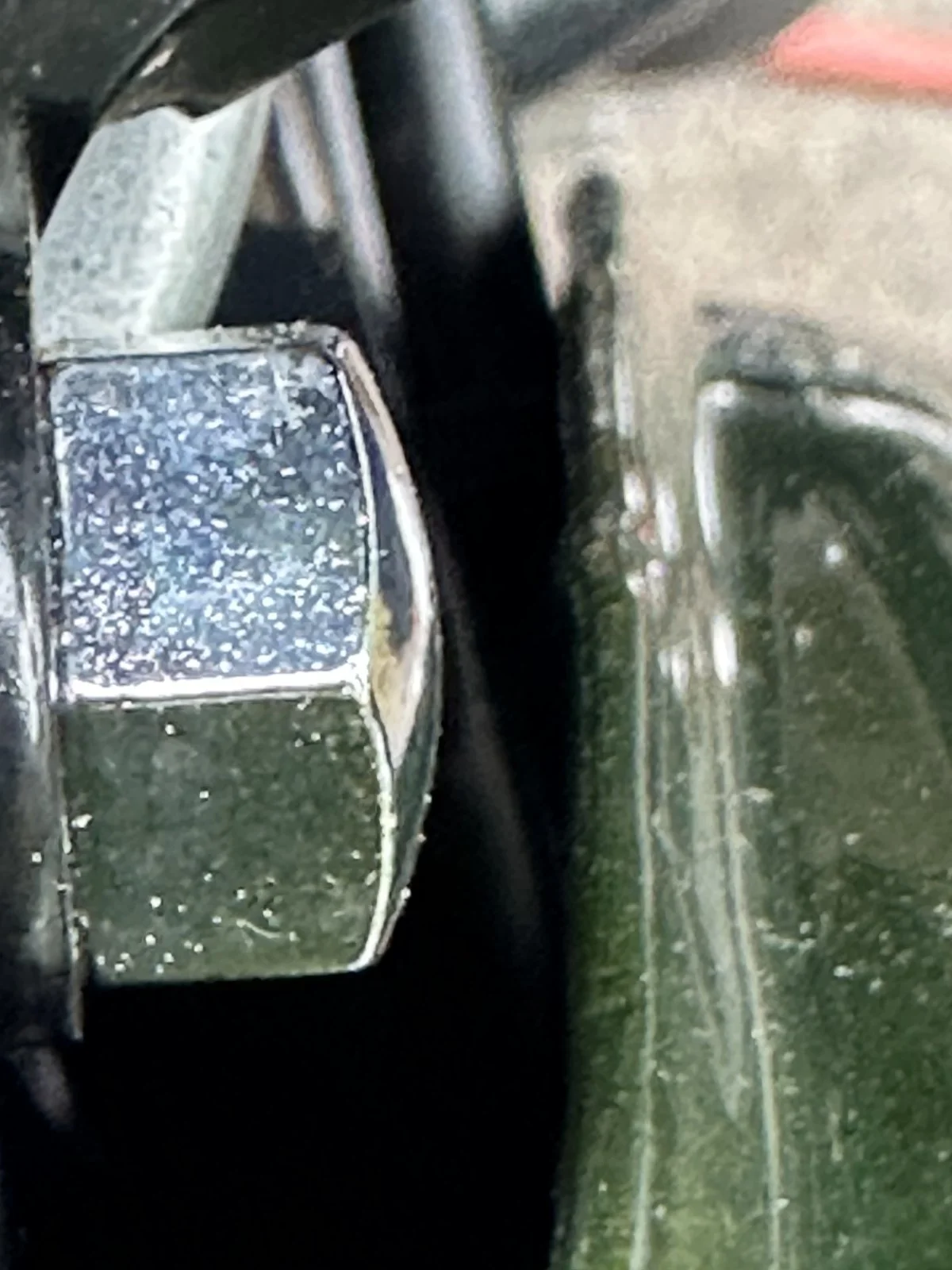

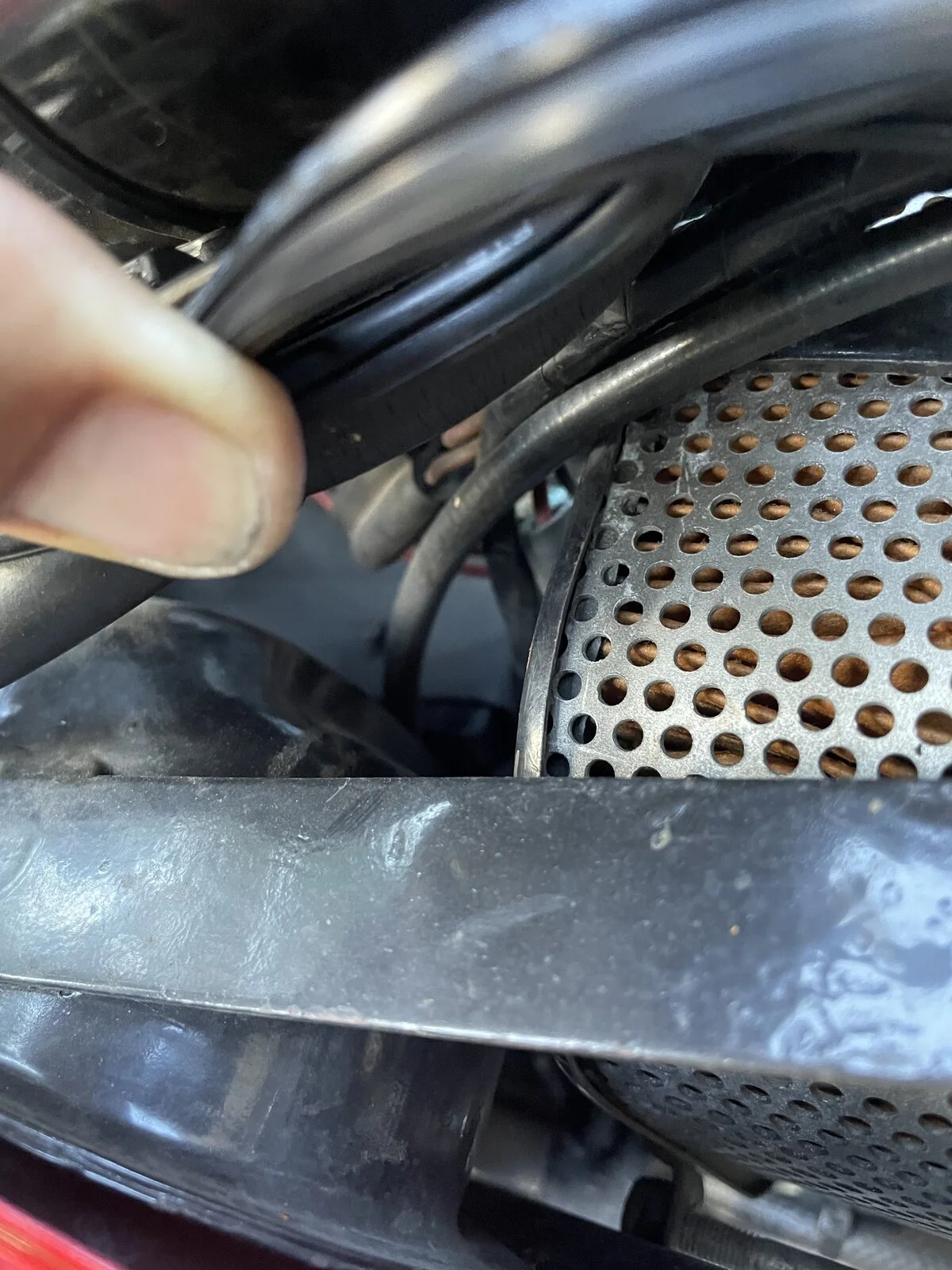

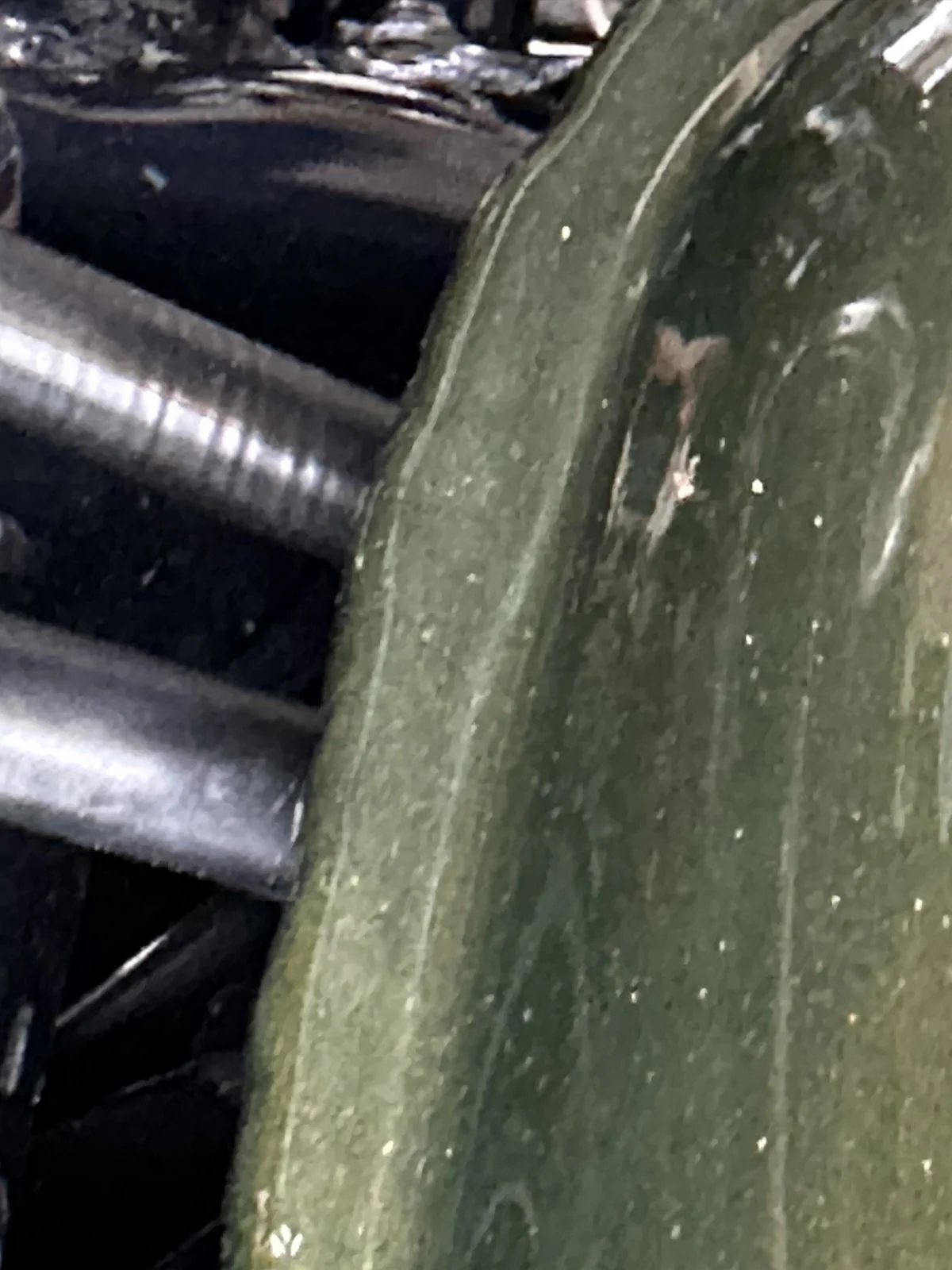

Recently had tank off to perform a round of cylinder head bolt torquing. Discovered the clutch cable which had been routed along spine to the rear 'bulkhead", then downward passing over the diagonal frame member. Here it managed to abraid the freshly powder coated frame member. Routing was done at last bike reassembly by a pro workshop.
Was thinking that it should pass through the large bulkhead grommet with wiring harness?



joe czech

Joined

Feb 21, 2019

Messages

1,067

• Aug 24, 2022

• #2

off the top of my head, thinking my clutch cable DOES NOT pass through the bulkhead grommet. i seem to recall, there's some sort of diagram that shows the routing.

bingo - found it - https://www.nortonownersclub.org/node/12502

edit - and yet another - https://www.accessnorton.com/NortonCommando/clutch-cable-routing.31447/



Tornado

VIP MEMBER

Joined

Dec 5, 2017

Messages

4,913

• Aug 24, 2022

• #3

Hmm, so the shop did it appropriately. Guess I"ll need to sort some abrasion protection at the frame touch point.



concours

VIP MEMBER

Joined

Dec 29, 2011

Messages

9,512

• Aug 24, 2022

• #4

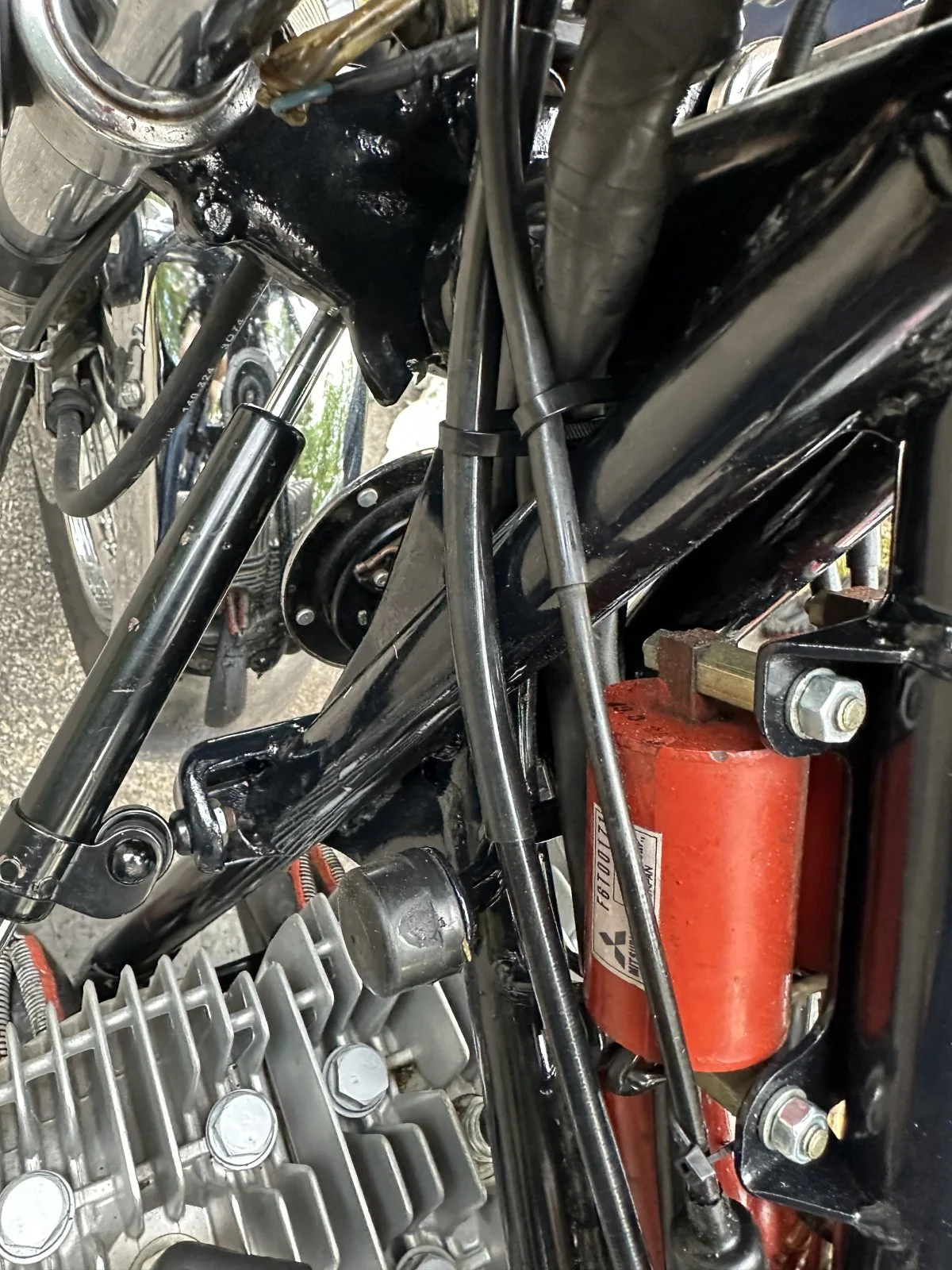

Attachments

•

  211.2 KB · Views: 139

concours

VIP MEMBER

Joined

Dec 29, 2011

Messages

9,512

• Aug 24, 2022

• #5

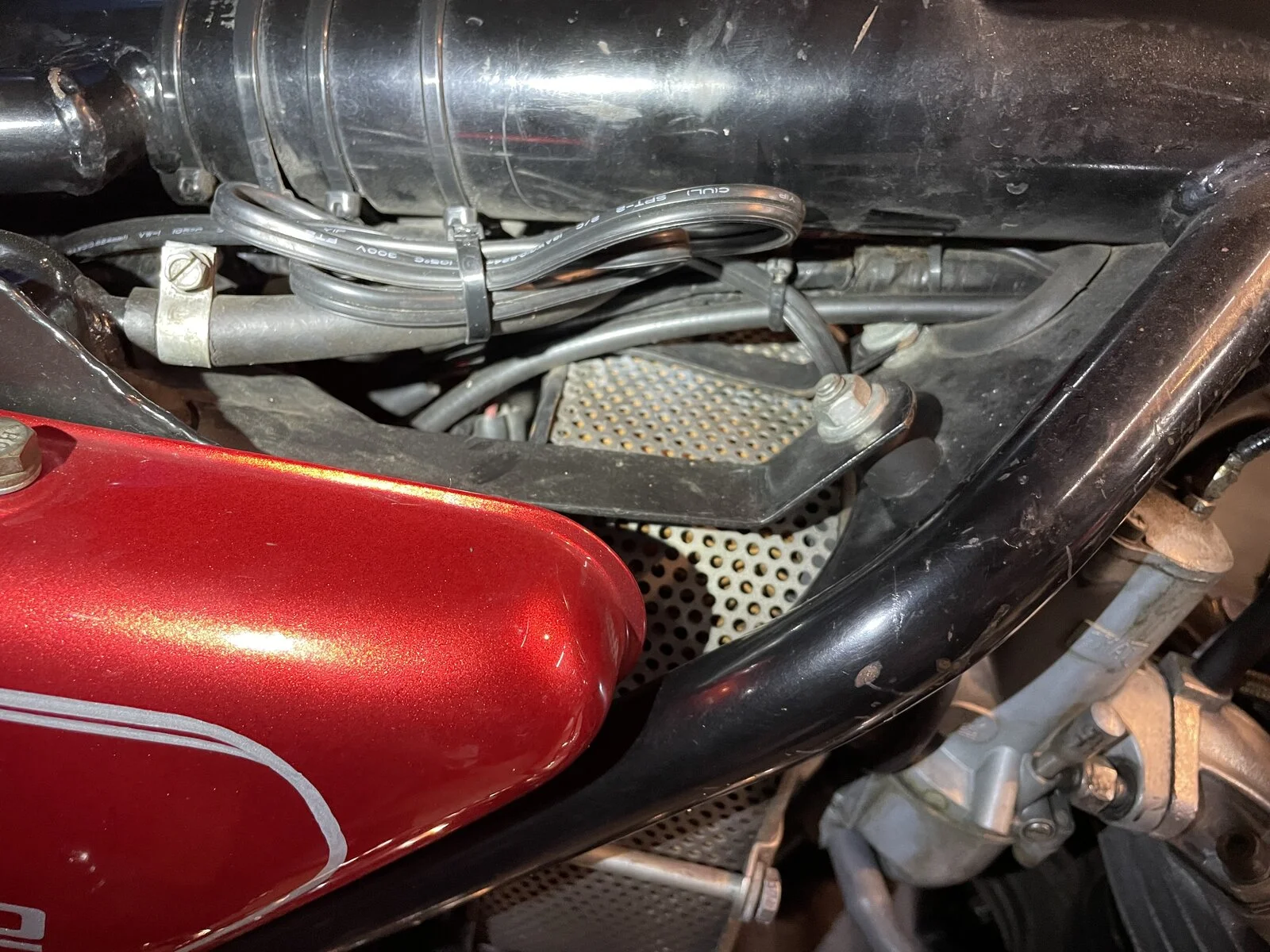

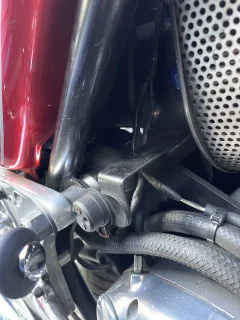

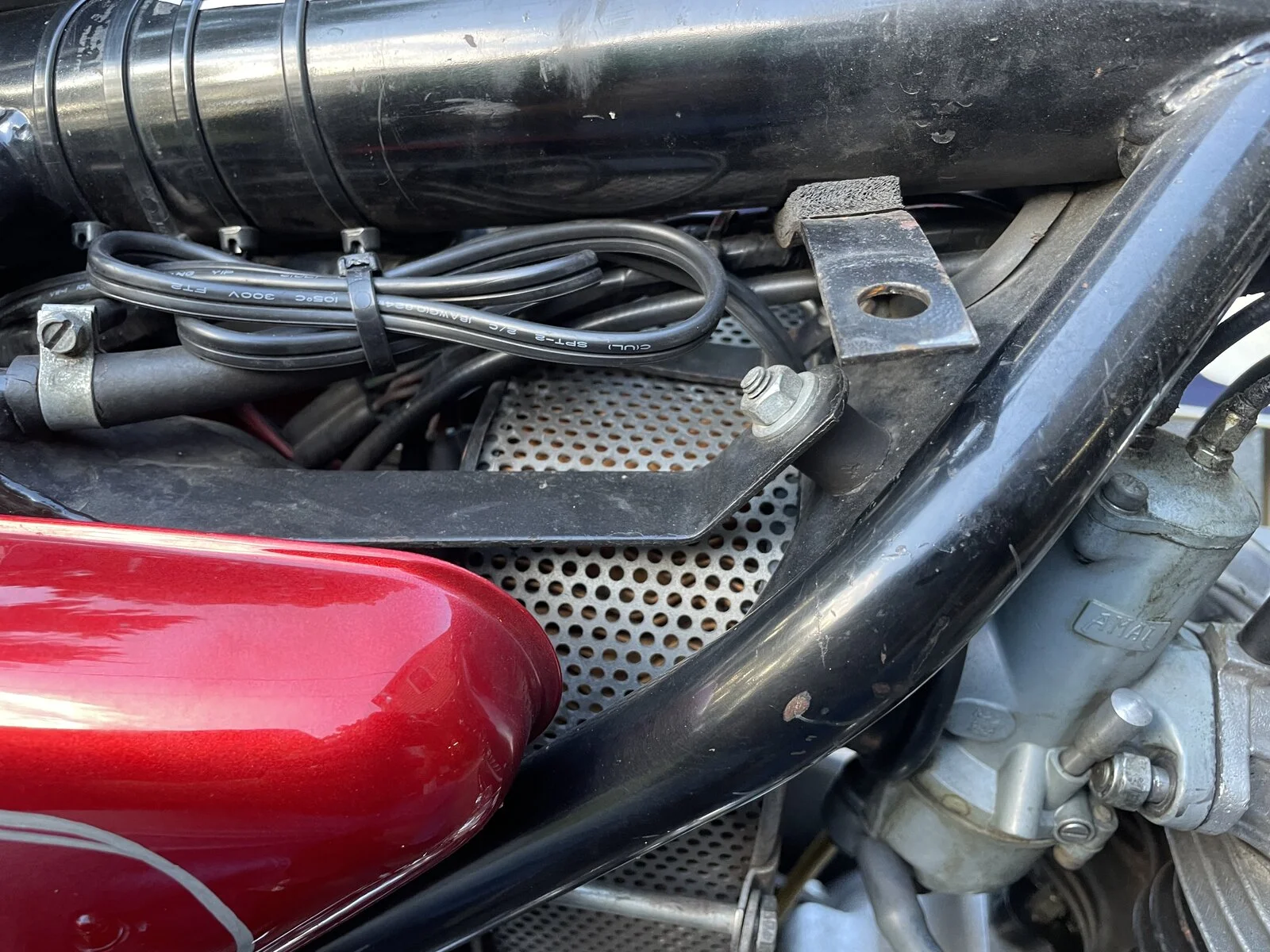

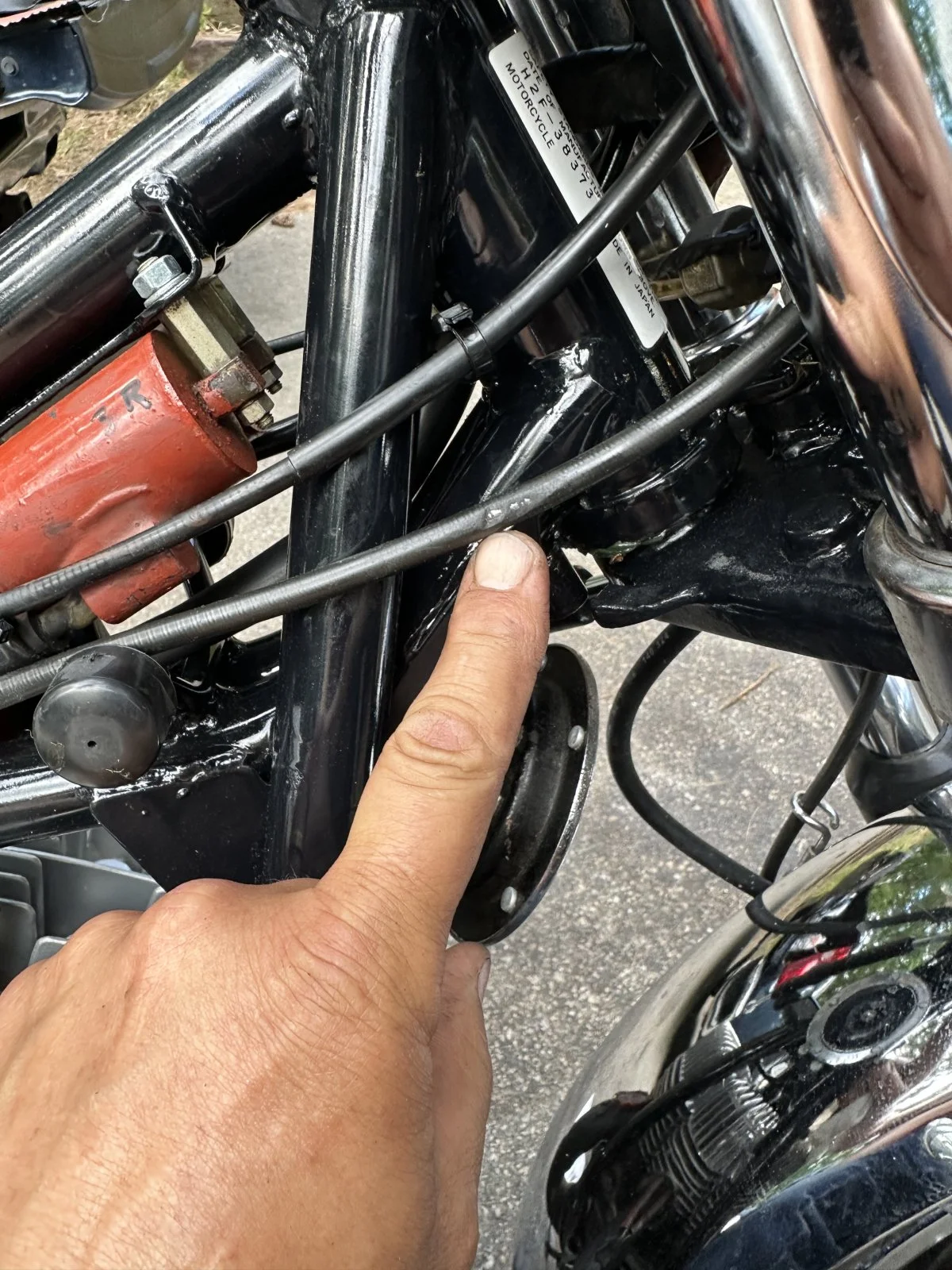

Disclaimer: this is where my Venhill was most happy, the bends being gentle, the entry into the gearbox at the best angle. Some cables of different lengths may not be able to be routed this way.

JMWO



Last edited: Aug 24, 2022

concours

VIP MEMBER

Joined

Dec 29, 2011

Messages

9,512

• May 30, 2024

• #6

Furthermore...

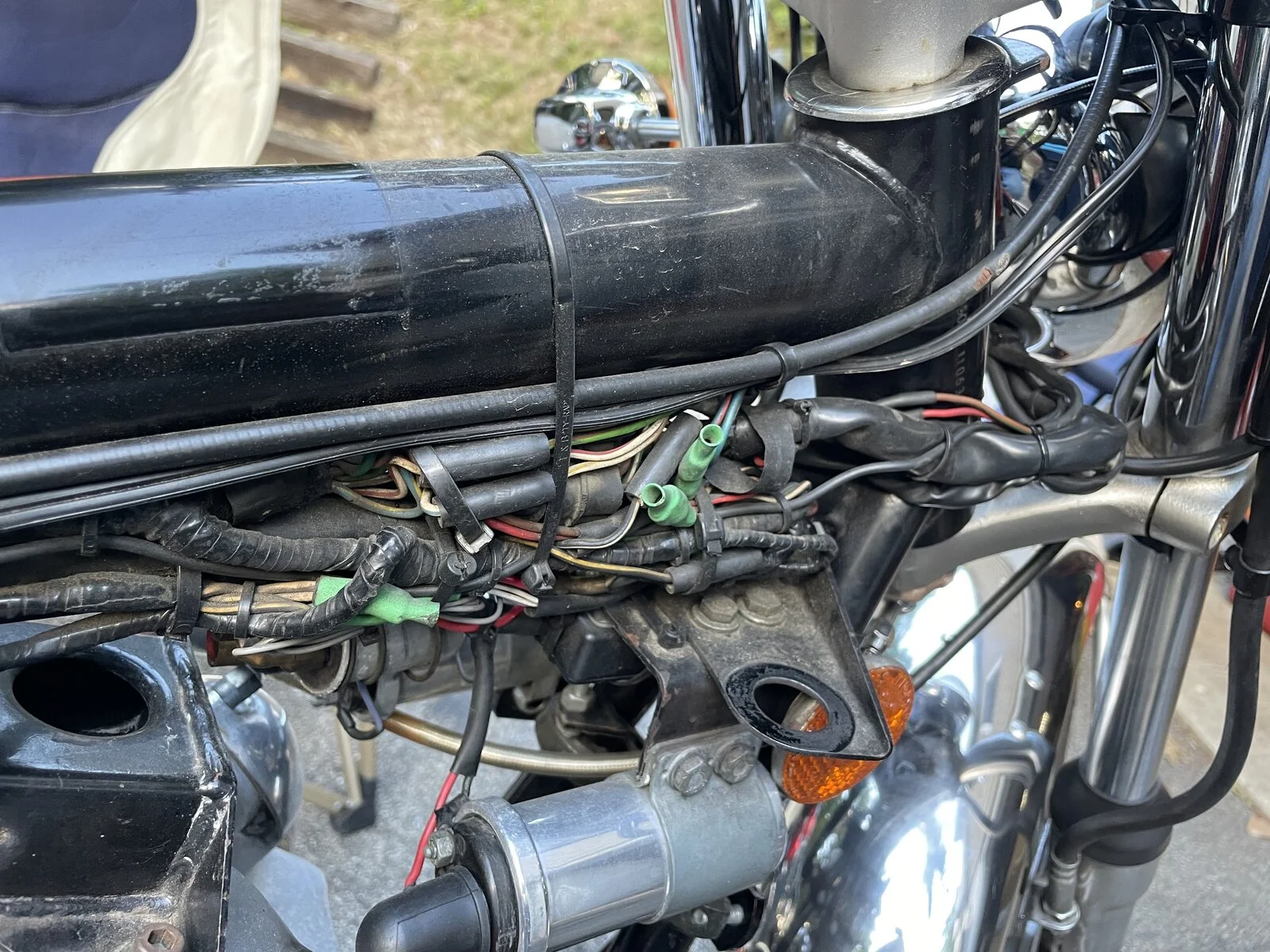

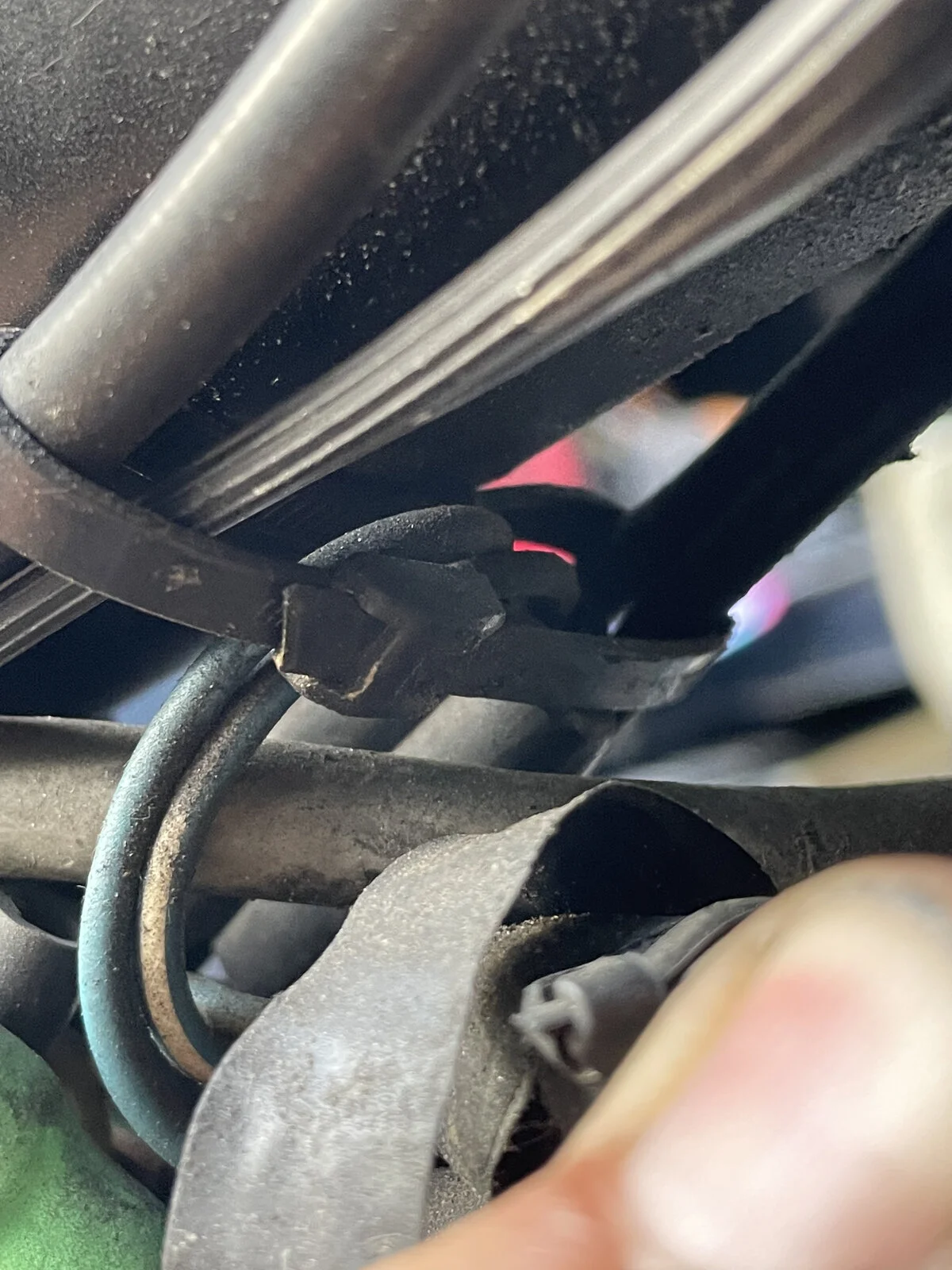

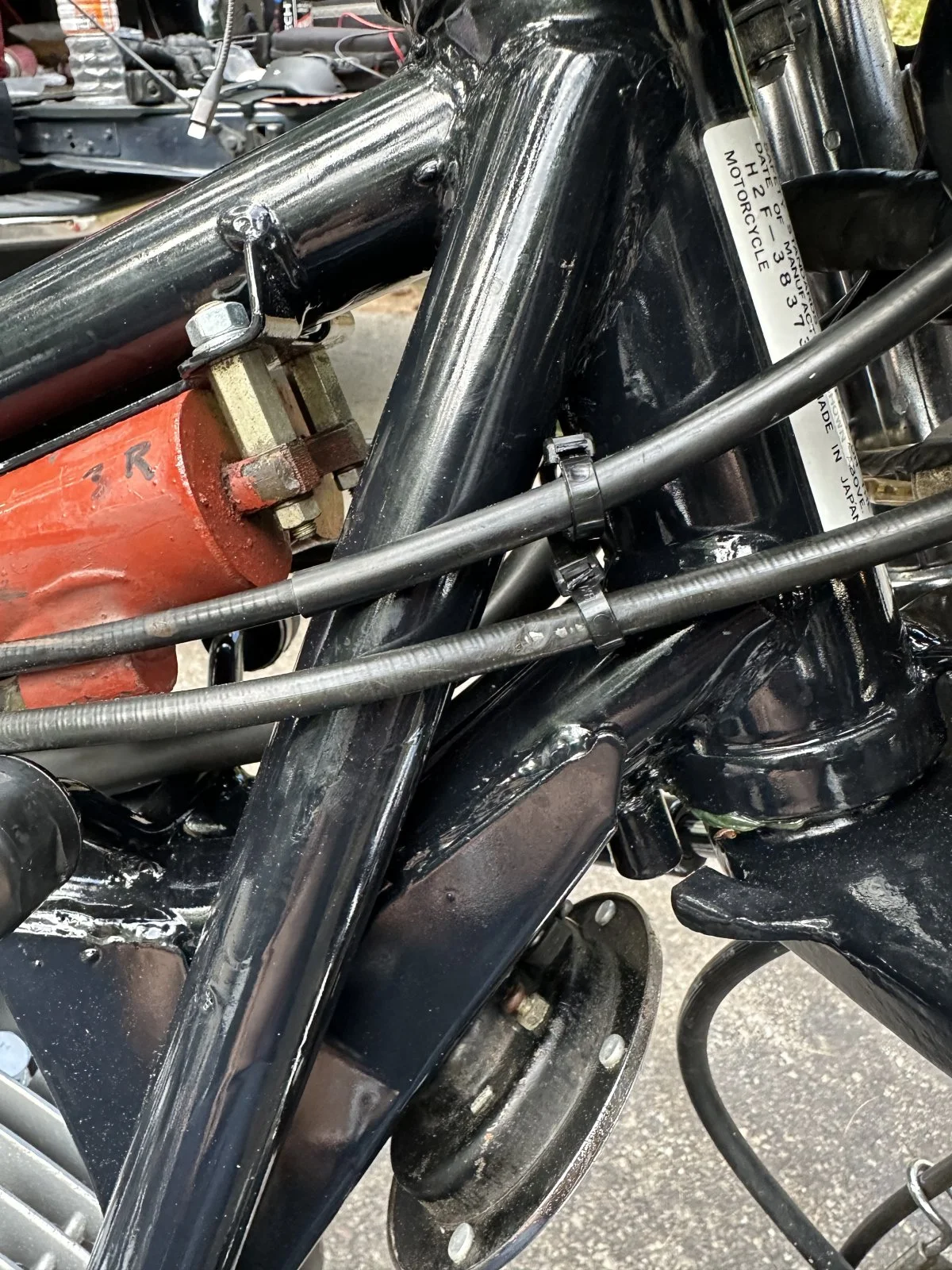

At the front, I've (loosely) restrained them to themselves (left & right side) with cable ties to keep them from wearing the plastic jacket and paint from the fuel tank.
See above images^^^^

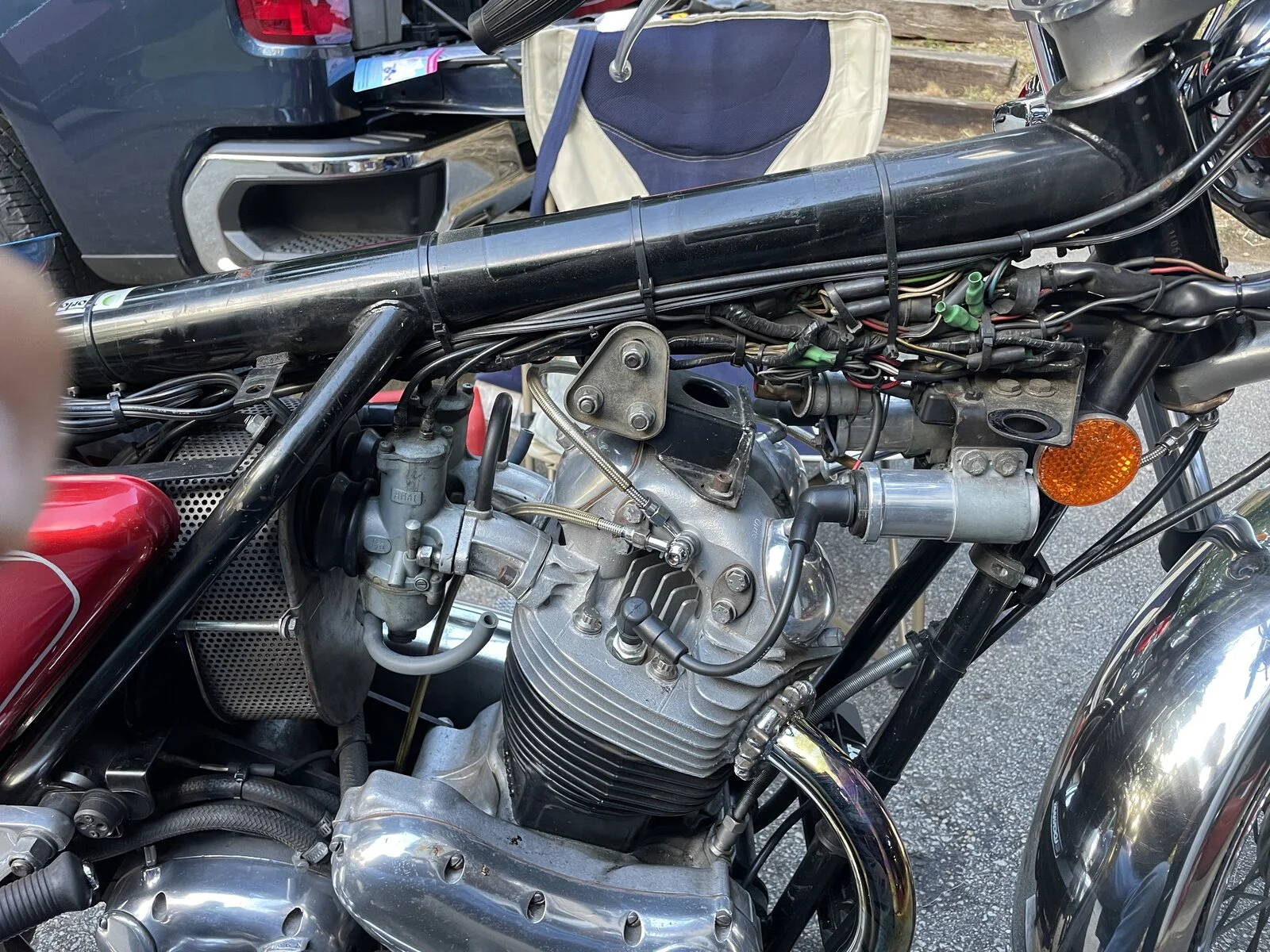

Works on many bikes, did it again here:



kommando

Joined

May 7, 2005

Messages

7,204

• May 30, 2024

• #7

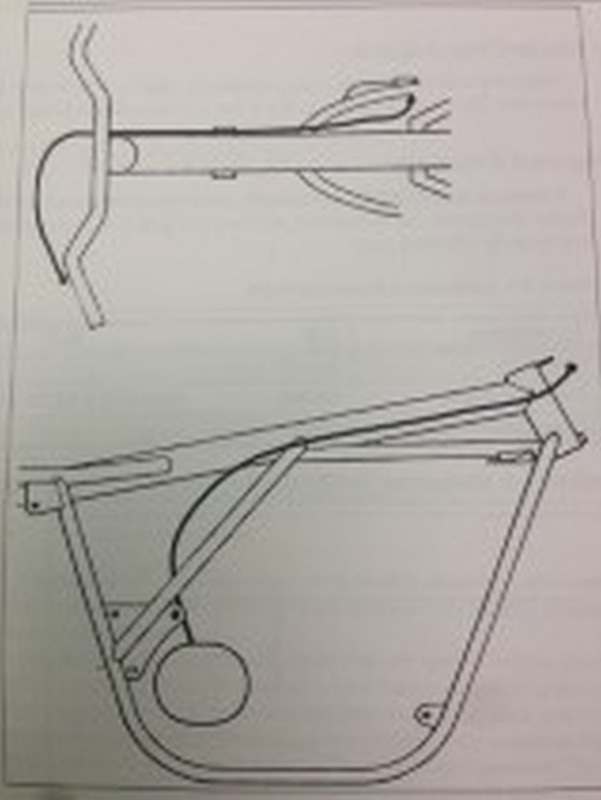

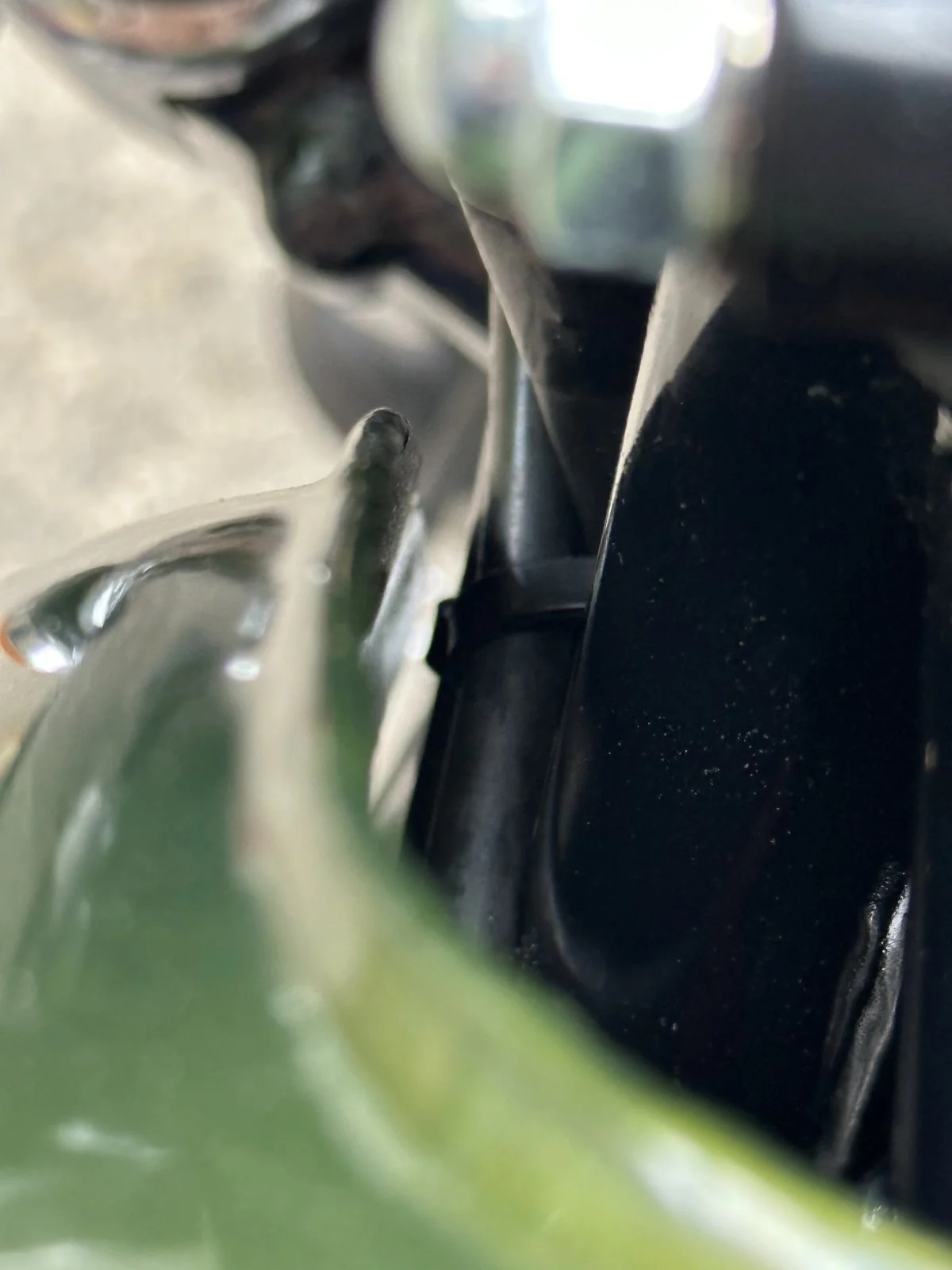

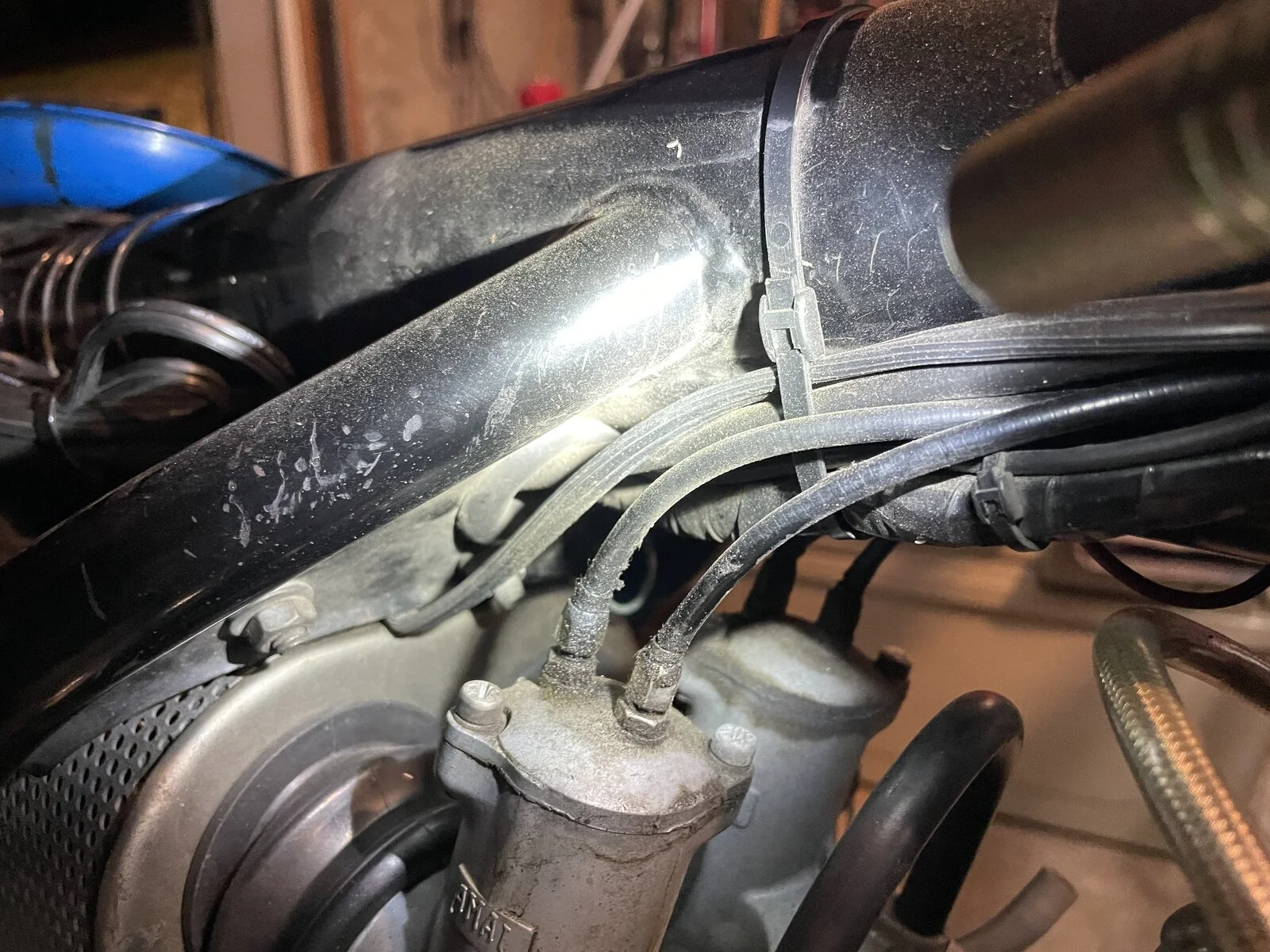

Dynodave's diagram of clutch cable routing, mine does same and no ties other than one around the main spine to loosely restrain it and allow the tank to go over cleanly.



speirmoor

VIP MEMBER

Joined

Apr 11, 2010

Messages

1,766

• Nov 28, 2024

• #8

Has anyone got pix of the routing after the lever in and around the Headlight / Clocks area ?



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,475

• Nov 28, 2024

• #9

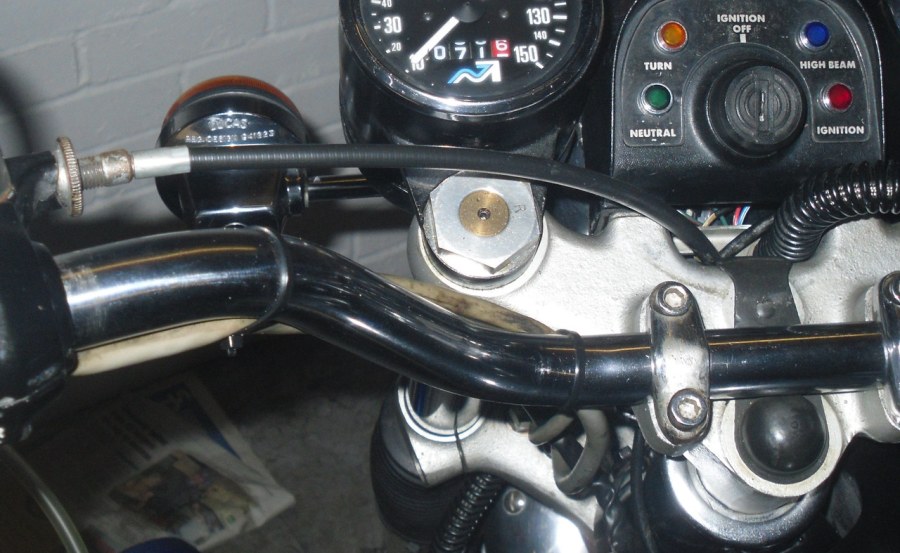

850 Mk3.



speirmoor

VIP MEMBER

Joined

Apr 11, 2010

Messages

1,766

• Nov 28, 2024

• #10

L.A.B. said:

850 Mk3.

Click to expand...

Great L.A.B Thanks
