Postie just delivered a 4 pack of these M18 Belleville washers.

Clutch Belleville Washer

It was so long ago that I ordered them I'd kinda forgotten I did :rolleyes: , there again, it was free postage from that country that does a lot of inexpensive manufacturing, so mustn't grumble.

I ordered them because when I fitted the clutch pushrod oil seal, I didn't have enough room for the clutch fixing washer...

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

...only the tab washer...

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

I'm off work and was planning to just go for a ride, but I'm tempted to break out the clutch spring compression tool and install the Belleville washer, just for piece of mind. I haven't noticed any issues just having the tab washer, but well, y'know.

What say the panel?

Please disregard the above 👆

It appears the M18 Belleville washers I ordered ages ago are a fitment option for when the Alton goes in, not the clutch.

Sigh. Of all the things I've lost, its my memory I miss the most :rolleyes:

I have a push rod seal on the end of the mainshaft...and have room for this washer that will not ever unintentionally come undone...no need for loctite or a lock tab washer or top washer...I think ? 🤔
I have mentioned/reccomended this before....Nord-Lock washers....for piece of mind...they are the shit...👍
www.nord-lock.com

Nord-Lock Washers

Wedge-locking security for bolted joints subjected to extreme vibration and dynamic loads.
www.nord-lock.com www.nord-lock.com


Attachments

  • Clutch Belleville Washer
    109.9 KB · Views: 154
Bonzo said:
Postie just delivered a 4 pack of these M18 Belleville washers.

Clutch Belleville Washer

It was so long ago that I ordered them I'd kinda forgotten I did :rolleyes: , there again, it was free postage from that country that does a lot of inexpensive manufacturing, so mustn't grumble.

I ordered them because when I fitted the clutch pushrod oil seal, I didn't have enough room for the clutch fixing washer...

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

...only the tab washer...

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

I'm off work and was planning to just go for a ride, but I'm tempted to break out the clutch spring compression tool and install the Belleville washer, just for piece of mind. I haven't noticed any issues just having the tab washer, but well, y'know.

What say the panel?
Click to expand...
There has been some discussion here on Belleville clutch washers, I learned (here and the hard way ;-) that they don't serve well as lockwashers, my clutch came loose but I haven't had any problems since I also used blue threadlocker along with the washer. The problem with the tab washer in my experience is that being soft (of necessity) they get thin under pressure and then the clutch nut gets loose.

I've lost count on the amount of times I've seen/heard of this common issue/ problem...bugger having to carry a clutch spring compressor ...in the case of "just n case"
No comment on the Belleville washer...never bothered/tried...but would have to be better than the stock set up...

Bonzo said:
Postie just delivered a 4 pack of these M18 Belleville washers.

Clutch Belleville Washer

It was so long ago that I ordered them I'd kinda forgotten I did :rolleyes: , there again, it was free postage from that country that does a lot of inexpensive manufacturing, so mustn't grumble.

I ordered them because when I fitted the clutch pushrod oil seal, I didn't have enough room for the clutch fixing washer...

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

...only the tab washer...

andover-norton.co.uk

Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts

Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk

I'm off work and was planning to just go for a ride, but I'm tempted to break out the clutch spring compression tool and install the Belleville washer, just for piece of mind. I haven't noticed any issues just having the tab washer, but well, y'know.

What say the panel?
Click to expand...

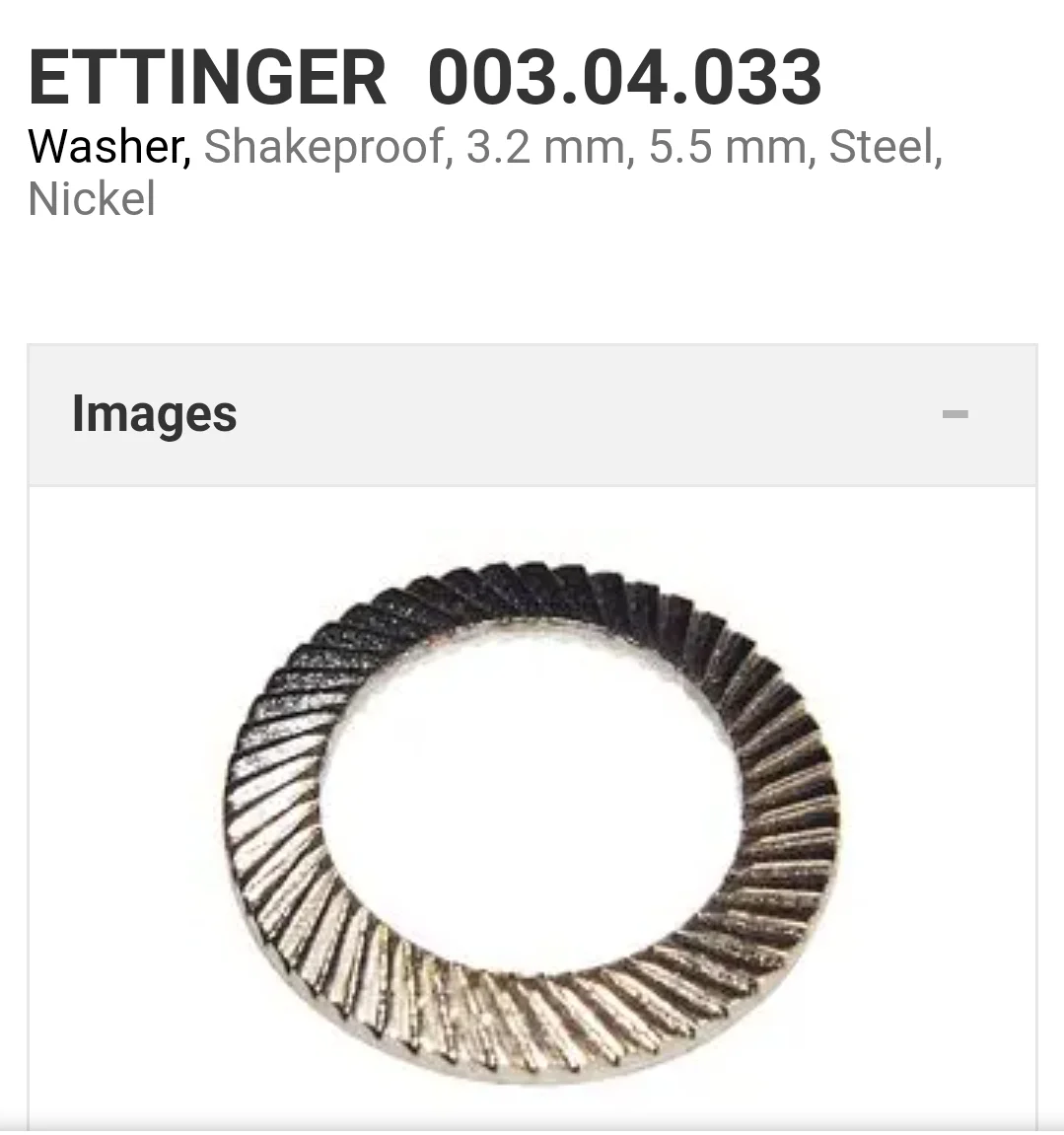

Open further review 👀 the Asian branded lock washers look... not to bad....this is all I could find in English
"Shake proof washer"
Wedge lock type...cuts it for me


Attachments

  • Clutch Belleville Washer
    44.9 KB · Views: 128
Last edited:
If you want a washer that really locks things up, you need Nord Locks.

However, they are two piece, so rather thick for the clutch application.

(Blue Loctite!)

SteveA said:
If you want a washer that really locks things up, you need Nord Locks.

However, they are two piece, so rather thick for the clutch application.

(Blue Loctite!)
Click to expand...

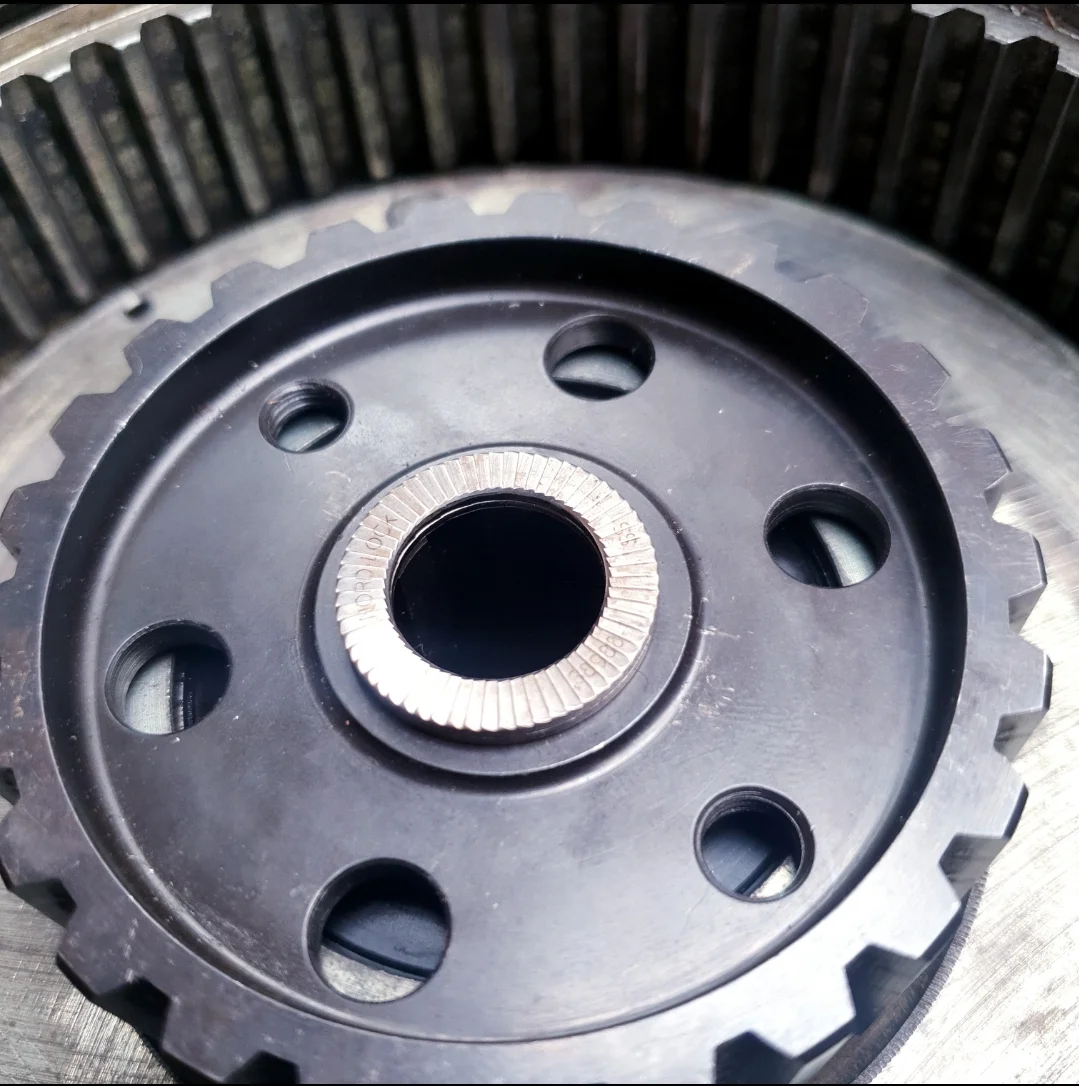

I was slightly skeptical prior to using them ... but everything fitted up just fine ..including a push rod seal...


Attachments

  • Clutch Belleville Washer
    143.4 KB · Views: 137
KiwiShane said:
I was slightly skeptical prior to using them ... but everything fitted up just fine ..including a push rod seal...
Click to expand...
Here's one of my off topic comments. Feel free to shoot the messenger

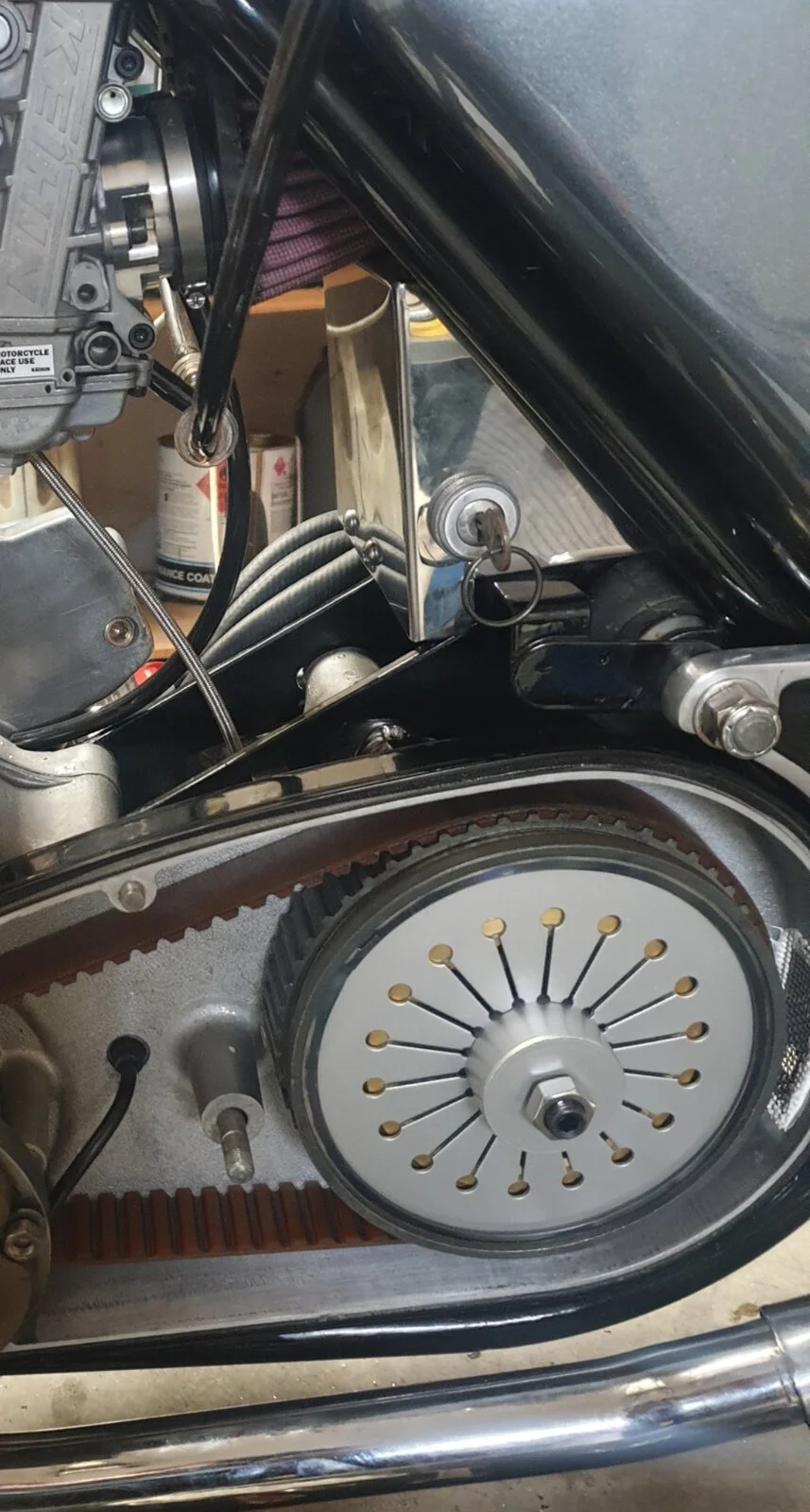

That looks like an RGM clutch. You like? I'm really on the fence about mine after some more use.

Bonzo said:
Postie just delivered a 4 pack of these M18 Belleville washers.

Clutch Belleville Washer


What say the panel?
Click to expand...

Back on topic. I don't consider myself qualified to be on the panel, but it doesn't stop me from typing. I would use one of the washers shown, but my nut torque spec is a little higher on a pre-Commando mainshaft. I am currently foolishly relying on the tab washer and 65ft lbs of torque. I'm also even more foolishly using the RGM clutch rod seal nut to hold the clutch on the mainshaft. Bombs away.

Just fitted M16 Nord Locks to mine after the nut came loose 15mi from home.

Its not the perfect solution as these washers need more torque according to the specs on their website which cannot be achieved with against the clutch basket circlip which can only safely take 30-40ftlbs.

Reading their website the Nord Locks don't work well against hardened surfaces such as the hardened clutch centre, but must be a better solution than the soft locking tab washer.

It was an interesting ride home at 20mph or less, with the clutch basket being held in place by the rotating belt. I didn't change out of second all the way and was lucky to not encounter any red stop lights on the journey home.

Schwany said:
Here's one of my off topic comments. Feel free to shoot the messenger

That looks like an RGM clutch. You like? I'm really on the fence about mine after some more use.



Back on topic. I don't consider myself qualified to be on the panel, but it doesn't stop me from typing. I would use one of the washers shown, but my nut torque spec is a little higher on a pre-Commando mainshaft. I am currently foolishly relying on the tab washer and 65ft lbs of torque. I'm also even more foolishly using the RGM clutch rod seal nut to hold the clutch on the mainshaft. Bombs away.
Click to expand...
You are all good and no fool mate...my clutch is a bitza...RGM alloy pressure plate...Barnett fiction plates...CNW clutch centre...can't remember the brand of the original maker of the belt ...but the kit but was purchased in 1989-90 ...the times I've personally seen/fixed up these nuts that have come loose was after 3-4 hours ride/use away from home (not convenient)....ive used ring spanners and river stones to remove that diaphragm spring so we could tighten things up again for a mate in need on the side of the road years ago....and yes its happened to me twice over the years....
