Brake Drum Hub

Chester · Apr 30, 2010

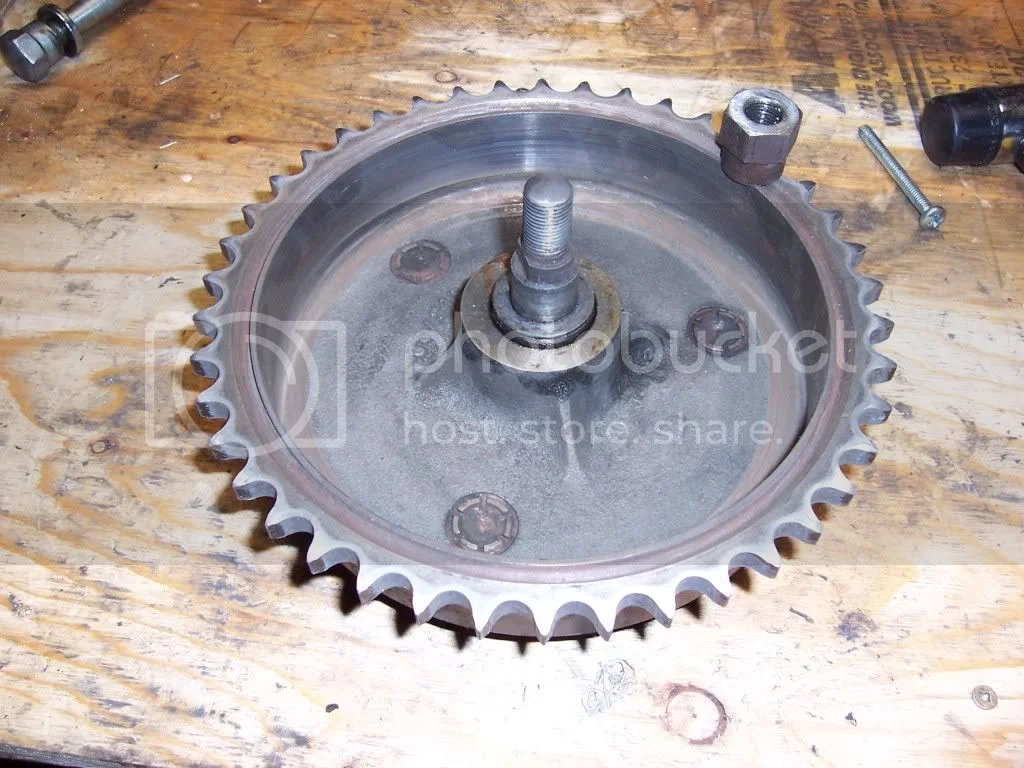

Hopefully this picture will work - first time using photobucket

Does one just pound on the dummy axle (with the axle nut threaded on) to knock the bearing out the other side?

I've been hammering it pretty hard and I'm worried I might end up breaking something...

Thanks!

Ron L · Apr 30, 2010

Did you remove the circlip on the other side of the brake drum? It is under the dished felt retainer, the felt, and the washer.

Chester · May 1, 2010

Thanks Ron.
I can't see a circlip in my drawings, but that must be it.
I'm going to give that a whirl right now!

pete.v · May 1, 2010

Part #47

http://www.oldbritts.com/1972_g17.html

swooshdave · May 1, 2010

When you do get it out can you post a pic of the parts in the order they came out?

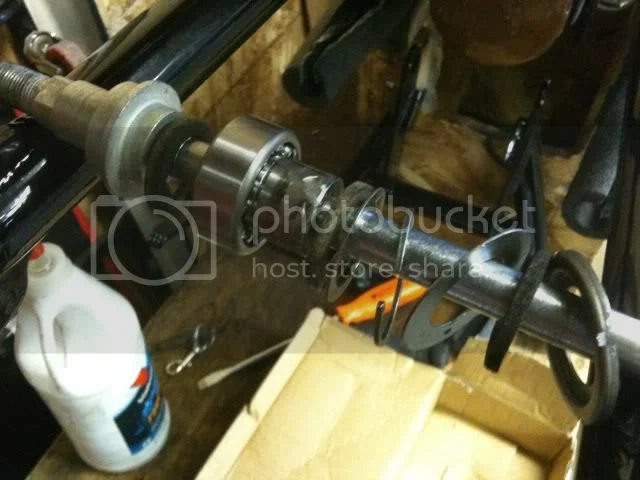

Here's how I think they are suppose to be. Can you confirm?

rx7171 · May 1, 2010

Chester said:
Hopefully this picture will work - first time using photobucket

Does one just pound on the dummy axle (with the axle nut threaded on) to knock the bearing out the other side?

I've been hammering it pretty hard and I'm worried I might end up breaking something...

Thanks!

I'm having problem with chain rubbing chain guard.
In looking at the picture of the brake drum it looks like there is a washer on the axel.
I don't see a washer in my parts book, but the lack of one could explain my chain rubbing problem.
Is there a washer?

Thanks
Bob

nortonspeed · May 2, 2010

rx7171 said:
Is there a washer?

Thanks
Bob

Yes there should be a flat washer.
